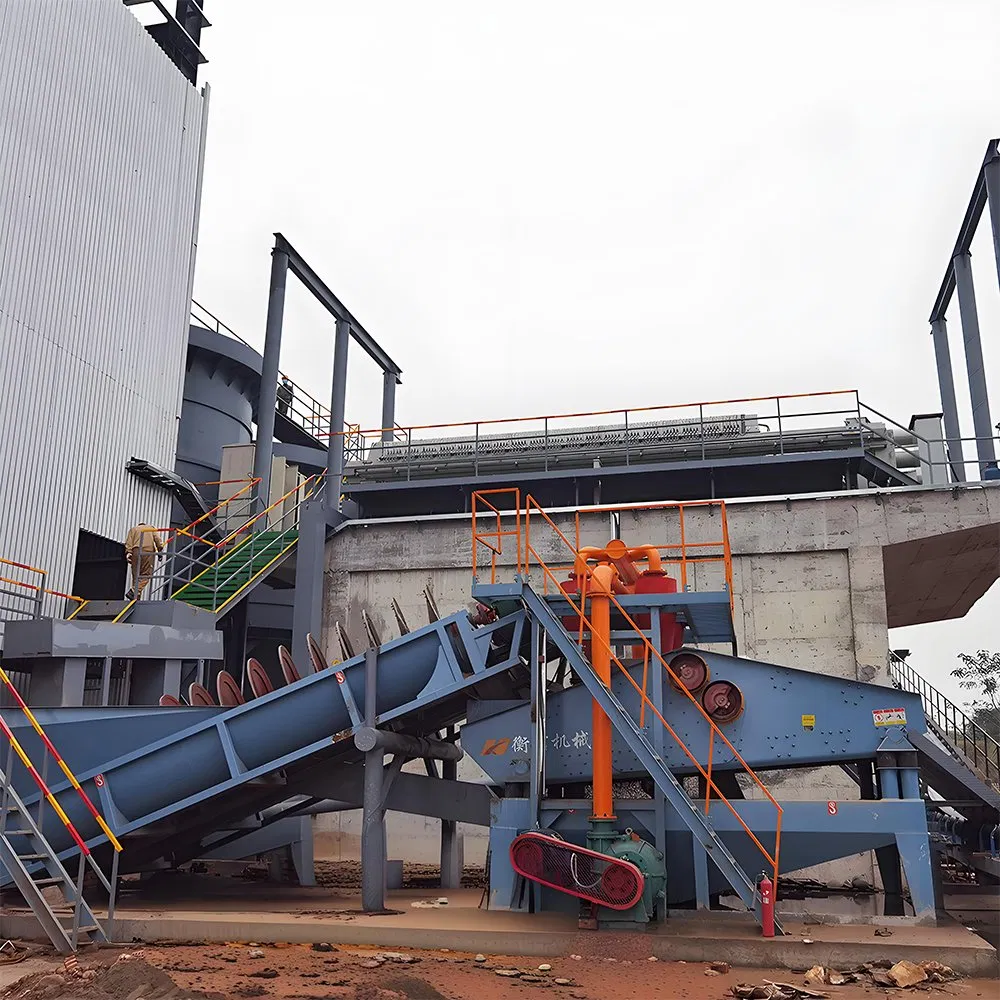

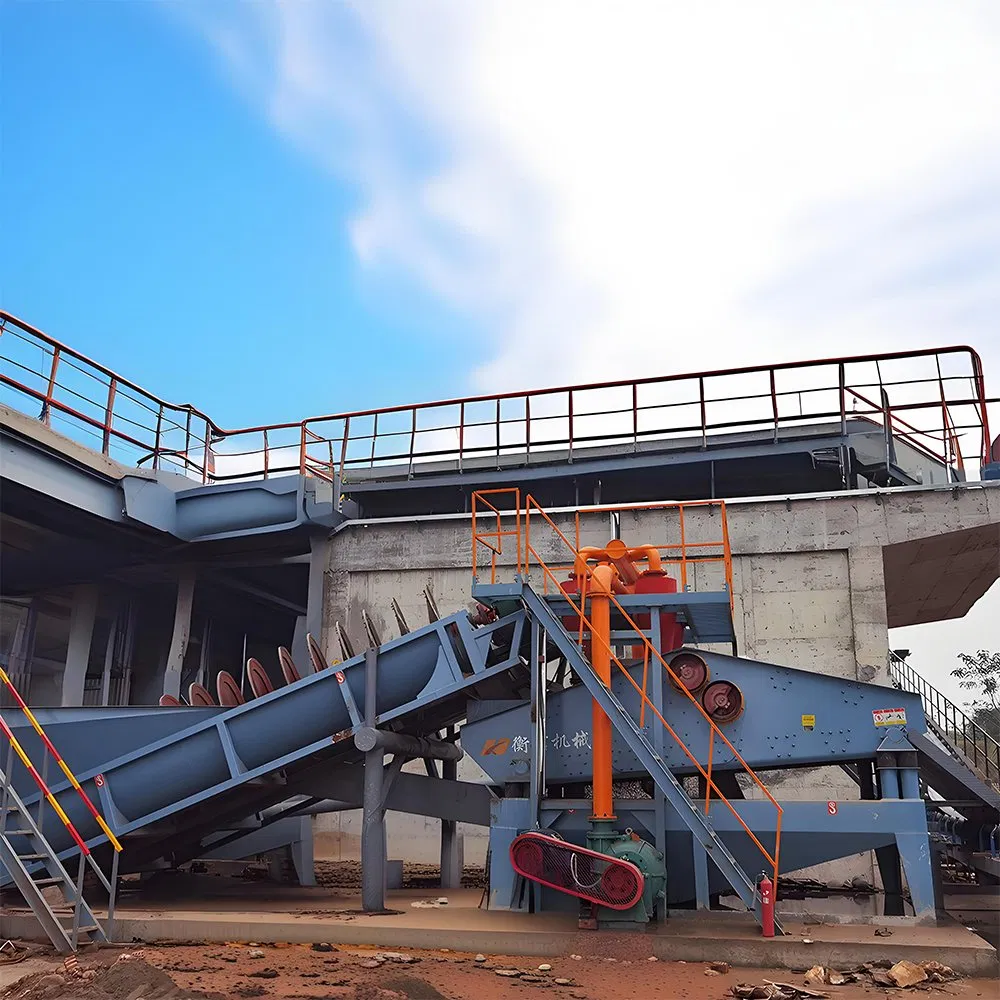

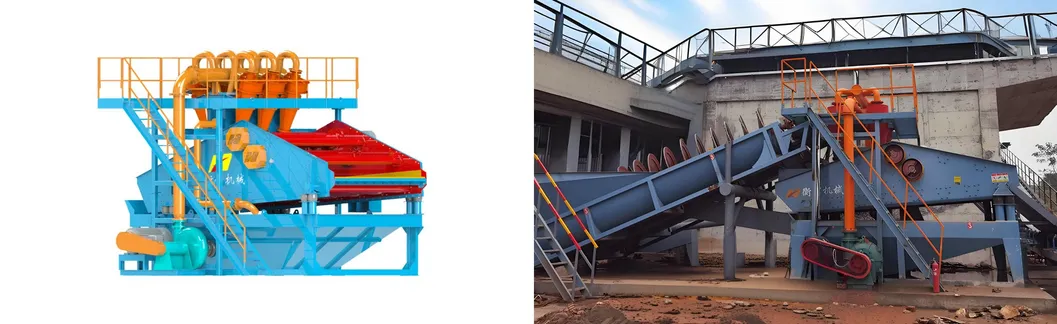

Our integrated cyclone-dewatering screen system combines a high-efficiency hydrocyclone with a robust dewatering screen and a powerful slurry pump. It is widely used in industries such as sand processing, mining, aggregate production, coal preparation, and mineral beneficiation, where recovery of fine materials and water removal is essential.

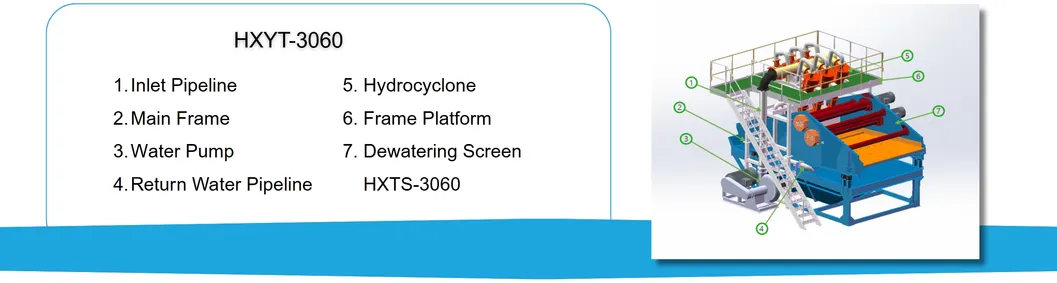

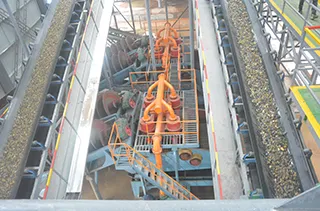

The sand-water mixture enters the screen box where coarse particles settle. Fine particles and muddy water overflow into a tank and are pumped into the cyclone for centrifugal separation. Recovered fine sand is discharged through the underflow nozzle and distributed onto the screen for final dewatering alongside the coarse sand. This system ensures high recovery efficiency and improved product quality.
| Model | Output (mm) | Pump (m³/h) | Capacity (t/h) | Pump Motor Power (kw) | Vibrating Power (kw) |
|---|---|---|---|---|---|
| HXYT2455 | 30-70 | 400/600 | 80-180 | 55/90 | 11kw*2 |
| HXYT3060 | 30-70 | 400/600 | 100-225 | 55/90 | 18.5kw*2 |
Remark: The table shows partial models. For additional models or customized solutions, please contact us.
It is designed to recover fine sand (0.075-0.16mm) that is typically lost during the traditional sand washing process, increasing total output and reducing pond sedimentation.
Stock items take 7-10 days. Mass production for equipment typically requires 20-30 days, depending on the specific model and customization requirements.
We typically accept T/T with a standard term of 50% deposit and 50% balance payment before delivery.
The product comes with a one-year warranty from the date of delivery. Spare parts are provided at cost price after the warranty period.
Yes, we provide fully customized solutions, including EPC and turnkey services, tailored to your material type, capacity needs, and site layout.
No, the system is built with wear-resistant components and standard high-quality motors, designed for long-term operation with minimal maintenance required.
