Mining Hydrocyclone Plant Cyclone Slurry Dewatering System for Coal Preparation Plants
Efficient Fines Recovery • Reliable Dewatering • Compact Design

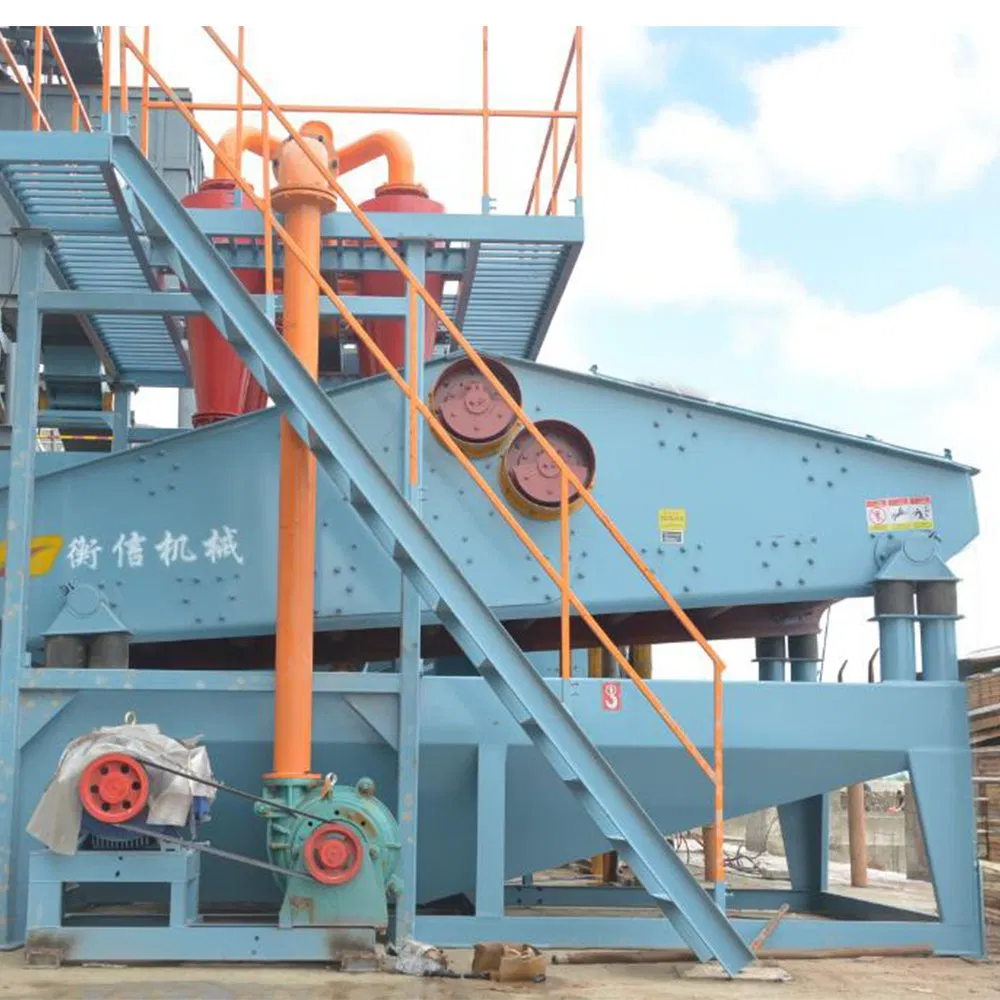

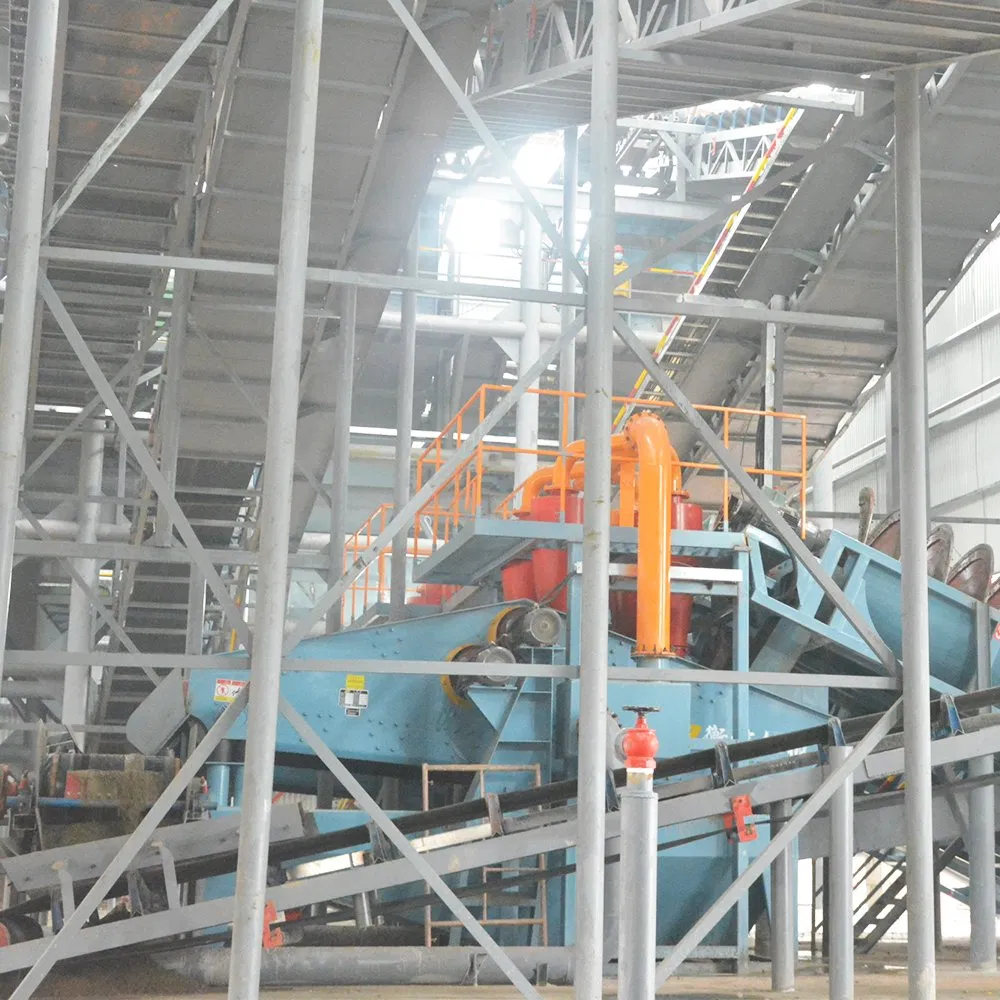

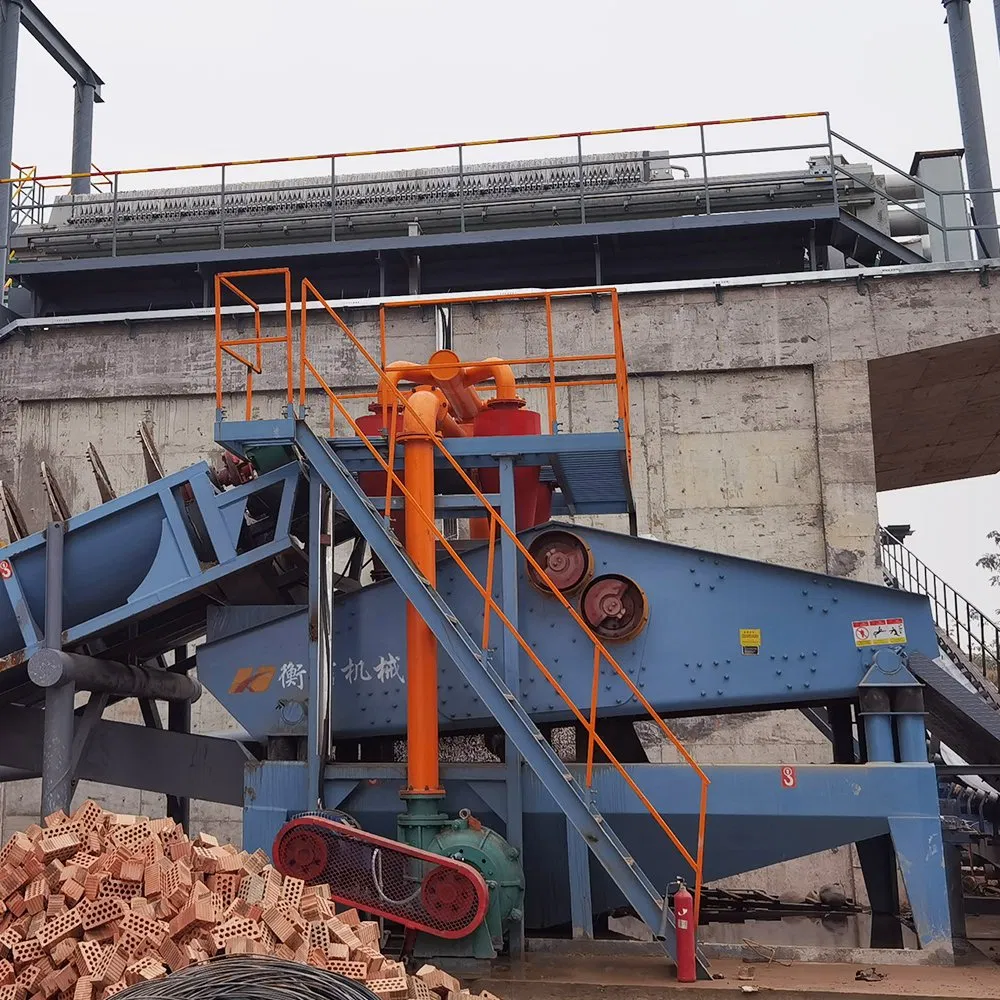

The integrated cyclone-dewatering screen system combines a high-efficiency hydrocyclone with a robust dewatering screen and a powerful slurry pump. It is widely used in sand processing, mining, aggregate production, coal preparation, and mineral beneficiation.

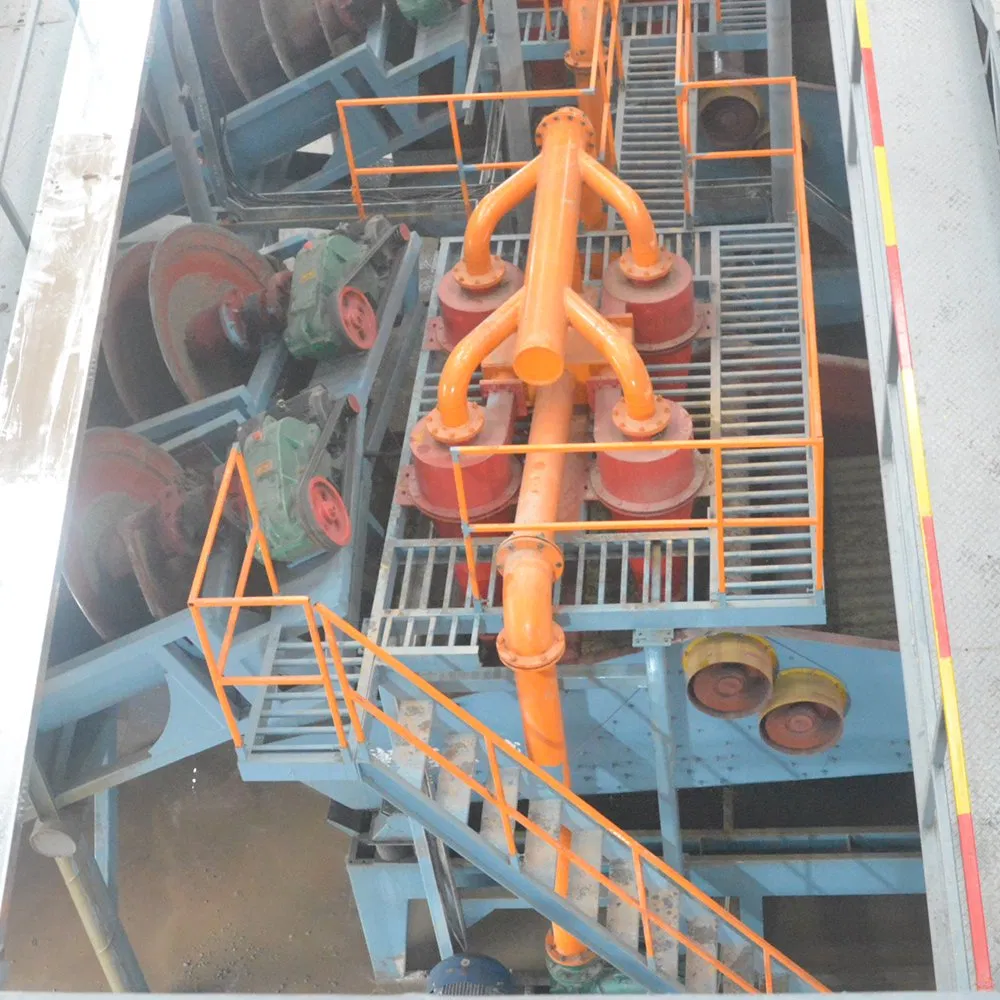

The system uses a cyclone cluster, dewatering screen, and slurry pump. The sand-water mixture enters the screen box for initial settling. Fine particles are pumped into the cyclone for centrifugal separation. Recovered fine sand is discharged through the underflow nozzle and distributed back onto the screen for final dewatering. This ensures high recovery efficiency and improved product quality.
Main Applications:
| Model | Output (mm) | Pump (m³/h) | Capacity (t/h) | Pump Motor (kw) | Power (kw) |
|---|---|---|---|---|---|
| HXYT2455 | 30-70 | 400/600 | 80-180 | 55/90 | 11kw*2 |
| HXYT3060 | 30-70 | 400/600 | 100-225 | 55/90 | 18.5kw*2 |
* Note: The table shows standard models. Customized solutions are available based on specific project requirements.
As a trusted Mining Machinery Manufacturer and System Solution Provider, we integrate R&D, design, manufacturing, and sales. We specialize in integrated system solutions, turnkey services, and EPC services for sand and aggregate production.
With standardized workshops over 10,000 square meters, our products include vibrating screens, dewatering screens, crushers, sand washers, and fine sand recovery systems. Our equipment is proven reliable and cost-efficient for global mining and infrastructure projects.
