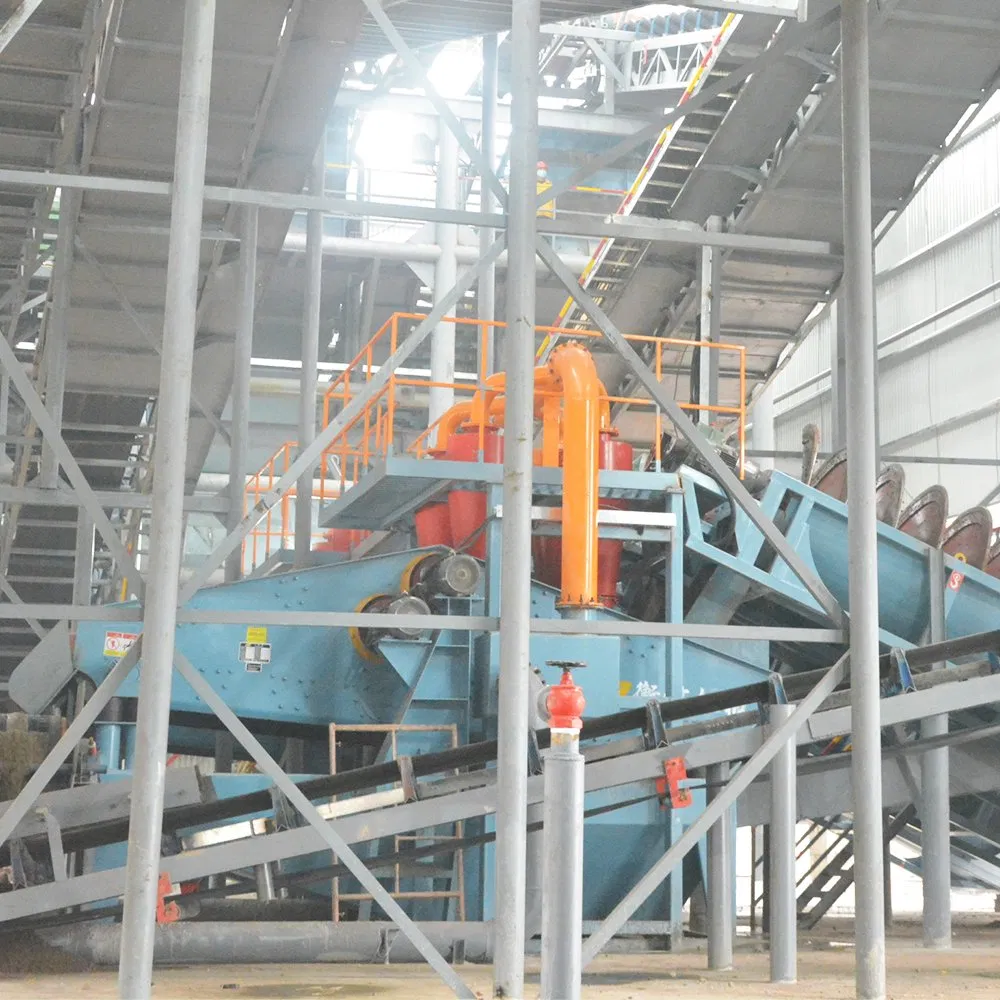

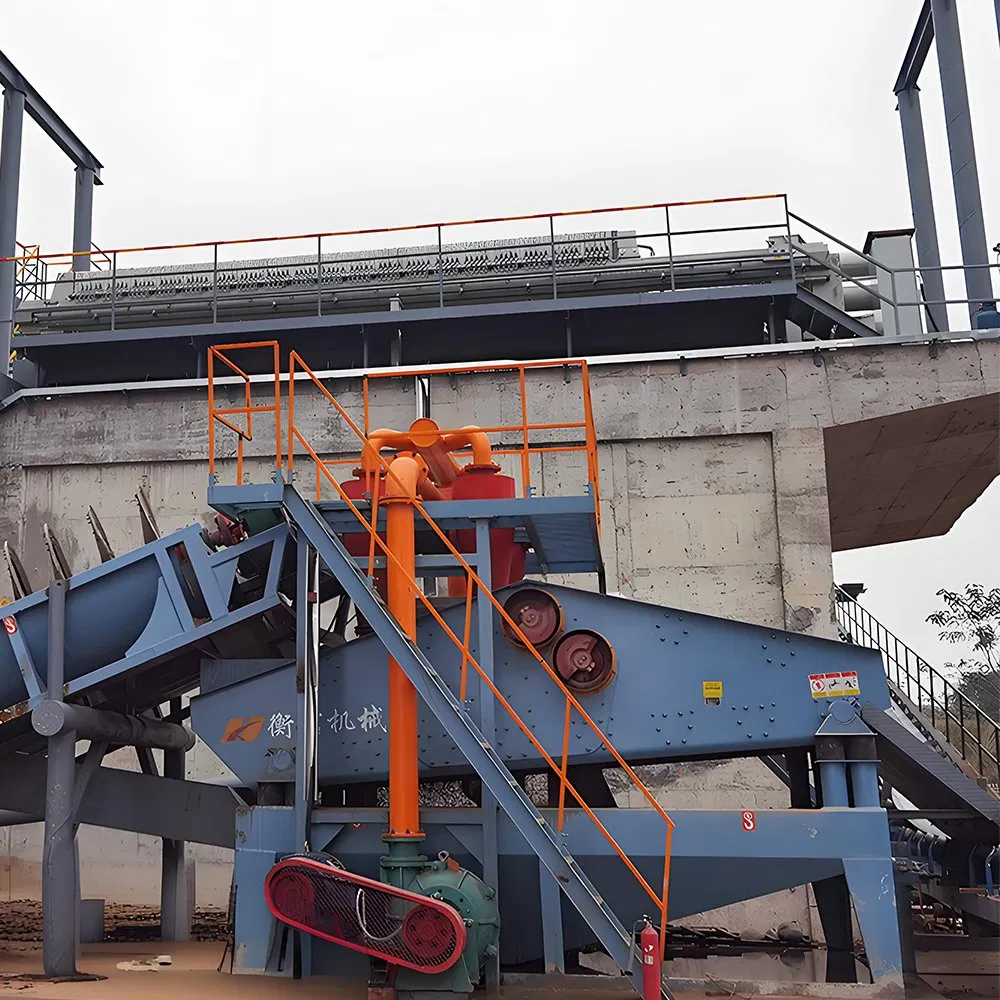

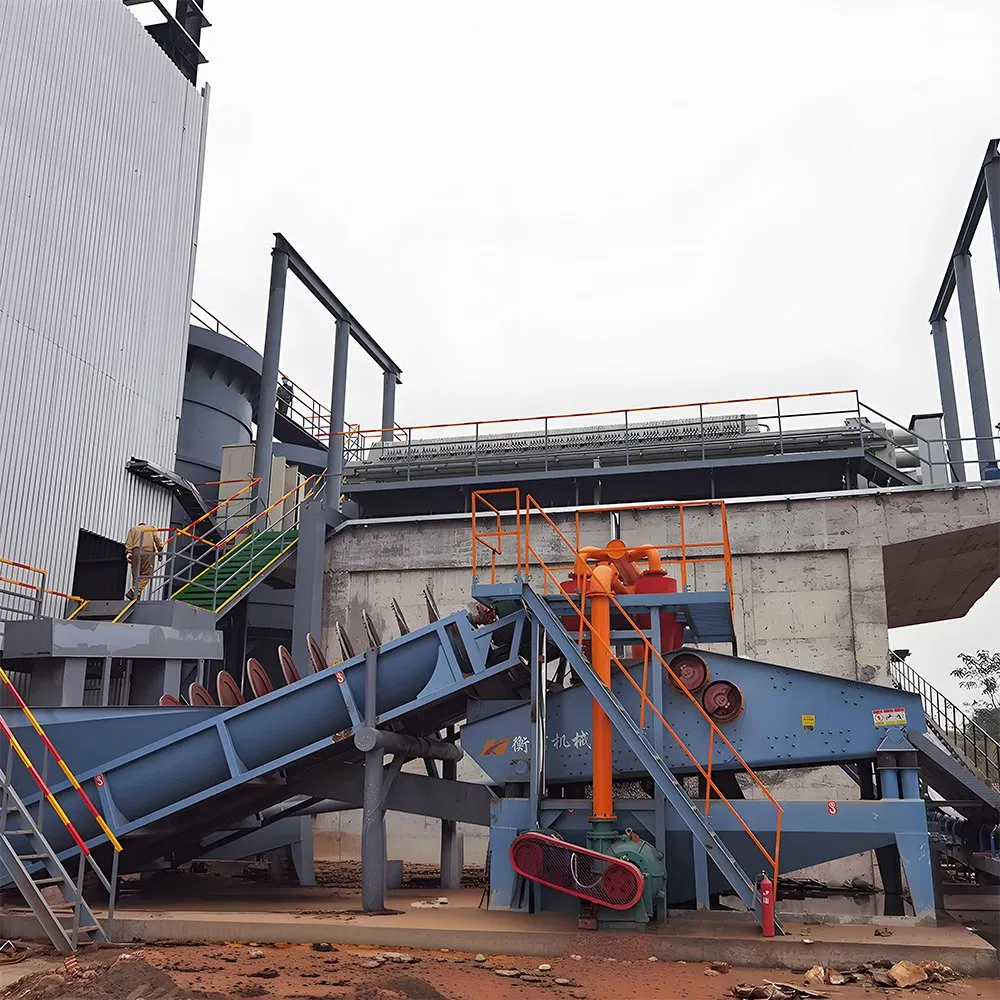

Our integrated cyclone-dewatering screen system combines a high-efficiency hydrocyclone with a robust dewatering screen and a powerful slurry pump. It is widely used in sand processing, mining, aggregate production, coal preparation, and mineral beneficiation, where recovery of fine materials and water removal is essential.

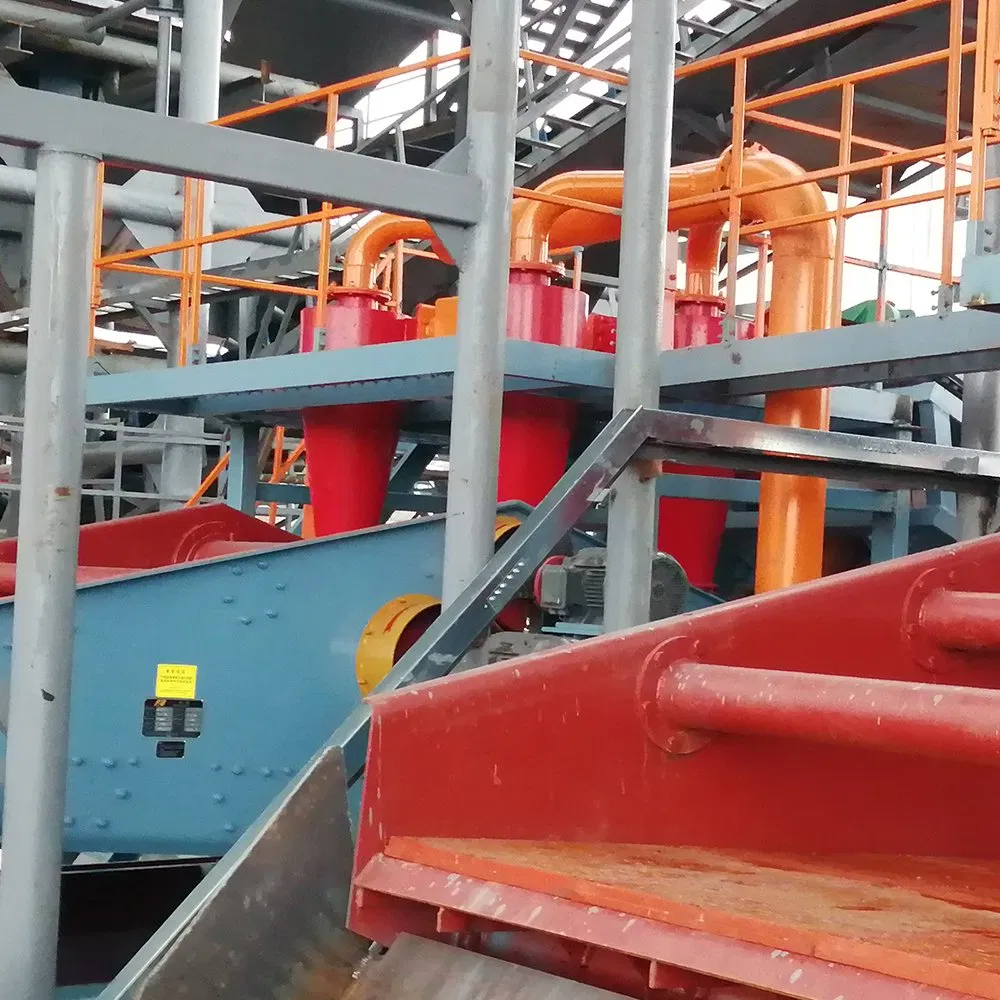

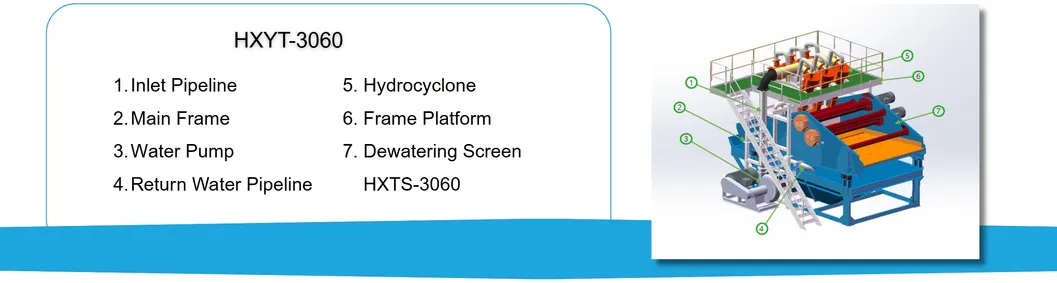

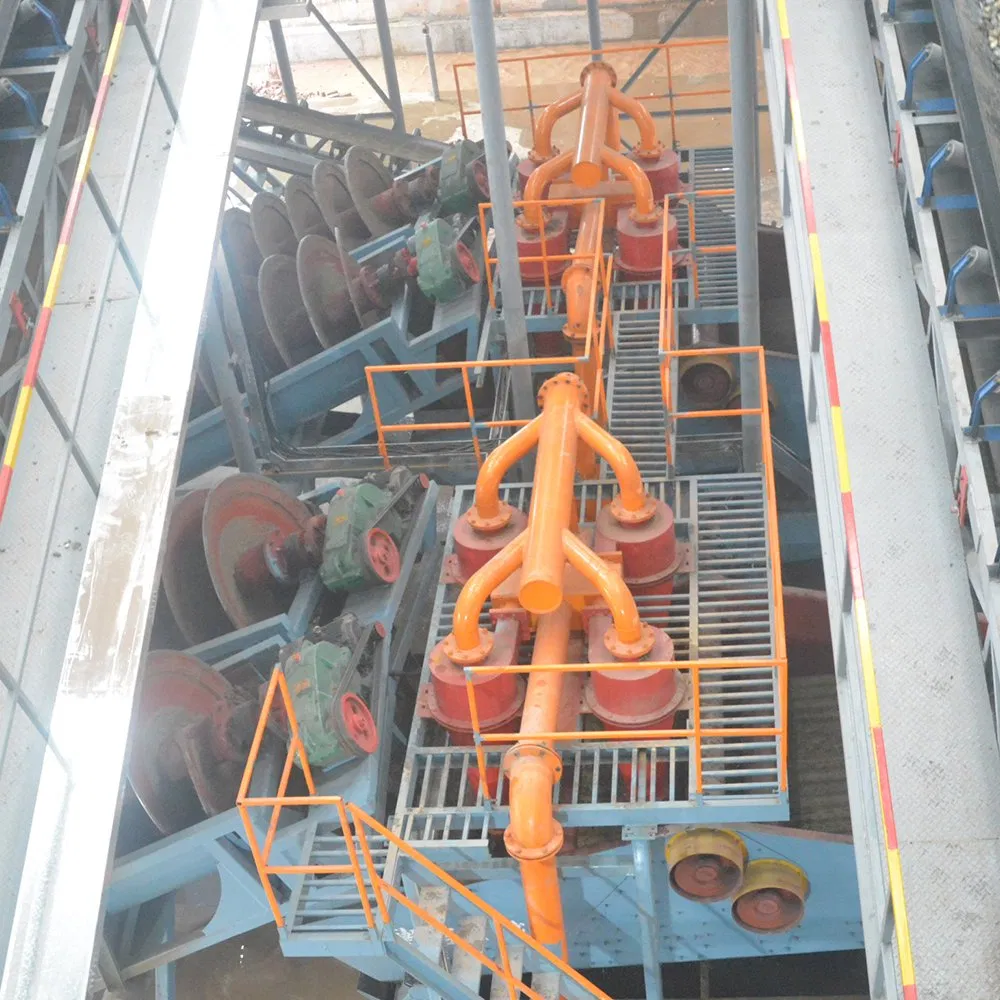

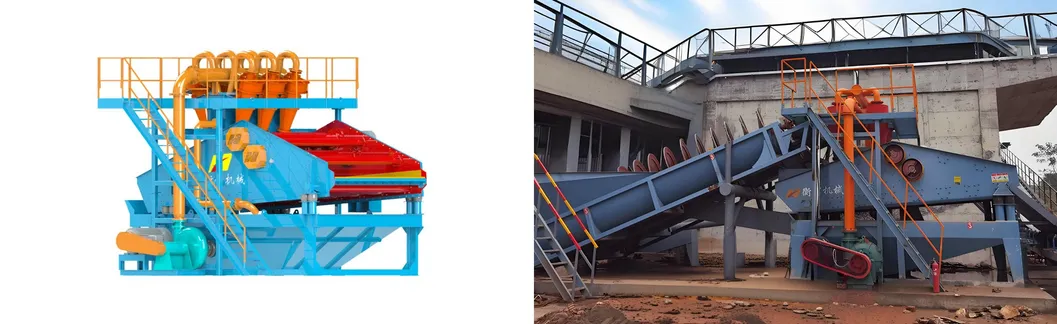

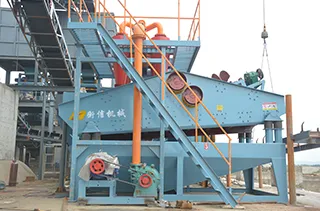

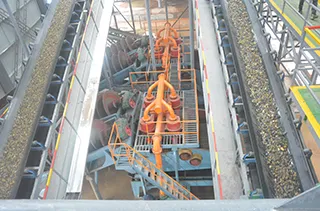

The system combines a cyclone cluster, a dewatering screen, and a slurry pump. The sand-water mixture enters the screen box where coarse sand settles. Fine particles are pumped into the cyclone for centrifugal separation. Recovered fine sand is discharged through the underflow nozzle back onto the screen for final dewatering. This ensures high recovery efficiency and improved product quality.
| Model | Output (mm) | Pump | Capacity (t/h) | Pump Motor Power (kw) | Power (kw) |
|---|---|---|---|---|---|
| HXYT2455 | 30-70 | 400m³/600m³ | 80-180 | 55/90 | 11kw*2 |
| HXYT3060 | 30-70 | 400m³/600m³ | 100-225 | 55/90 | 18.5kw*2 |
* Note: The table shows standard models. Customized solutions are available based on specific project requirements.
Our company is a trusted mining machinery manufacturer and system solution provider. We specialize in integrated systems for sand and aggregate production, including vibrating screens, dewatering screens, crushers, and sand washers.
