Advanced Underwater Explosion Impact Detection System for Safety

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

Product Name

High Frequency Vibration Monitor

Certification

ISO

IP Rating

IP67

Screen Size

3.5"

Channels

2CH

Sensor

2PCS

Measuring Medium

Blasting Vibration

SD Card Memory

32G

Record Time

0.5s/1s/2s/3s/4s

Mode

Manual, Single, Cycle

Customized

Supported

Product Description

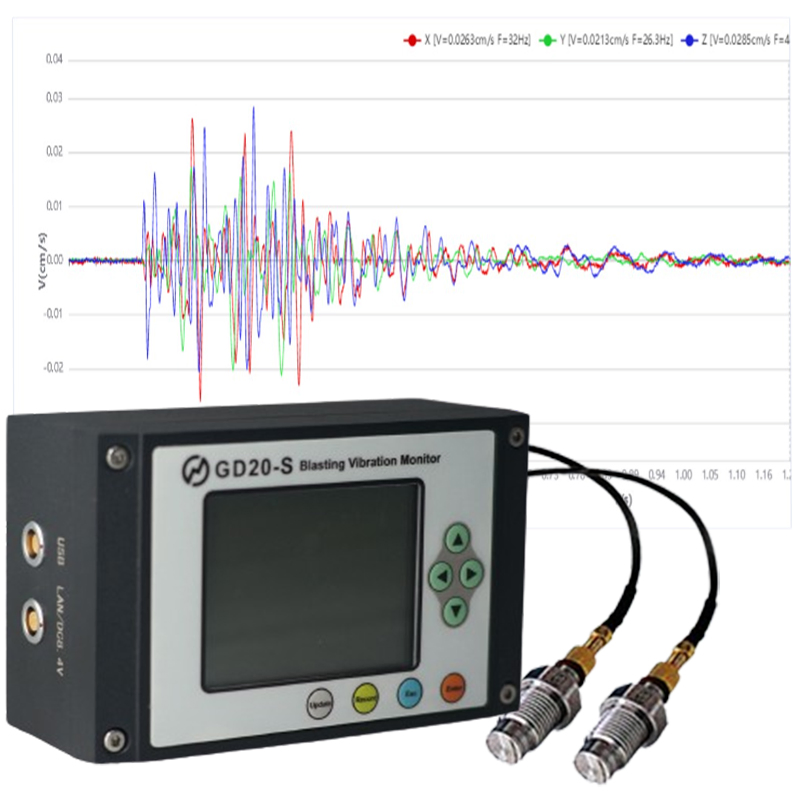

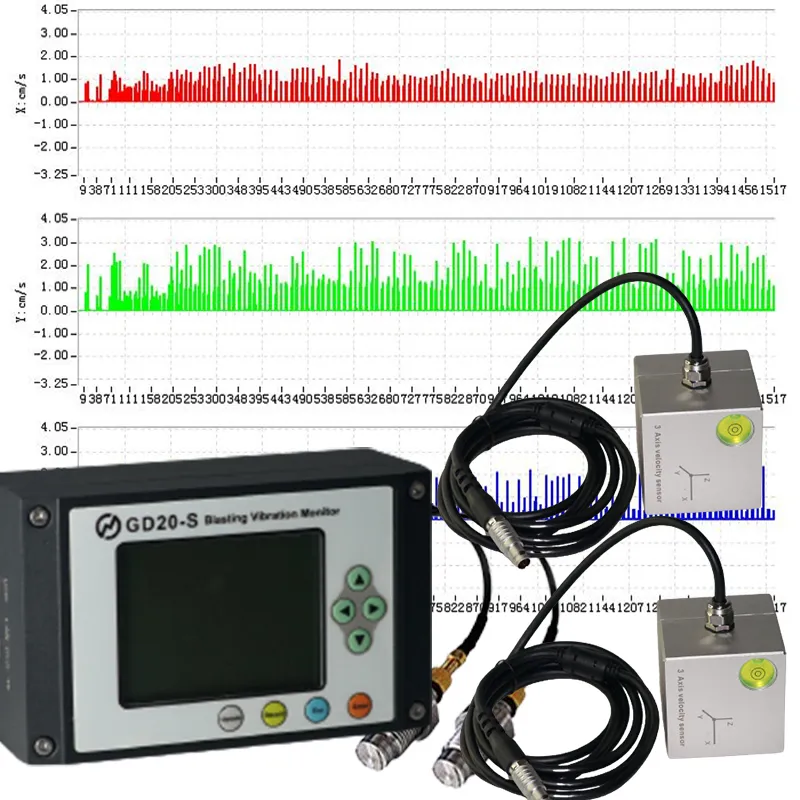

2 Channels Blast Safety Monitoring Equipment | Underwater Explosion Impact Analyzer | Air Shock Wave Detection System

Dual Independent Channels: Supports ultra-high sampling frequencies up to 20 MHz with a precision sampling interval of 0.05 μs, ensuring precise capture of transient shock signals.
Advanced Signal Recognition: Capable of identifying and logging microseconds-duration explosions or mechanical shocks.
Integrated Onboard Processing: Equipped with an embedded microcomputer and high-capacity aluminum battery pack for autonomous field operation.
Field-Adaptive Design: Ideal for mining, demolition, and industrial safety inspections without needing external power.

Primary Applications:

• Air Shock Wave Detection: Safety assessment for open-pit blasting near buildings, facilities, and personnel.

• Underwater Shock Wave Detection: Evaluation of subaqueous blasting impacts on adjacent structures and aquaculture areas.

• Explosive Shock Wave Detection: Power testing for large-scale warheads and quantitative analysis of destructive effects.

Technical Specifications

Accuracy: ±5%

Sampling frequency: 1Msps / 2Msps / 5Msps / 10M / 20Msps

Recording mode: manual, single, cycle

Trigger level: 1%~100%, multiple levels can be set

Recording time: 0.5s / 1s / 2s / 3s / 4s

Storage capacity: 400 files with a duration of 4 seconds

Dimensions and weight: 175mm * 108mm * 72mm, 1.28kg

User interface: 3.5-inch LCD screen, characteristic value, waveform display

Battery power: 7.4V lithium battery, continuous work for 3 days

Use environment: -35 to 60 ºC, 90% RH

Protection level: IP57 / IP67

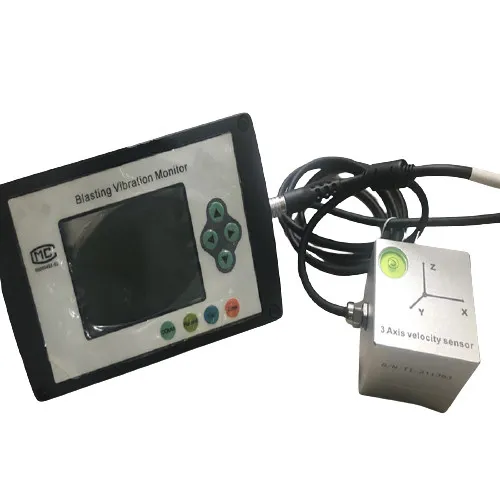

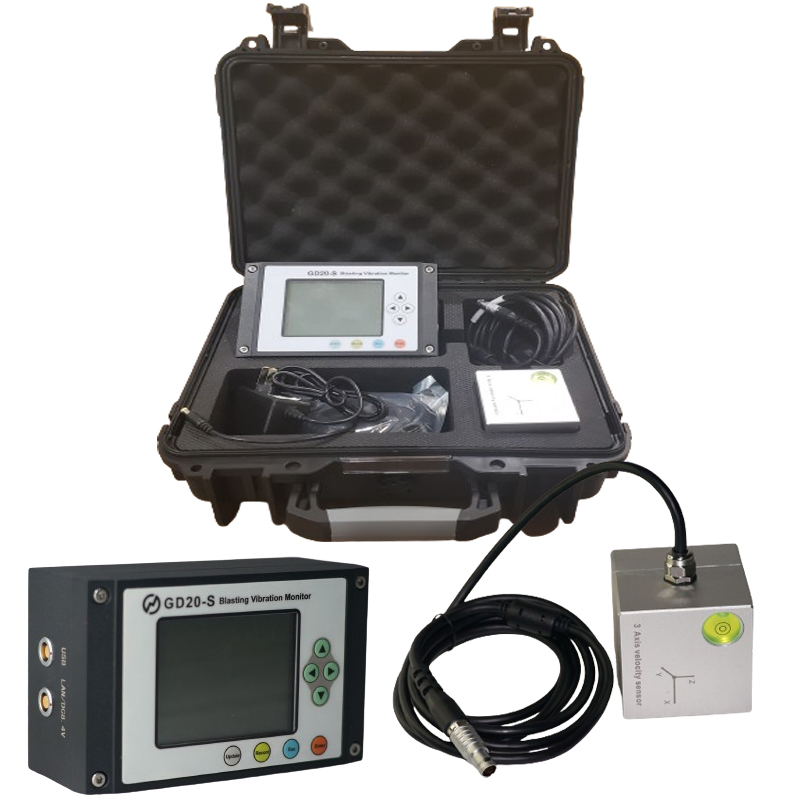

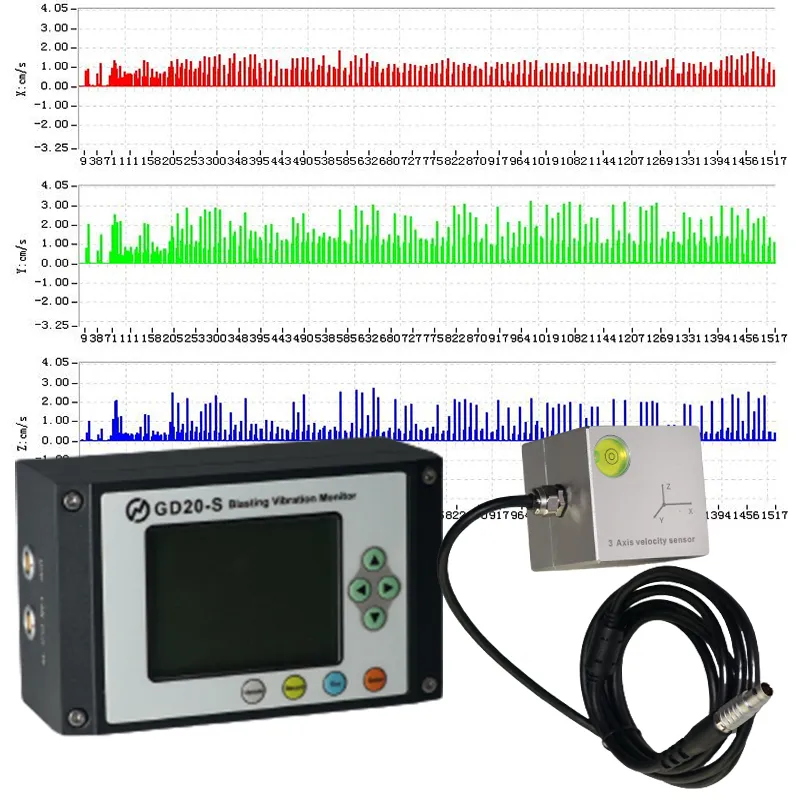

Detailed Product Gallery

Frequently Asked Questions

What is the maximum sampling frequency of this vibration monitor?

The device supports ultra-high sampling frequencies up to 20 MHz (20Msps), allowing for precise capture of extremely fast transient signals.

How long can the device operate on a single charge?

Equipped with a 7.4V lithium battery pack, the monitor can operate continuously for up to 3 days in the field.

Is the equipment suitable for harsh outdoor environments?

Yes, it features an IP67/IP57 protection rating and is designed to operate in temperatures ranging from -35ºC to 60ºC with up to 90% humidity.

What types of blasting can this system monitor?

It is versatile enough for air shock wave detection in open-pit mining, underwater shock wave evaluation for subaqueous construction, and explosive power testing for industrial or defense applications.

How many recording channels are available?

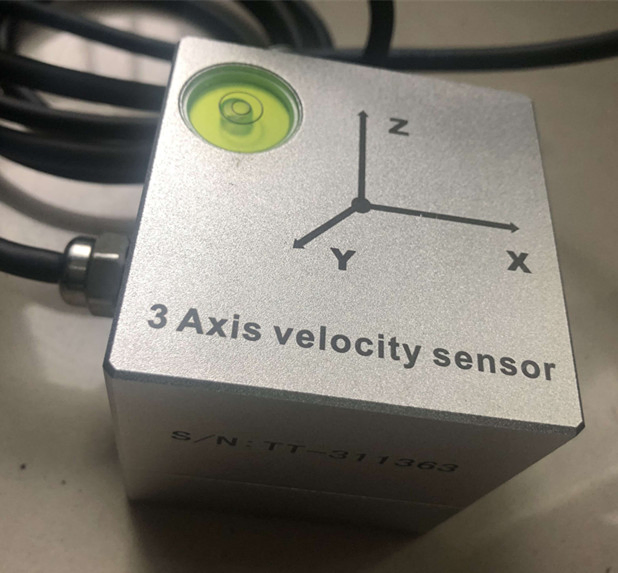

The system features 2 independent channels (2CH) and includes 2 sensors for comprehensive data collection.

What is the data storage capacity?

The device comes with a 32G SD card and can store approximately 400 individual record files, each with a duration of up to 4 seconds.
