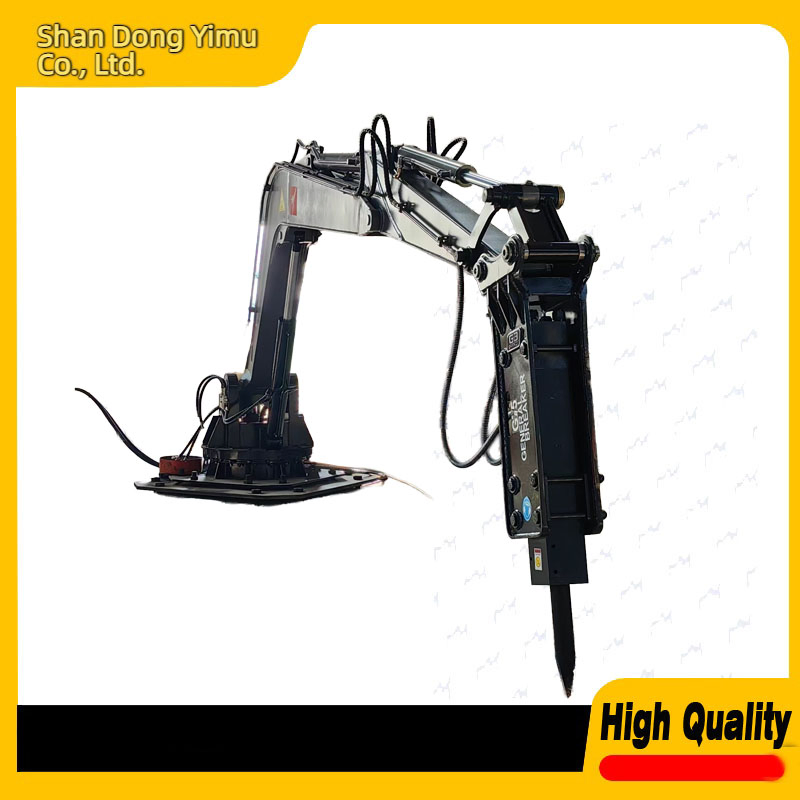

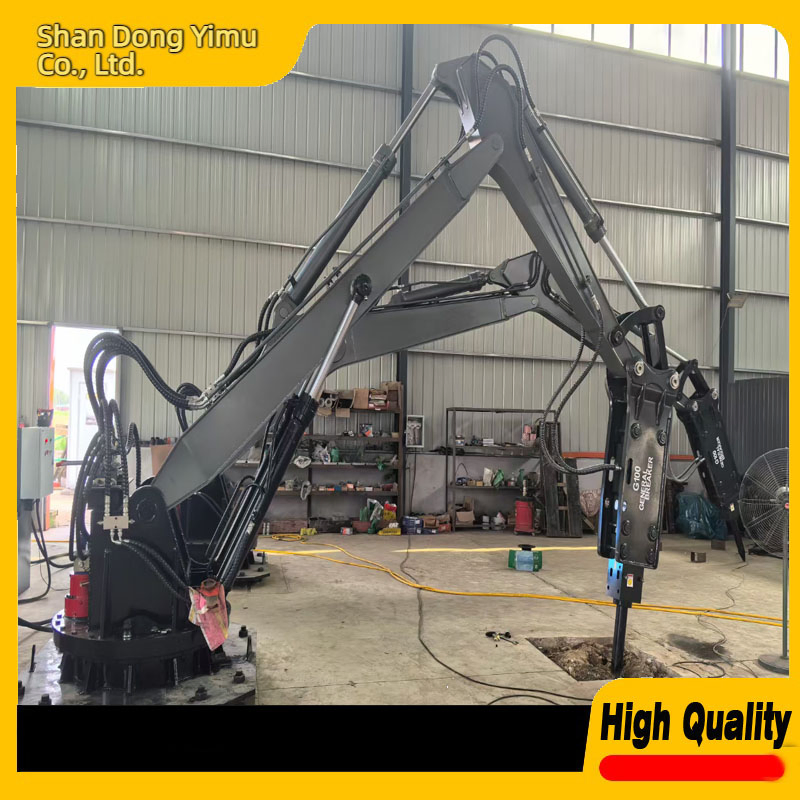

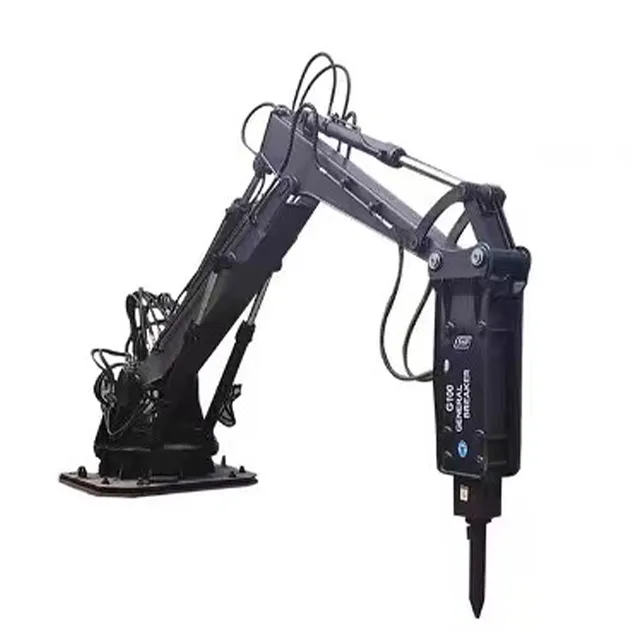

Fixed Pedestal Mining Hydraulic Breaker Boom System

1 / 5

Fixed Pedestal Mining Hydraulic Breaker Boom System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.:YMSW-0107

Motor Power:75kw

Application:Mining, Quarry, Construction Waste

Materials:Ore, Rock, Concrete

Outlet Size:500mm

Inlet Size:600×900mm

Condition:New

Warranty:1 Year

Max Breaking Force:1200 J

Working Radius:6 M

Max Breaking Height:8 M

System Pressure:16 MPa

Flow Rate:150 L/Min

Control Method:Remote / Wired Control

Net Weight:5,000 Kg

Certification:CE, ISO9001

★

Product Description

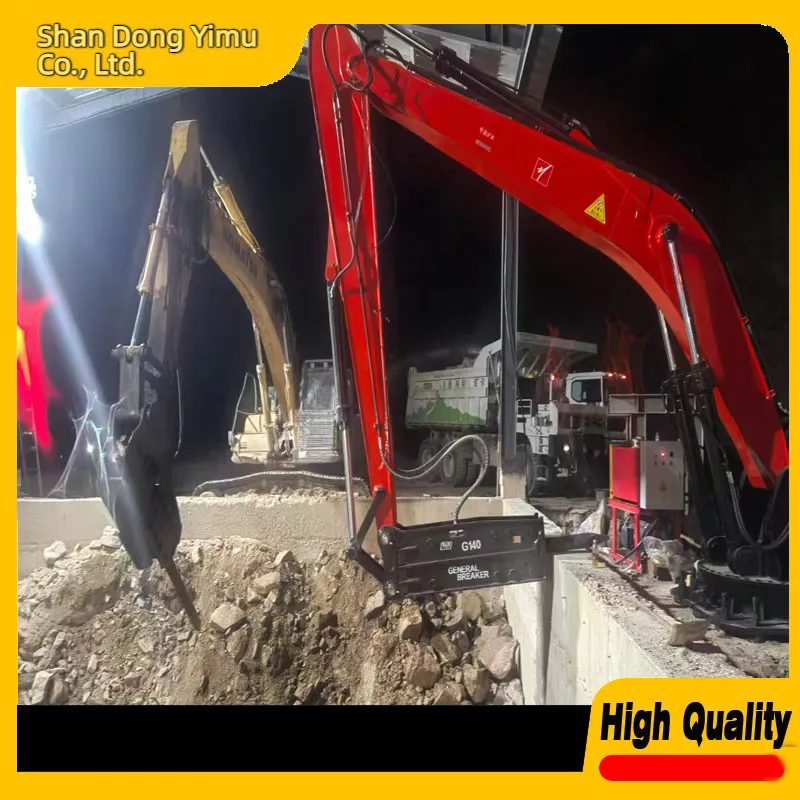

Heavy-Duty Mining Rock Breaking Solution

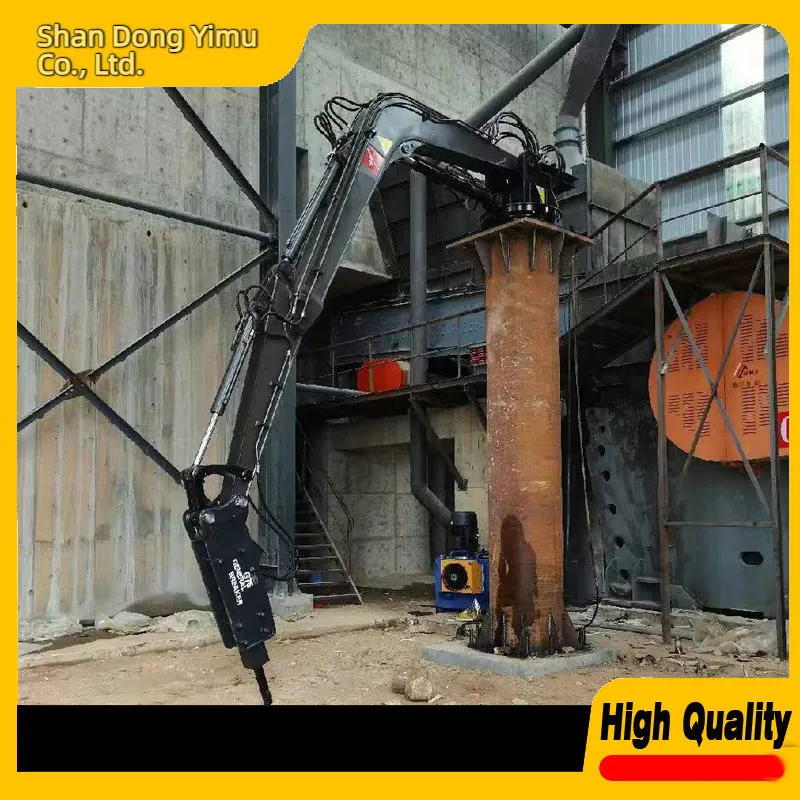

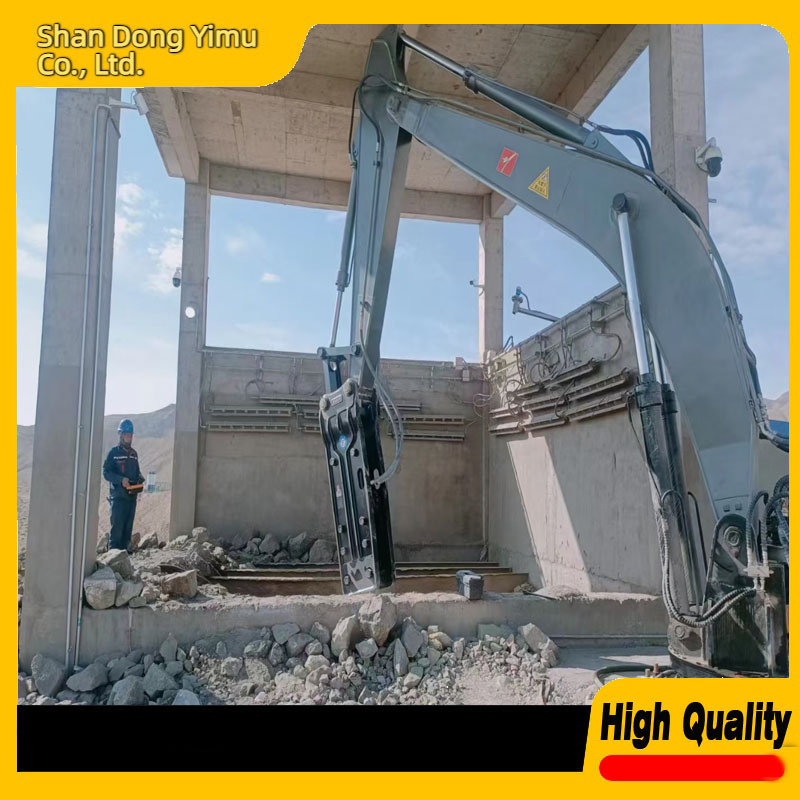

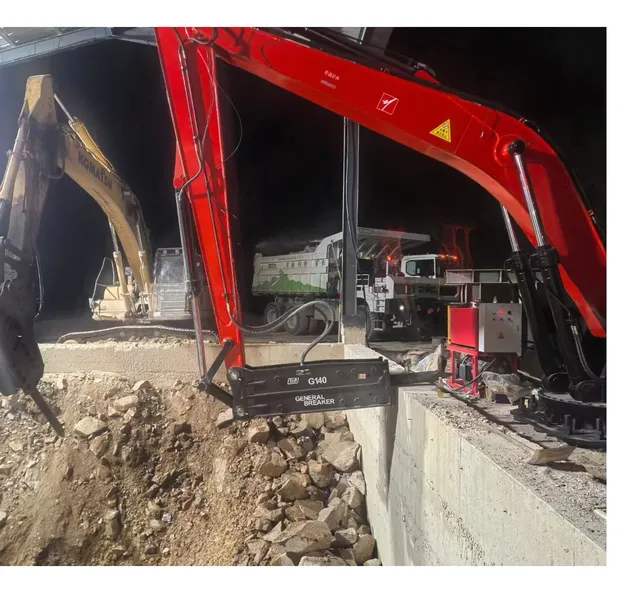

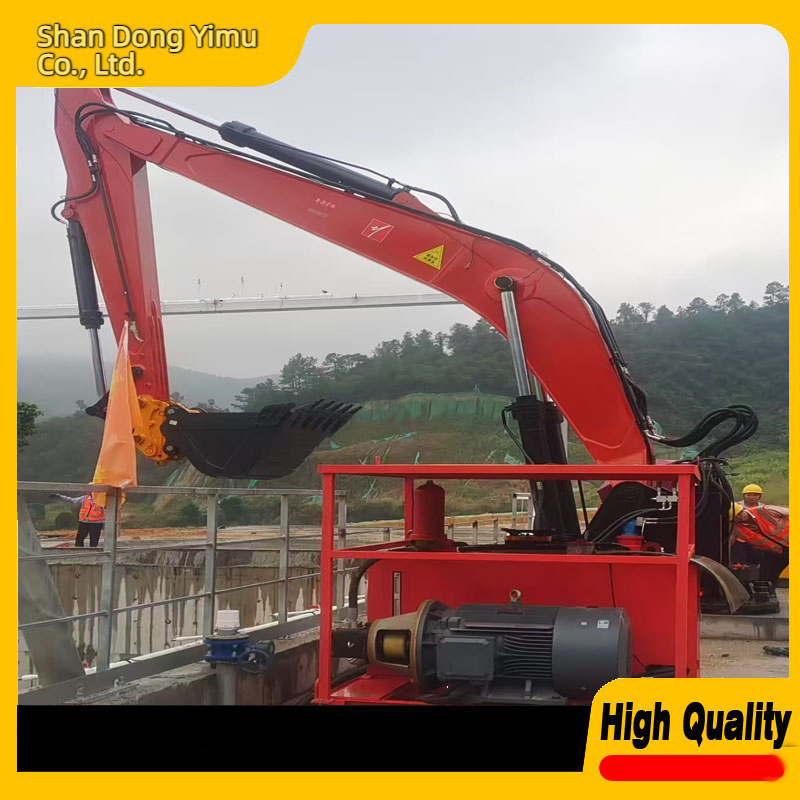

The pedestal breaker boom system is a robust, pedestal-mounted hydraulic rock breaker designed for the most demanding mining and quarrying applications. Engineered for high efficiency and reliability, it delivers exceptional breaking force to reduce oversized rocks, clear blockages, and optimize material flow in primary crushing operations.

Superior Breaking Force: Delivers up to 1200 J of impact energy at 300-500 blows per minute.

Extended Reach: Working radius of 6m and max height of 8m with 360° continuous slewing.

Durable Construction: Fabricated from high-strength Q345B alloy steel.

Advanced Engineering

Equipped with high-quality Rexroth/Atos valve blocks and Parker seals for leak-free, consistent performance. The system operates at a pressure of 16 MPa with a flow rate of 120-180 L/min, ensuring structural integrity under heavy loads.

Critical components including pins and bushings are made from hardened 40Cr steel for extended service life. Operators can choose between remote or wired control systems with integrated overload protection.

☰

Technical Specifications

Item/Model	Unit	ZX750	ZX850	ZX950	ZX1000	ZX1350
Weight	Kg	2880	3550	3750	3900	4000
Power of motor	KW	18.5	30	30	35	35
Max. coverage	M	4.7	5.8	7	7.5	8
Max. horizontal	M	3.2	4.3	5.6	5.9	6.5
Max. vertical	M	3.3	4.6	5	5.3	6
Swing	°	170	170	170	170	170
Breaker Weight	KG	200-500	400-1000	400-1000	500-1200	500-1200

📷

Product Gallery

📦

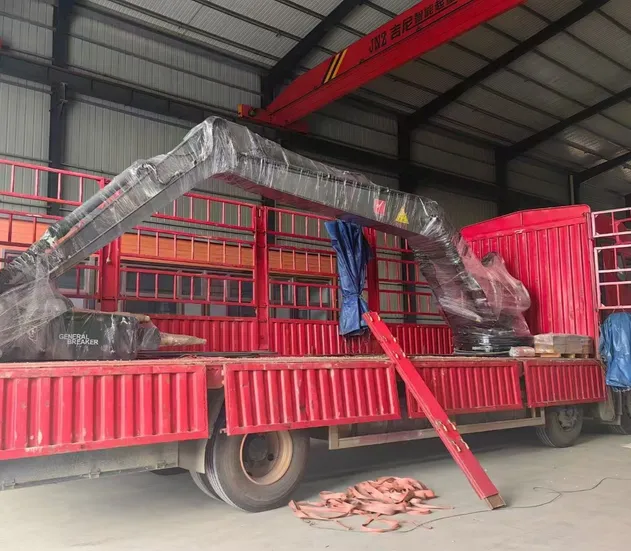

Packing & Delivery

Package Size:470.00cm * 250.00cm * 250.00cm

Gross Weight:3500.00kg

Package Type:Wooden Case / Container

Frequently Asked Questions

Q: What are the primary applications for this pedestal breaker system? A: It is primarily used in mining, quarrying, and construction waste processing to break oversized materials and clear blockages in crushers.

Q: What control options are available for operators? A: The system supports both remote control and wired control, allowing operators to manage the boom from a safe distance.

Q: What materials are used to ensure the durability of the boom? A: The boom is constructed from high-strength Q345B alloy steel, and all critical pins and bushings are made from hardened 40Cr steel.

Q: Can the system be customized for specific project needs? A: Yes, we offer tailored configurations including different boom lengths, breaker models, and optional dust removal or soundproof systems.

Q: What certifications does the product hold? A: The pedestal breaker boom system is certified by CE, ISO9001, and GOST-R.

Q: What is the impact energy and frequency? A: It provides a single impact energy of 1200 J with a frequency ranging from 300 to 500 blows per minute.
