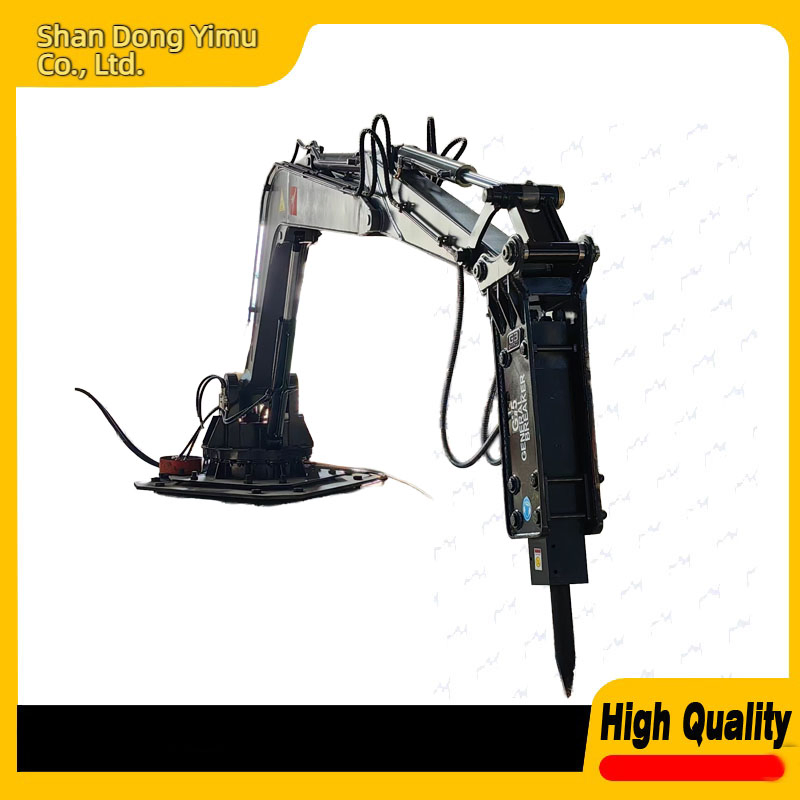

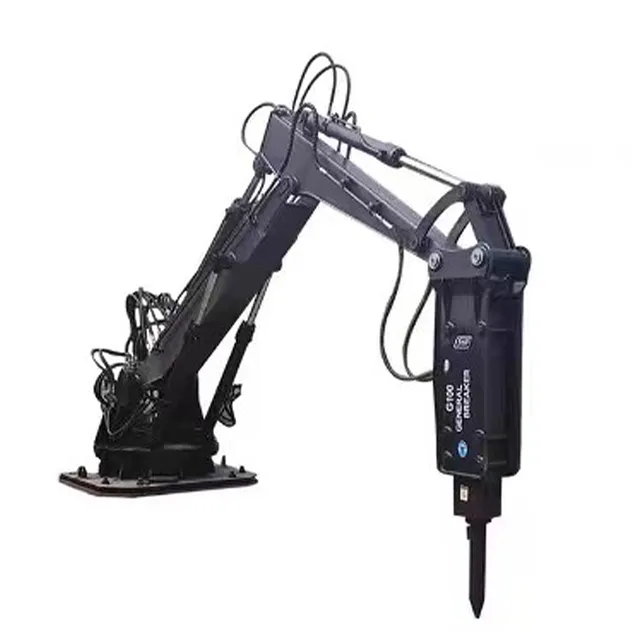

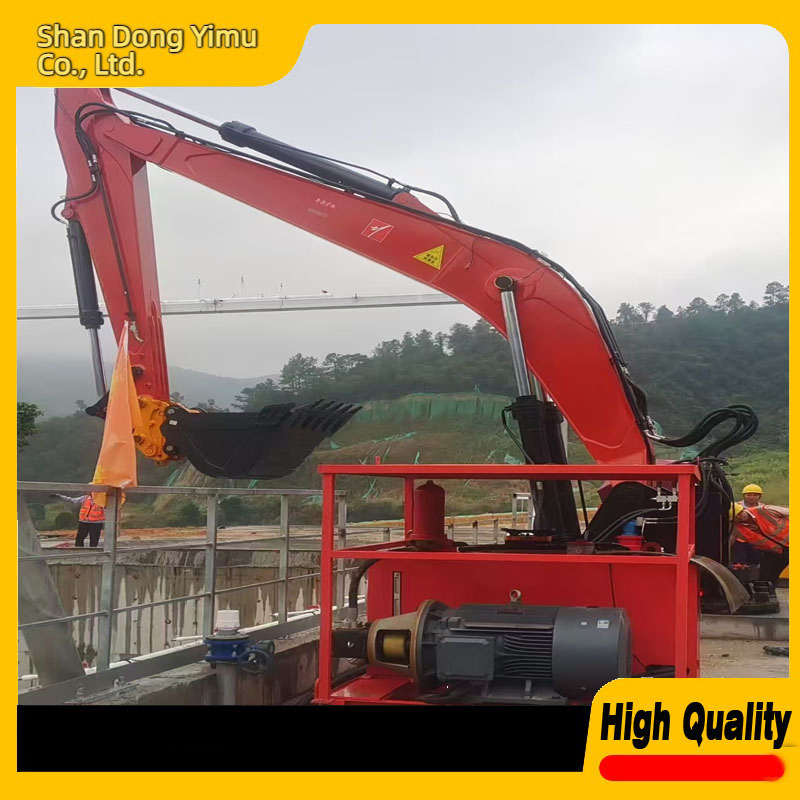

Heavy Duty Mining Hydraulic Breaker Boom Pedestal System

1 / 5

Heavy Duty Mining Hydraulic Breaker Boom Pedestal System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

YMSW-110

Motor Power

75kw

Application

Mining, Quarry, Construction Waste

Materials

Ore, Rock, Concrete

Inlet Size

600×900mm

Warranty

1 Year

Max Breaking Force

1200 J

Working Radius

6 M

Hydraulic Pressure

16 MPa

Control Method

Remote / Wired Control

Net Weight

5,000 Kg

Certification

CE, ISO9001

🏗️

Pedestal Breaker Boom System

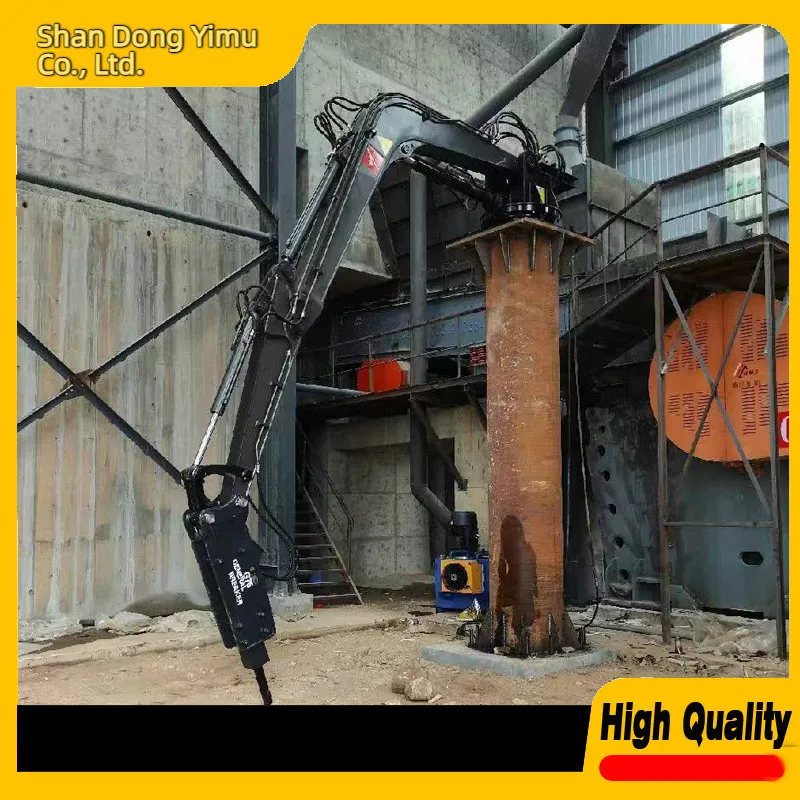

Our pedestal breaker boom system is a robust, pedestal-mounted hydraulic rock breaker designed for the most demanding mining and quarrying applications. Engineered for high efficiency, it delivers exceptional breaking force to reduce oversized rocks and clear blockages in primary crushing operations.

Key Features & Benefits

✔

Superior Breaking Force: Equipped with a high-performance hydraulic breaker, delivering up to 1200 J of impact energy at 300-500 blows per minute.

✔

Extended Reach & Flexibility: Working radius up to 6 meters and breaking height up to 8 meters with 360° continuous slewing capability.

✔

Advanced Hydraulic System: Operates at 16 MPa with Rexroth/Atos valve blocks and Parker seals for leak-free, consistent performance.

📋

Series Model Comparison

Item/Model	Unit	ZX750	ZX850	ZX950	ZX1000	ZX1350
Weight	Kg	2880	3550	3750	3900	4000
Power of motor	KW	18.5	30	30	35	35
Max. coverage	M	4.7	5.8	7	7.5	8
Max. horizontal	M	3.2	4.3	5.6	5.9	6.5
Max. vertical	M	3.3	4.6	5	5.3	6
Swing	°	170	170	170	170	170

📷

Product Gallery

Frequently Asked Questions

What are the primary applications for this pedestal boom system?

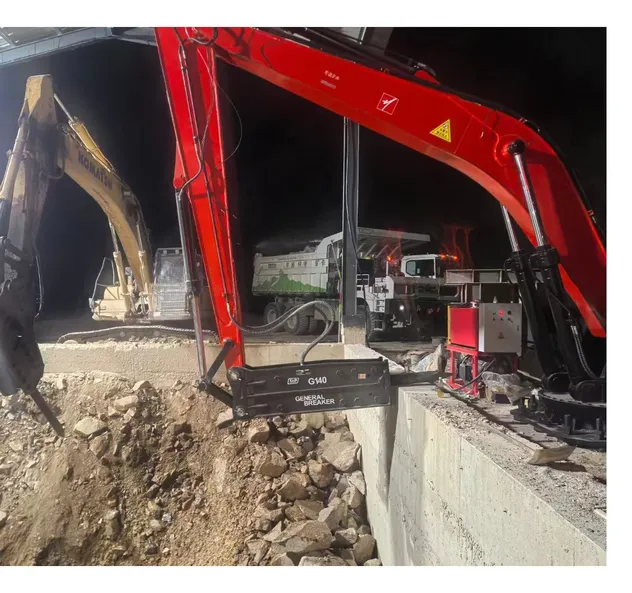

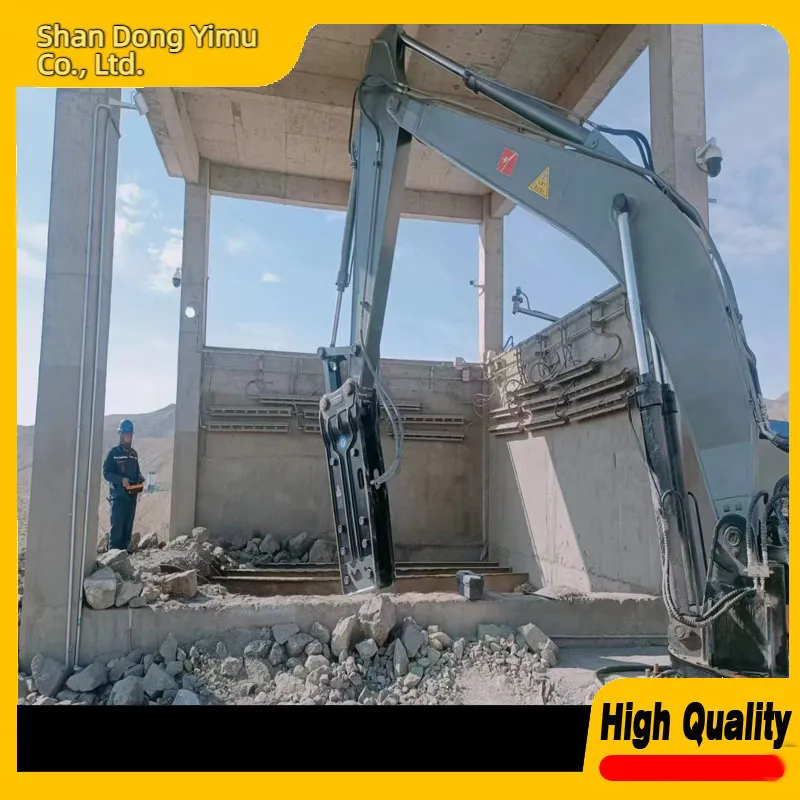

The system is primarily used in mining, quarrying, and construction waste processing to break oversized rocks and clear blockages in crushers.

How is the breaker boom controlled?

Operators can choose between high-precision remote control or traditional wired control systems for maximum safety and convenience.

What materials are used in the construction of the boom?

The structure is fabricated from high-strength Q345B alloy steel, with pins and bushings made from hardened 40Cr steel for durability.

Is the system compatible with different breaker models?

Yes, while it is compatible with standard models like the Hb20g, we offer customizable configurations to fit specific breaker requirements.

What kind of maintenance does the hydraulic system require?

Regular inspections of the Parker seals and Rexroth valve blocks are recommended, along with standard hydraulic oil changes to ensure lifetime performance.

Can the system operate in underground mining environments?

Yes, the pedestal breaker boom is designed to perform efficiently in both open-pit and underground mining conditions.
