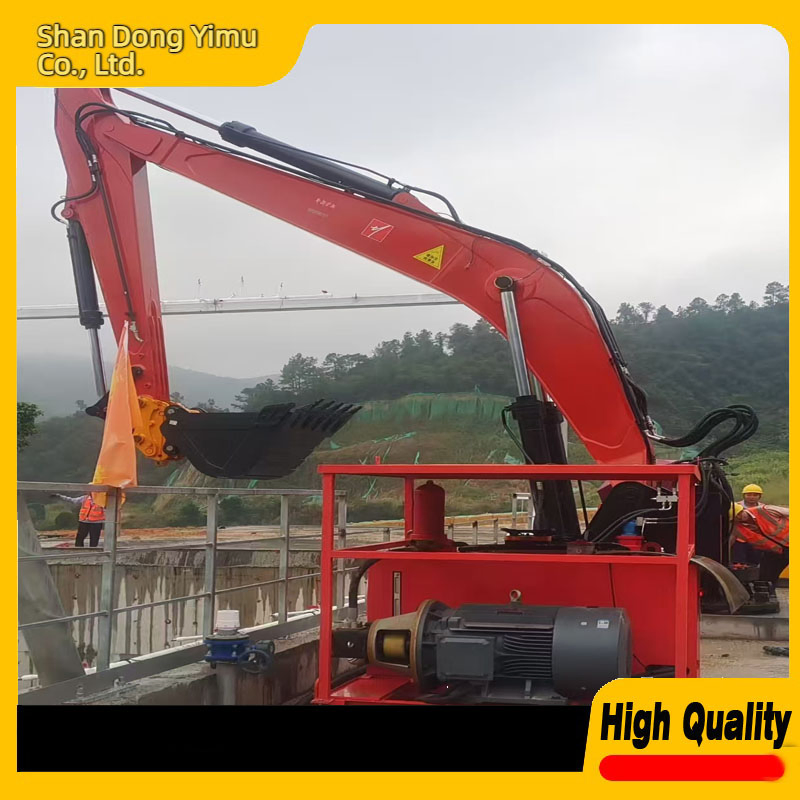

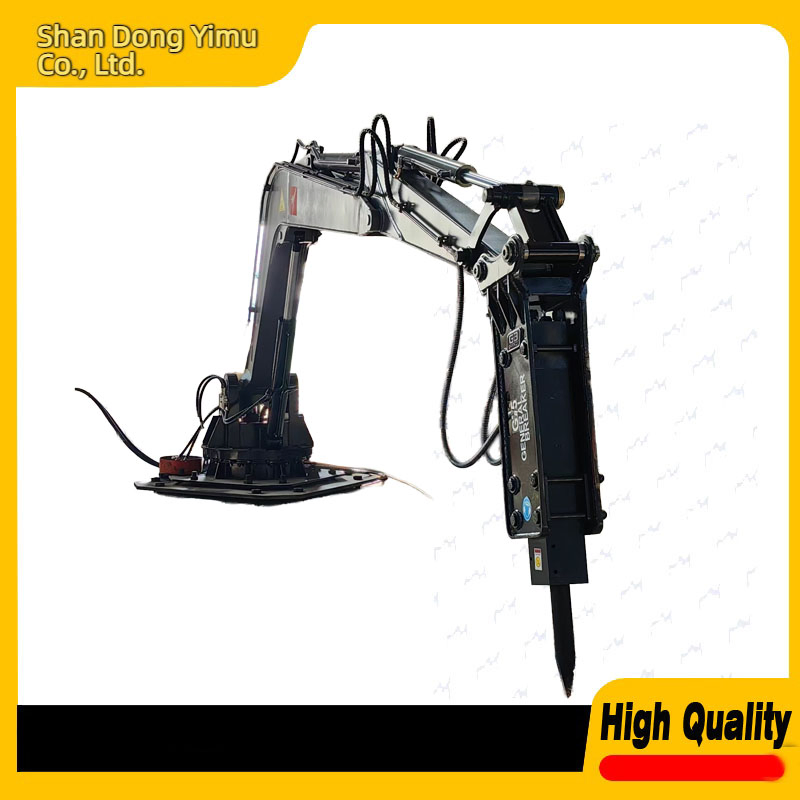

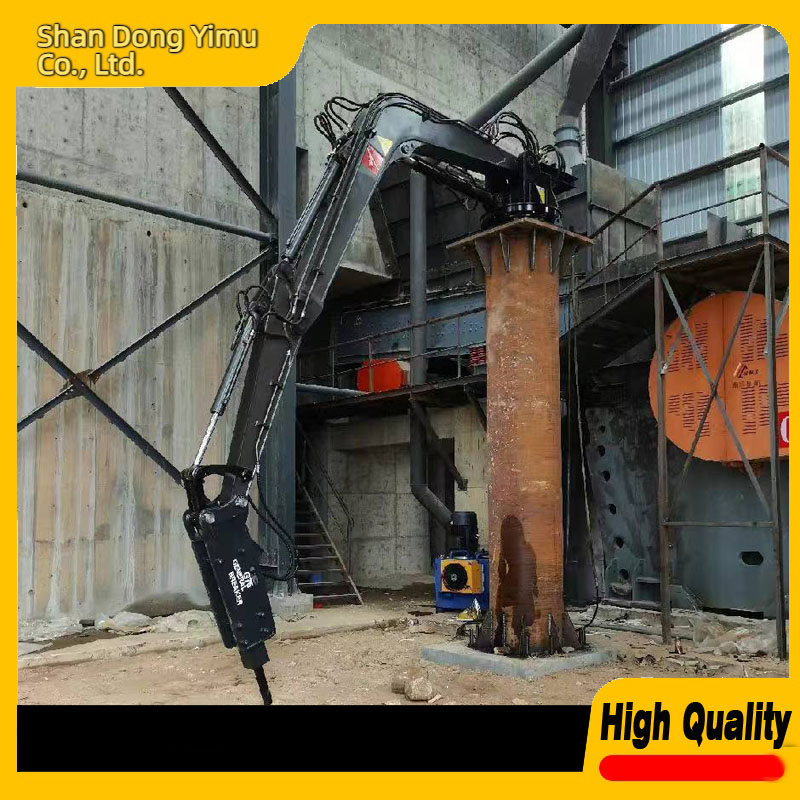

Pedestal Mounted Hydraulic Breaker Boom System for Mining

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Heavy-Duty Mining Rock Breaking Solution

Our pedestal breaker boom system is a robust, pedestal-mounted hydraulic rock breaker designed for the most demanding mining and quarrying applications. Engineered for high efficiency and reliability, it delivers exceptional breaking force to reduce oversized rocks, clear blockages, and optimize material flow in primary crushing operations.

📊 Basic Information

Model NO.	YMSW-109	Motor Power	75kw
Application	Mining, Quarry, Construction Waste	Materials	Ore, Rock, Concrete
Inlet Size	600×900mm	Outlet Size	500mm
Working Radius	6 M	Max Breaking Height	8 M
Impact Energy	1200 J	Impact Frequency	300-500 Blows/Min
Hydraulic Pressure	16 MPa	Control Method	Remote / Wired Control
Net Weight	5,000 Kg	Certification	CE, ISO9001

💎 Key Features & Benefits

Superior Breaking Force: Equipped with a high-performance hydraulic breaker, it delivers up to 1200 J of impact energy for efficient fragmentation of hard rock.
Extended Reach & Flexibility: 6-meter working radius and 8-meter maximum height with 360° continuous slewing capability.
Durable Construction: Fabricated from high-strength Q345B alloy steel with hardened 40Cr steel pins and bushings.
Advanced Hydraulic System: Featuring high-quality Rexroth/Atos valve blocks and Parker seals for consistent, leak-free performance.
Safe Operation: Integrated overload protection, dual emergency stop functions, and low noise level (≤85 dB).

📋 Technical Specifications

Item / Model	Unit	ZX750	ZX850	ZX950	ZX1000	ZX1350
Weight	Kg	2880	3550	3750	3900	4000
Power of motor	KW	18.5	30	30	35	35
Max. Coverage Range	M	4.7	5.8	7	7.5	8
Max. Horizontal Reach	M	3.2	4.3	5.6	5.9	6.5
Max. Vertical Reach	M	3.3	4.6	5	5.3	6
Swing	°	170	170	170	170	170
Breaker Weight	KG	200-500	400-1000	400-1000	500-1200	500-1200

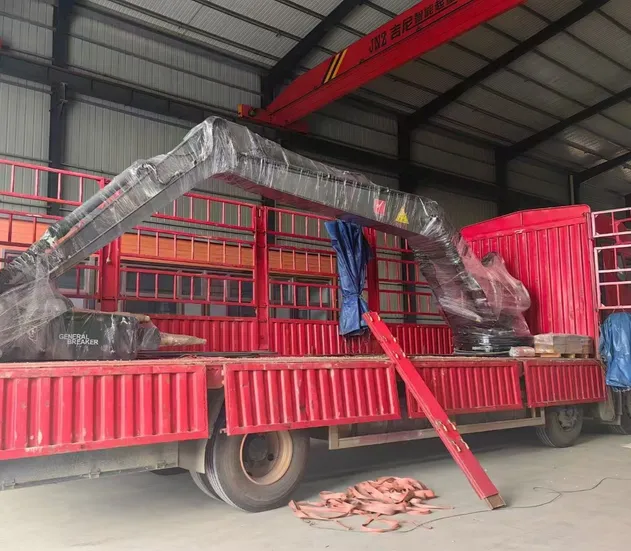

📦 Packing & Delivery

Package Size	470.00cm * 250.00cm * 250.00cm
Package Gross Weight	3500.000kg
Transport Package	Wooden Case / Container

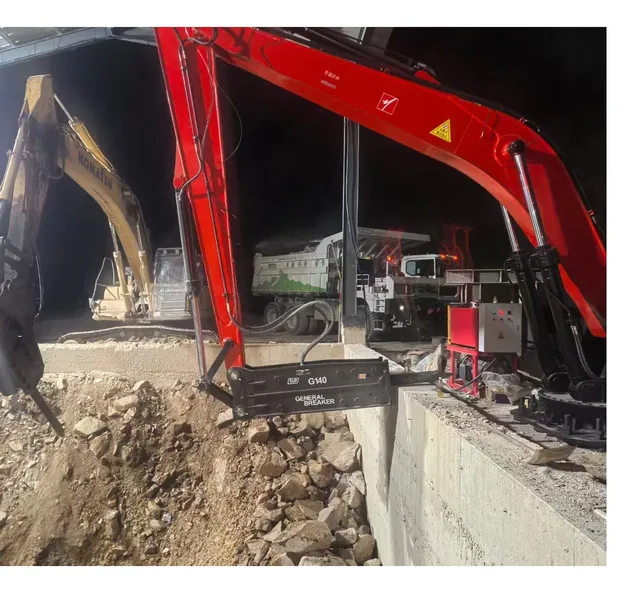

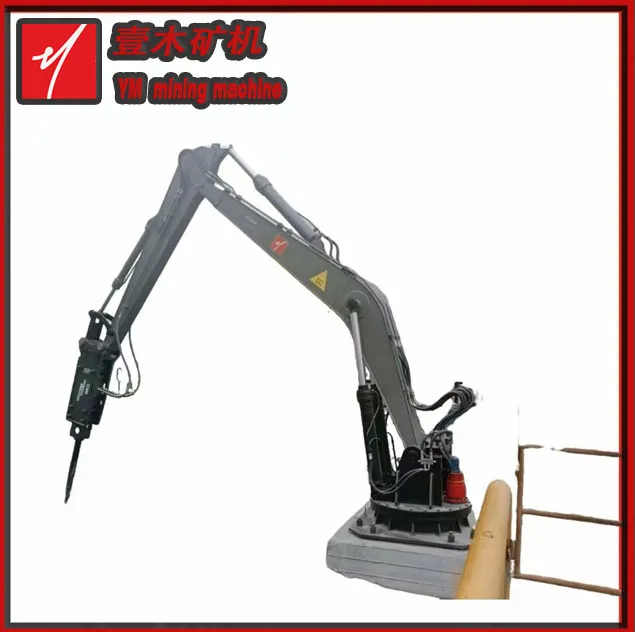

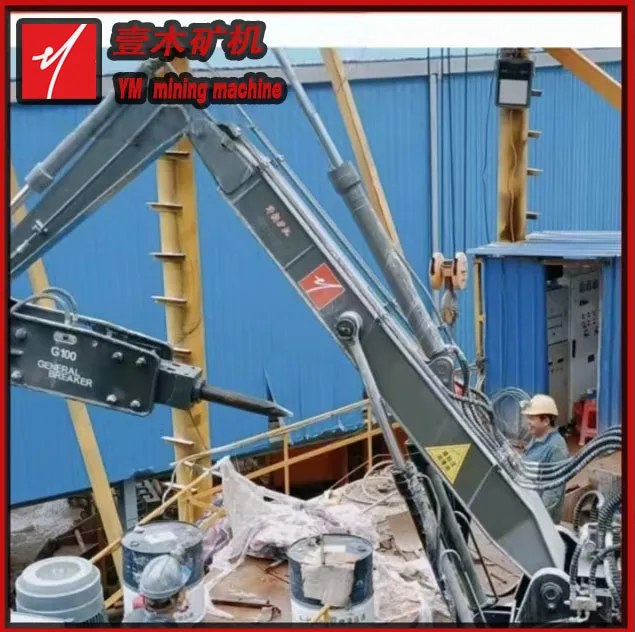

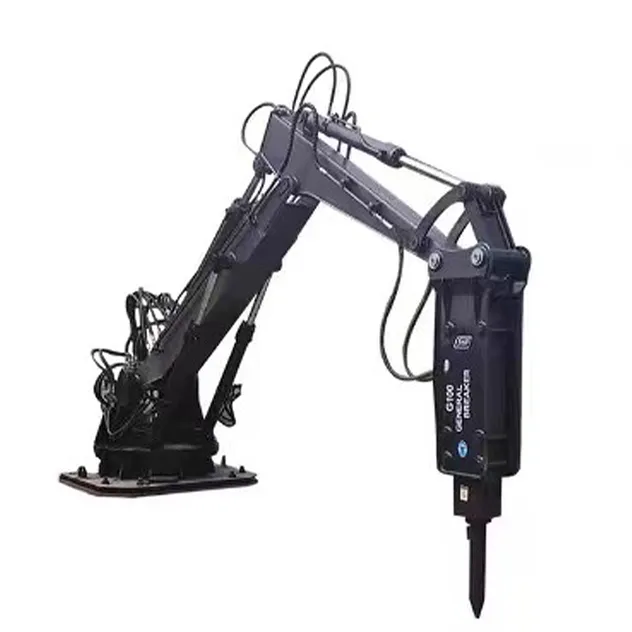

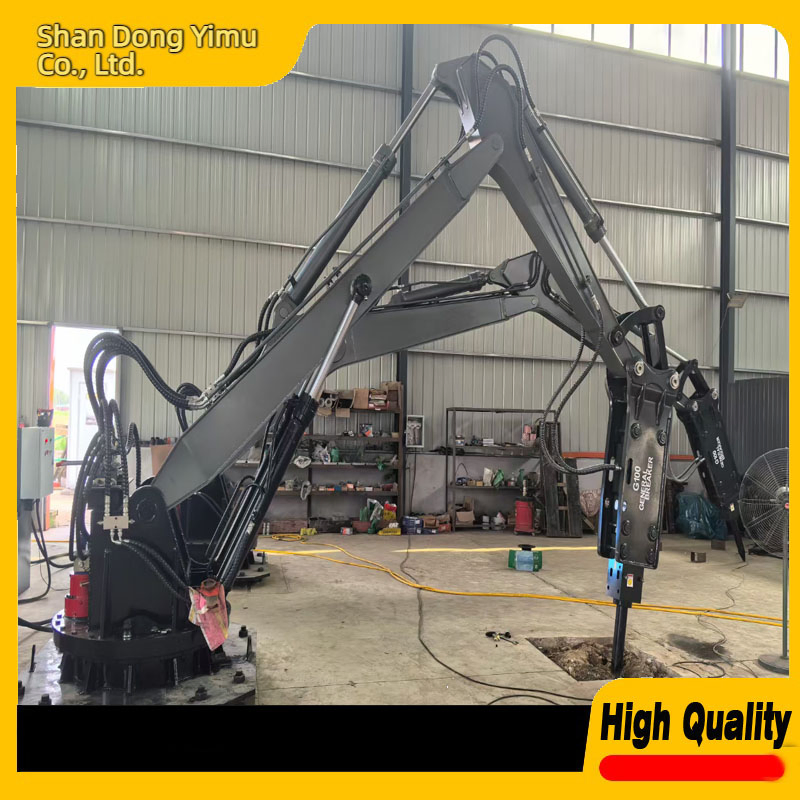

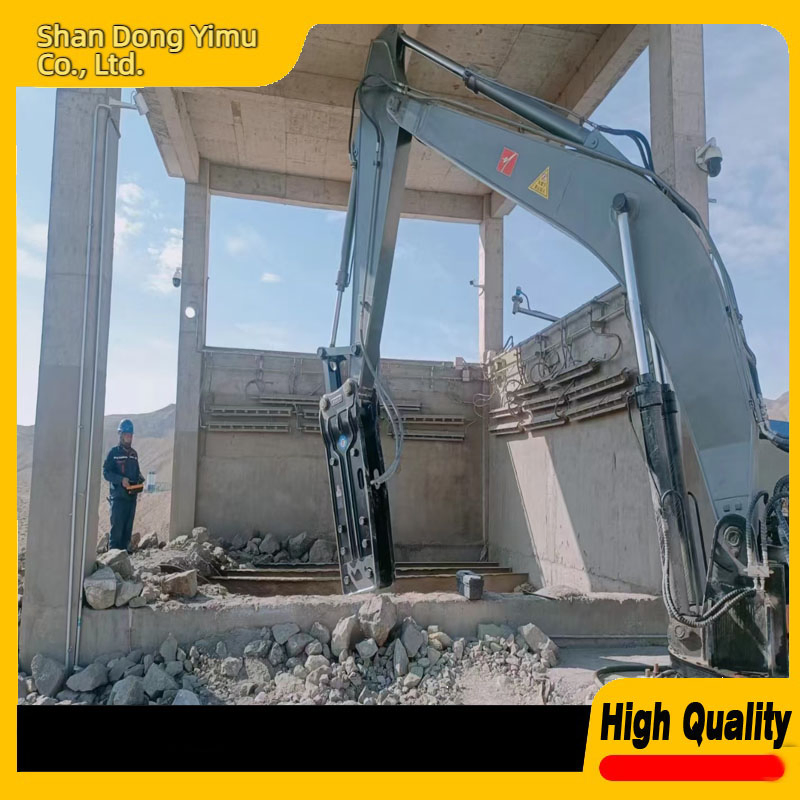

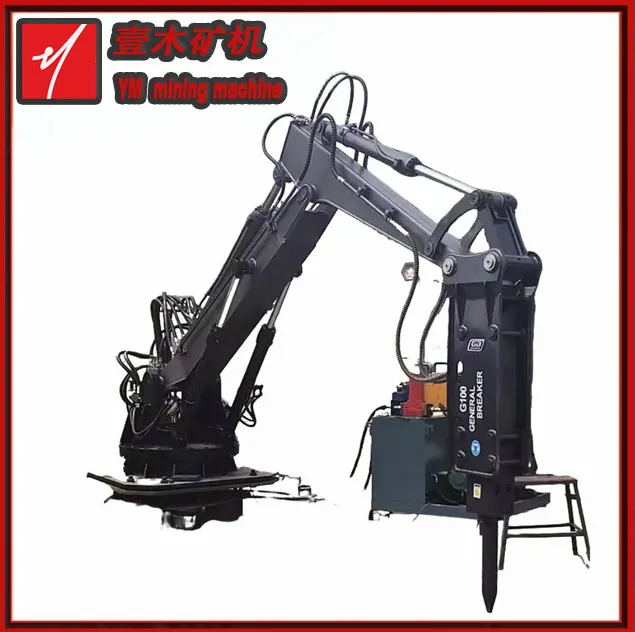

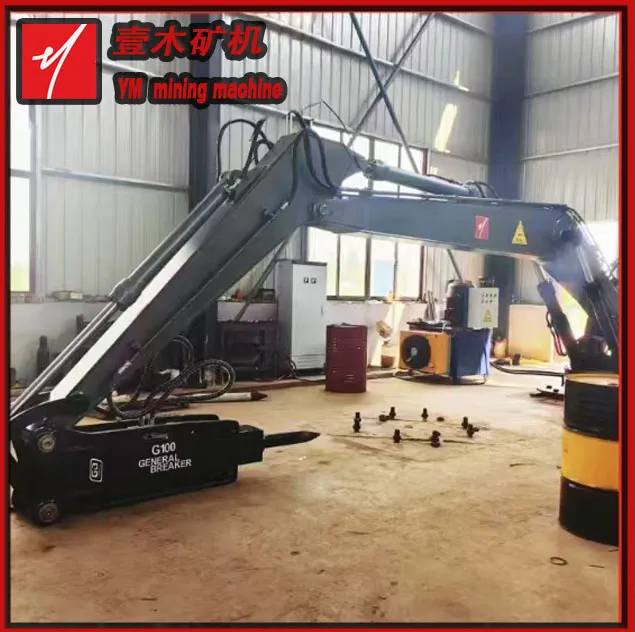

📷 Product Gallery

❓ Frequently Asked Questions

Q1: What are the primary applications for this pedestal breaker system? A: It is primarily used in mining, quarrying, and construction waste processing to reduce oversized rocks and clear blockages in primary crushing operations.

Q2: What type of steel is used in the construction of the boom? A: The boom structure is made from high-strength Q345B alloy steel, and critical components like pins use hardened 40Cr steel for maximum durability.

Q3: Can the system be operated remotely? A: Yes, the system supports both remote control and wired control methods to ensure operator safety and convenience.

Q4: What is the maximum reach of the breaker boom? A: Depending on the specific model, the maximum working radius is up to 6 meters, and the maximum breaking height can reach up to 8 meters.

Q5: Are there any optional configurations available? A: Yes, we offer optional dust removal systems, soundproof covers, and various boom lengths or breaker models to meet specific project needs.

Q6: What certifications does this product hold? A: The system is fully certified with CE, ISO9001, and GOST-R standards, ensuring international quality compliance.
