Soft Formation Drilling Concentric Casing Block System Matched DTH Drill Rig for Geothermal Wells, Water Wells and Small-to-Medium-Sized Grouting Holes

1 / 5

Soft Formation Drilling Concentric Casing Block System Matched DTH Drill Rig for Geothermal Wells, Water Wells and Small-to-Medium-Sized Grouting Holes

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.BOD183

ProcessForging

MaterialAlloy Steel

Hammer Type5’’-24’’ Hammer

ApplicationPile & Water Well Drilling

Capacity5000 PCS/Month

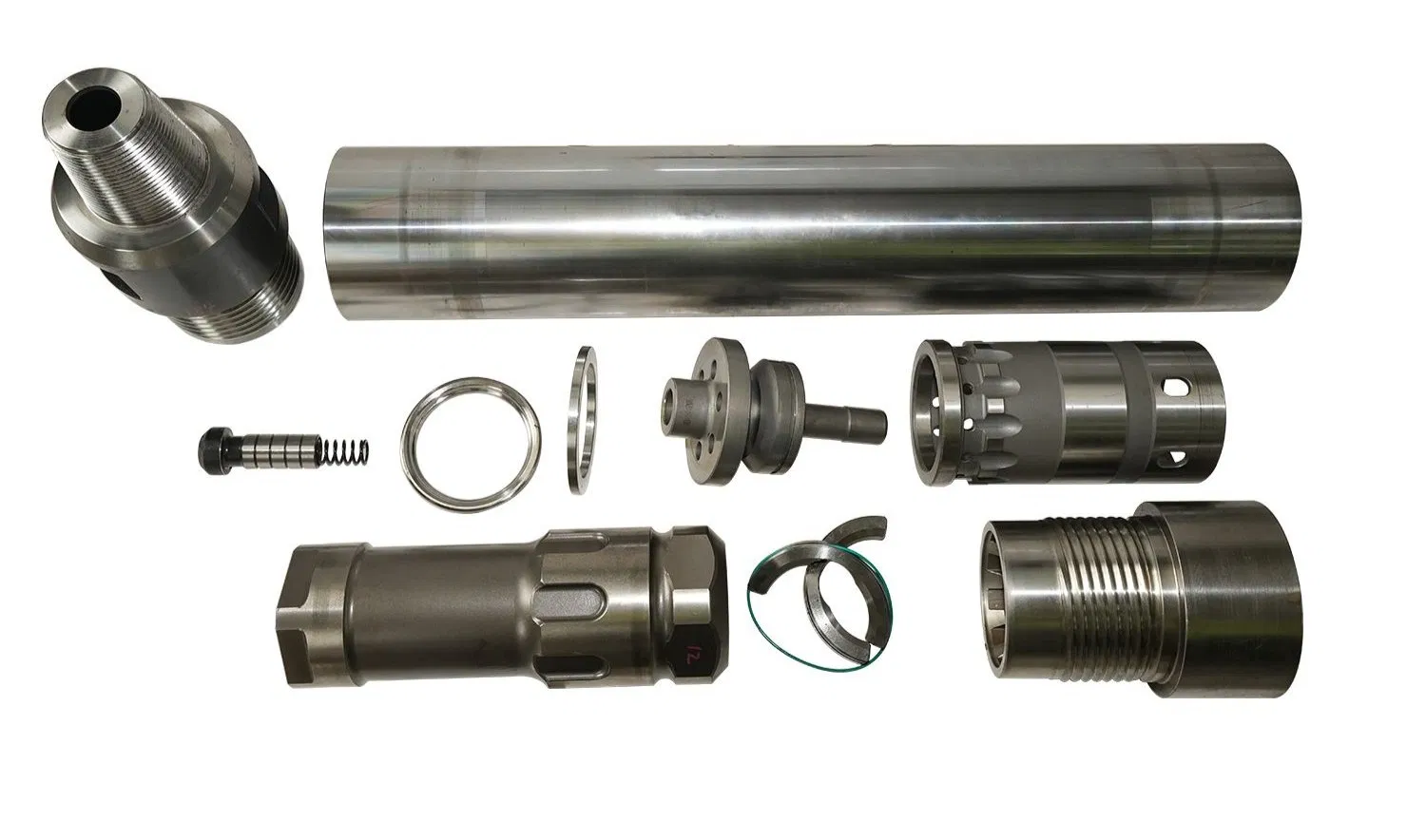

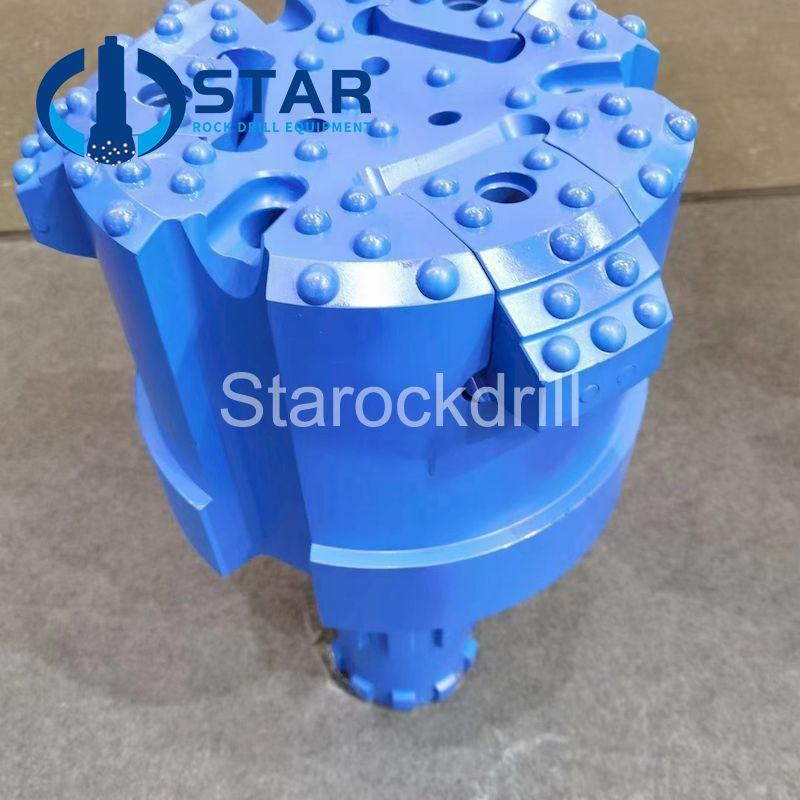

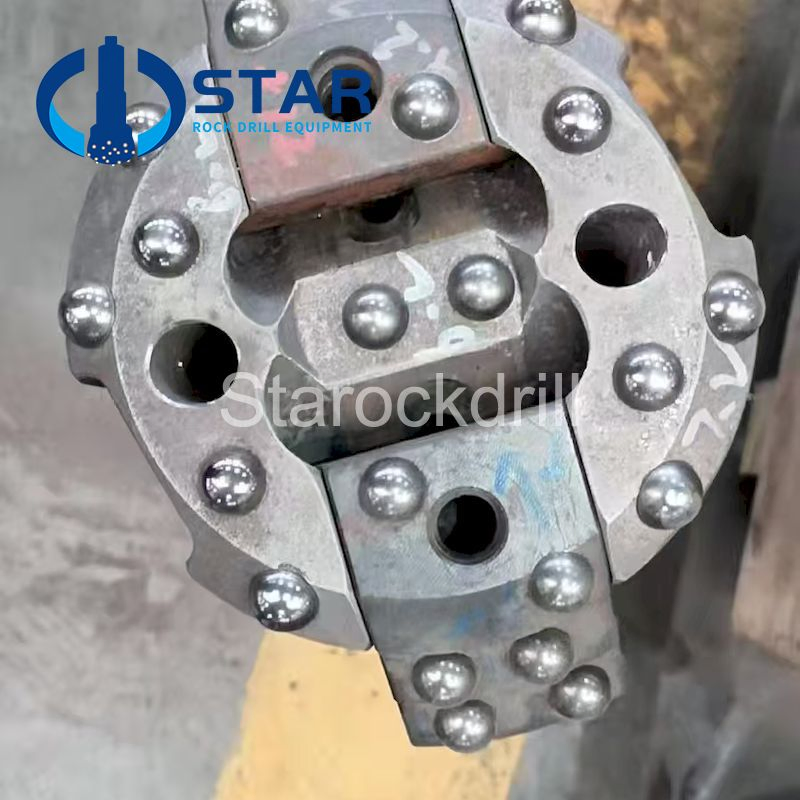

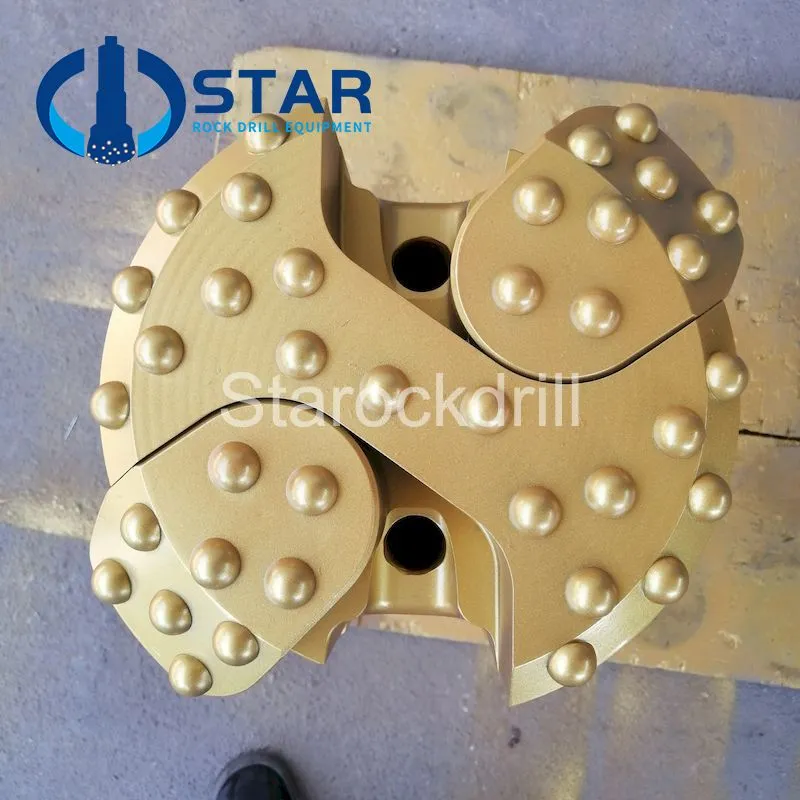

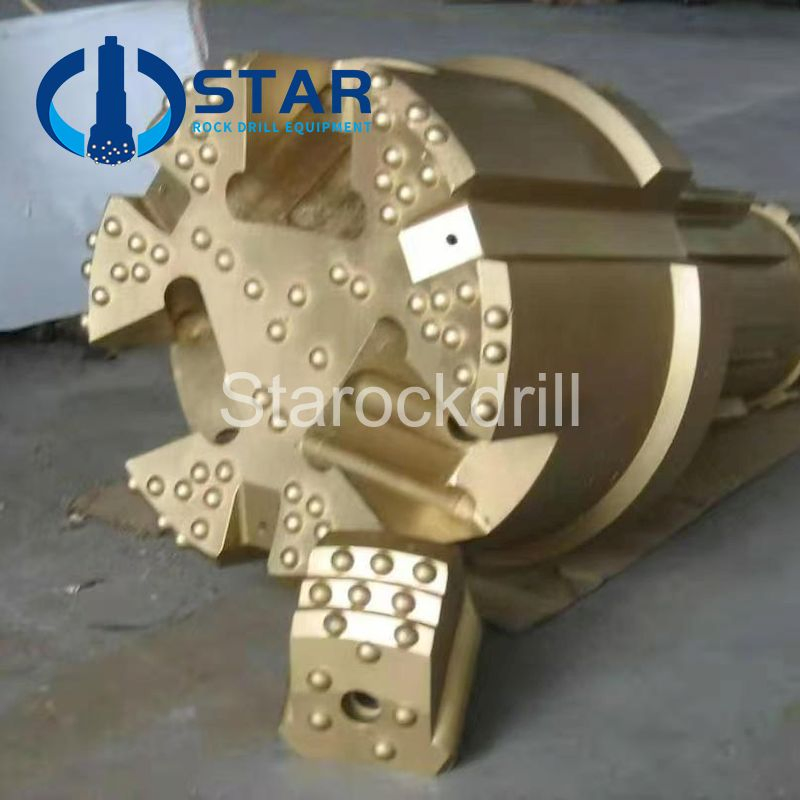

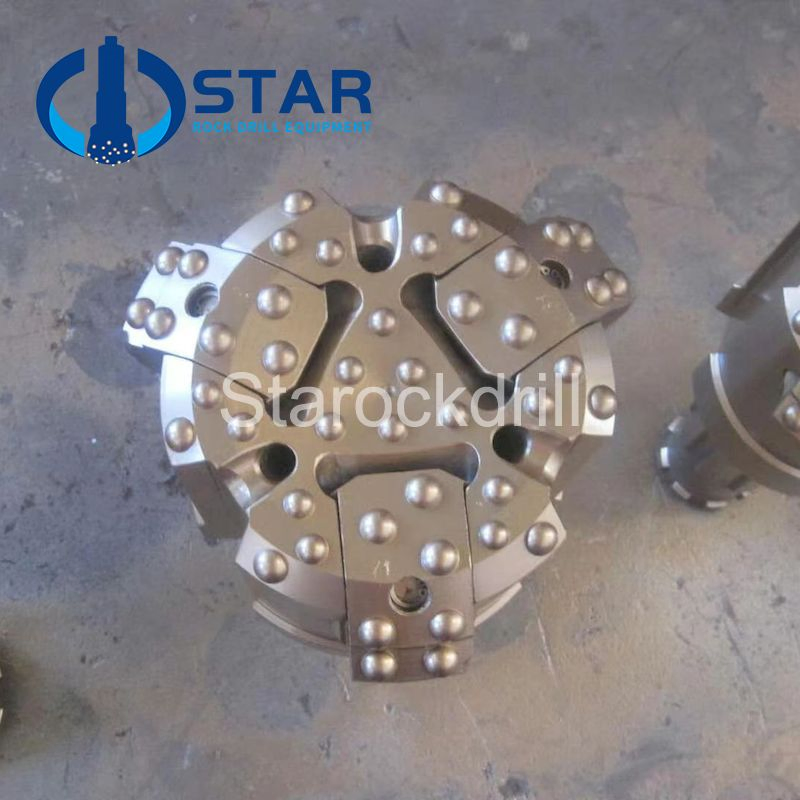

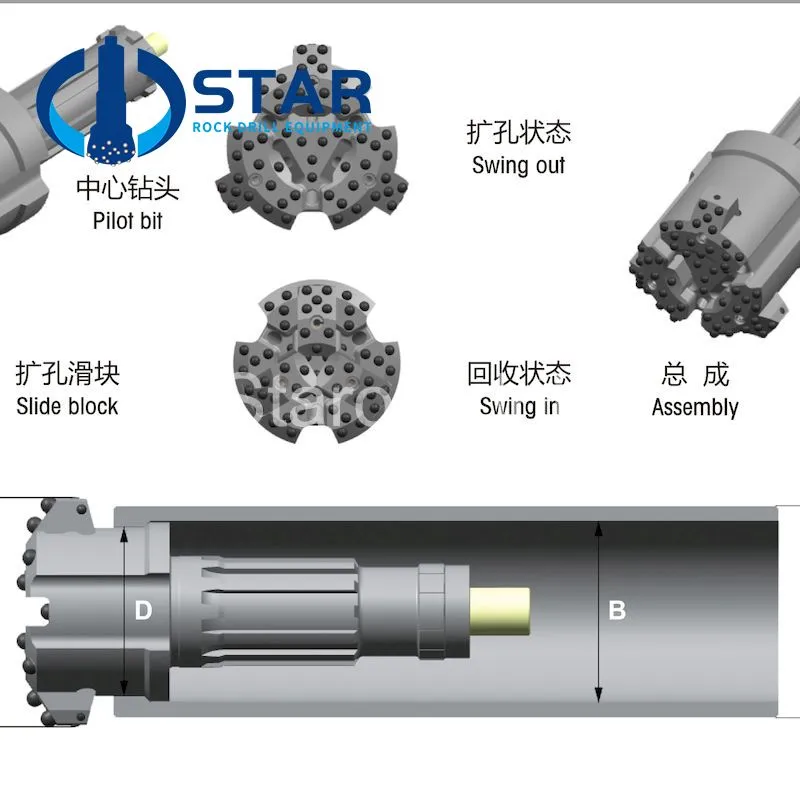

Concentric Slide Block Casing Drilling System

Our concentric casing system with blocks is specifically designed for drilling in soft and unstable formations, making it ideal for applications such as geothermal wells, water wells, small-to-medium-sized grouting holes, and micro-piling projects.

●
Tailored for Soft Formations: Designed to excel in high mud content and formations with abundant floating rocks.
●
High-Performance Materials: Manufactured using specialized 25Si2MnCrNi2MoV steel. Blocks are heat-treated to HRC42-45 for extended lifespan.
●
Simplified Operation: Precision-engineered for quick tool replacement and maximum work efficiency.

Technical Specifications

Model	Casing OD (mm)	Casing ID (mm)	Reamer (mm)	Blocks Qty	Shoe ID (mm)	Hammer Size	Drill Rod (mm)
BOD168	168	156	185	2	142	5" Hammer	76/89
BOD178	178	158	195	2	148	5" Hammer	76/89
BOD183	183	163	200	2	152	5" Hammer	76/89
BOD194	194	180	209	2	167	6" Hammer	89/114
BOD219	219	205	237	3	192	6" Hammer	89/114
BOD245	245	225	264	3	210	8" Hammer	114
BOD273	273	259	308	3	242	8" Hammer	114
BOD325	325	305	358	3	282	10" Hammer	114
BOD406	406	382	426	4	360	12" Hammer	127

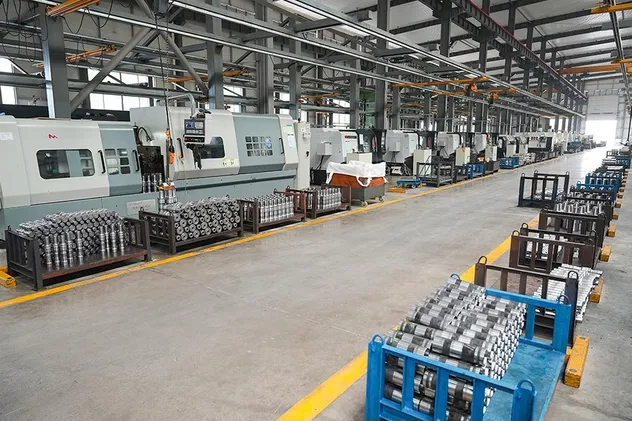

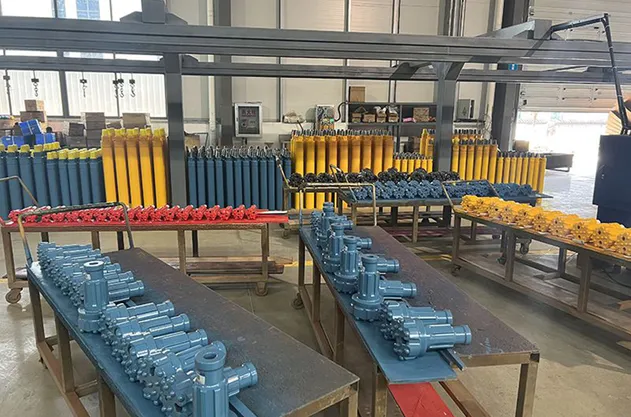

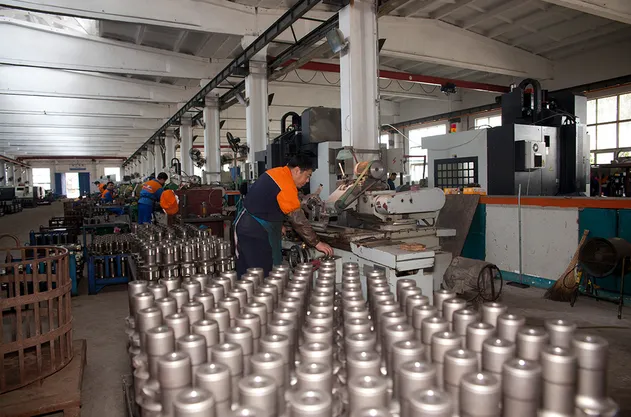

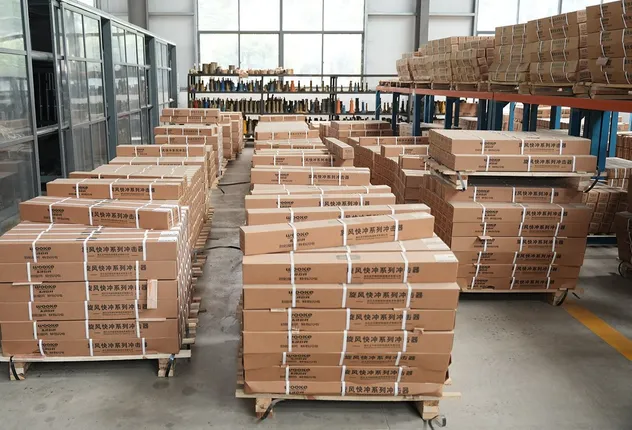

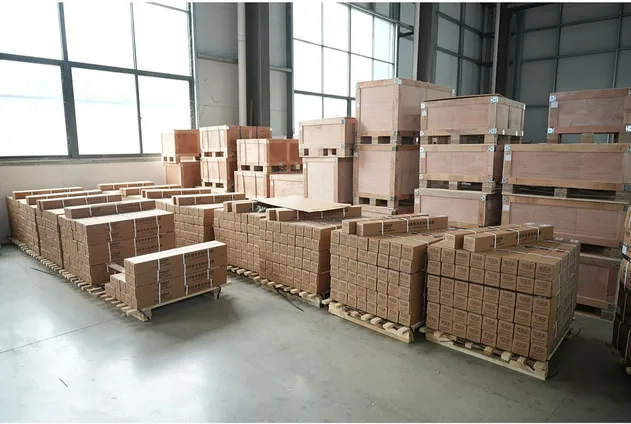

Packaging & Logistics

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation and maintenance training solutions.

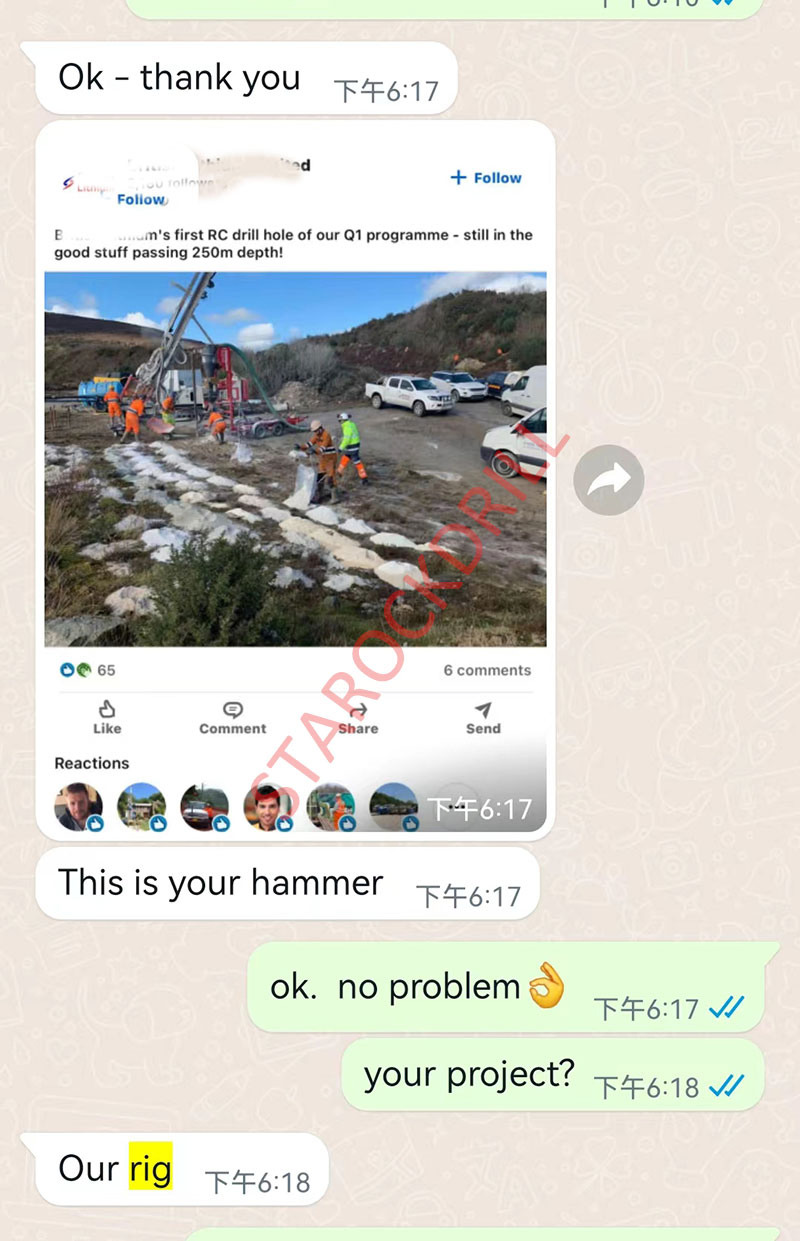

Project Cases & Certification

Frequently Asked Questions

What is the lead time for standard and customized orders?

Standard models typically ship within 15–30 days, while customized units require 30–45 days depending on complexity.

Is overseas after-sales support available?

Yes, we provide 24/7 technical assistance and have partnered service centers in key global regions to support your projects.

Can I request a customized bucket or casing size?

Absolutely. We offer tailored attachments and custom configurations based on your specific geological requirements.

What documents are provided for international export?

We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

How can I obtain a quote and place an order?

Please send us an inquiry with your project specifications. Our team will provide a formal quote, which you can then confirm with a Purchase Order (PO).

What materials are used for the drilling blocks?

We use high-grade 25Si2MnCrNi2MoV alloy steel with specialized surface heat treatments to ensure maximum durability and wear resistance.
