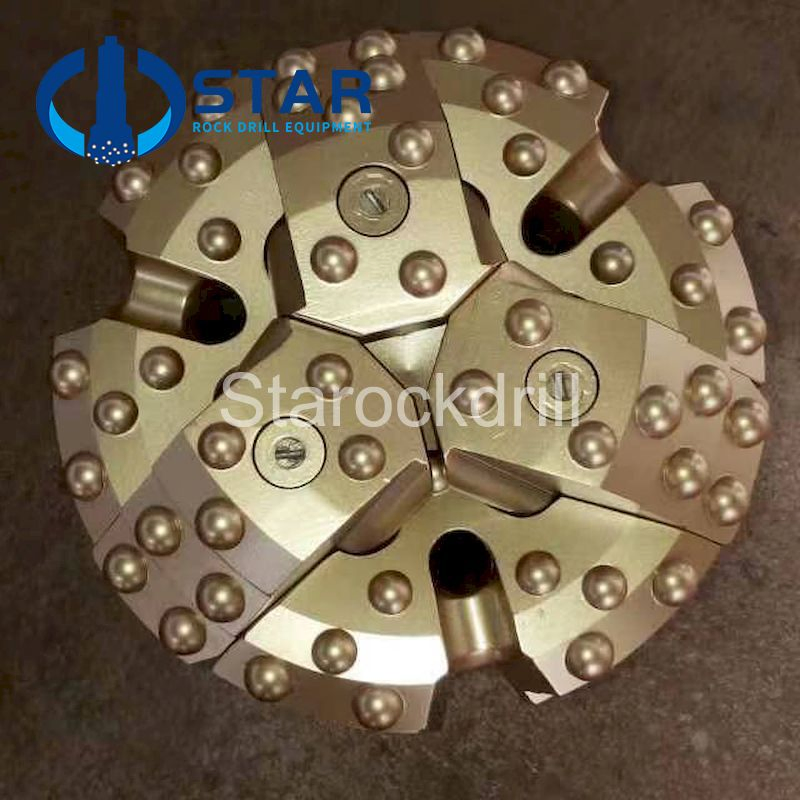

Slide Concentric Block Casing System Super Drilling System Matched DTH Drill for Water Wells and Small-to-Medium-Sized Grouting Holes

1 / 5

Slide Concentric Block Casing System Super Drilling System Matched DTH Drill for Water Wells and Small-to-Medium-Sized Grouting Holes

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.

BOD194

Process

Forging

Material

Alloy Steel

Hammer Type

5’’-24’’ Hammer

Application

Pile Drilling, Water Well Drilling

Transport Package

Wooden Case or Carton

Capacity

5000PCS/Month

Origin

China

Product Description

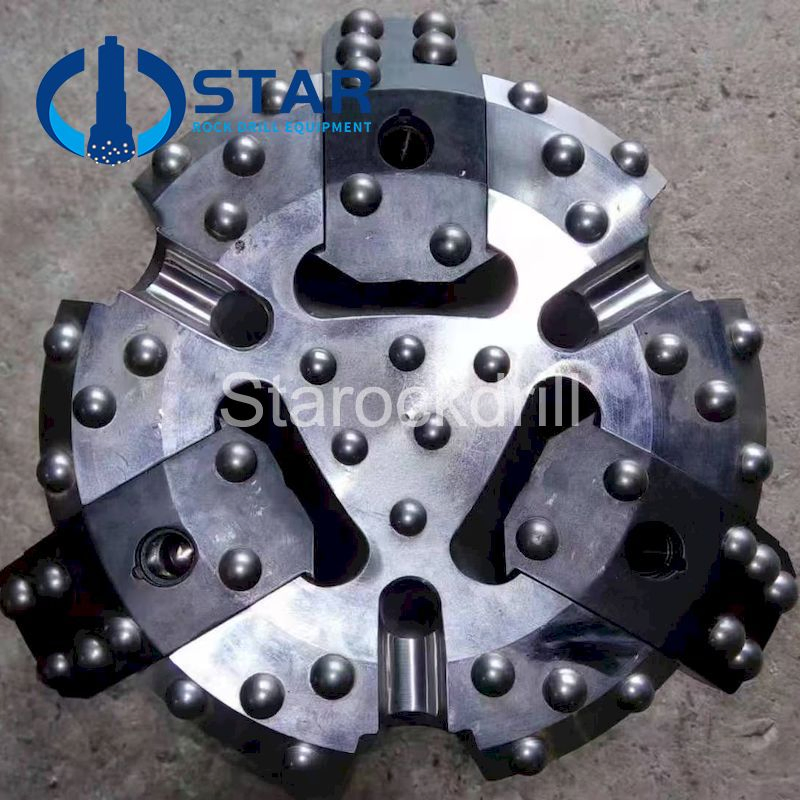

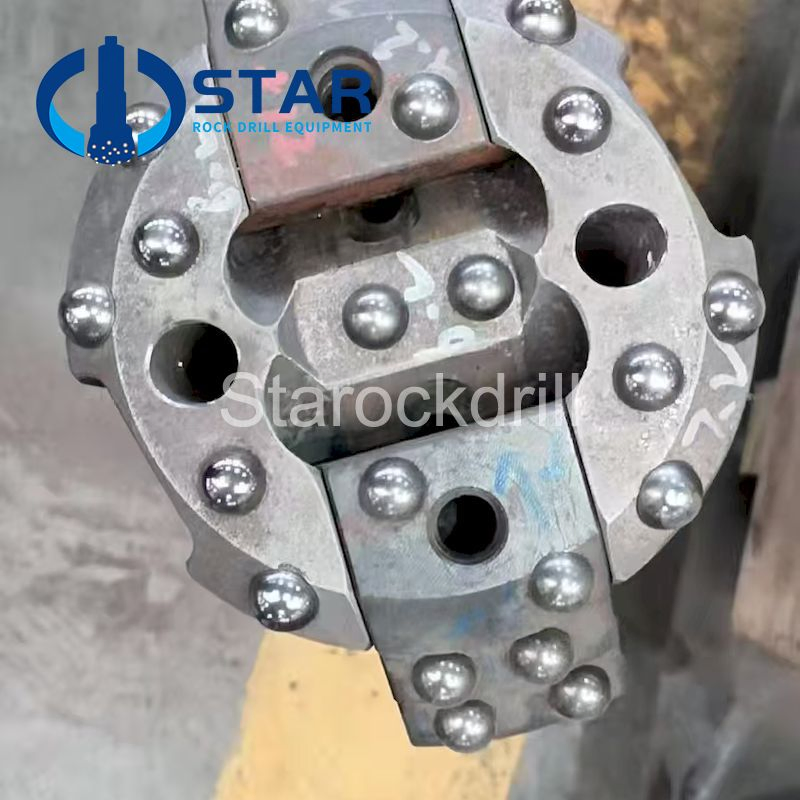

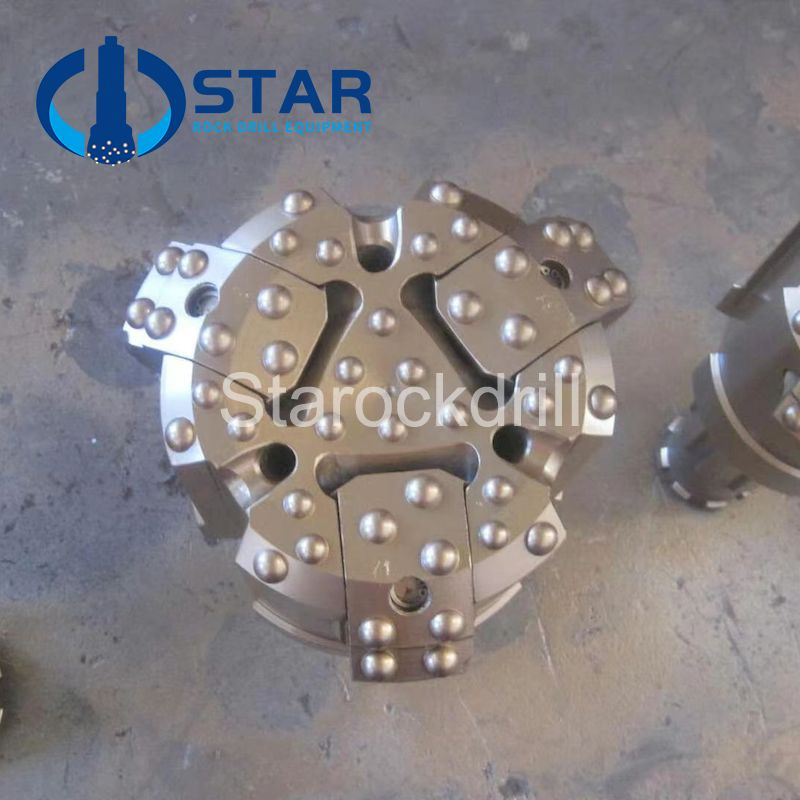

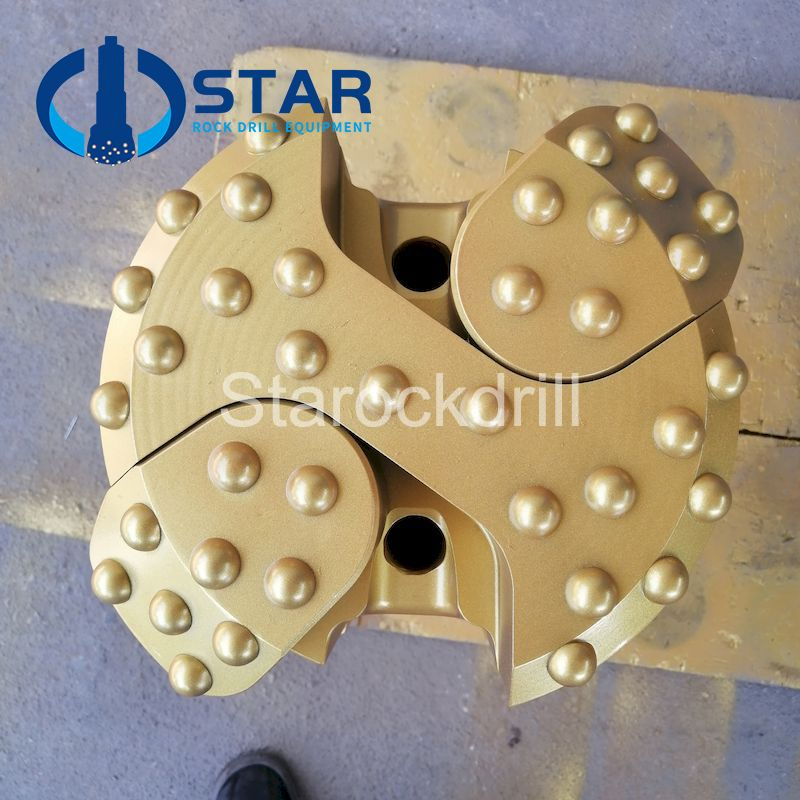

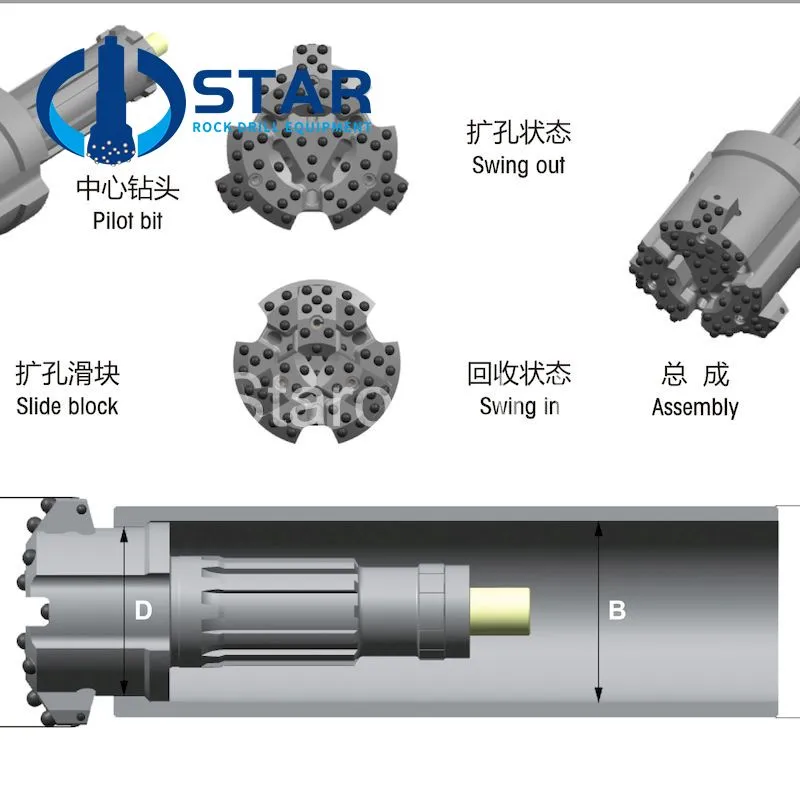

Concentric/Symmetric Slide Block Casing Drilling Assembly

Our concentric casing system with blocks is specifically designed for drilling in soft and unstable formations. It is an ideal solution for geothermal wells, water wells, small-to-medium-sized grouting holes, and micro-piling projects.

Key Features

01 Tailored for Soft Formations: Designed to excel in soft formations, including high mud content and floating rocks.

02 High-Performance Materials: Manufactured using 25Si2MnCrNi2MoV. Blocks undergo heat treatment to reach HRC42-45 hardness.

03 Simplified Operation: Precision-engineered for rapid tool replacement and boosted workflow efficiency.

Technical Specifications

Custom configurations are available upon request to suit specific project needs.

Model	Casing OD (mm)	Casing ID (mm)	Reamer (mm)	Blocks	Shoe ID (mm)	Hammer Size	Drill Rod (mm)
BOD168	168	156	185	2	142	5 INCH	76/89
BOD178	178	158	195	2	148	5 INCH	76/89
BOD183	183	163	200	2	152	5 INCH	76/89
BOD194	194	180	209	2	167	6 INCH	89/114
BOD219	219	205	237	3	192	6 INCH	89/114
BOD245	245	225	264	3	210	8 INCH	114
BOD273	273	259	308	3	242	8 INCH	114
BOD325	325	305	358	3	282	10 INCH	114
BOD406	406	382	426	4	360	12 INCH	127

Application & Engineering

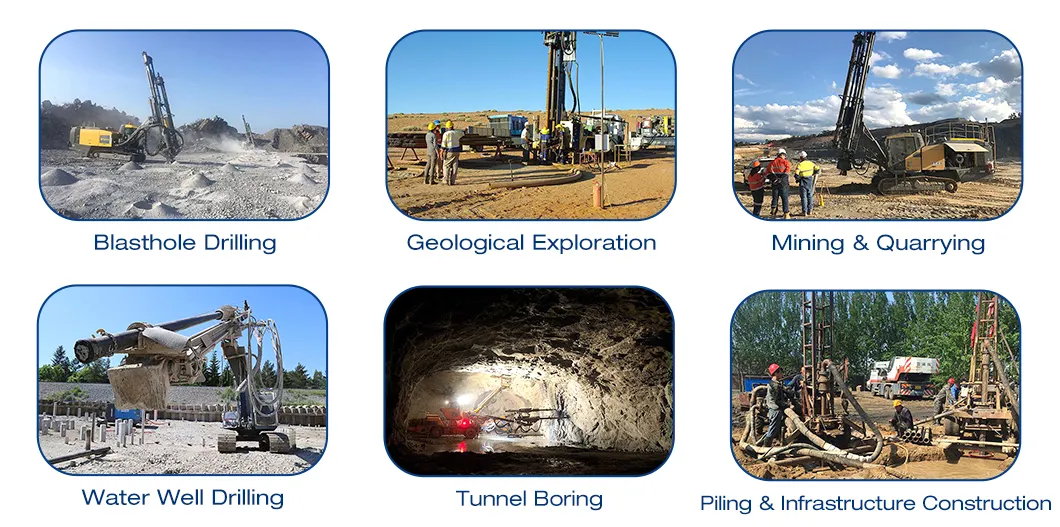

Application Scenarios: Widely applicable in open-pit mining, underground mining, tunneling, anchoring projects, blast furnace tapping, hydroelectric projects, and quarrying.

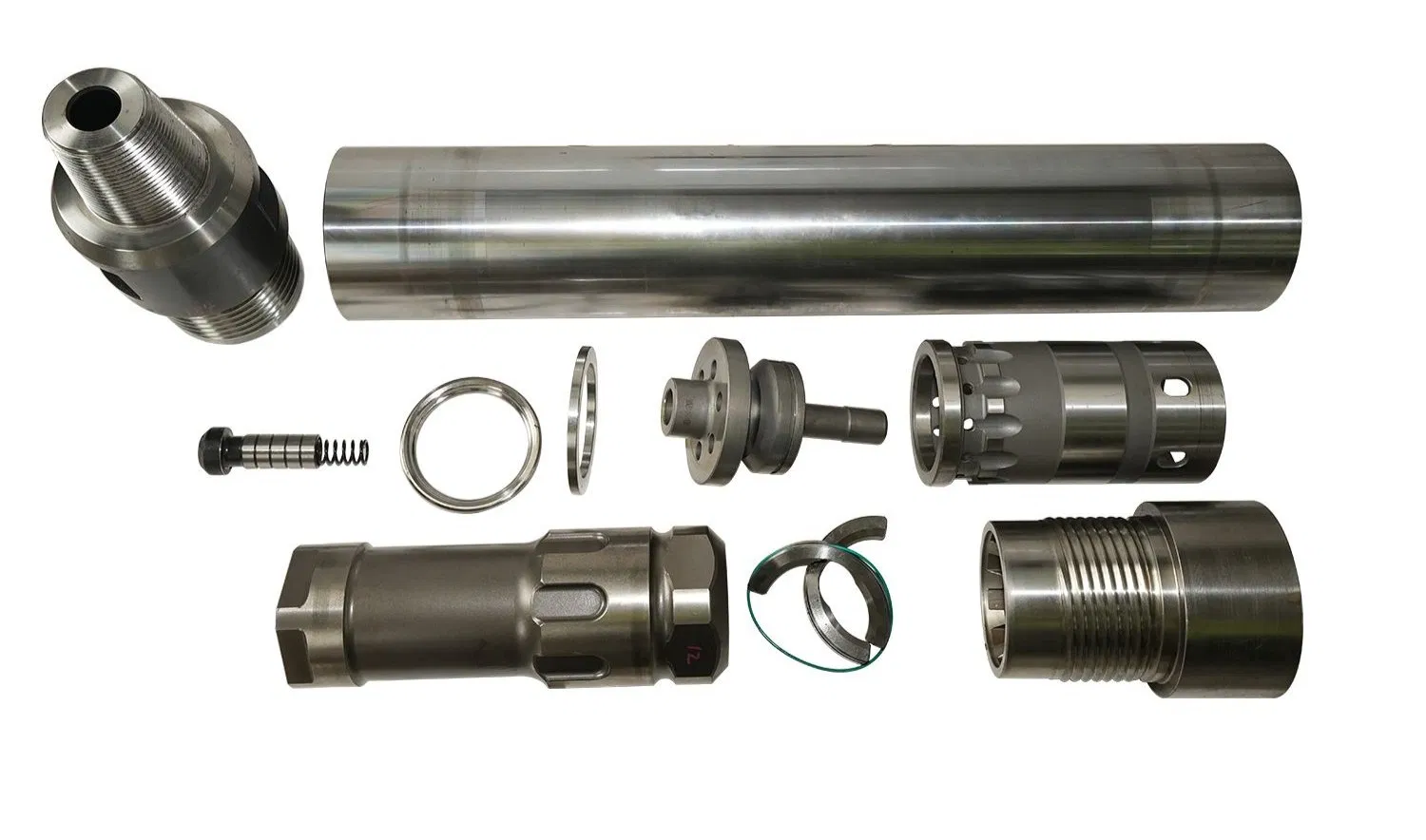

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team provides tailored designs.

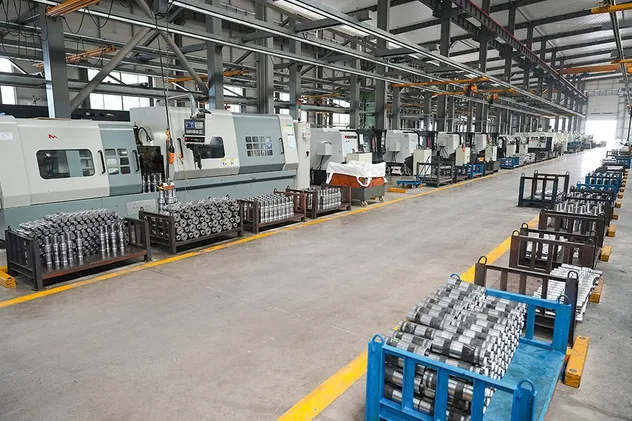

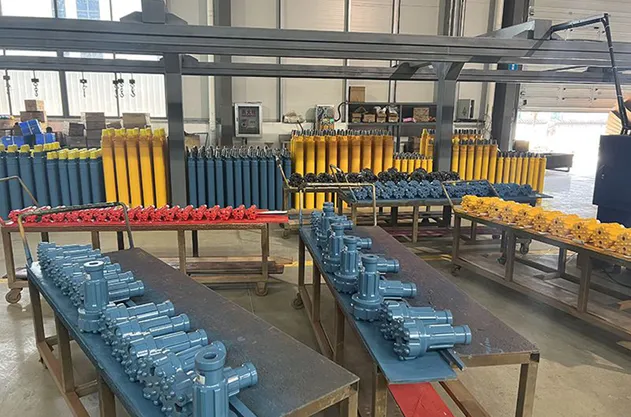

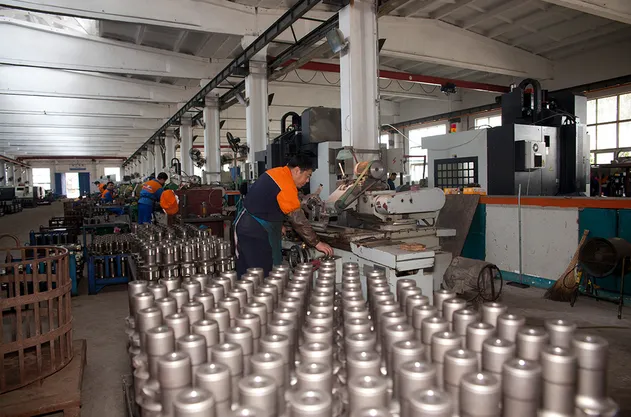

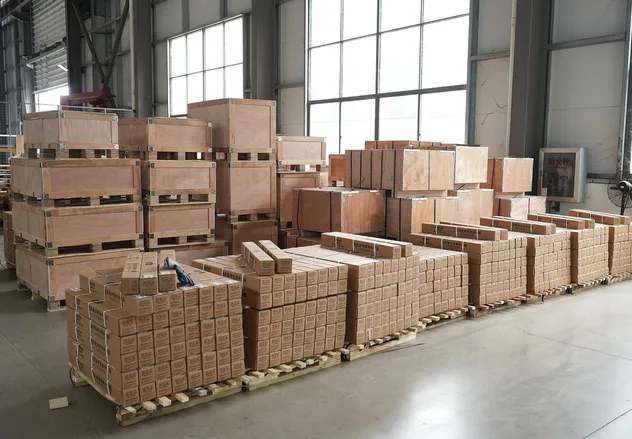

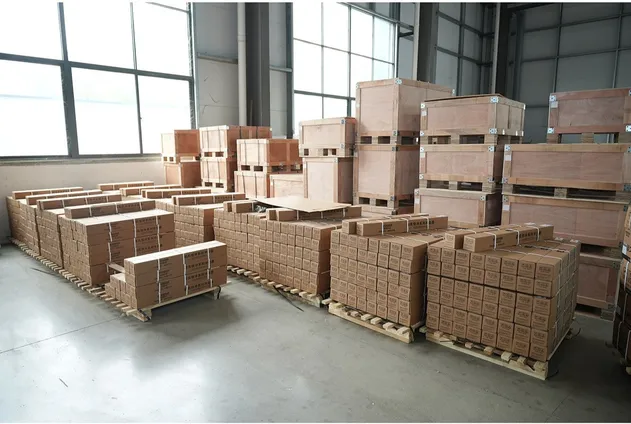

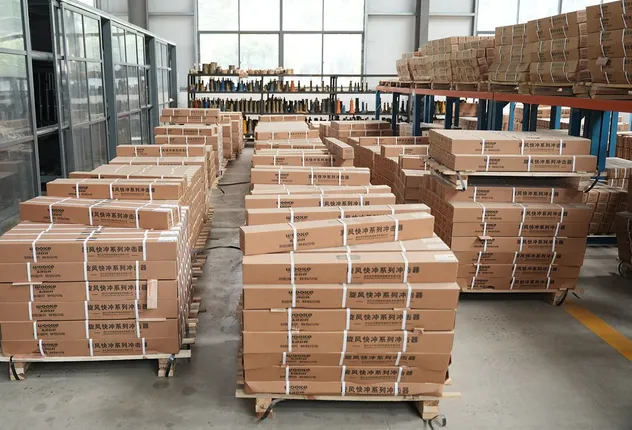

Packaging & Shipping

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation and maintenance training.

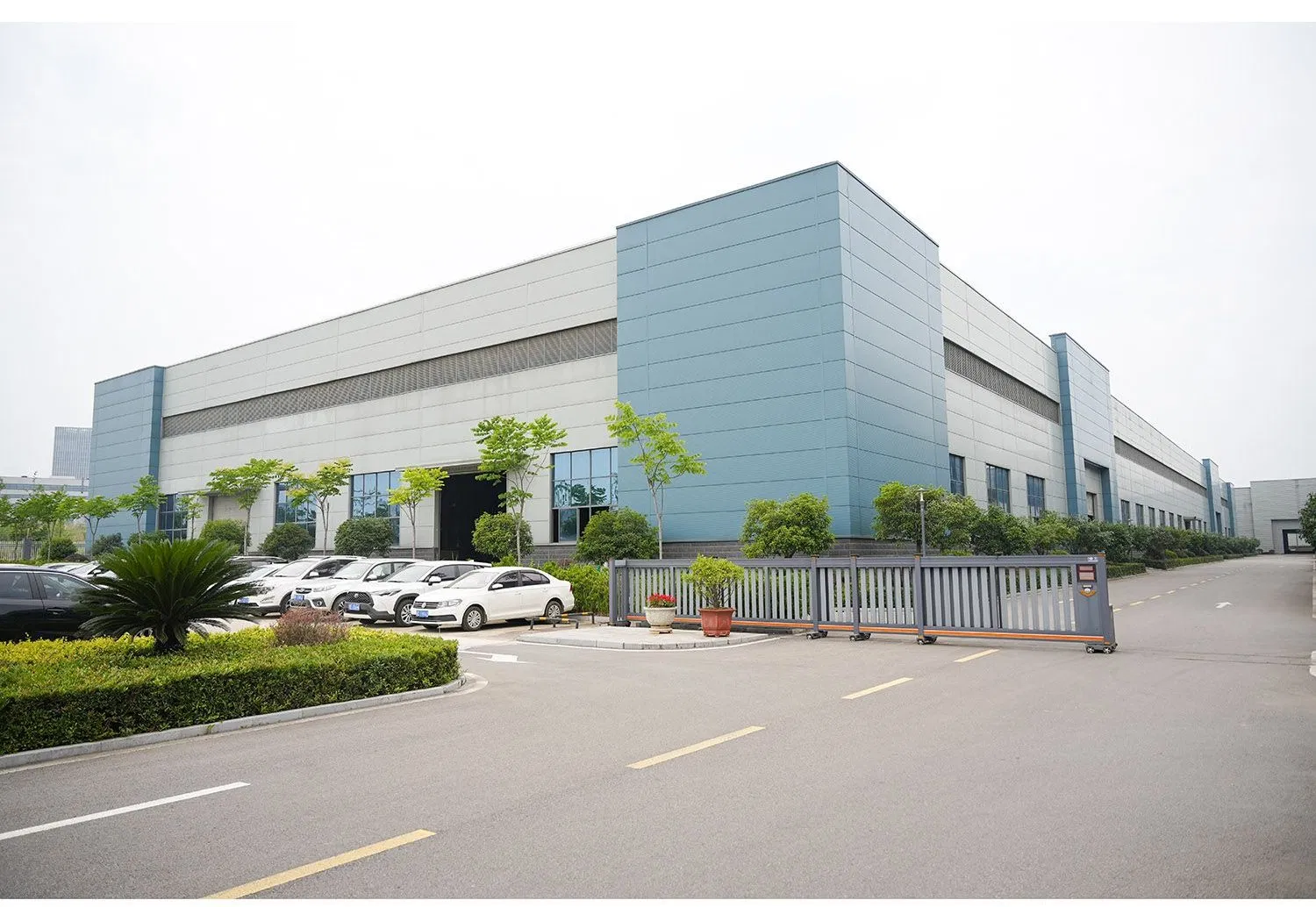

Company Profile

We are a specialist manufacturer of rock drilling tools established in 2008. We are committed to the research, development, and production of high-quality, efficient, and reliable drilling solutions to help customers enhance productivity and reduce costs.

Why Choose Us?

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping support
Turnkey project solutions

Other Products

Threaded Drill Rods & Bits
Coupling Sleeves
Eccentric Casing System
Double Casing Drilling System

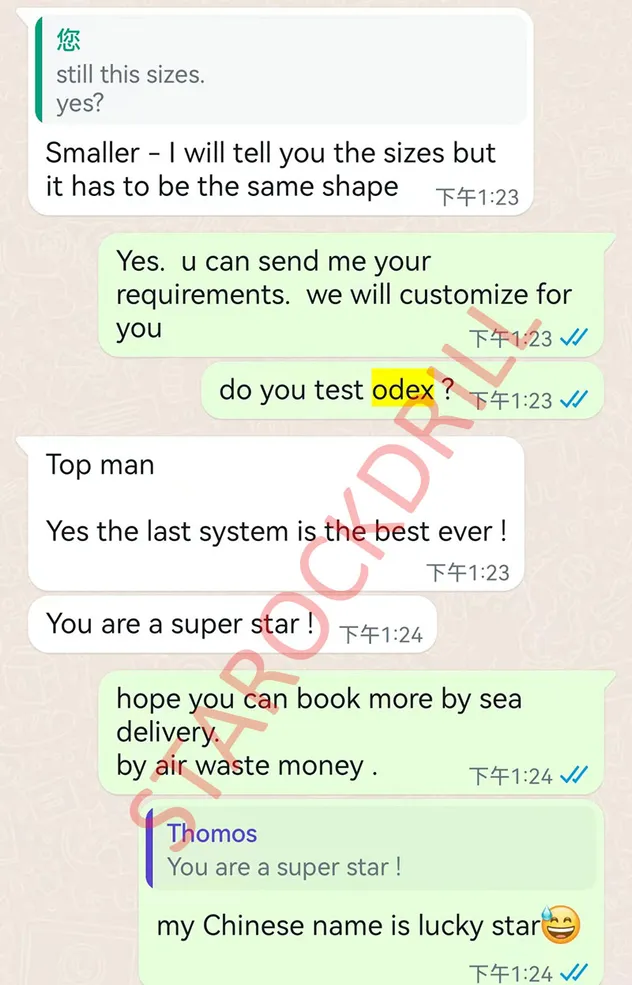

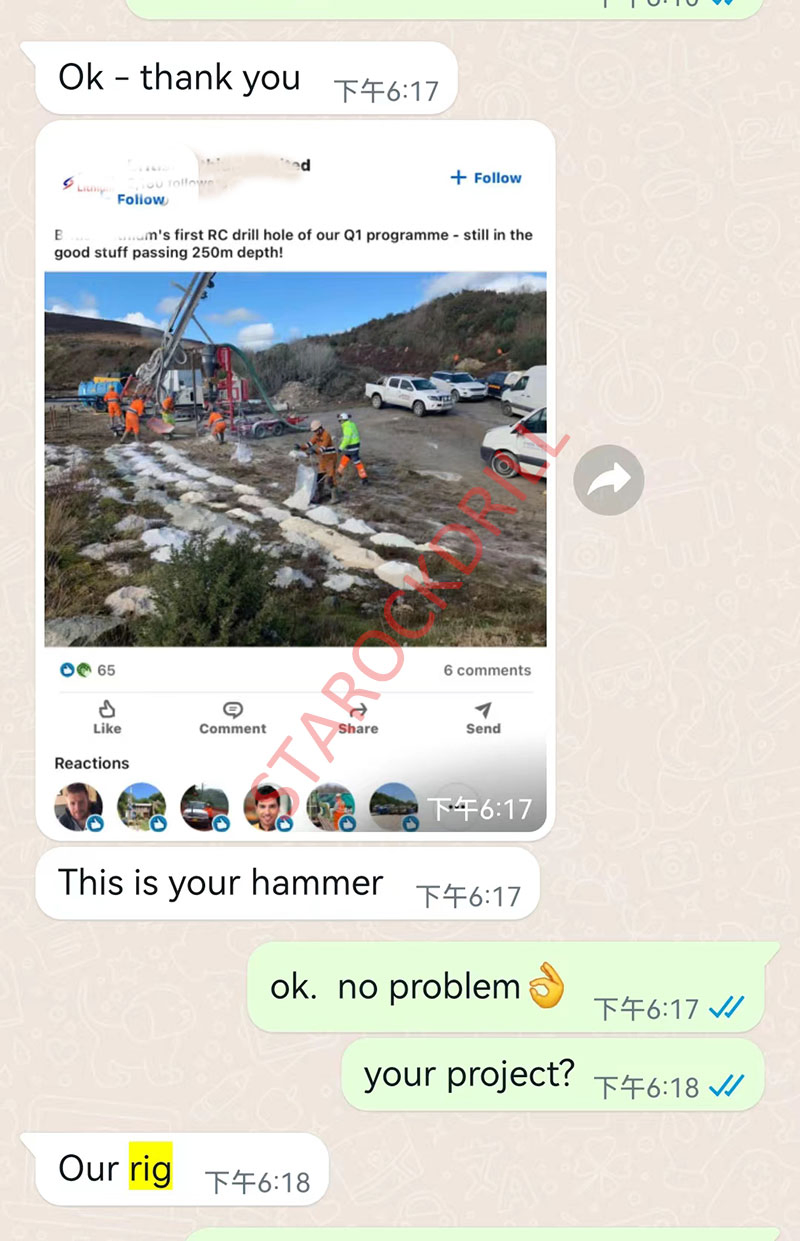

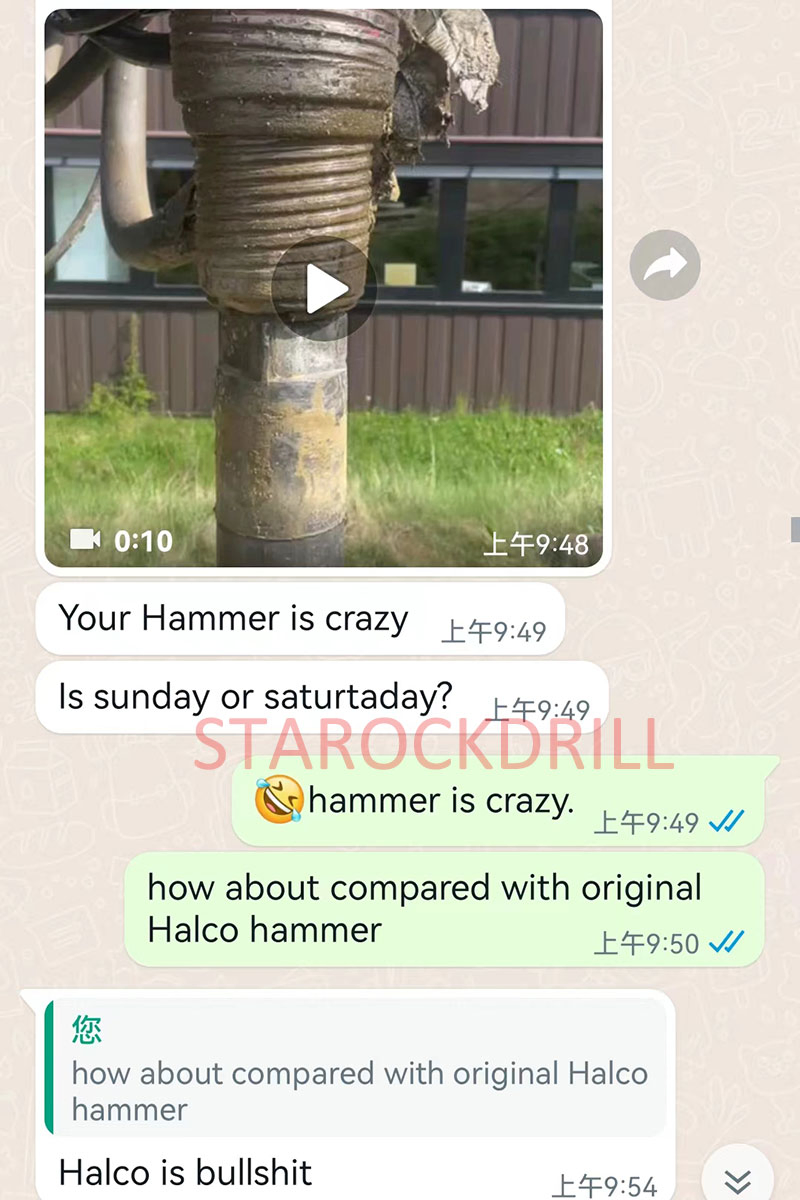

Certifications & Project Cases

Frequently Asked Questions

What is the typical lead time for orders?

Standard models generally ship within 15–30 days, while customized units typically require 30–45 days depending on complexity.

What kind of after-sales support do you offer?

We provide a standard warranty of 12 months or 2,000 operating hours, along with 24/7 technical assistance and global spare parts supply.

Are your casing systems suitable for unstable formations?

Yes, our concentric casing systems are specifically designed for soft and unstable formations, including those with high mud content and floating rocks.

Can I request customized dimensions or technical specifications?

Absolutely. Our engineering team can provide tailored designs and customized bucket sizes or reamer configurations to meet your specific project requirements.

What documents are provided for international export?

We provide a full export documentation package, including Commercial Invoices, Packing Lists, Bills of Lading, and COCs (Certificates of Conformity).

How can I place an order or get a quote?

You can reach out to our team with your specifications to receive a formal quote, which can then be confirmed with a Purchase Order (PO).
