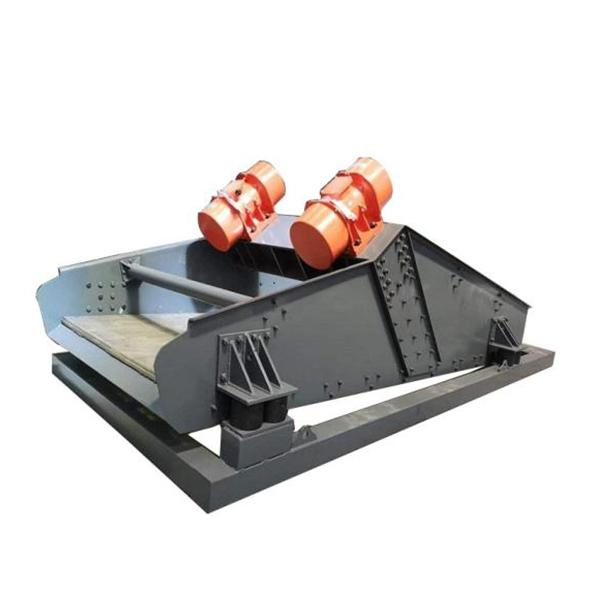

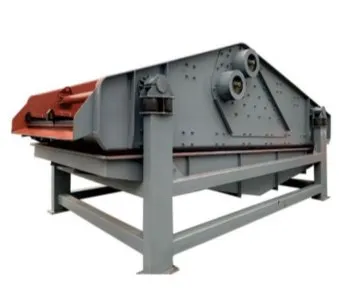

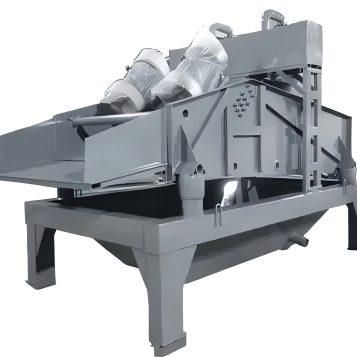

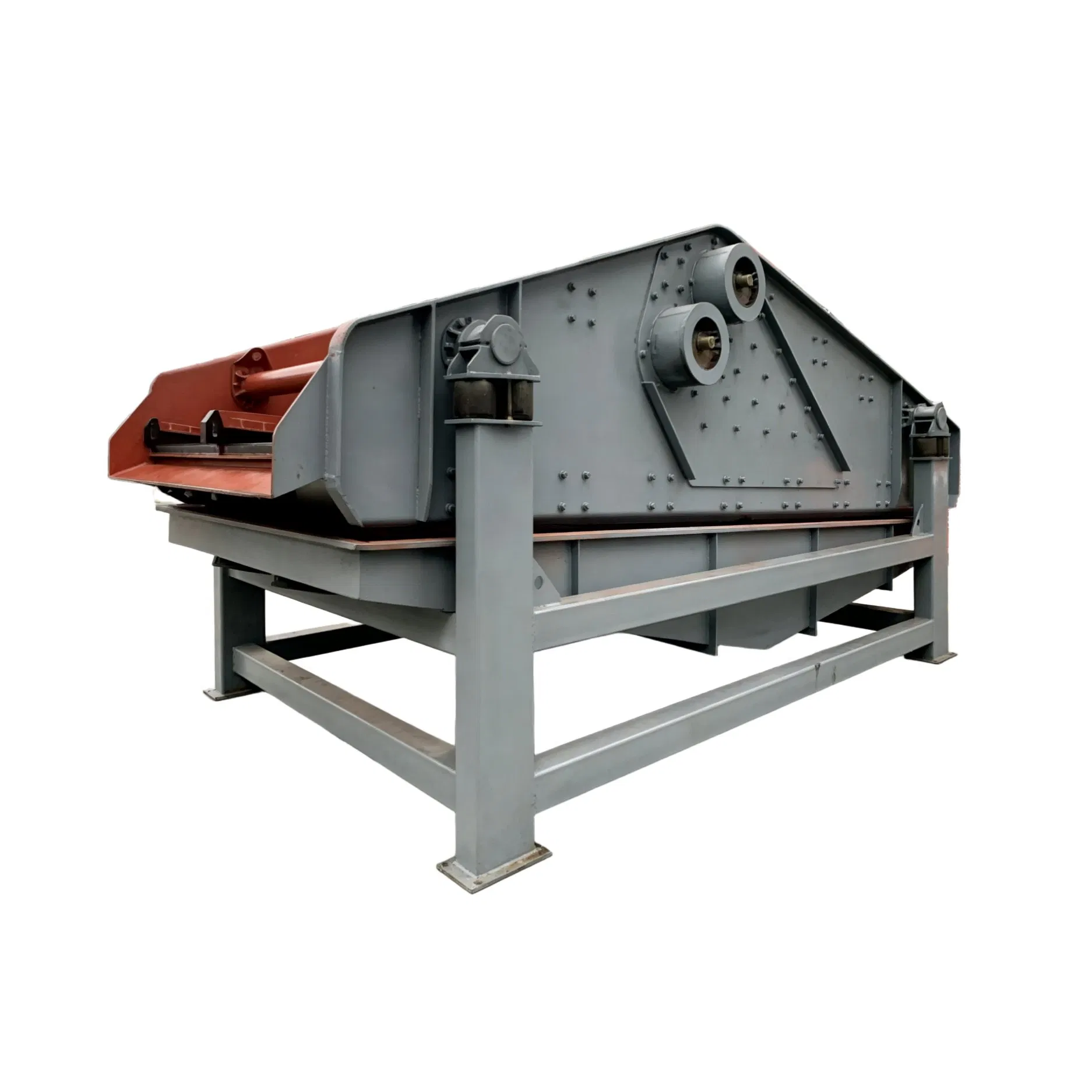

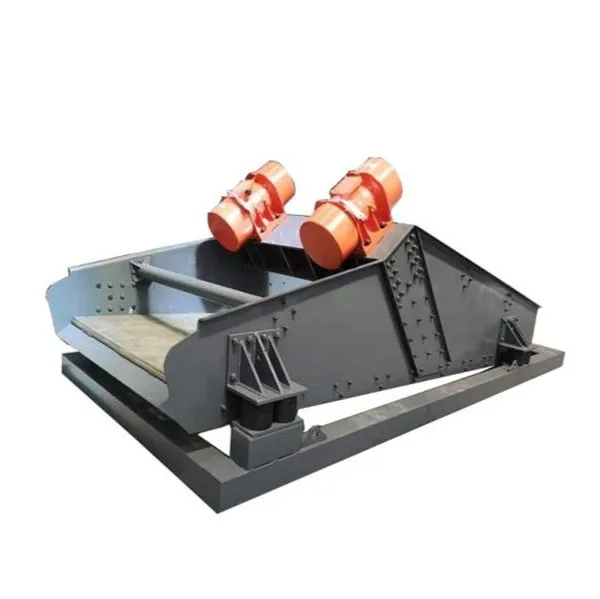

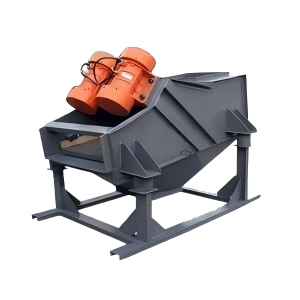

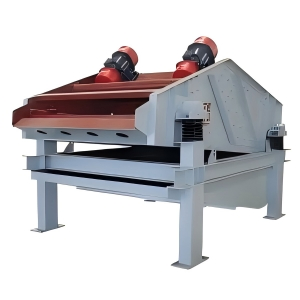

TS Type Linear Dewatering Screen

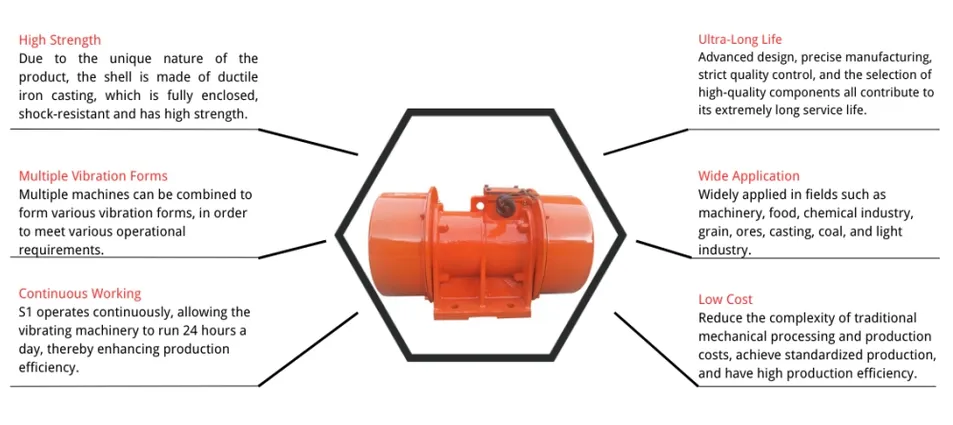

The TS Type Linear Dewatering Vibrating Screen uses an exciter or vibration motor as the vibration source, causing the screen box to move back and forth in a linear motion under the action of the exciting force. The material is thrown up and jumped forward on the screen surface during transportation.
| Type | Screen Size (mm) | Sieve Angle (°) | Aperture (mm) | Capacity (t\h) | Power (KW) |
|---|---|---|---|---|---|
| TS-1536 | 1500*3600 | 0(±5) | 0.25-1 | 15-30 | 7.5x2 |
| TS-1836 | 1800*3600 | 0(±5) | 0.25-1 | 25-40 | 7.5x2 |
| TS-2136 | 2100*3600 | 0(±5) | 0.25-1 | 40-70 | 7.5x2 |
| TS-2436 | 2400*3600 | 0(±5) | 0.25-1 | 40-80 | 7.5x2 |
| TS-2445 | 2400*4500 | 0(±5) | 0.25-1 | 60-90 | 11x2 |
| TS-3061 | 3000*6100 | 0(±5) | 0.25-1 | 80-120 | 18.5x2 |
Standard Warranty: 24 months or 2,000 operating hours.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.
