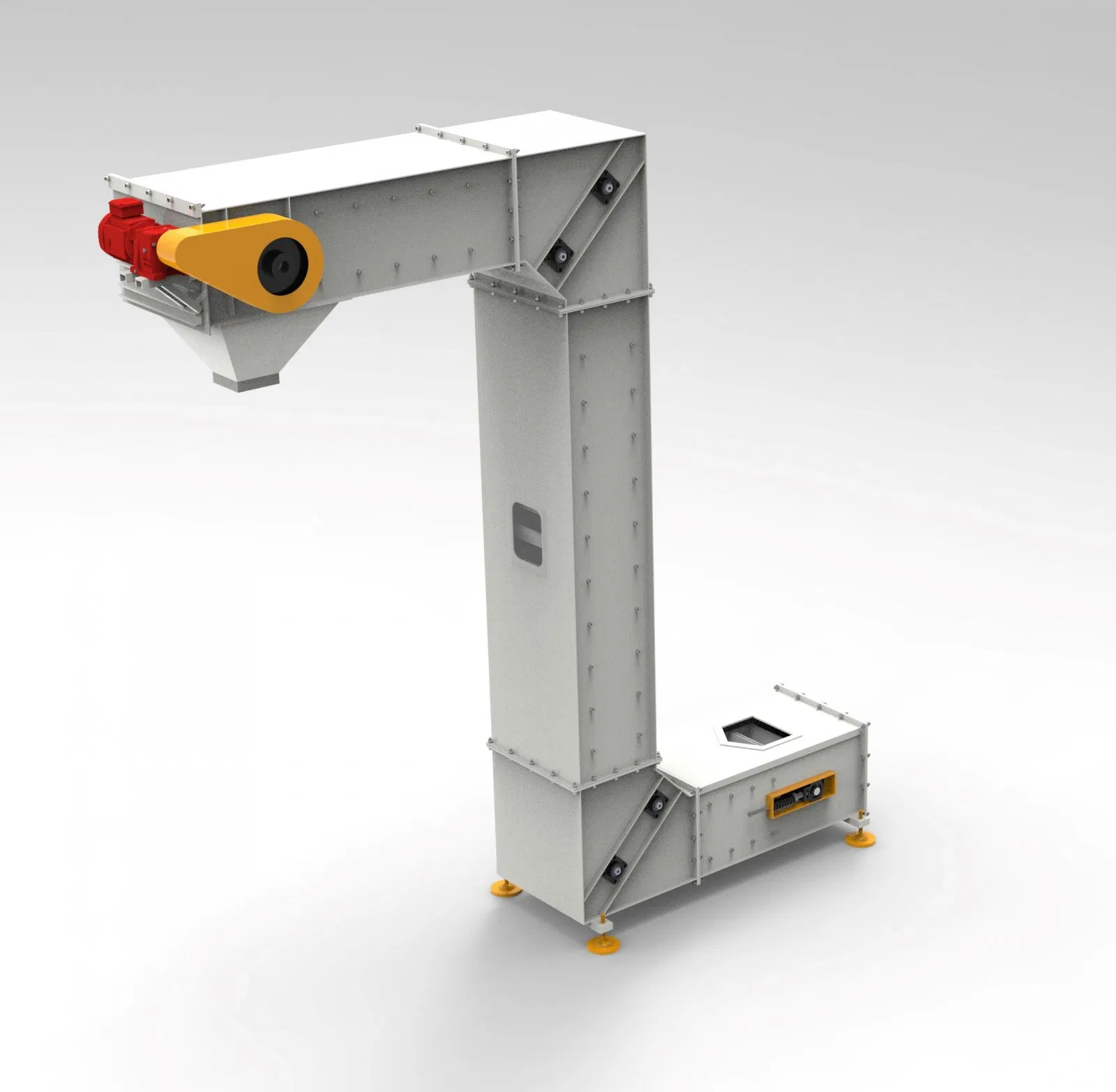

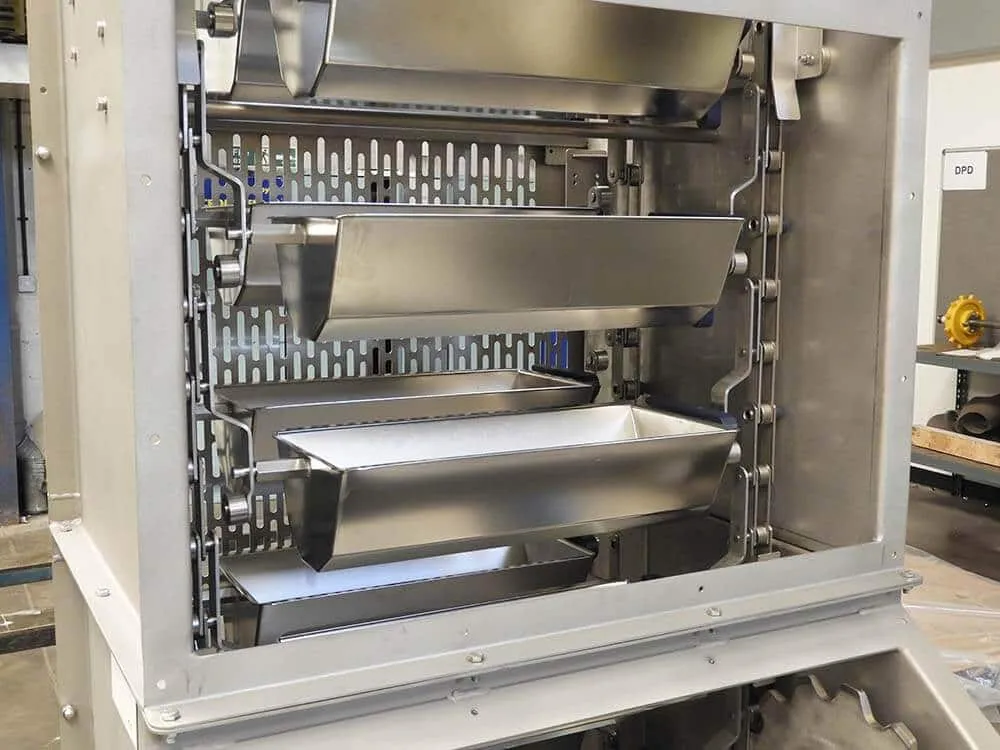

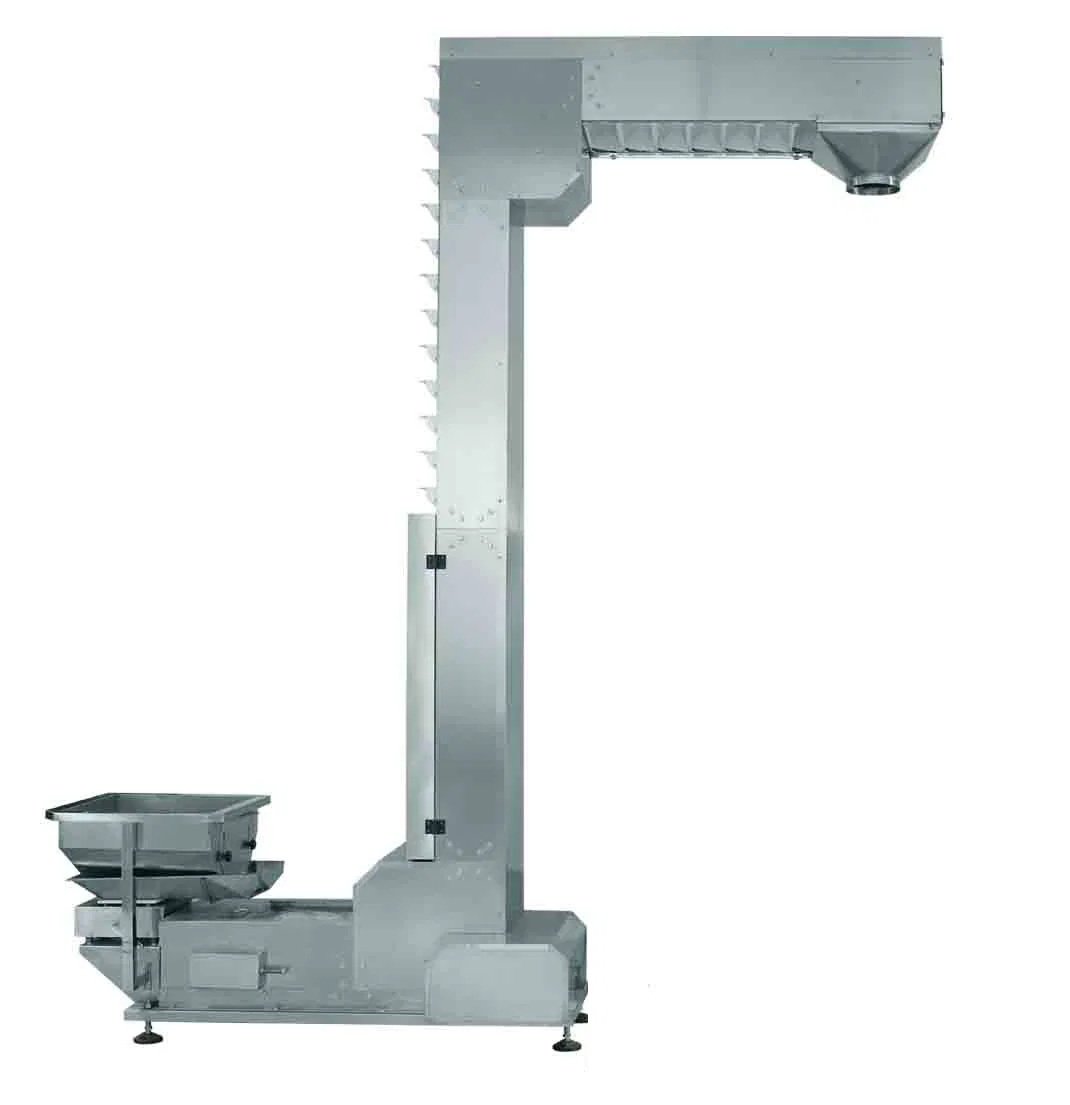

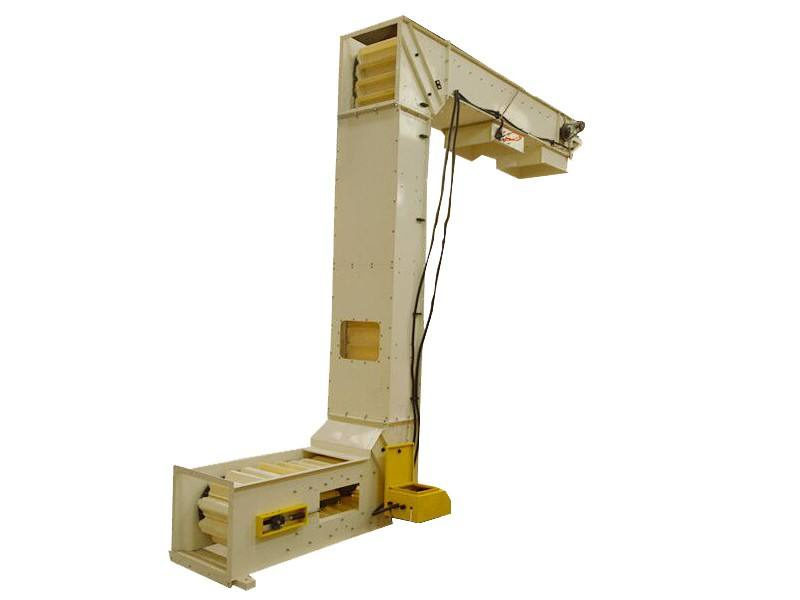

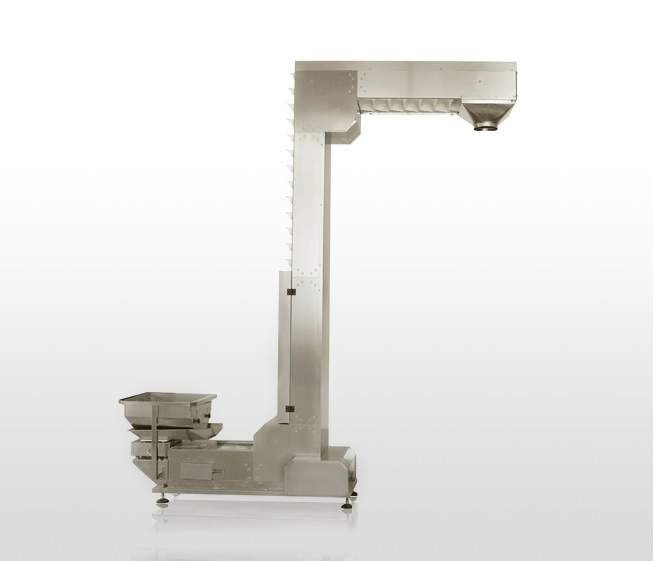

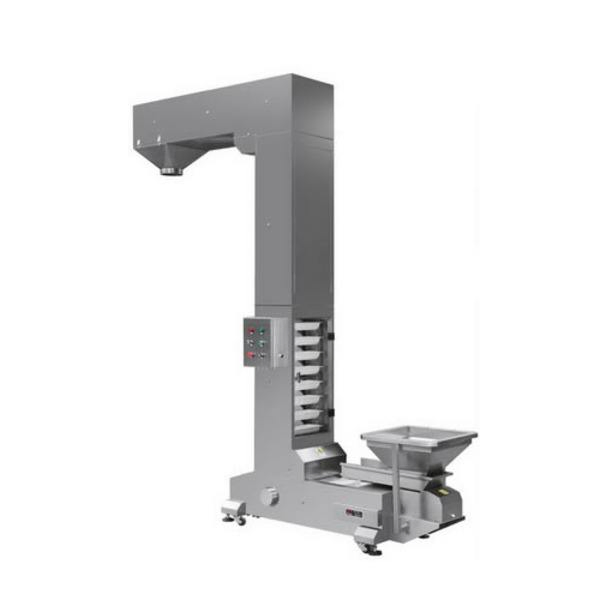

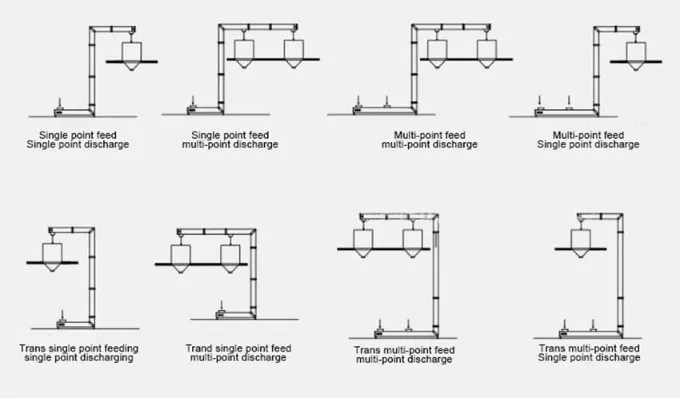

The multi-point feeding Z-type elevator, also known as the Z-type rotating bucket elevator, Z-type feeding machine, and Z-type conveyor, is a closed shell that transports materials through a hopper suspended on a chain, and can be combined horizontally, vertically, and horizontally. It has the advantages of large conveying capacity, high lifting height, stable and reliable operation, and long service life. This elevator can achieve multi-point discharge or multi-point feeding, reducing the rate of material damage, and is suitable for conveying small, granular, and powder non viscous materials.
The commonly used conveying forms of rotary bucket elevators currently include Z-type, C-type, T-type, O-type, horizontal, and other forms. Its working principle and characteristics are the same, both used for vertical and horizontal conveying of powder, granular, and small pieces of materials.
| Model Parameters | RXZD-3 | RXZD-6 | RXZD-10 | RXZD-15 | RXZD-20 | RXZD-25 | RXZD-30 | RXZD-35 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Conveying capacity | 100% | m³/h | 6 | 15 | 22 | 30 | 45 | 56 | 68 | 80 |
| 75% | L | 4.5 | 11 | 16.5 | 22.5 | 33.5 | 42 | 51 | 60 | |
| Silo | Volume | mm | 3 | 6 | 10 | 15 | 20 | 25 | 30 | 35 |
| Width | mm | 370 | 470 | 870 | 500 | 560 | 690 | 815 | 940 | |
| Chain pitch | mm | 38.1 | 66 | |||||||
| Hopper speed | m/s | ≤0.3 | ≤0.25 | |||||||
| Max lifting height | m | ≤45 | ||||||||
| Total Power | kw | 0.75-22 | 1.1-22 | 2.2-22 | 5.5-22 | 5.5-30 | ||||
Food Industry: Pet food, biscuits, gum, candies, chicken essence, milk tea powder, potato chips, Rice noodles, chocolate, peanuts, coffee, nuts, and grains.
Chemical Industry: Plastic particles (PP, PE, PS), activated carbon, preservatives, additives, fertilizers, etc.
Hardware Industry: Screws, nuts, metal accessories, and electrical materials.
