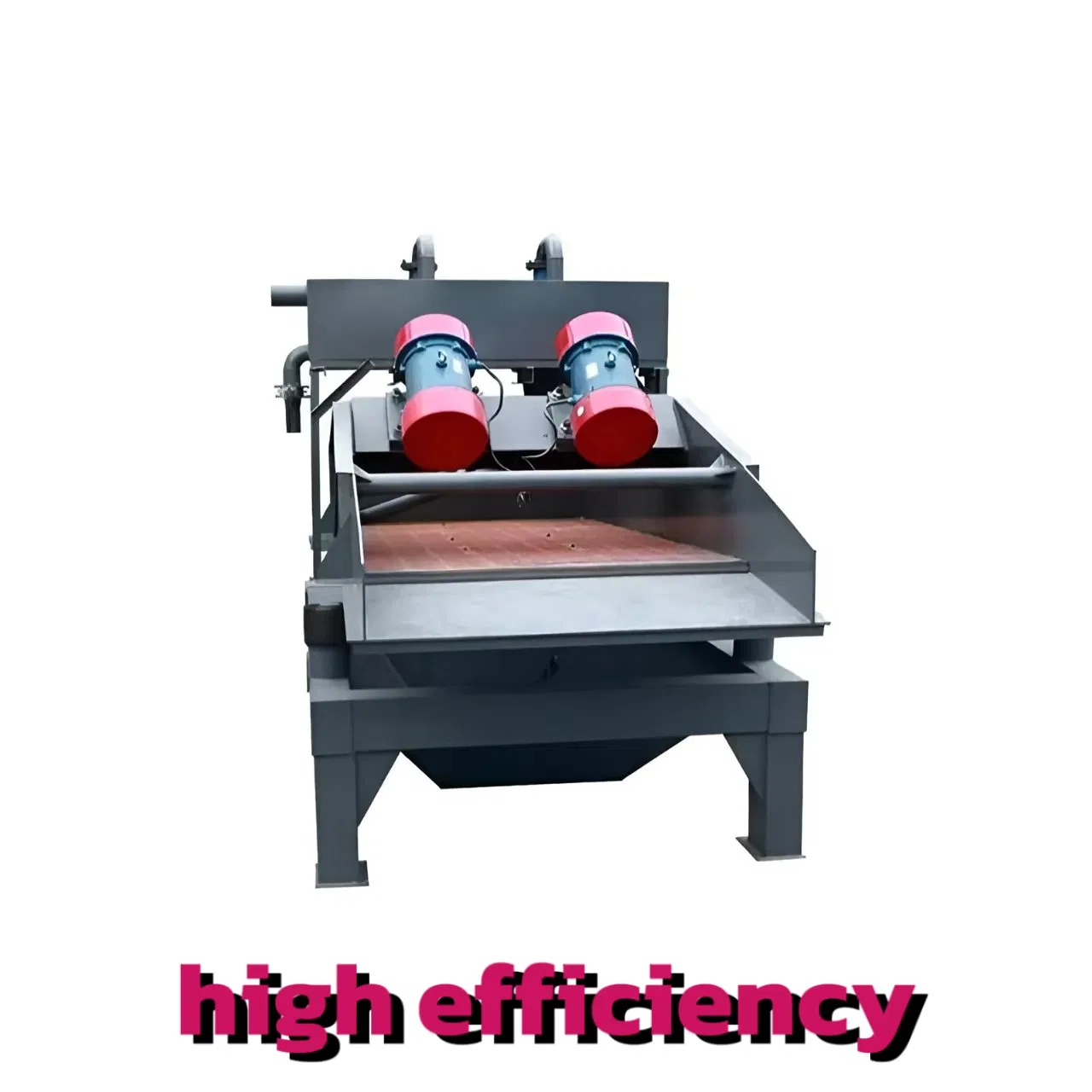

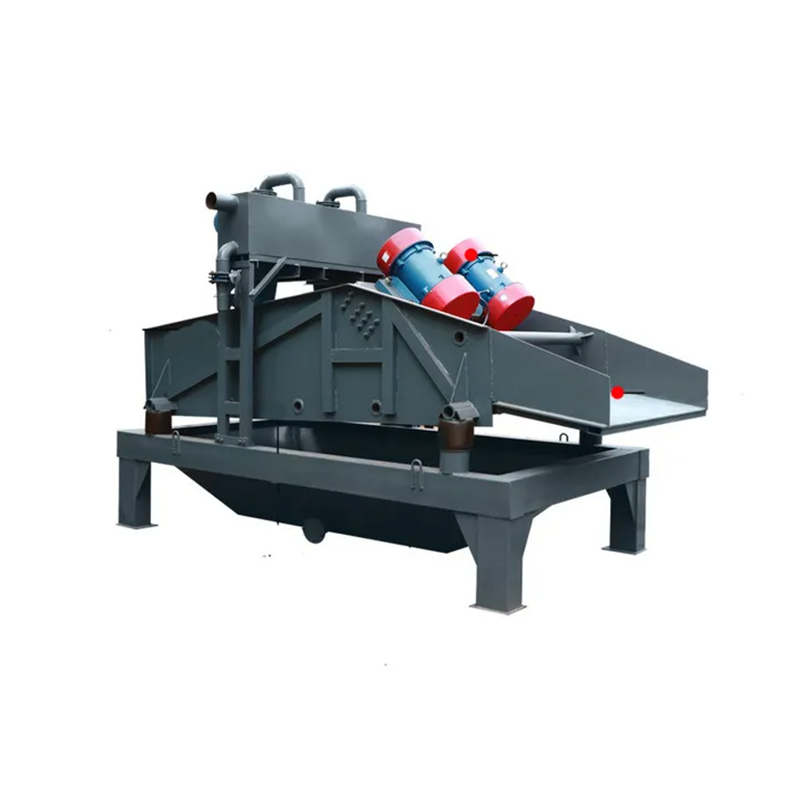

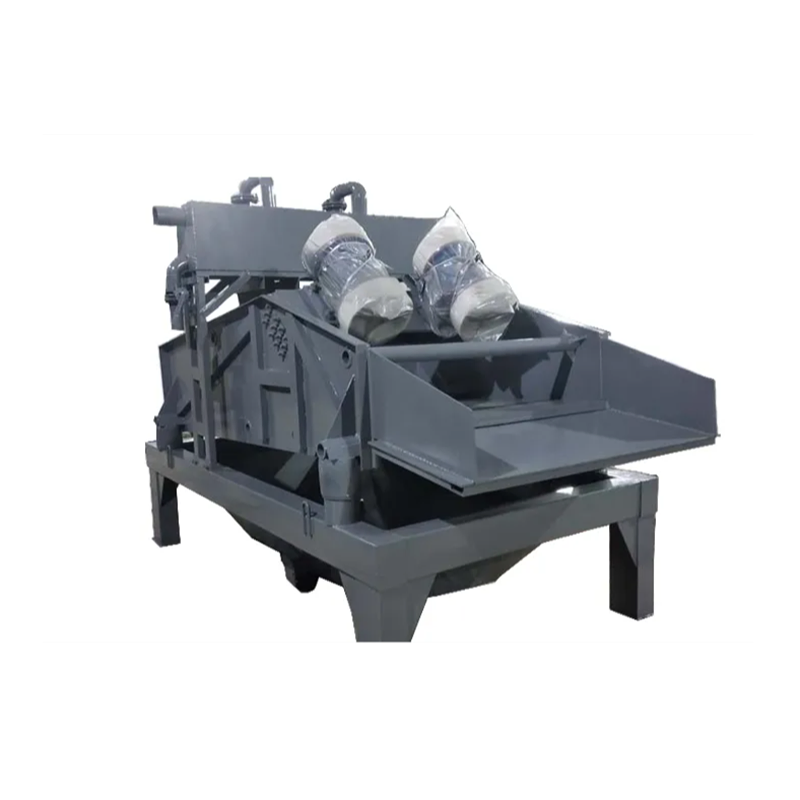

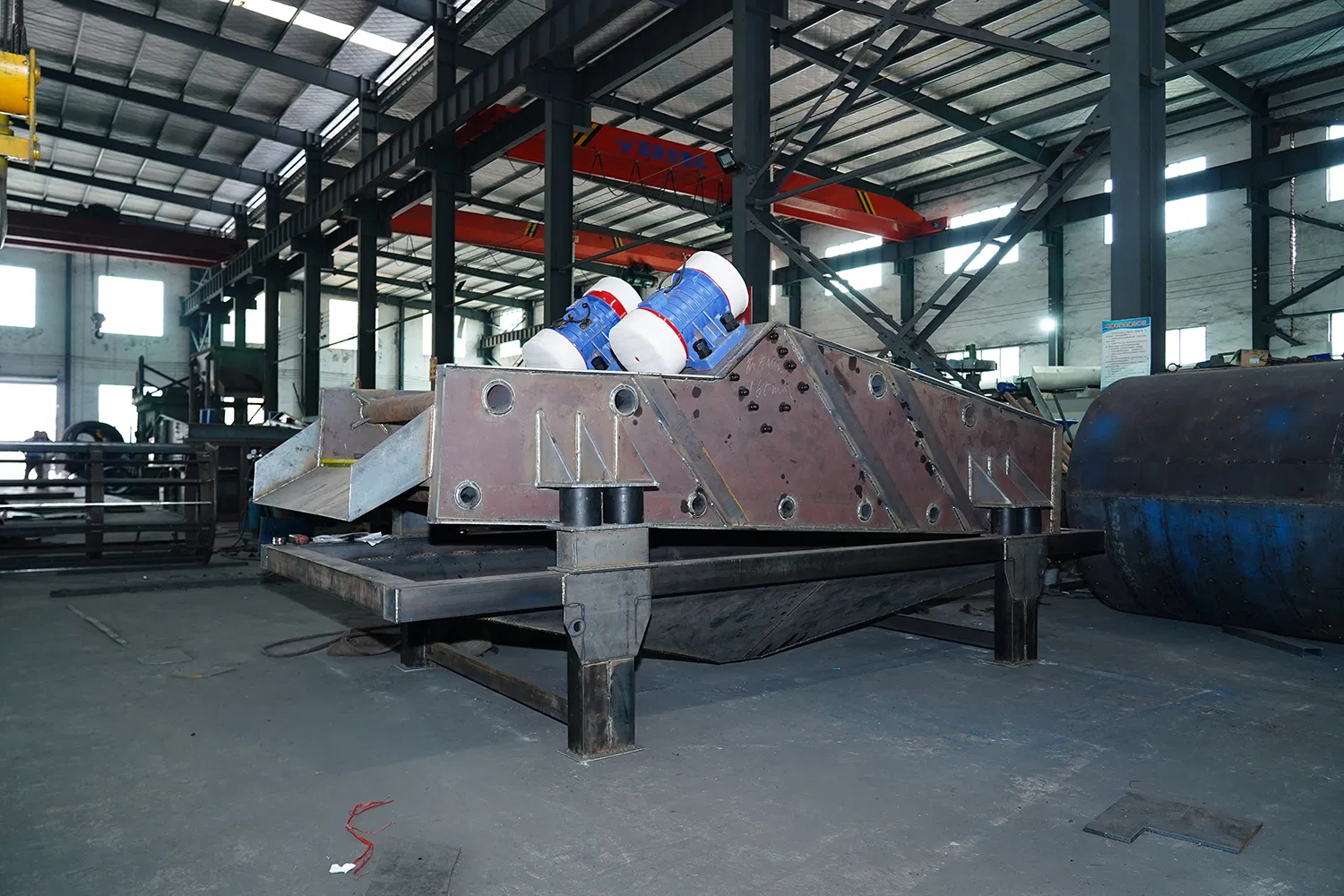

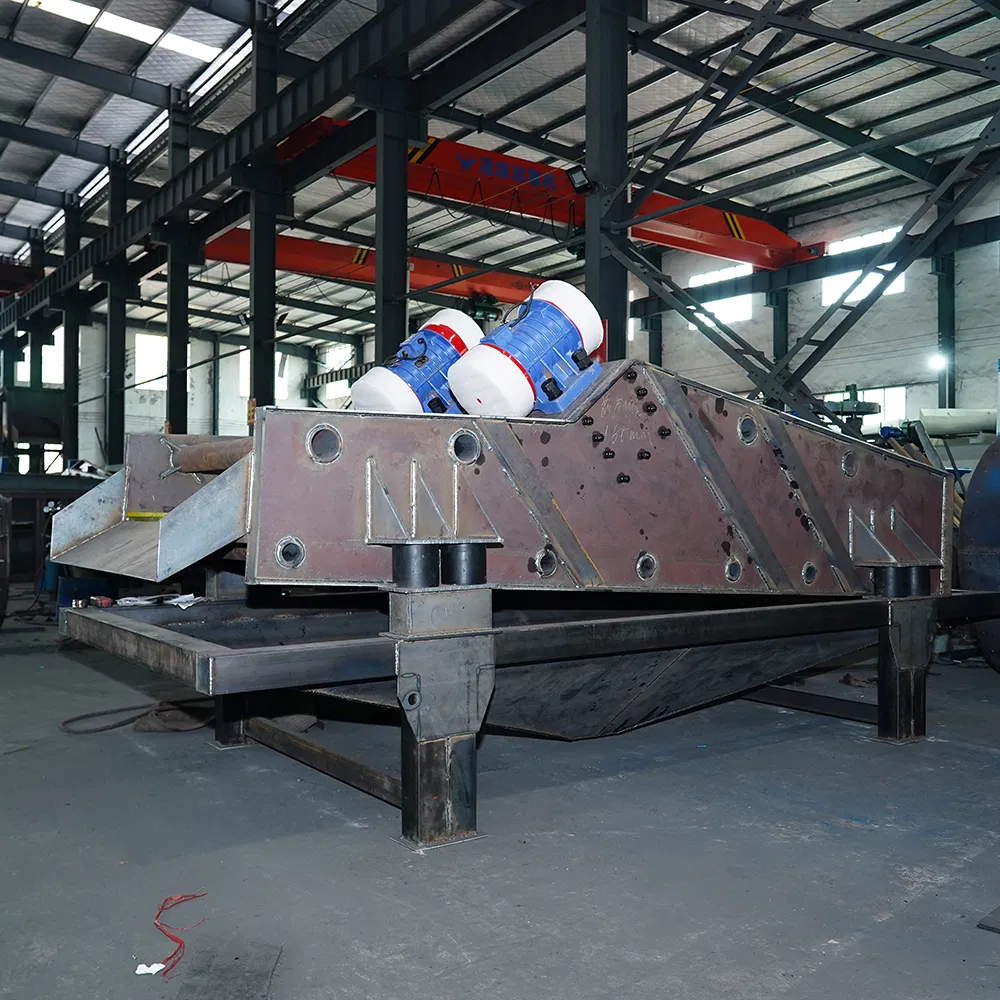

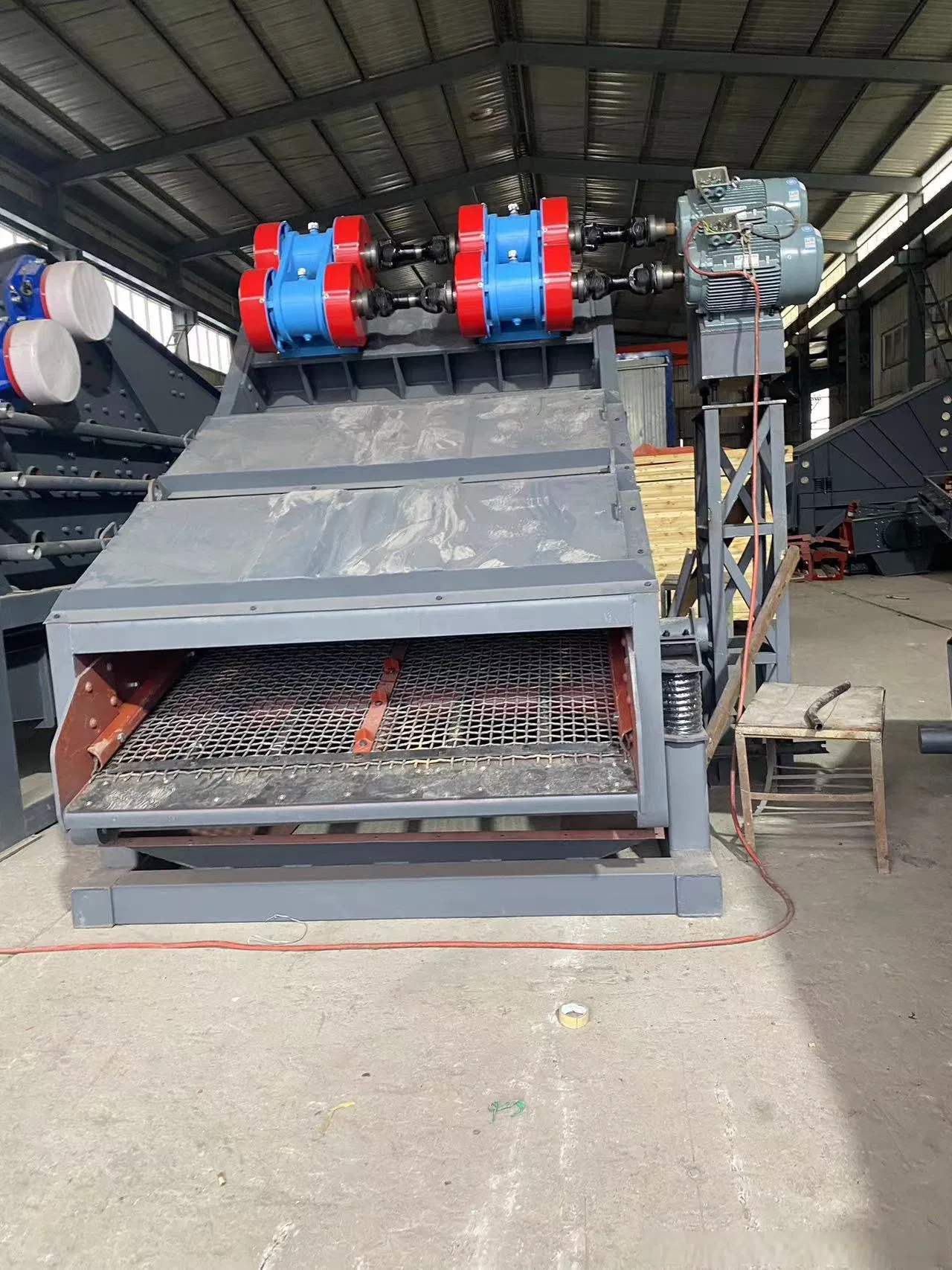

GS High-frequency vibrating dewatering screen is mainly used for fine size dewatering and classifying, coal and tailing recovery.
Working Principle and Structure

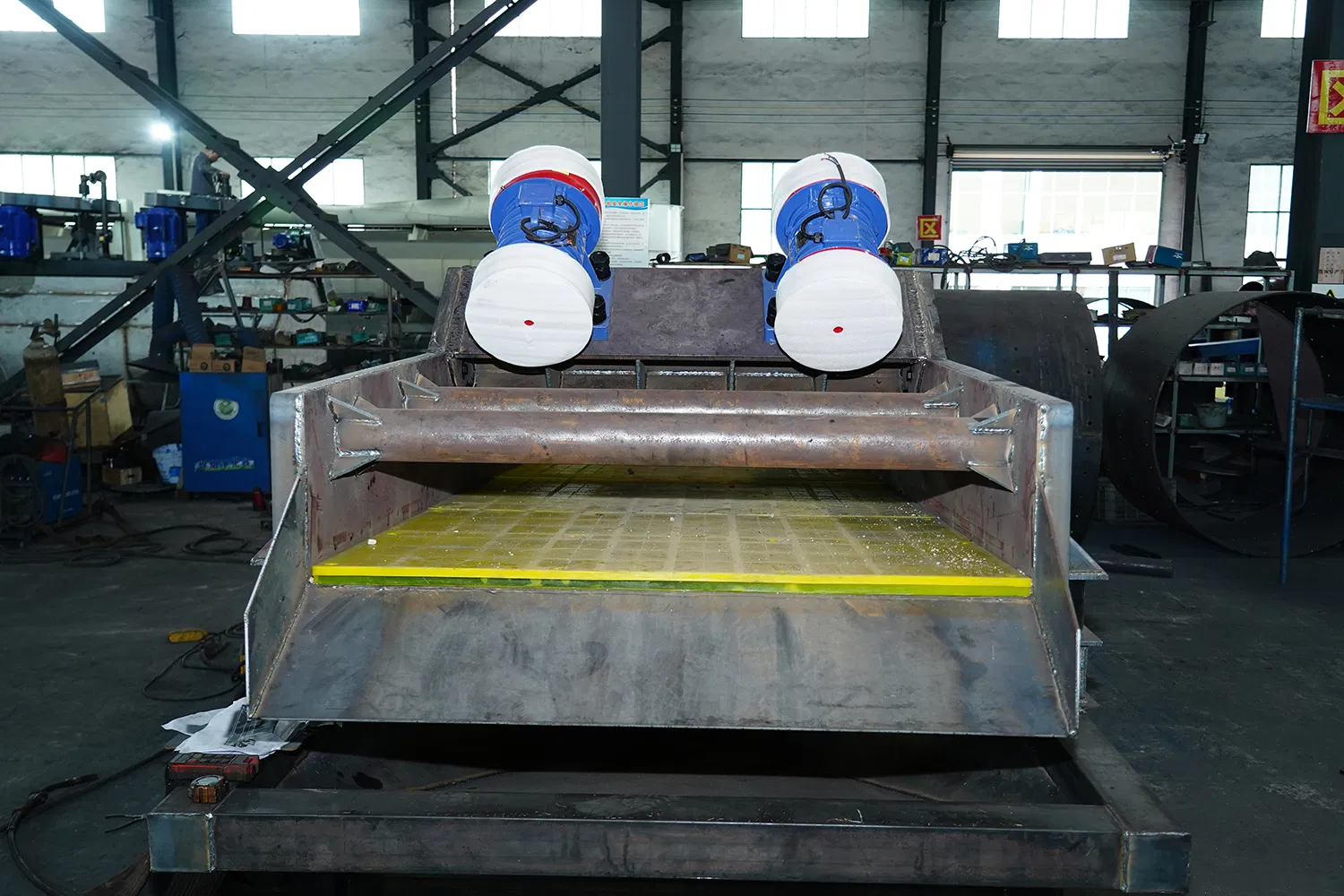

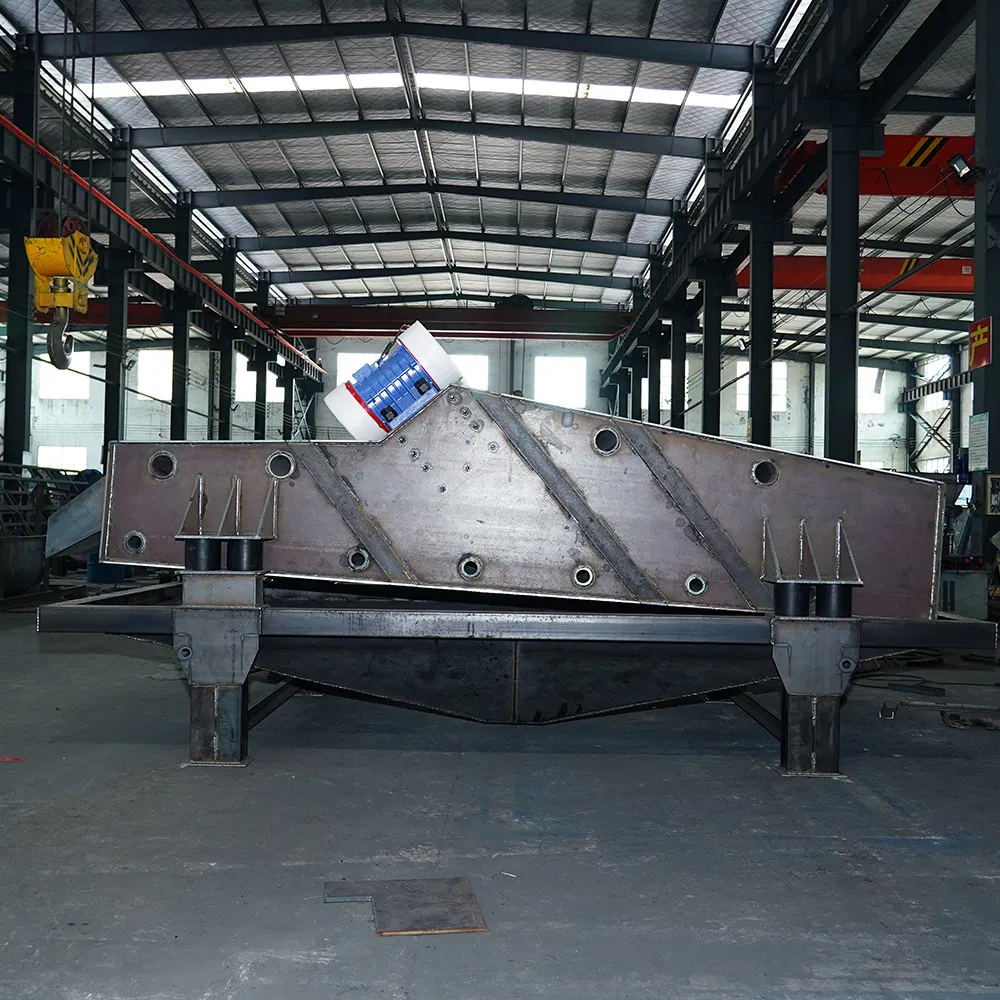

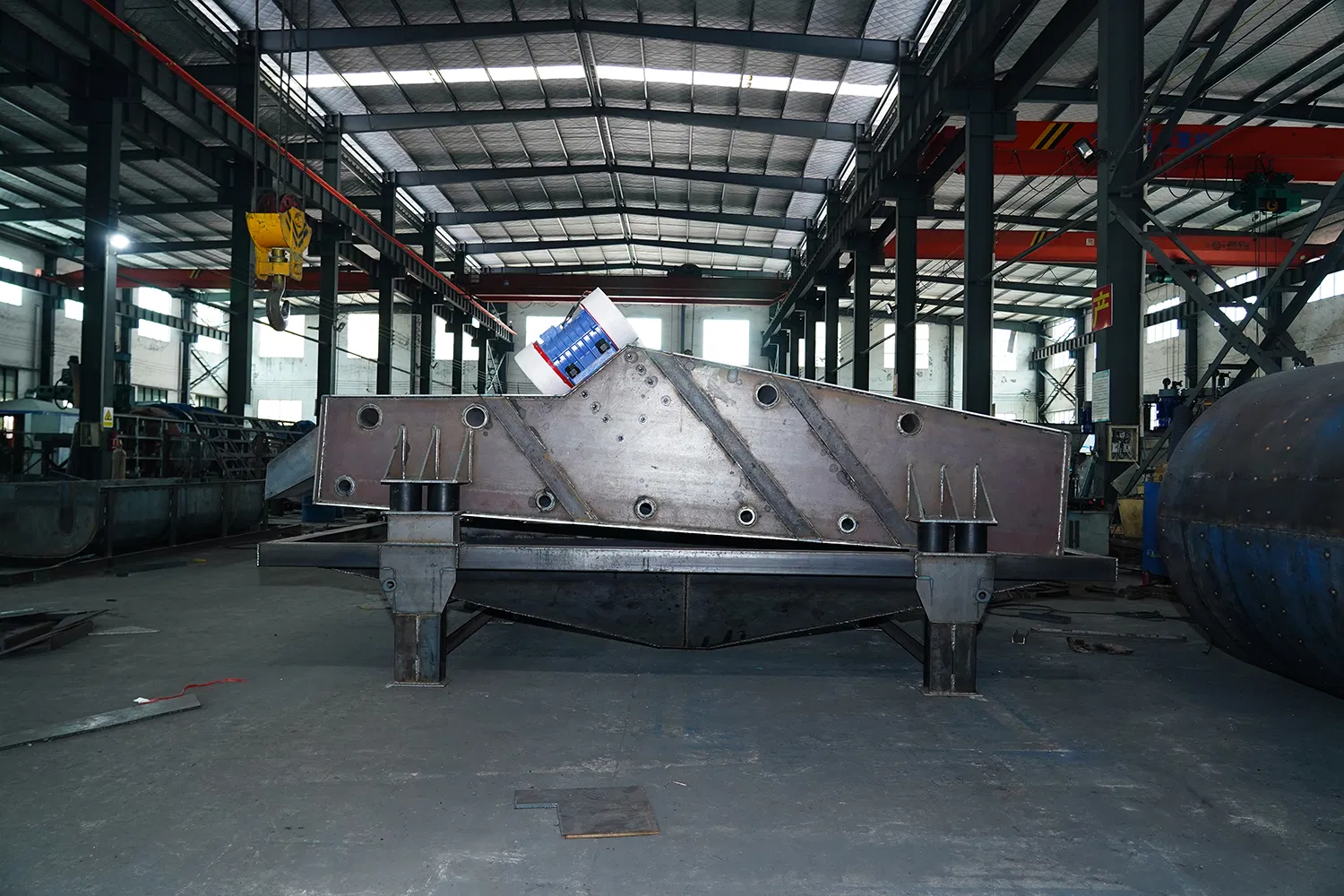

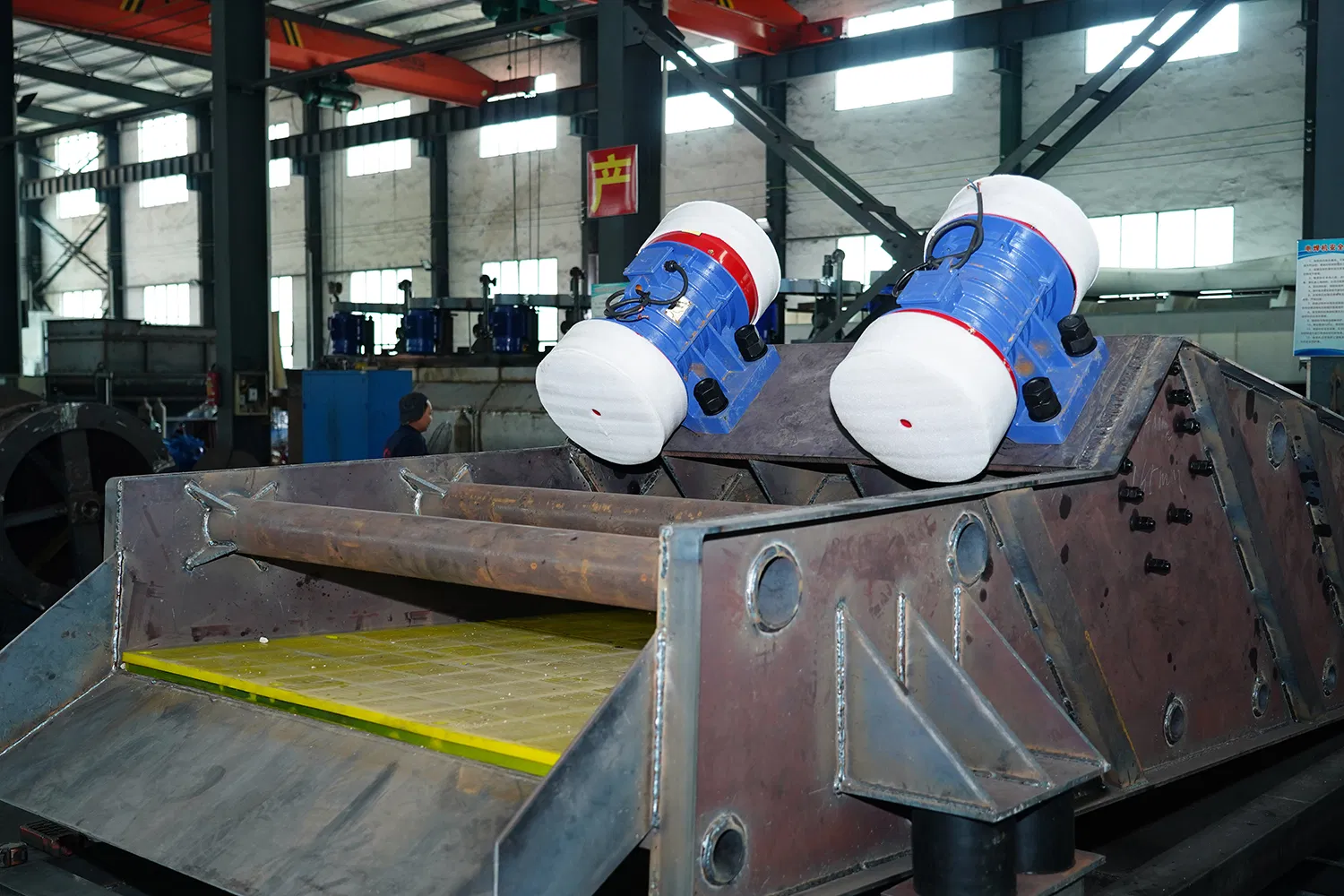

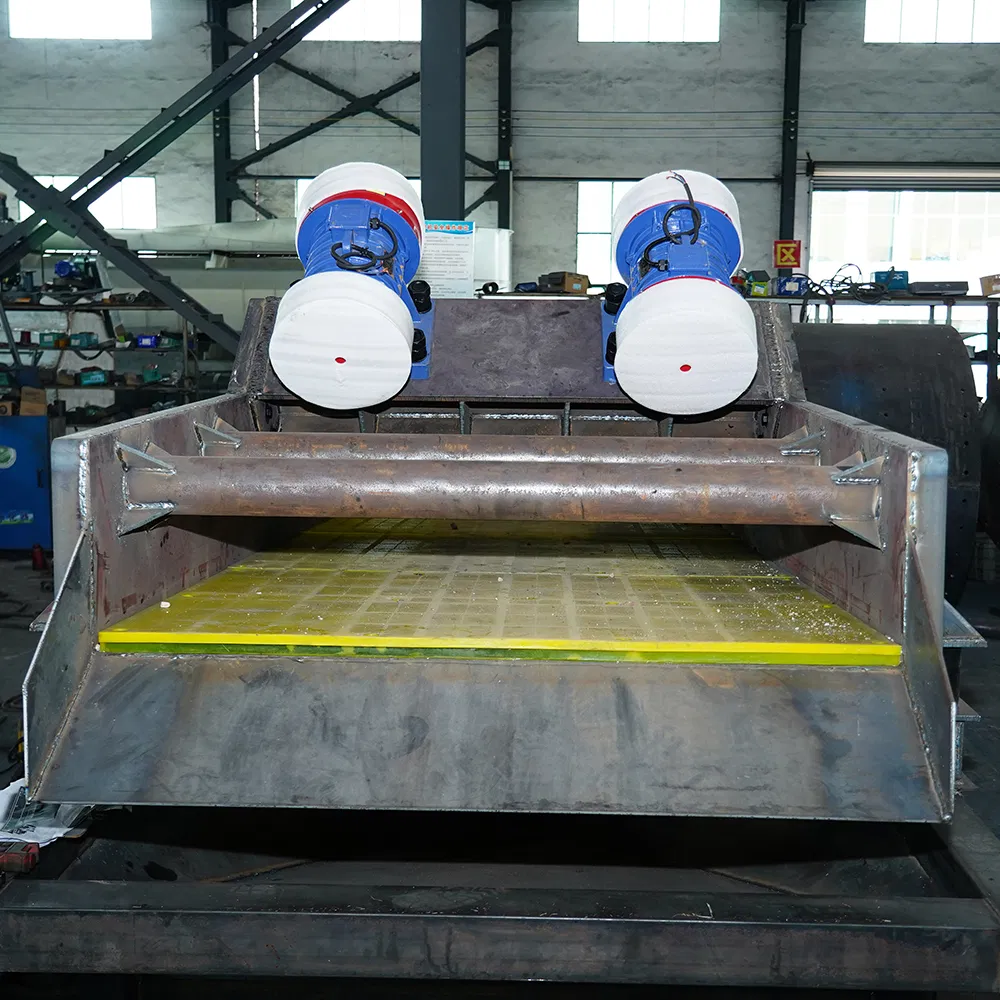

It takes seat-type flange vibration exciter, generated by two engines to form a reversed synchronous rotating, which results in a repetitive periodic movement in a straight line of the screening body, finally to classifier or dewater. The reel is connected by a high-strength bolt. Mesh is composed by arc and straight line and form a strong and stable structure.
Technical Parameters
Model
GS-12*31
GS-14*31
GS-18*37
GS-24*48
Feeding Density(%)
≥45
≥45
≥45
≥45
Capacity(t/h)
15-19
15-19
28-33
60-120
Screen Area Size(mm)
1200*3100
1400*3100
1800*3700
2400*4800
Mesh Size(mm)
0.3, 0.35
0.3, 0.35
0.3, 0.35
0.3, 0.35
Vibrating Frequency
25
25
25
25
Motor Power(kw)
2*4.0
2*5.5
2*7.5
2*8.5
Dimension(mm)
3020*2400*2100
3020*2400*2100
3527*3060*2160
5020*3880*2693
Certifications

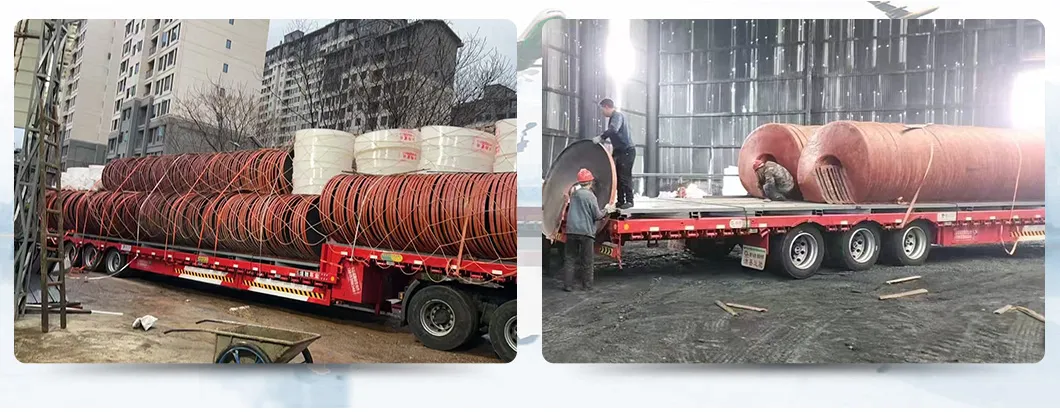

Packing & Delivery
Package Size
1100cm * 1200cm * 1000cm
Gross Weight
500.00kg
Production Facilities
Specializing in the manufacturing of mineral processing equipment, our diverse product line encompasses gravity separation, crushing, pulverizing, flotation, screening, and magnetic separation equipment. We empower the sustainable development of the global mining industry with precision engineering and efficient resource utilization technology.
Frequently Asked Questions
What types of ores is your equipment suitable for?
The mineral processing equipment we provide is suitable for various ores, including metallic ores, non-metallic ores, and rare ores. The process flow can be customized according to ore characteristics such as hardness and particle size.
How to choose the right mineral processing equipment?
Factors to consider include the nature of the ore, capacity demand, site conditions, and environmental requirements. We offer technical consultation to recommend the best solution.
How about the energy consumption and efficiency of the equipment?
Our equipment adopts an energy-saving design, potentially reducing energy consumption by 10% to 30% compared to traditional equipment while improving processing efficiency through optimized structures.
Can you provide renovation and upgrading services for existing production lines?
Yes, we offer partial equipment replacement, automated transformation, and environmental protection upgrades for older production lines.
How is after-sales support guaranteed?
We offer a 1-2 year warranty for core equipment. We maintain a stock of vulnerable parts for quick delivery and provide both remote guidance and on-site technical support.
How long is the equipment delivery and installation cycle?
Standard equipment is usually dispatched within 15 days. Customized equipment cycles range from 1 to 3 months. Installation usually takes 1 to 4 weeks by our professional team.
