Slide Block Guide Concentric Reaming Casing System Drill Bit for Geothermal Wells, Water Wells and Small-to-Medium-Sized Grouting Holes

1 / 5

Slide Block Guide Concentric Reaming Casing System Drill Bit for Geothermal Wells, Water Wells and Small-to-Medium-Sized Grouting Holes

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.

BOD406

Manufacturing Process

Forging

Material

Alloy Steel

Hammer Type

5’’-24’’ Hammer

Application

Pile Drilling, Water Well Drilling

Transport Package

Wooden Case or Carton

Production Capacity

5000PCS/Month

Origin

China

Product Description

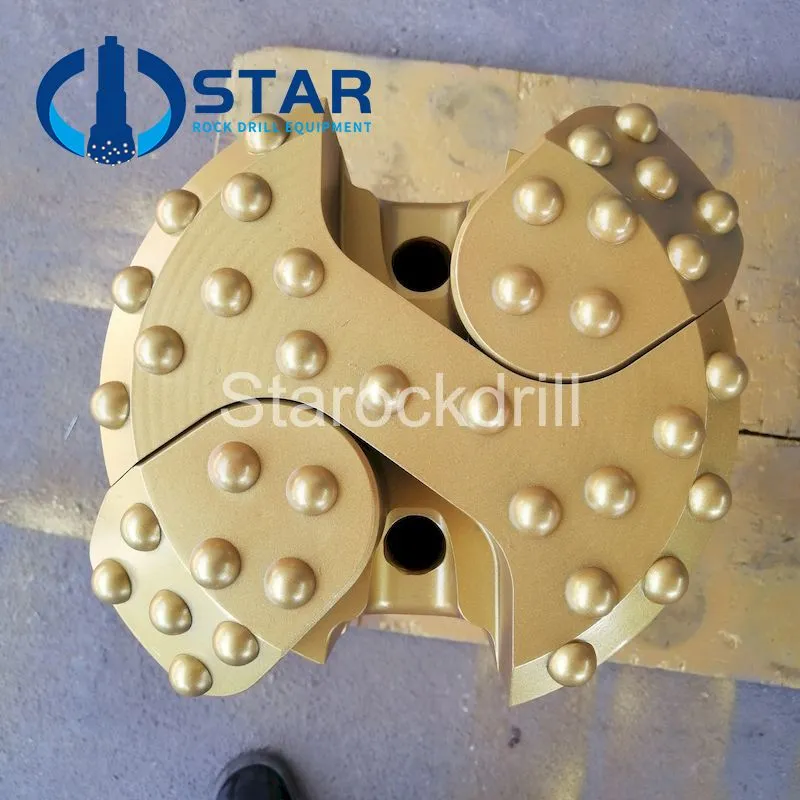

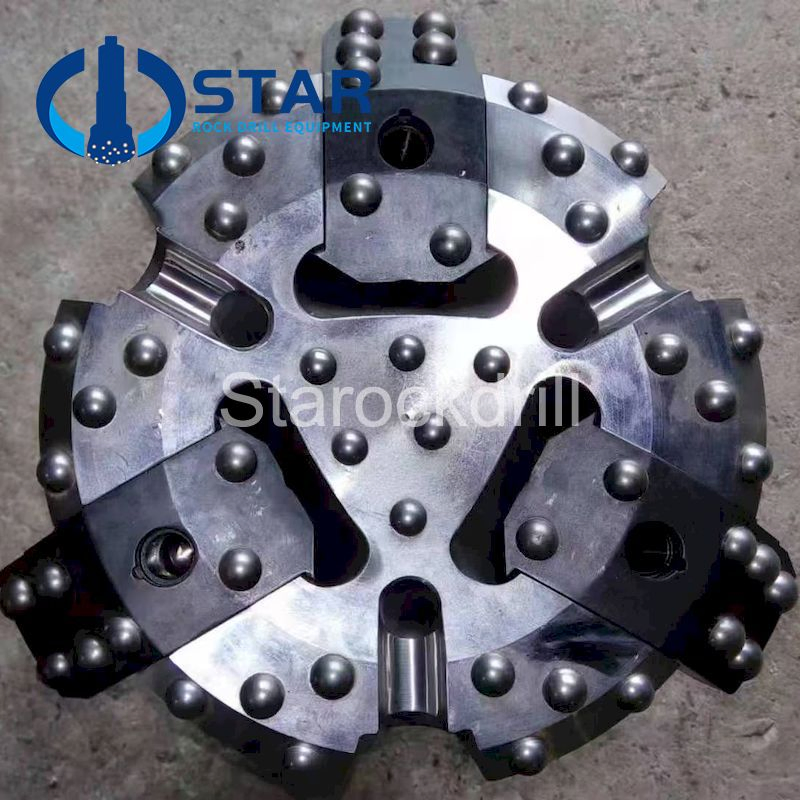

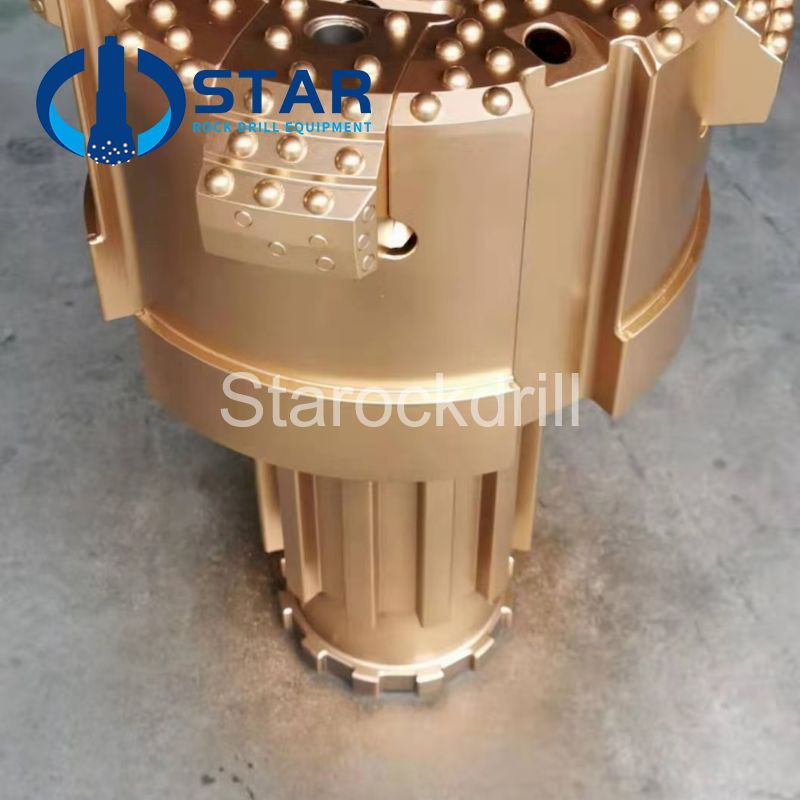

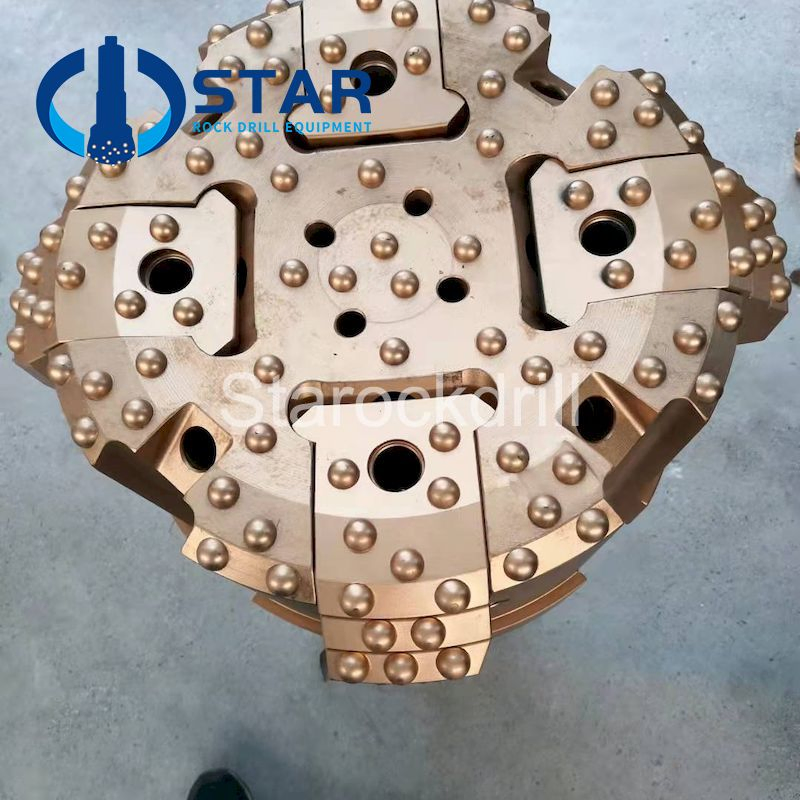

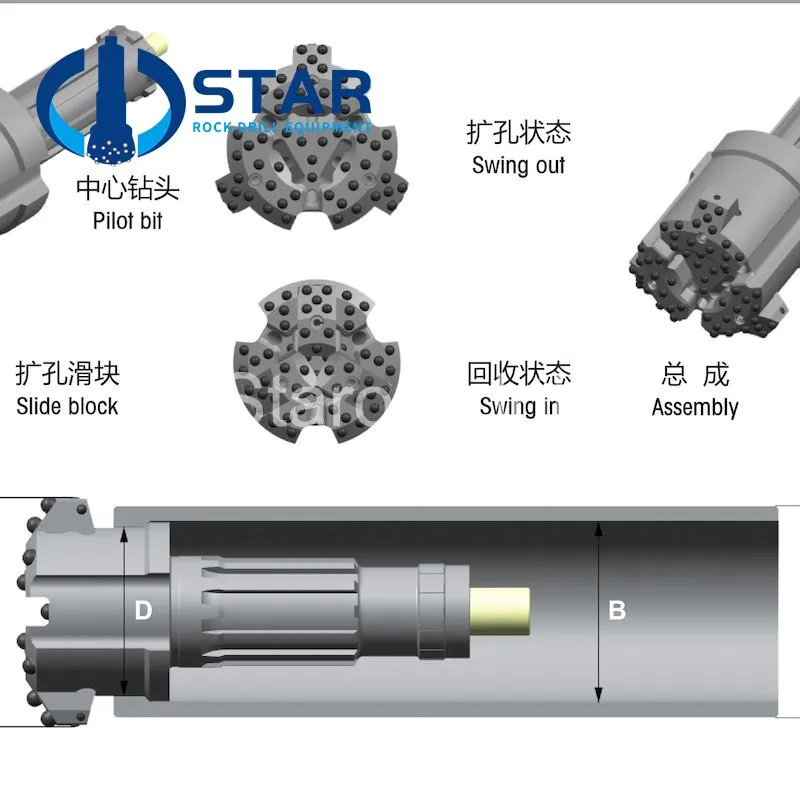

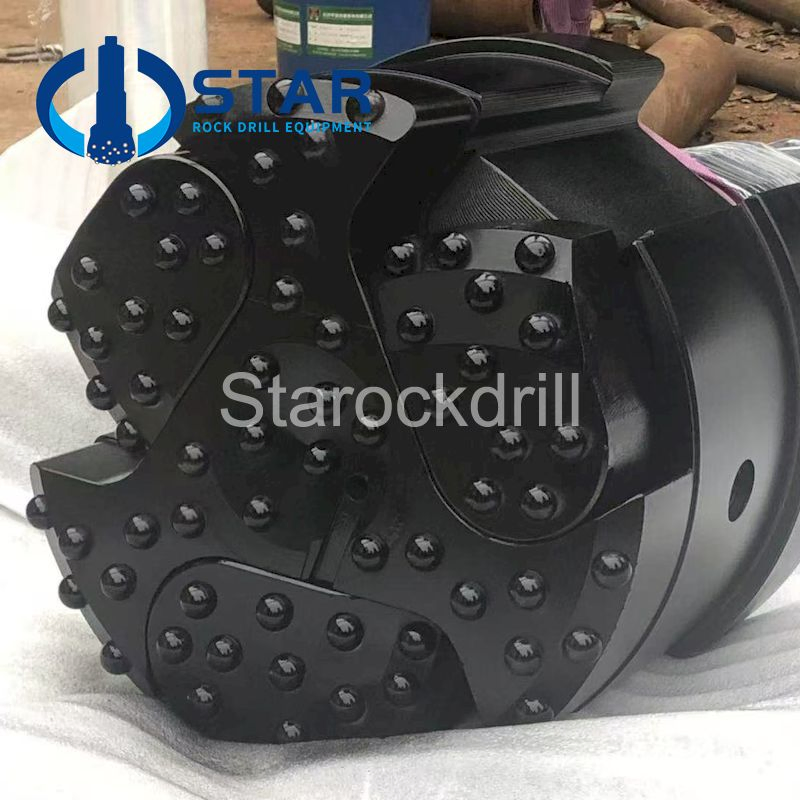

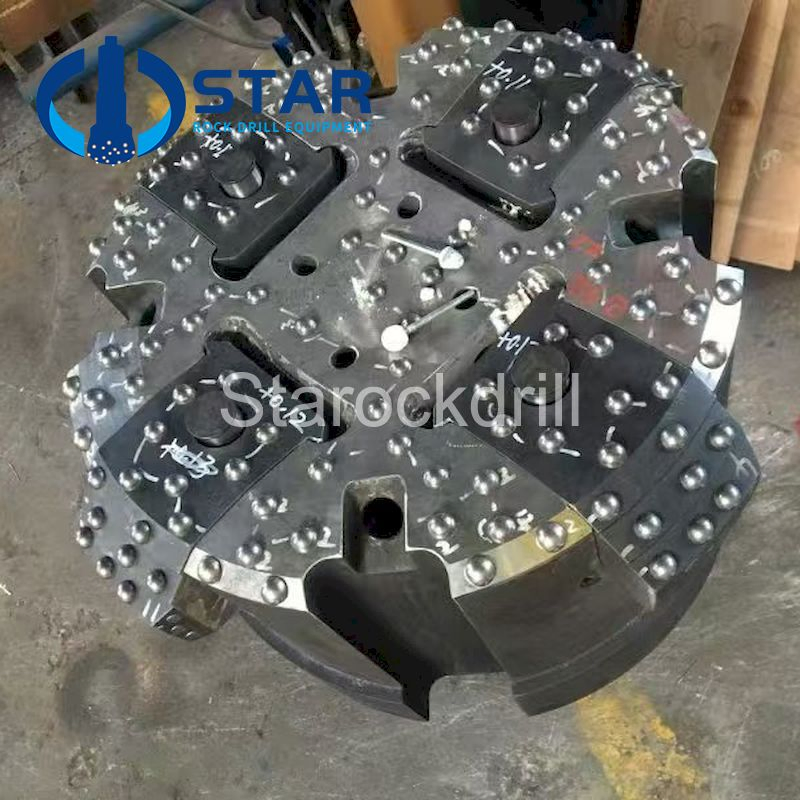

Concentric/Symmetric Slide Block Casing Drilling Assembly Bit

Our concentric casing system with blocks is specifically designed for drilling in soft and unstable formations, making it ideal for applications such as geothermal wells, water wells, small-to-medium-sized grouting holes, and micro-piling projects.

Key Features

Tailored for Soft Formations: Designed to excel in soft formations, including those with high mud content and abundant floating rocks.
High-Performance Materials: Manufactured using specialized materials like 25Si2MnCrNi2MoV. Blocks undergo surface treatment to achieve a hardness of HRC42-45 for extended lifespan.
Simplified Operation: Precision-engineered to save time on tool replacement and boost overall work efficiency.
Wear Resistance: Deep heat treatment processing ensures exceptional durability and resistance to wear during heavy-duty operations.

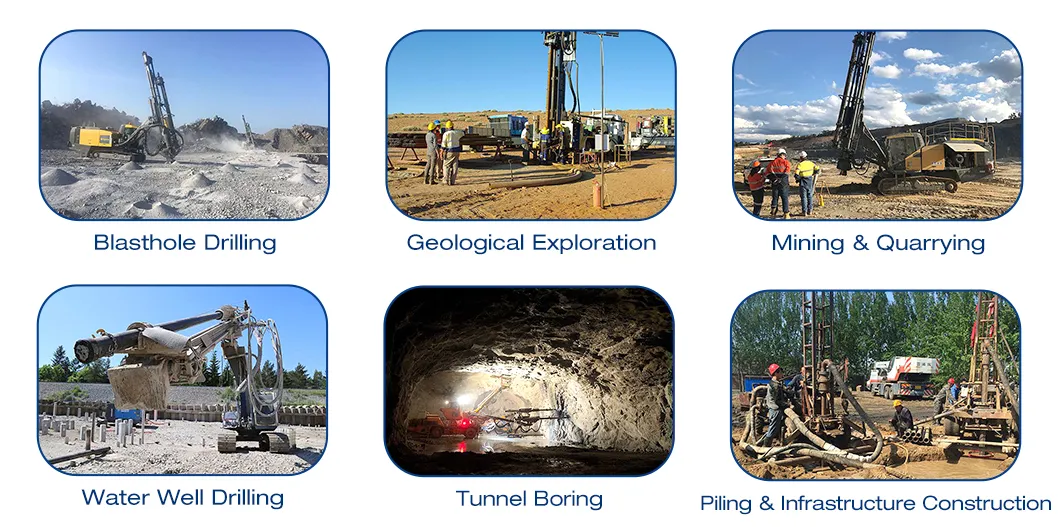

Application Scenarios

The versatility of our Concentric Casing System with Blocks makes them widely applicable across various industries:

Open-pit and Underground Mining
Tunneling and Anchoring Projects
Blast Furnace Tapping & Hydroelectric Projects
Quarrying and Land Preparation

Technical Specifications

Custom configurations are available upon request to meet specific project needs.

Model	Casing OD (MM)	Casing ID (MM)	Reamer (MM)	NO. Blocks	Casing Shoe ID (MM)	Hammer Size	Drill Rod (MM)
BOD168	168	156	185	2	142	5 INCH	76/89
BOD178	178	158	195	2	148	5 INCH	76/89
BOD183	183	163	200	2	152	5 INCH	76/89
BOD194	194	180	209	2	167	6 INCH	89/114
BOD219	219	205	237	3	192	6 INCH	89/114
BOD245	245	225	264	3	210	8 INCH	114
BOD273	273	259	308	3	242	8 INCH	114
BOD325	325	305	358	3	282	10 INCH	114
BOD406	406	382	426	4	360	12 INCH	127

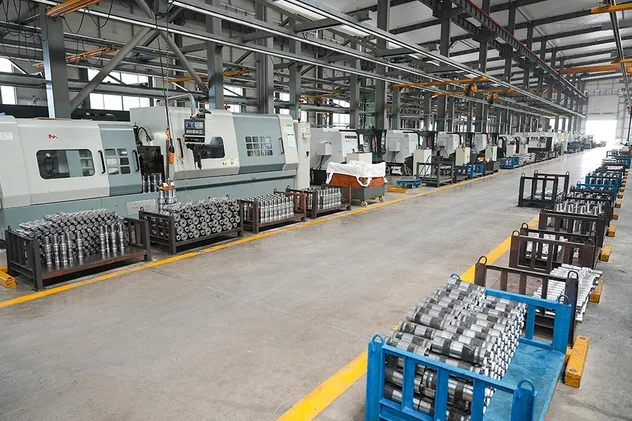

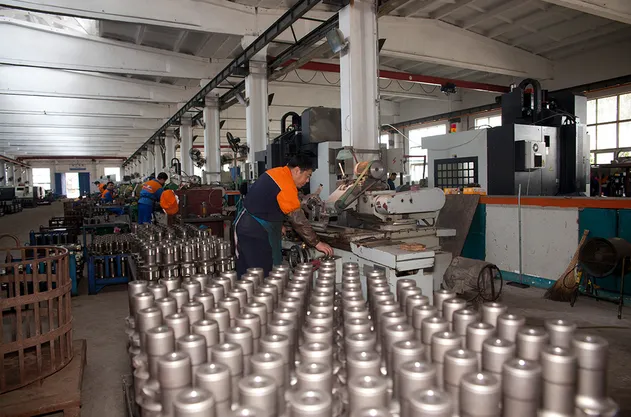

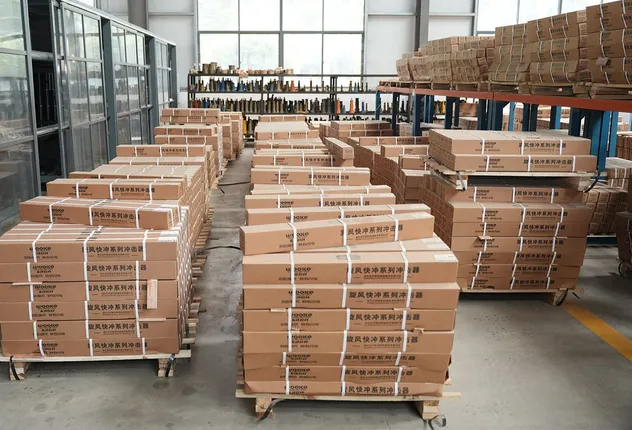

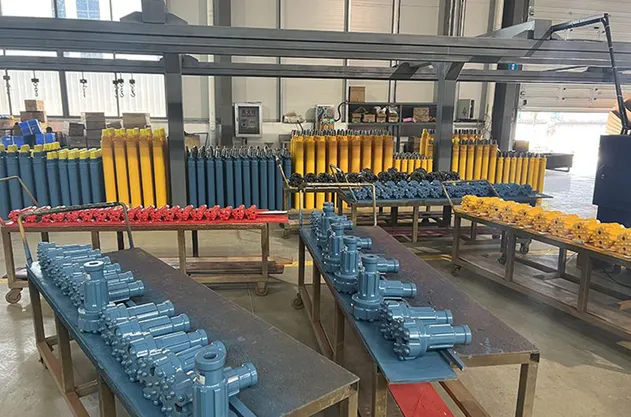

Packaging & Shipping

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage available up to 36 months.
Global Support: 24/7 technical assistance and prompt spare parts supply.
Training: Comprehensive on-site or remote operation and maintenance training.

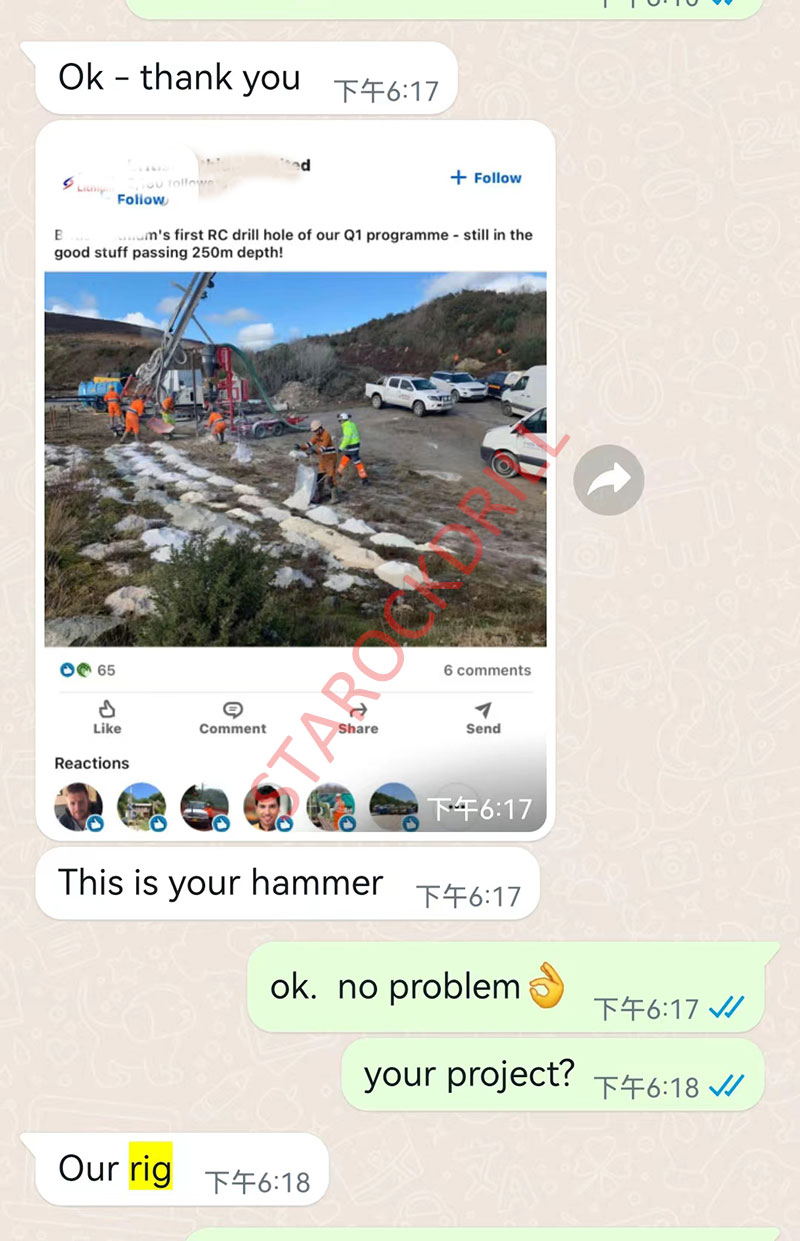

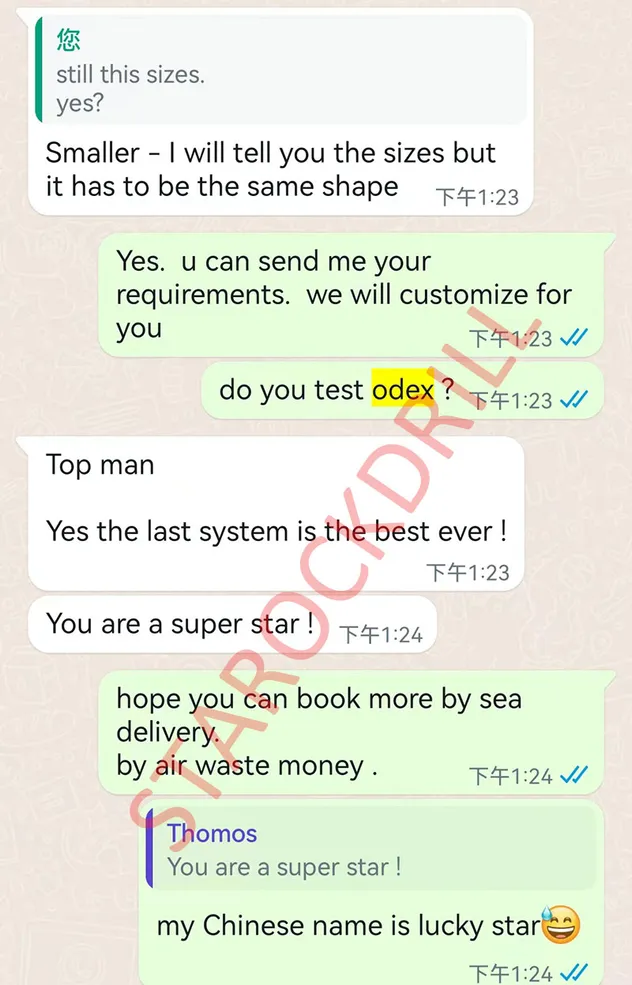

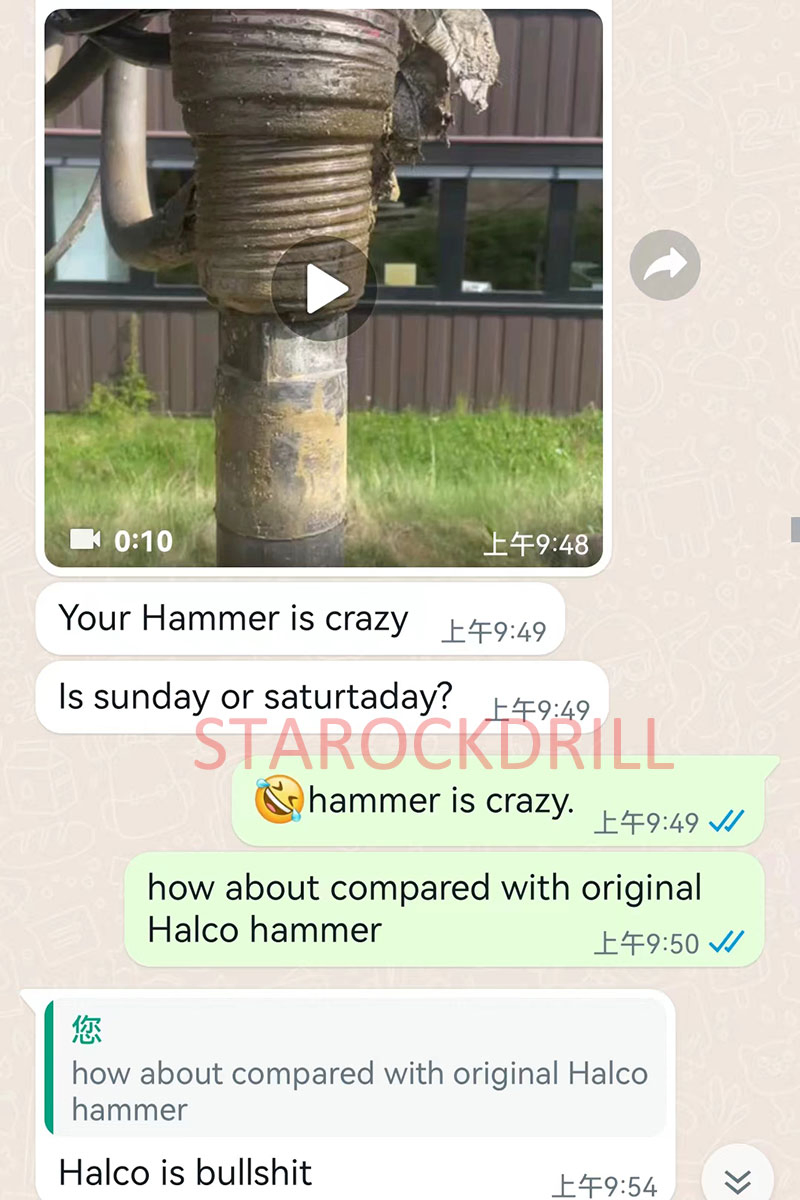

Certifications & Project Cases

Frequently Asked Questions

What is the typical lead time for an order?

Standard models are usually shipped within 15–30 days. For customized units or large orders, the lead time typically ranges from 30–45 days depending on the specifications.

Do you offer international after-sales support?

Yes, we provide 24/7 technical assistance globally and have partnered service centers in key regions to ensure your drilling operations continue without interruption.

Are your drilling tools compatible with different hammer sizes?

Our casing systems are designed for a wide range of hammer sizes, from 5’’ to 24’’, making them versatile for various drilling rigs and machinery.

Can the equipment be customized for specific geological conditions?

Absolutely. Our engineering team can provide tailored designs and configurations to meet unique project requirements or specific soft formation challenges.

What export documentation do you provide?

We provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, Certificate of Conformity (COC), and any other necessary customs documentation.

How can I place an order for these tools?

Please contact our team via email to request a formal quotation. Once details are finalized, you can confirm the order with a Purchase Order (PO).
