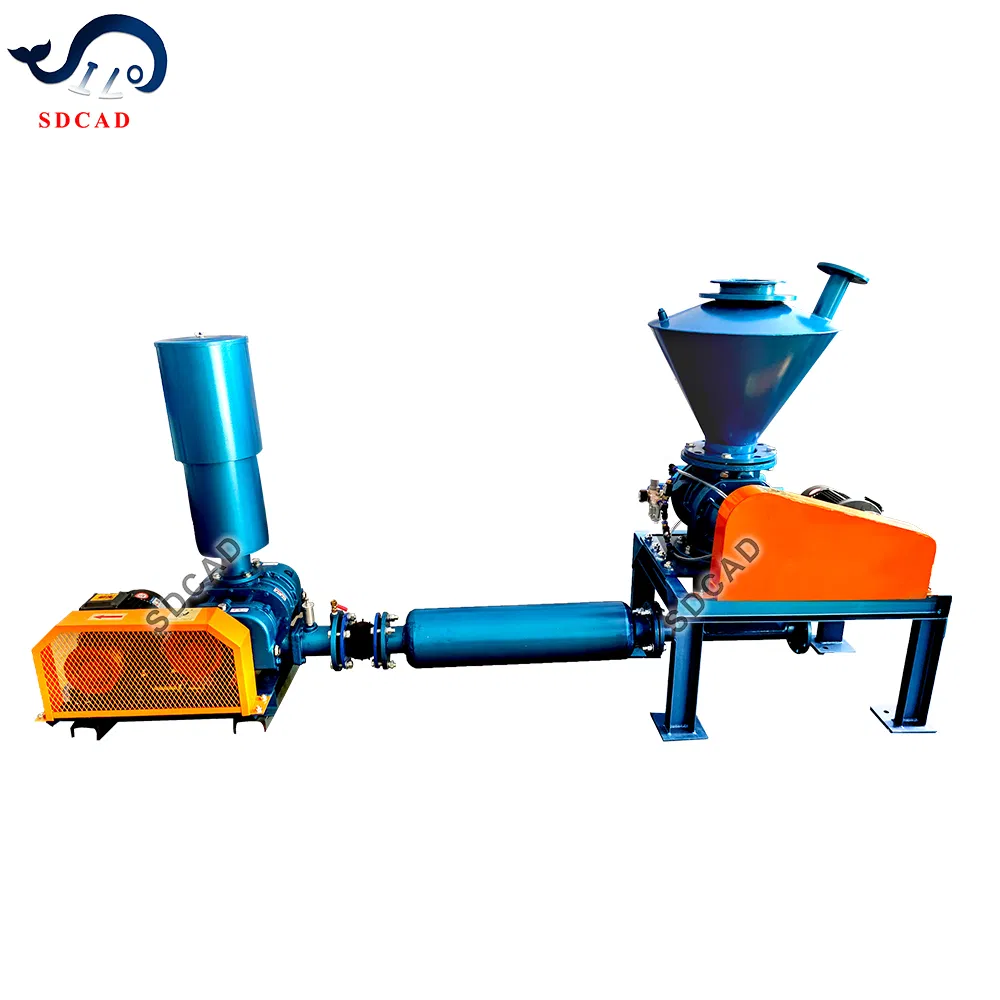

Automatic Pneumatic Conveying System for Bulk Materials

1 / 5

Automatic Pneumatic Conveying System for Bulk Materials

Customization:	Available
After-sales Service:	Provide a Complete Installation and Operation Manu
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Type

Concrete Mixing Plant

Shotcrete Type

Dry

Structure

Rotor Type

Productivity

150m²/h

Feeding Height

1390mm

Certification

ISO9001: 2000, CE

System Name

Pneumatic Conveyor System

Primary Usage

Deliver Cement

Production Cap.

5000 Sets/Month

HS Code

8474900000

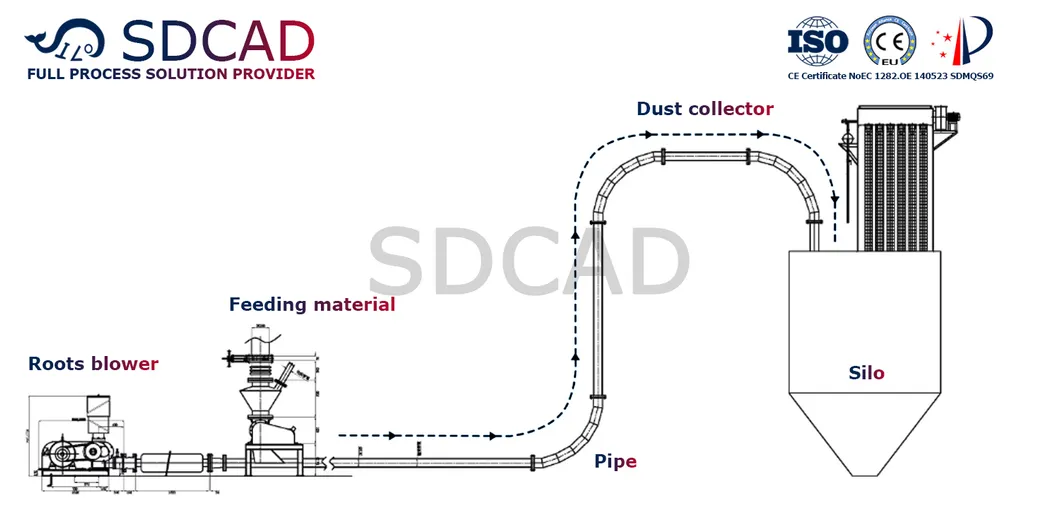

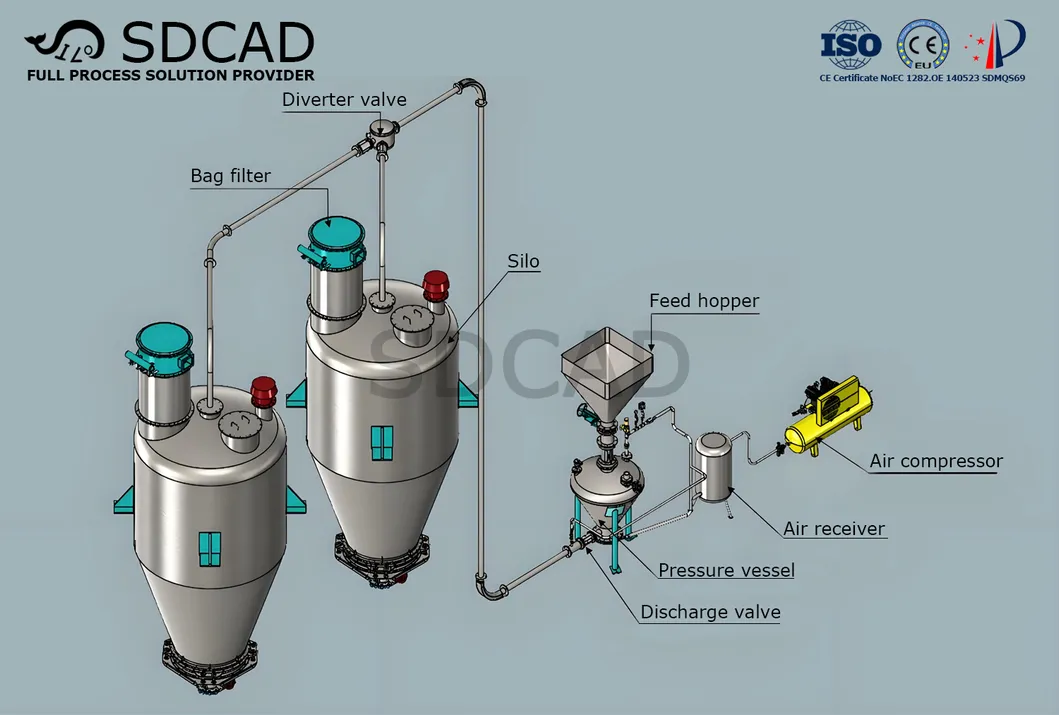

Pneumatic Conveying System Overview

System Forms: Available in both Dilute Phase and Dense Phase.
Conveying Types: Pressure and Vacuum systems.
Wide Application: Suitable for Cement, fly ash, starch, sugar, salt, sand, plastic pellets, oats, polymers, lime, soda ash, plastic resin, dry milk, and feeds.

Compatible Bulk Materials

Flour	Starch	Protein powder	Powdered milk	Soybean	Glucose	Malt
Cement	Fly ash	Mineral powder	Bentonite	Kaolin	Talc	Quartz sand
Alumina	Limestone	Lime powder	Gypsum	Graphite	Carbon black	Polymer
Urea	Melamine	PVC	PE	ABS	PTA	Activated carbon

Technical Parameters

Project	Conveying capacity(t/h)	Conveying Pressure(kPa)	Conveying distance(m)	Pipe Diameter(mm)
Parameter	≤100	≤196	<300	225

Key Advantages & Layout

🔹 Operational Excellence

Works effectively with varying bulk densities such as micro silica, fly ash, and GGBFS. The system features a flexible layout that adapts to complex routing needs, often eliminating the need for bucket elevators.

🔹 Simplified Maintenance

Designed with fewer wear points to lower operational costs. The structure is simplified for easier cleaning and inspection, ensuring faster installation and minimized downtime.

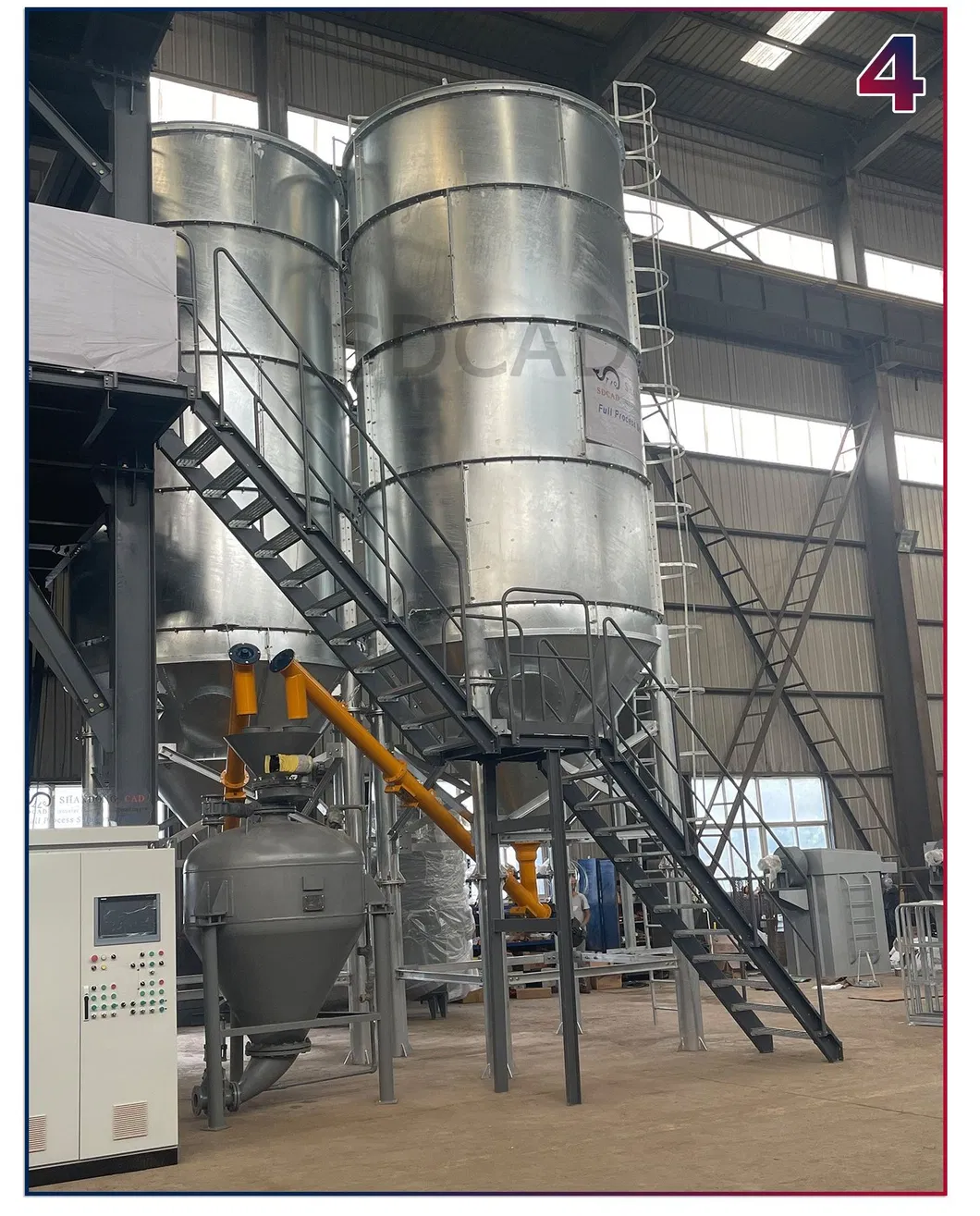

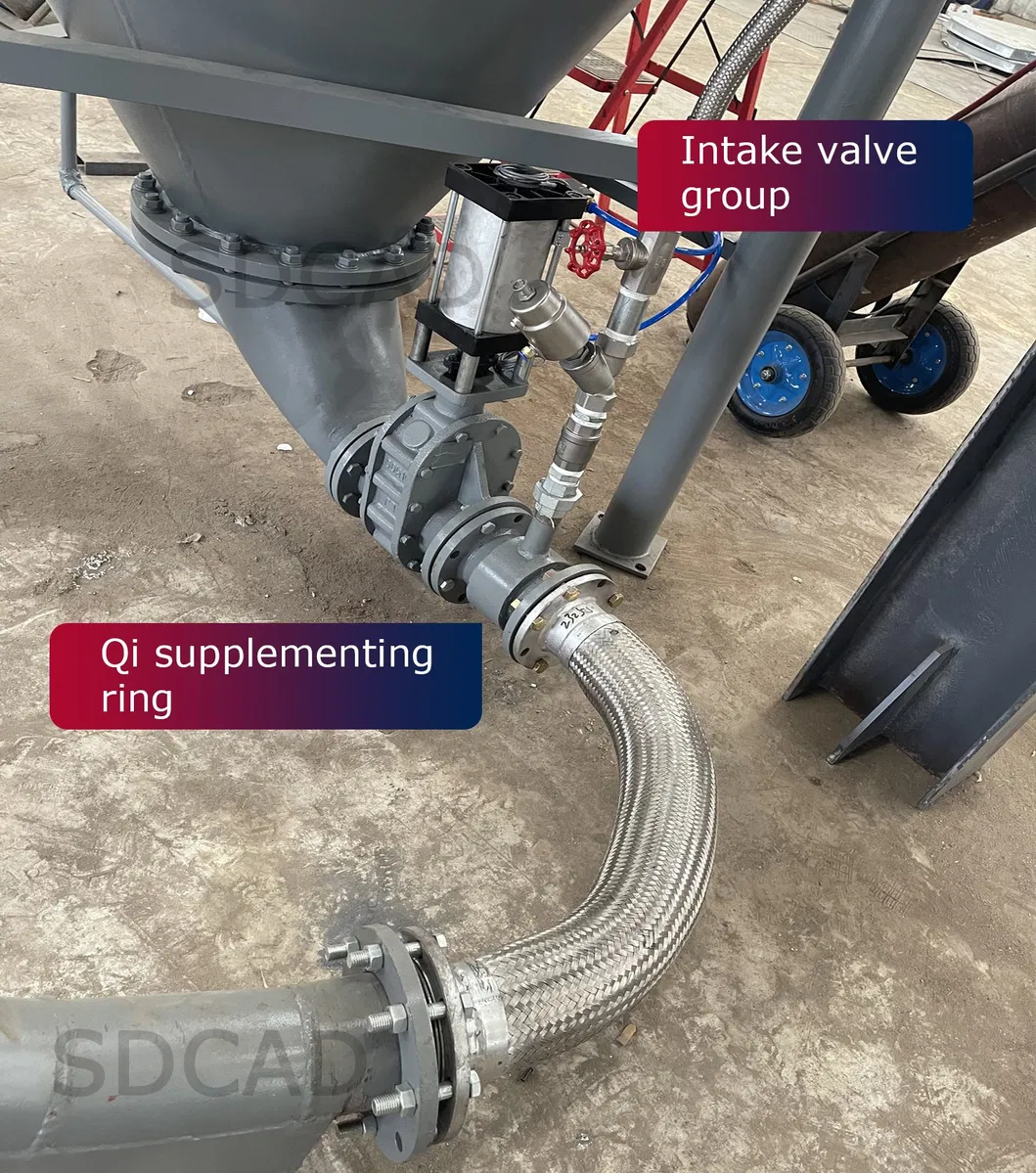

Long Distance Cement Conveying

Specially engineered for long-distance transport of cement and fine powders. The dense phase system serves as an efficient retrofit for operations accustomed to screw pumps.

Energy Savings: Requires smaller compressors compared to traditional methods.
Extended Life: Slower material velocities significantly extend the service life of pipe ducts.
Efficiency: Lower air consumption and smaller exhaust requirements.

Frequently Asked Questions

What are the main forms of pneumatic conveying available?

The system is available in both dilute phase and dense phase forms, utilizing either pressure or vacuum types depending on the material and distance requirements.

Which materials can be handled by this conveyor system?

It is highly versatile, handling materials ranging from construction powders (cement, fly ash, lime) to food products (starch, sugar, dry milk) and chemical granules (plastic resins, polymers).

How does the system achieve energy savings?

By utilizing dense phase conveying, the system requires smaller compressors and has lower air consumption compared to traditional screw pump methods.

Is this system suitable for long-distance transport?

Yes, it is specially designed for long-distance conveying of fine powders like cement, maintaining efficiency over distances up to 300 meters or more.

What are the maintenance requirements?

The system is designed with fewer wear points and a simpler structure, which reduces the frequency of maintenance and makes inspection much easier.

Can the system layout be customized for complex sites?

Absolutely. The flexible routing capabilities allow it to adapt to complex factory layouts, often eliminating the need for bulky equipment like bucket elevators.
