User-Friendly Operation and Control Systems for Our Underground Mining Conveyor Equipment
User-Friendly Operation and Control Systems for Our Underground Mining Conveyor Equipment
User-Friendly Operation and Control Systems for Our Underground Mining Conveyor Equipment
User-Friendly Operation and Control Systems for Our Underground Mining Conveyor Equipment
User-Friendly Operation and Control Systems for Our Underground Mining Conveyor Equipment
1 / 5
User-Friendly Operation and Control Systems for Our Underground Mining Conveyor Equipment
User-Friendly Operation and Control Systems for Our Underground Mining Conveyor Equipment
User-Friendly Operation and Control Systems for Our Underground Mining Conveyor Equipment
User-Friendly Operation and Control Systems for Our Underground Mining Conveyor Equipment
User-Friendly Operation and Control Systems for Our Underground Mining Conveyor Equipment

User-Friendly Operation and Control Systems for Our Underground Mining Conveyor Equipment

Customization: Available
After-sales Service: Perfect
Warranty: One Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
SGZ1200
Structure
Chain Conveyor
Material
Carbon Steel
Material Feature
Heat Resistant
Application
Mining Transport
Condition
New
Heat Treatment
Quenched and Tempered
Tooth Count
6 / 7 / 8
Package
Wooden Box
Capacity
600 units
⚙️ Product Overview

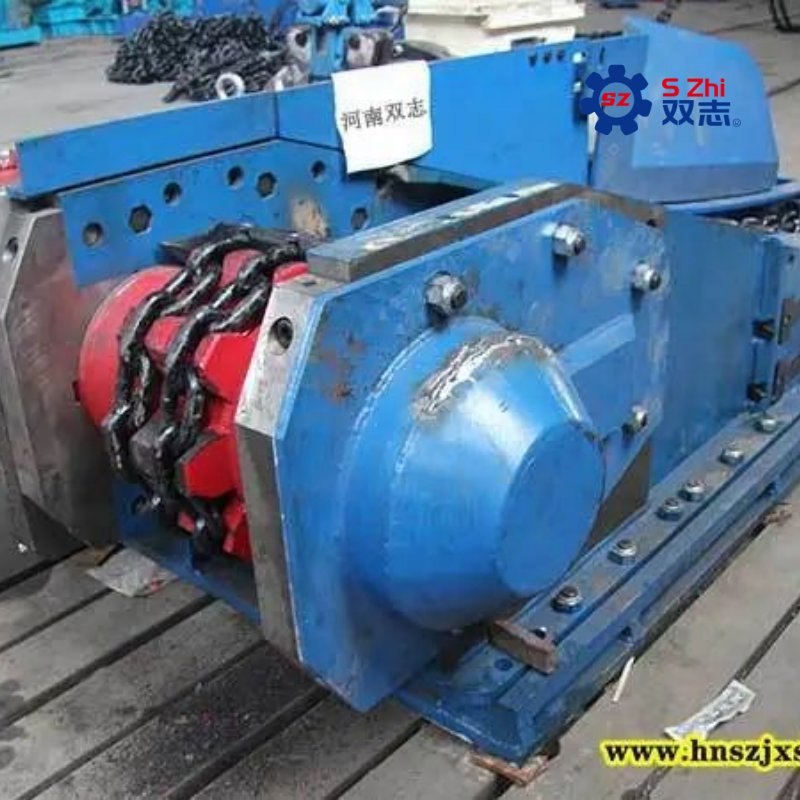

The underground mining sprocket assembly (sprocket shaft assembly) is a core transmission component used in the head and tail sections of scraper conveyors and transfer machines. It is responsible for transmitting power to the scraper chain, driving the material transport process effectively.

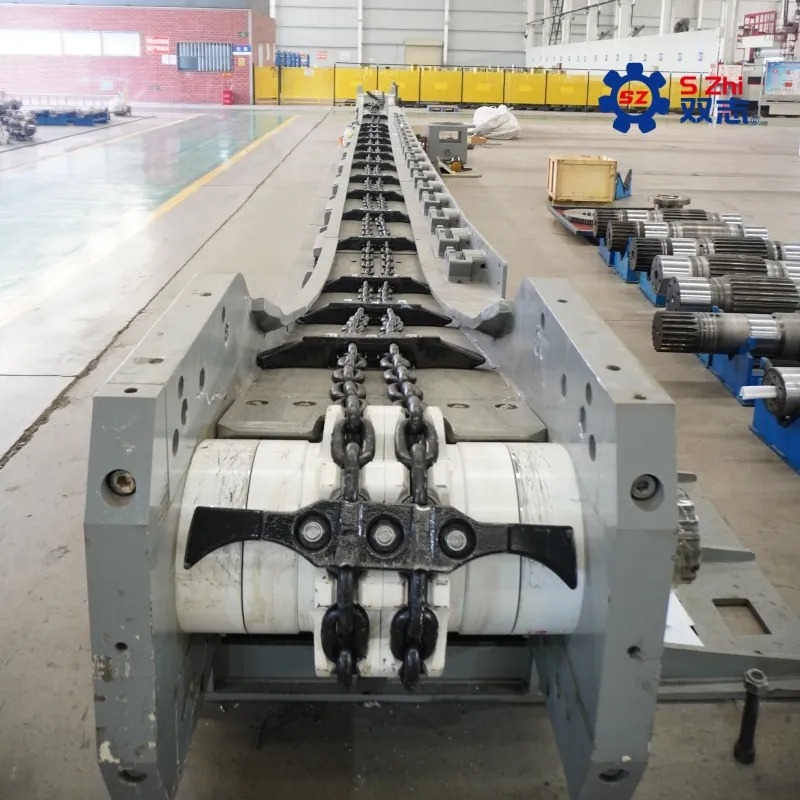

Mining Conveyor Equipment
Conveyor Control System

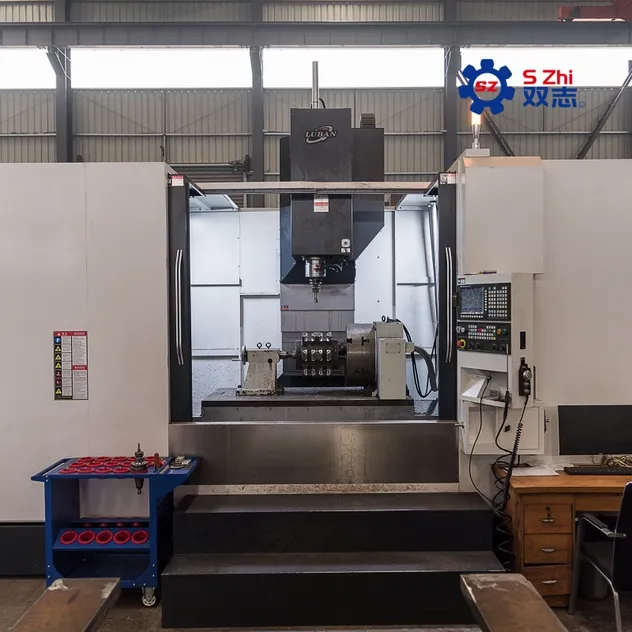

Numerical Control Center
Numerical Control Center
🛠️ Key Configurations & Materials
  • Main Materials: 42CRMO, 40CRNIMOA, High-grade Special Steel.
  • Forging Process: Overall forging, precision machining by CNC center, and tooth surface quenching.
  • Components: End cover, bearing seat, sprocket body, shaft, floating sealing ring assembly, rolling bearing, and drum.
  • Quality: Surface free from cracks, layers, slag inclusions, or scars.
📹 Production & Operation Showcase
Video Cover
📊 Technical Specifications
Model Teeth Number Chain Specification Center Distance
2LZ076φ22*86120
83S07026φ26*92120
1LZ197φ18*6490
1LZ177φ26*92120
1LZ227φ22*86200
59/04LL7φ26*92120
86S0101018φ26*92120
📐 Drawings & Dimensions

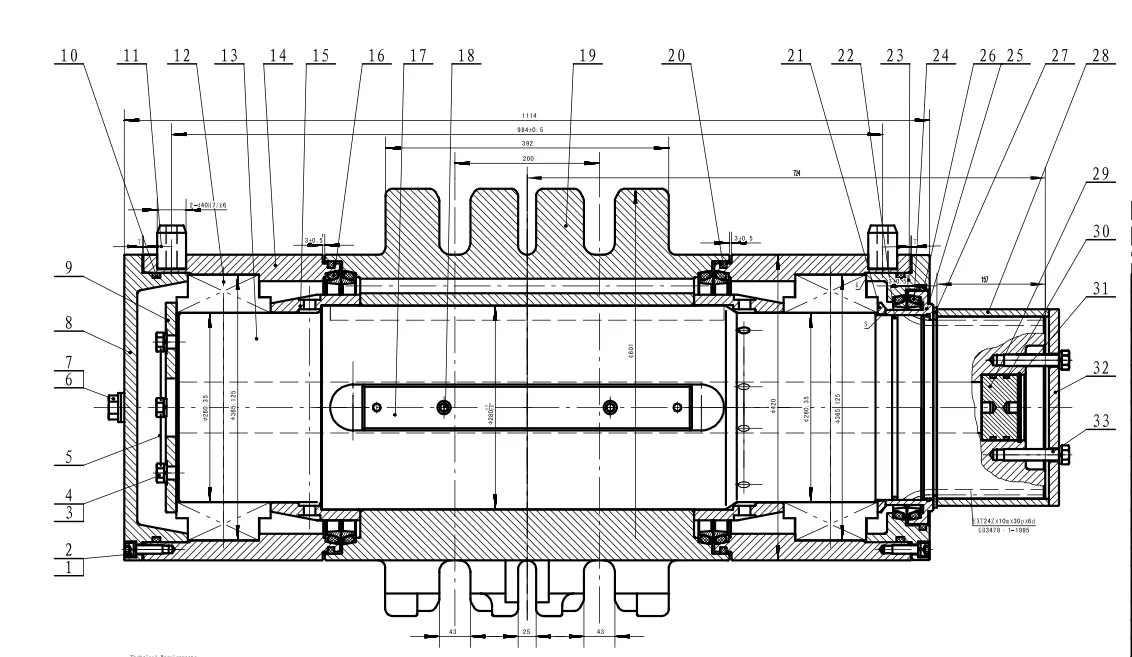

Technical Drawing 1

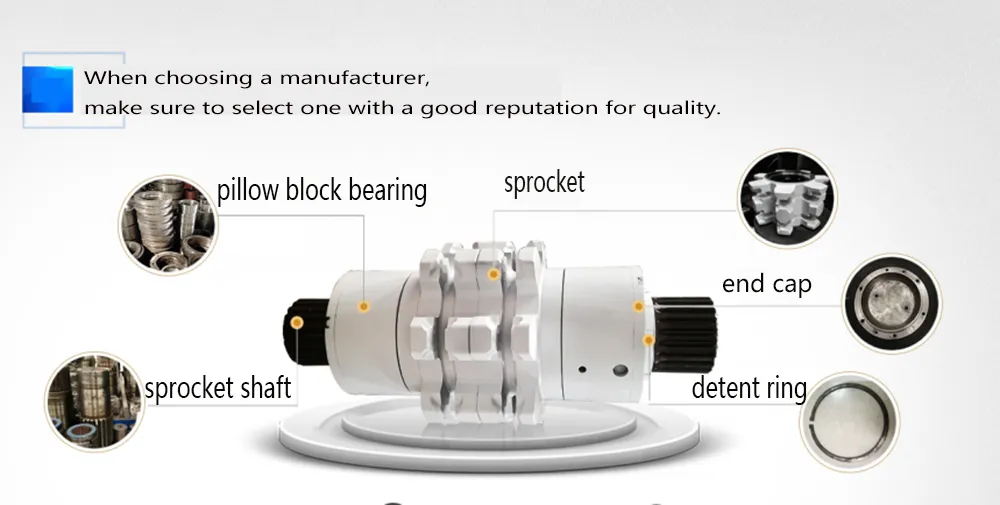

Technical Drawing 2

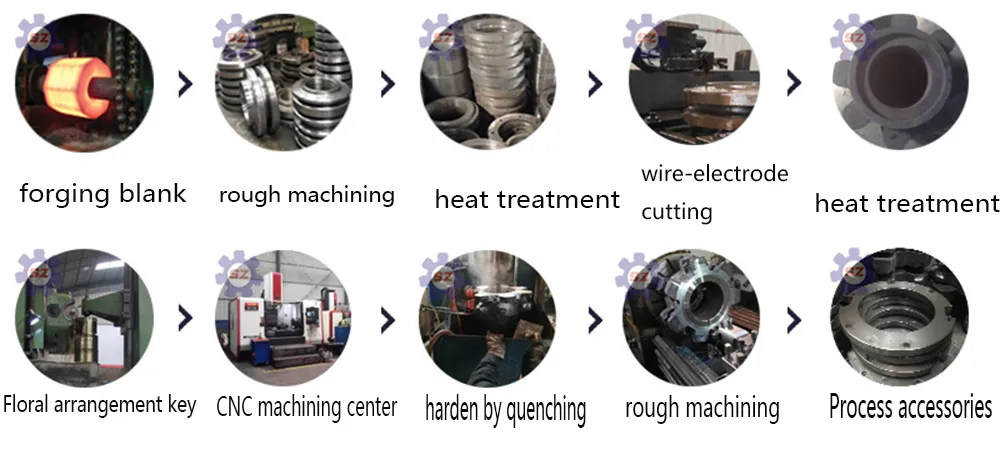

🔄 Flow of Production
Production Flow

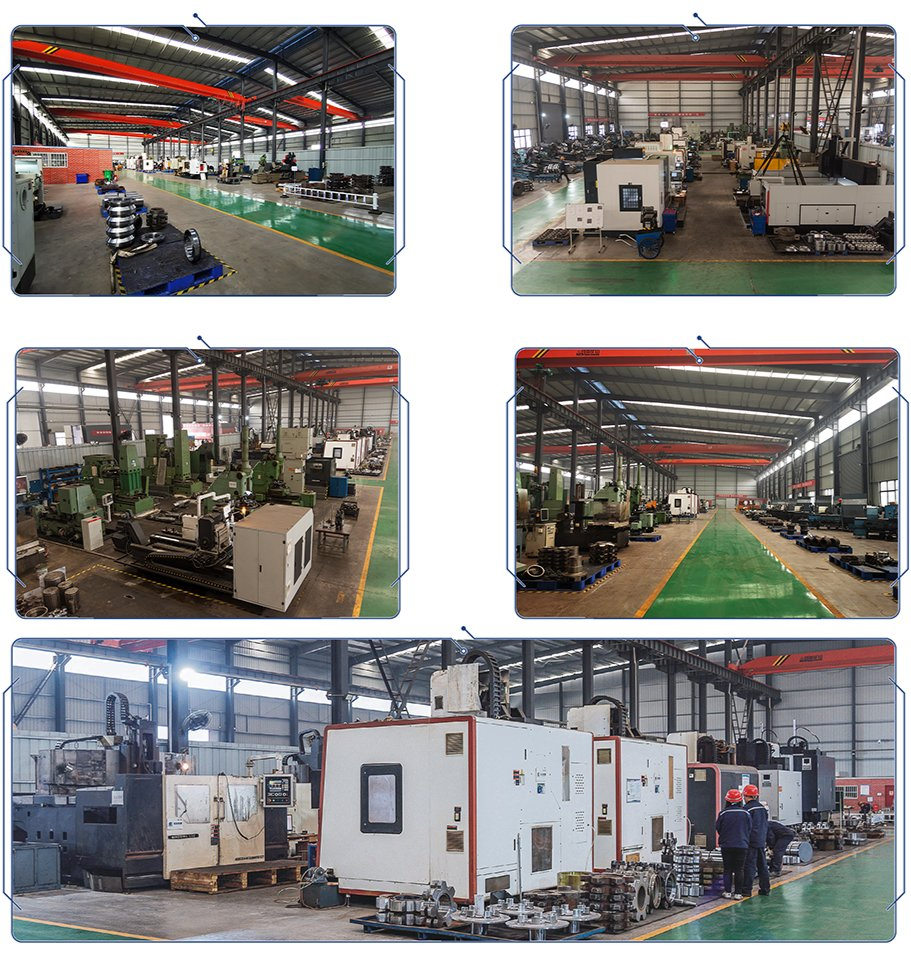

🏭 Manufacturing Excellence
The facility operates with over 70 pieces of large-sized production equipment, including 30+ CNC sets, gear grinding machines, and test benches. Specialized workshops include heat treatment, maintenance, and packaging units.
Certification
Workshop

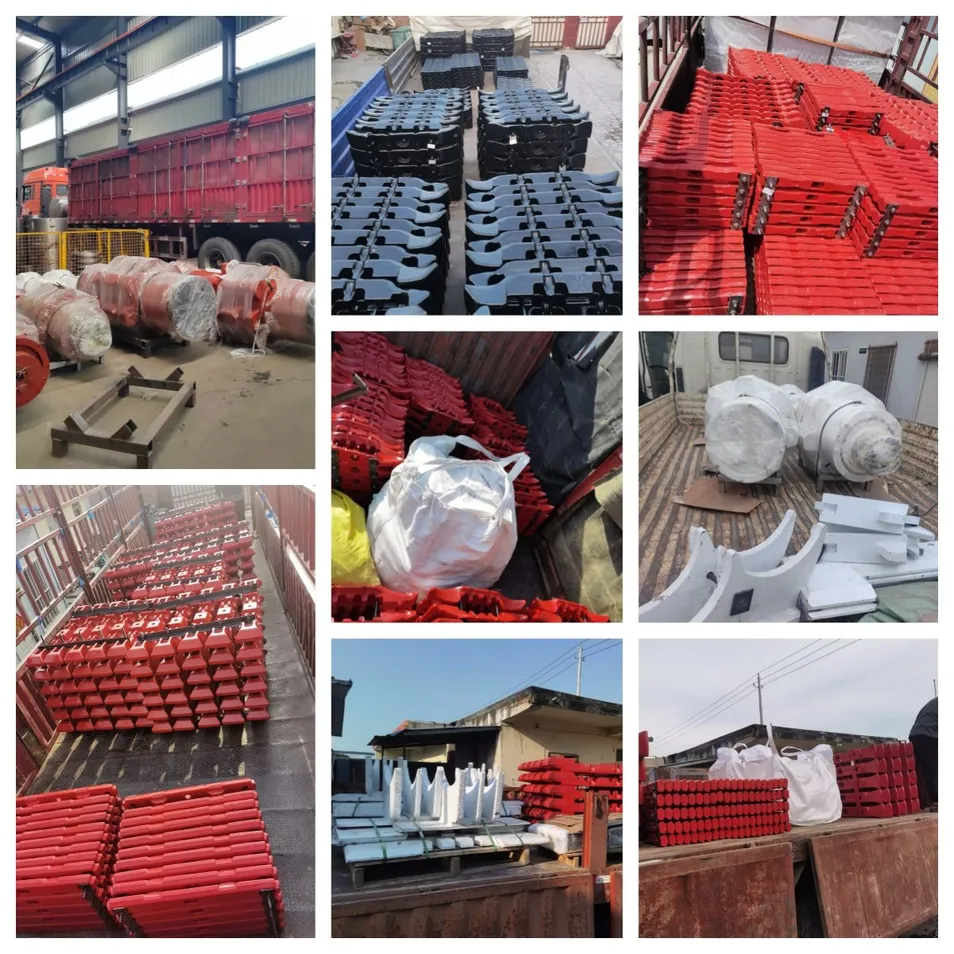

📦 Dispatch & Logistics

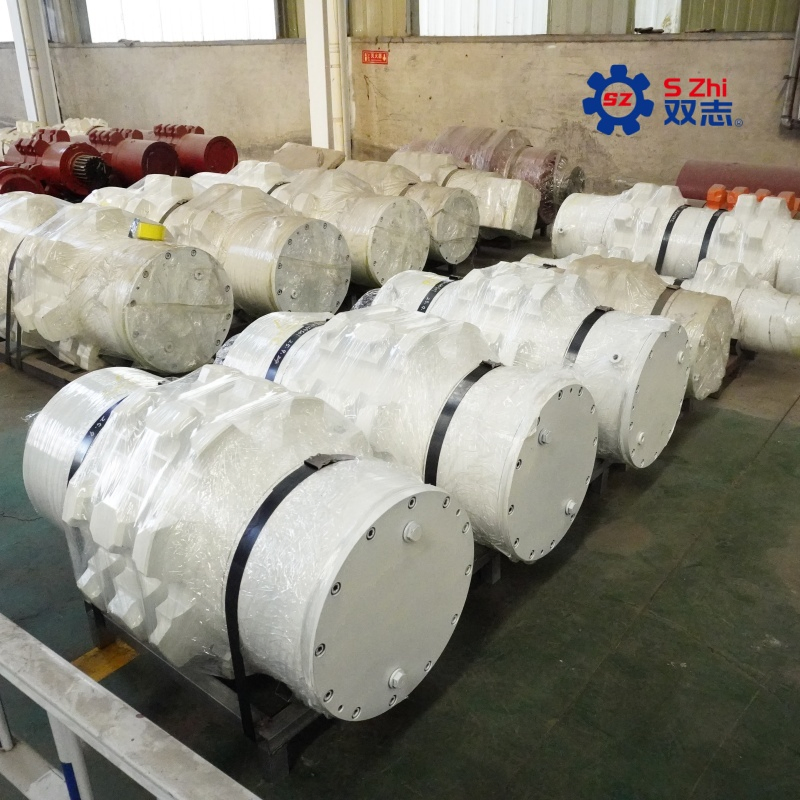

Dispatch 1
Dispatch 2
Exhibition
Frequently Asked Questions
What's the lead time for orders?
Standard models ship in 15–30 days; customized units require 30–45 days.
Do you provide after-sales service overseas?
Yes, we provide 24/7 technical assistance and have partnered service centers in key regions.
Can I request a customized size?
Absolutely! We offer OEM/ODM capabilities and tailored attachments for specialized requirements.
What documents are provided for export?
We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.
What is the standard warranty?
Standard warranty is 12 months or 2,000 operating hours, with optional extensions up to 36 months.
How do I place an order?
Please contact our sales team via the inquiry form or email for a formal quote and purchase order confirmation.
