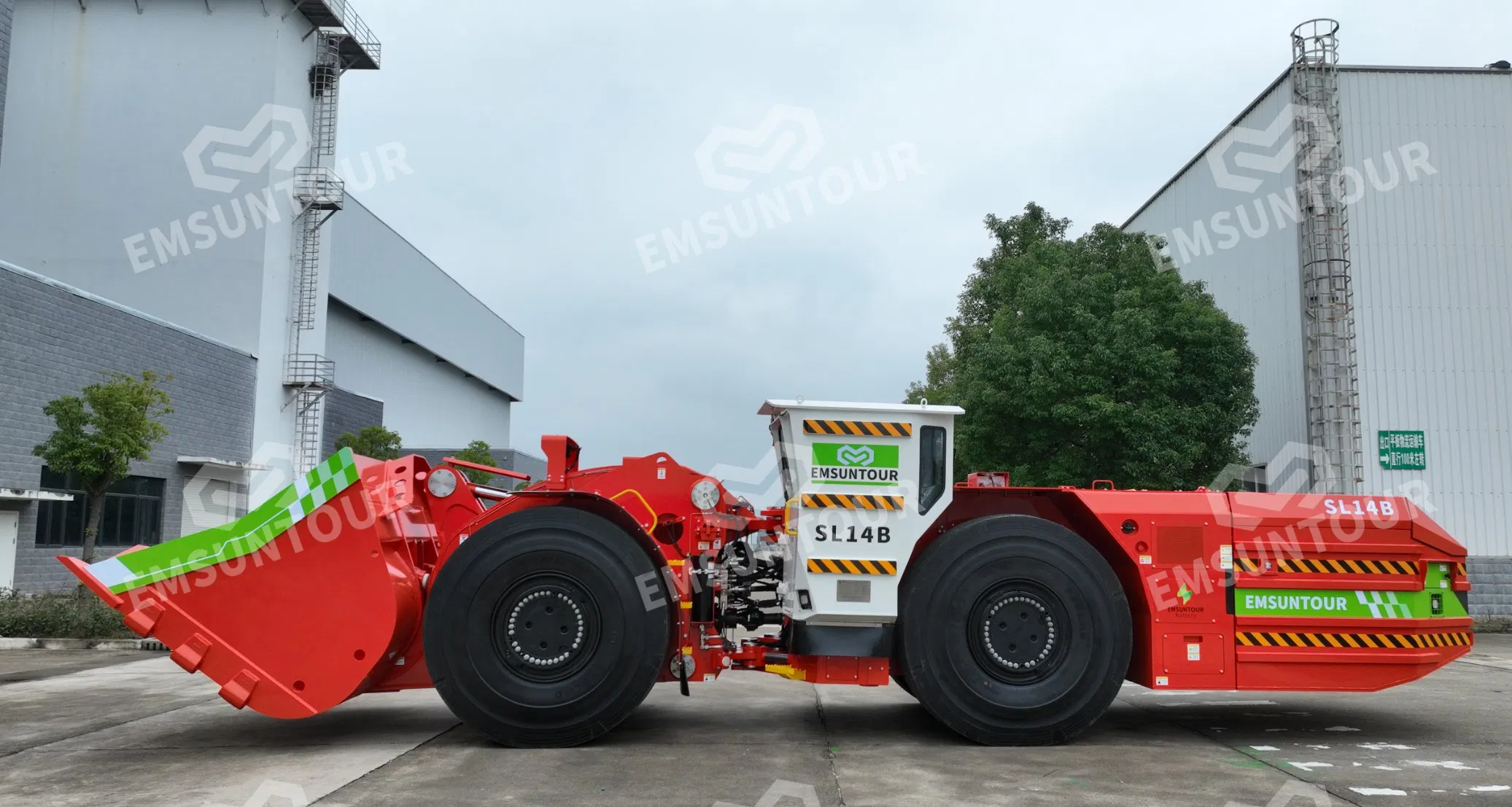

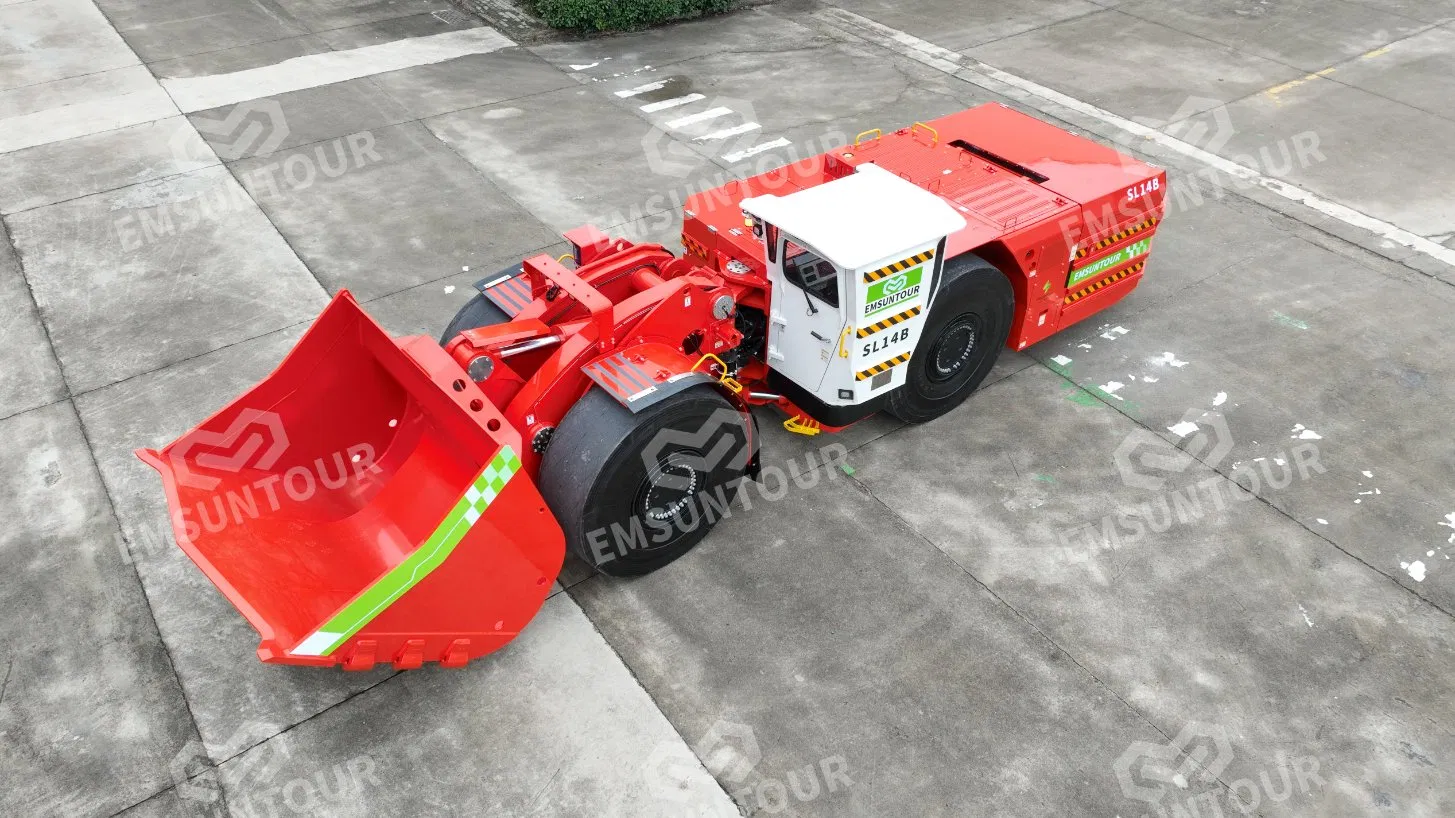

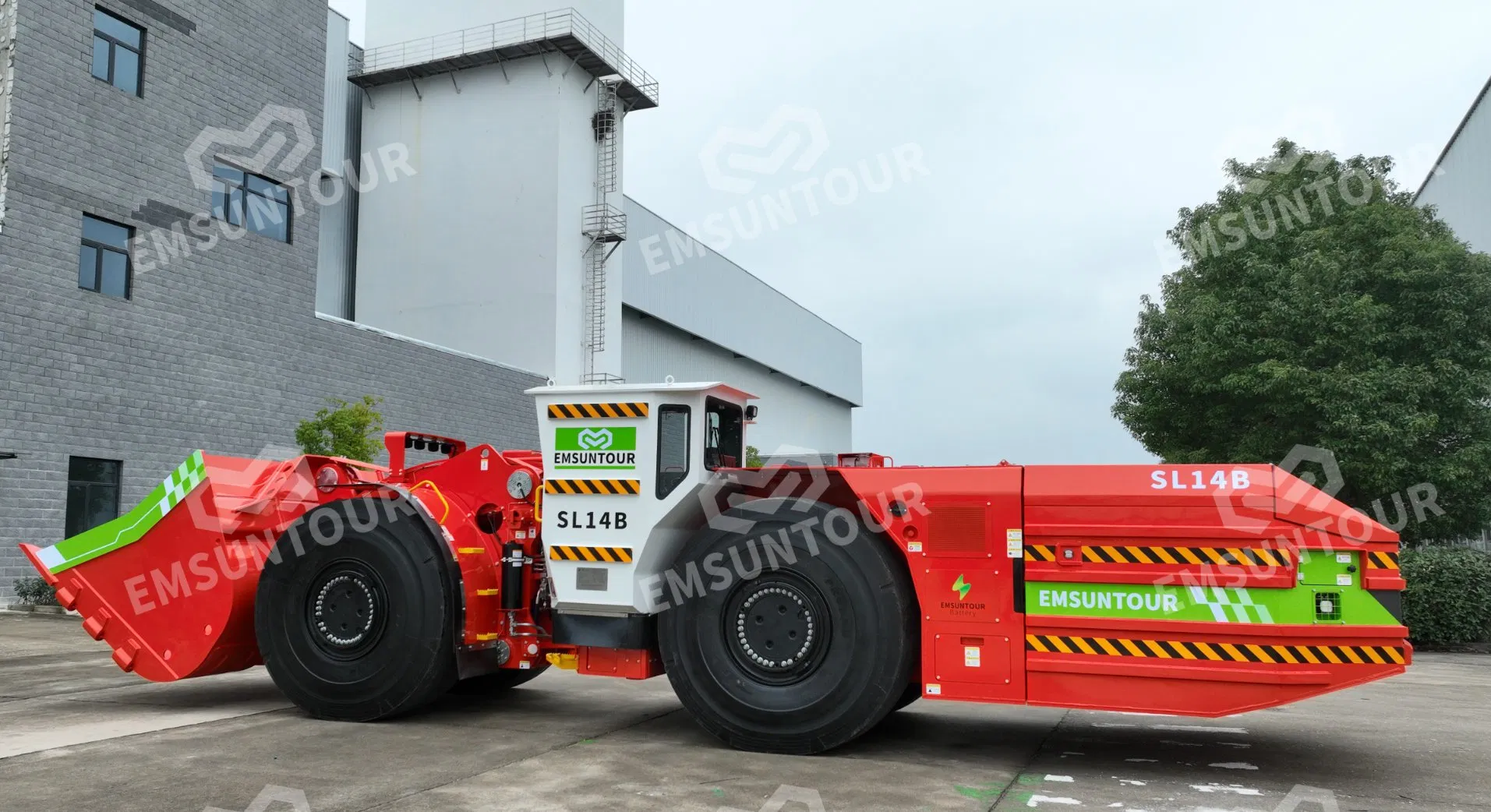

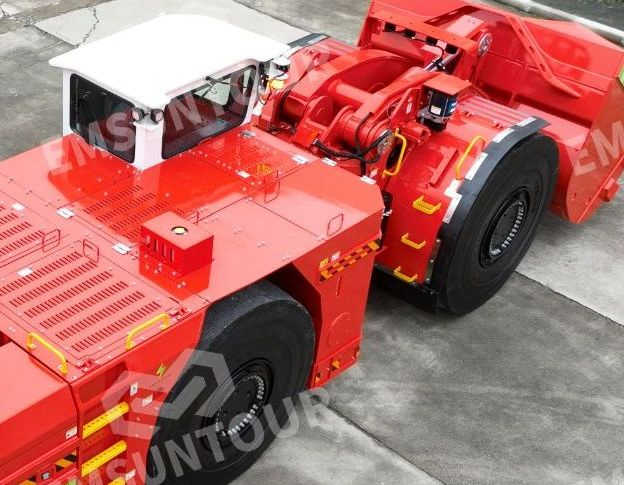

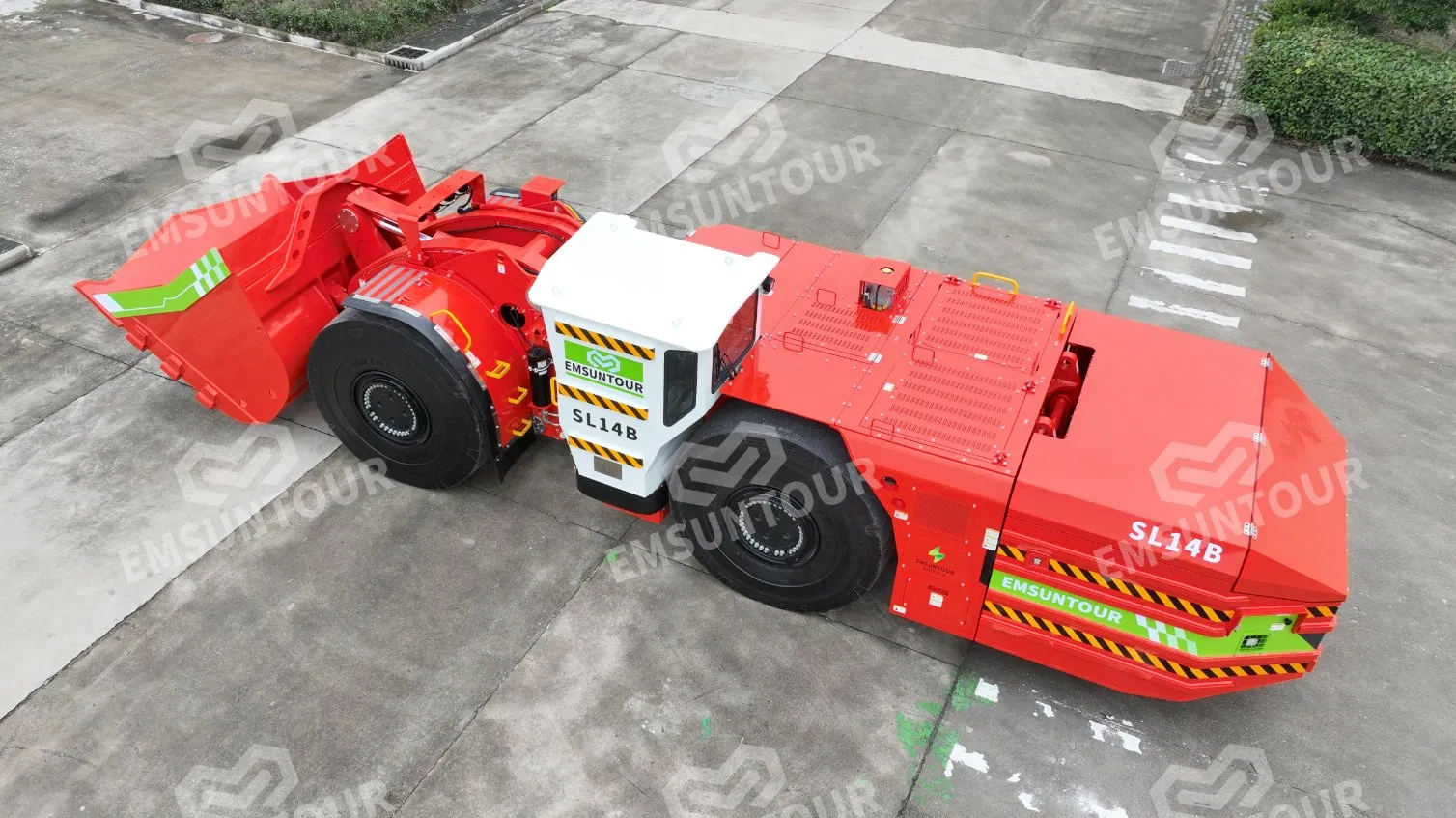

14t Underground Electric Mining Load-Haul-Dump Loader System

Customization: Available
After-sales Service: Repair Service and Spare Parts Support
Warranty: 12months or Using in 2000 Hours

Product Description

📊Basic Information

Model NO.
SL14 Battery
Standard Bucket
6cbm
Rated Load Capacity
14ton
Operating Weight
42.6 Ton
Wheelbase
3650mm
Inner Turning Radius
3300mm
Outer Turning Radius
6950mm
Operator's Seat Facing
Side Seated
Motor Rated Power
220kw
Motor Peak Power
350kw
Cell Chemistry
LiFePO4
Specification
14Ton

🚜Product Overview

Underground Electric LHD Loader

The SL14B is a 14-ton rated payload underground battery LHD loader, equipped with a large-capacity 600 kWh battery pack. It features an automatic battery swapping system, allowing battery replacement to be completed within 5 minutes, and delivers up to 8 hours of continuous operation on a single charge.

Compared with diesel equipment, the battery-powered machine can significantly reduce mine ventilation costs, making it especially suitable for deep underground mines and sites where fuel transportation is difficult. With zero emissions, low heat generation, and low noise operation, it greatly improves the underground working environment and provides enhanced operator comfort.

⚙️Technical Parameters

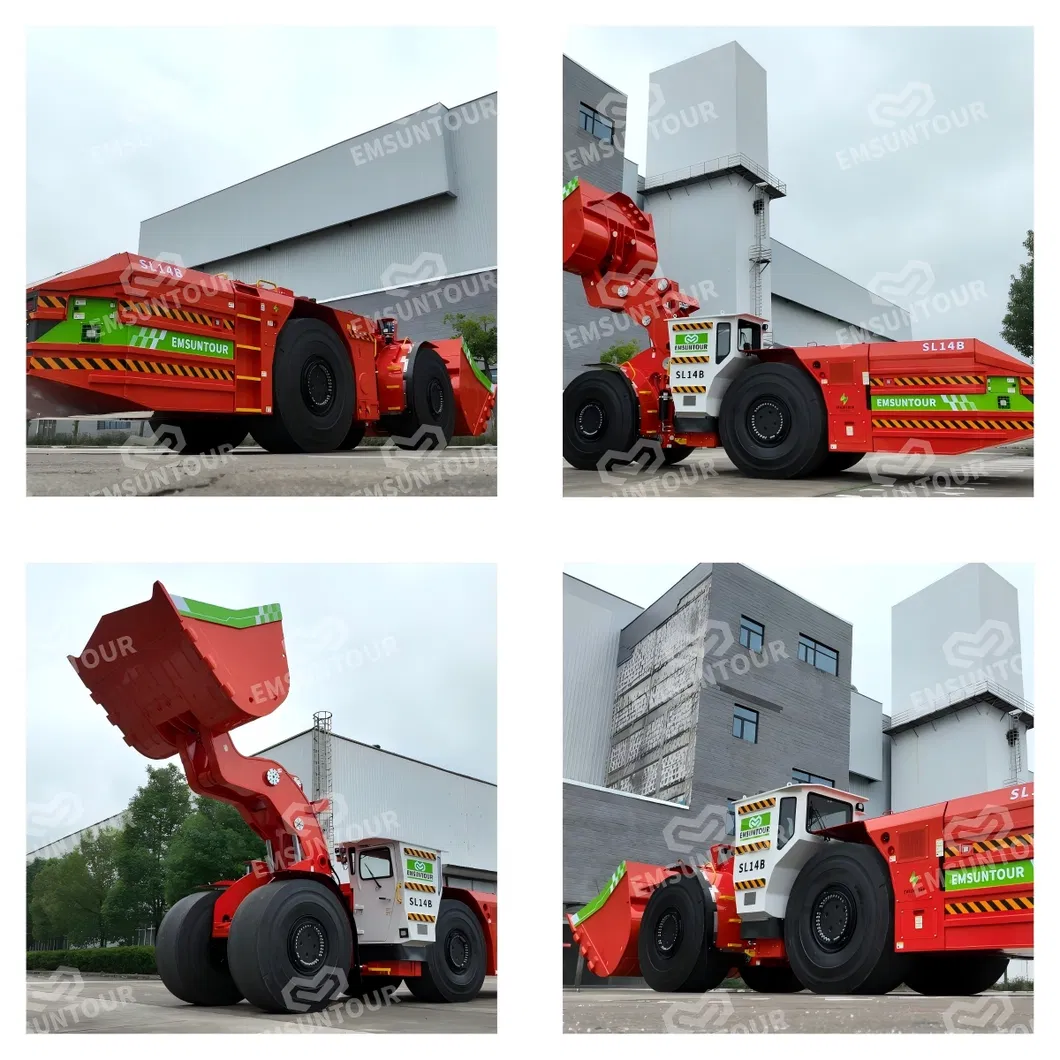

Loader Technical View
Core Performance Specifications
Rated Load14,000 kg
Bucket / Cargo Capacity6 m³
Turning Radius6,950 mm
Battery TypeLithium Iron Phosphate (LiFePO4)
Battery Capacity600 kWh
Battery Swapping MethodAutomatic

🏗️Underground Equipment Portfolio

Underground Loaders (LHD) (Diesel/ Battery Electric)
Underground Mining Trucks (Diesel/ Battery Electric)
Underground Concrete Mixer Trucks (Diesel/ Battery Electric)
Service & Utility Vehicles (Diesel/ Battery Electric)
OEM / Customized Mining Equipment
Underground Mining Equipment Line
Heavy Duty Loader Support

💎Why Choose Electric Solutions

Our team is a professional underground mining equipment supplier dedicated to the electrification of underground equipment. The product portfolio includes battery-powered machines with payloads ranging from 2 to 14 tonnes and trucks from 15 to 42 tonnes.

Notable Milestone: Development of high-payload 42-tonne underground mining trucks equipped with automatic battery swapping systems.
Heavy Mining Truck System
Heavy-Duty & Durable - Designed for harsh underground environments
Multiple Power Options - Diesel and Battery Electric versions
Intelligent Systems - Remote monitoring, safety warning, and smart diagnostics
Lower Operating Cost - Energy-efficient with low maintenance requirements
Professional Support - Global technical service and spare parts supply

🌐Global Standards & Manufacturing

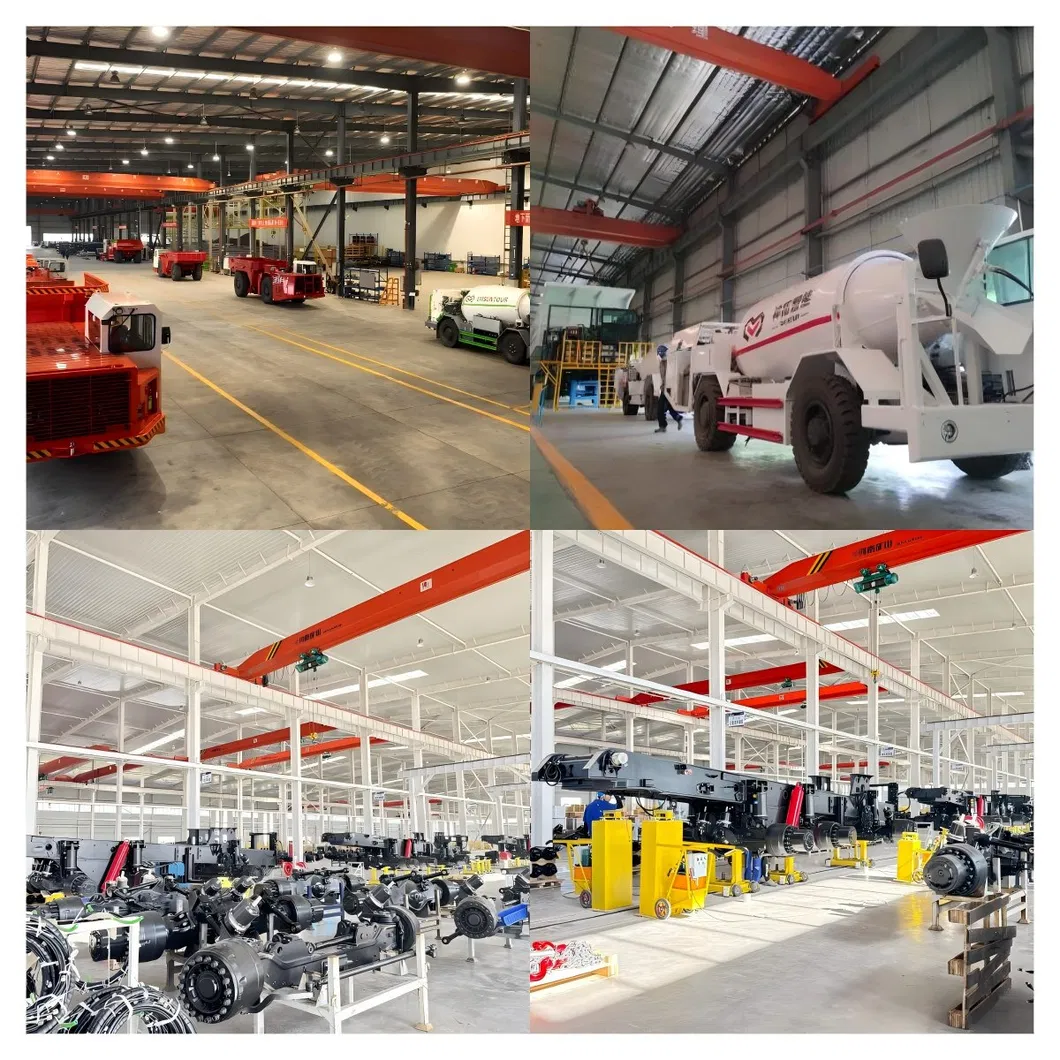

Manufacturing Excellence
Global Delivery
All equipment is built under strict quality control and modern manufacturing standards. Our engineering team focuses on structural strength, reliability, and safety to ensure stable performance and long service life in extreme mining environments. Our machines are trusted by overseas customers worldwide, supporting FOB, CIF, and EXW terms.
Global Market Presence

Frequently Asked Questions

1. What is the rated load capacity of the SL14 Battery LHD?
The SL14 model has a rated load capacity of 14,000 kg (14 tons) and a standard bucket size of 6 m³.
2. How long does the battery last on a single charge?
Equipped with a 600 kWh battery pack, it delivers up to 8 hours of continuous operation depending on the duty cycle.
3. How much time is needed for a battery swap?
The loader features an automatic battery swapping system that allows the replacement to be completed within 5 minutes.
4. Why choose battery loaders over traditional diesel loaders?
Battery loaders offer zero emissions, significantly lower noise, and less heat generation. This reduces mine ventilation costs and improves operator health and comfort.
5. Are customized solutions available?
Yes, OEM and ODM services are available to provide customized loaders and trucks tailored to specific underground mining conditions.
6. What battery chemistry is used in the equipment?
The system utilizes high-safety Lithium Iron Phosphate (LiFePO4) cells, known for their long cycle life and thermal stability.
