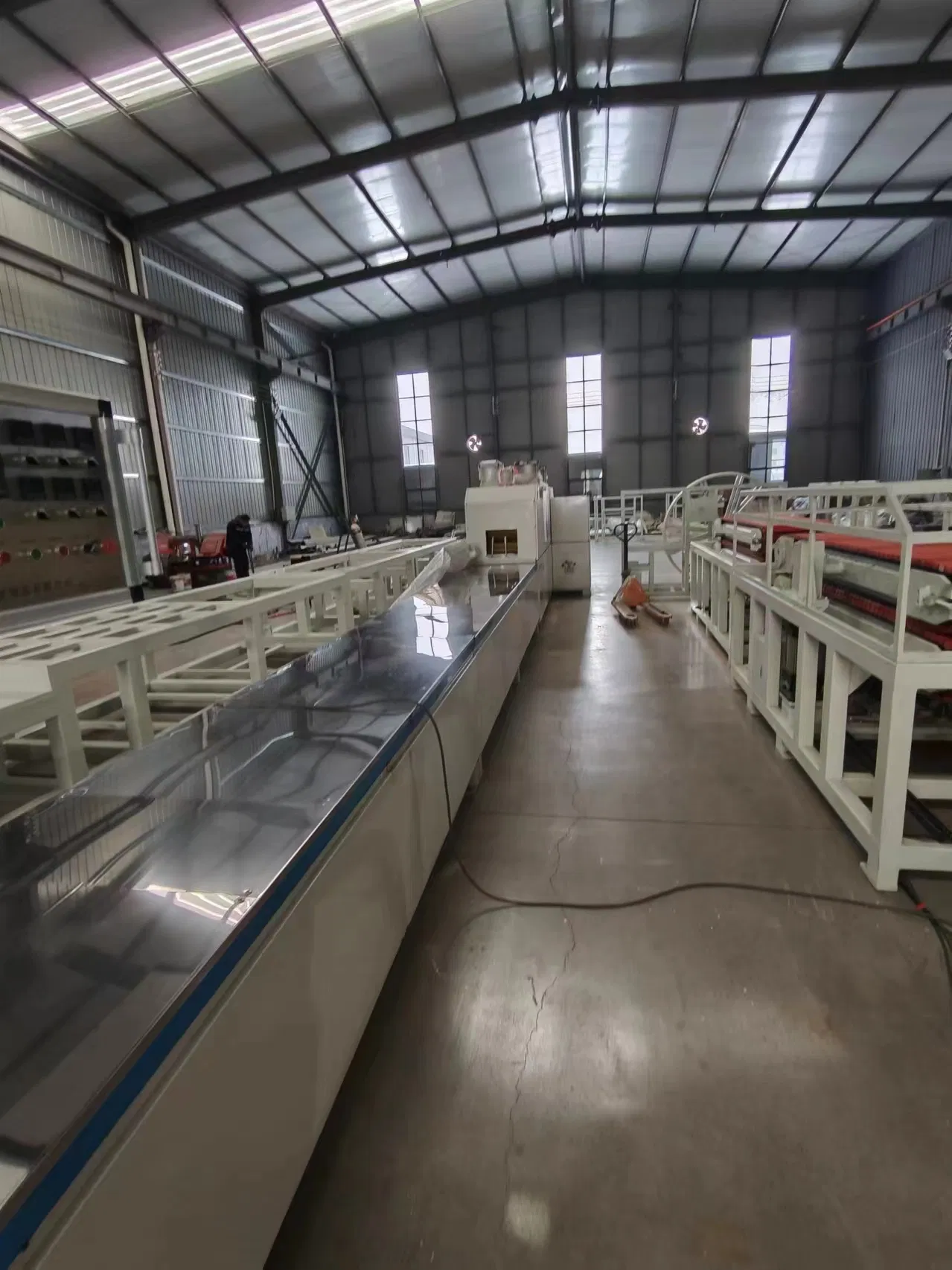

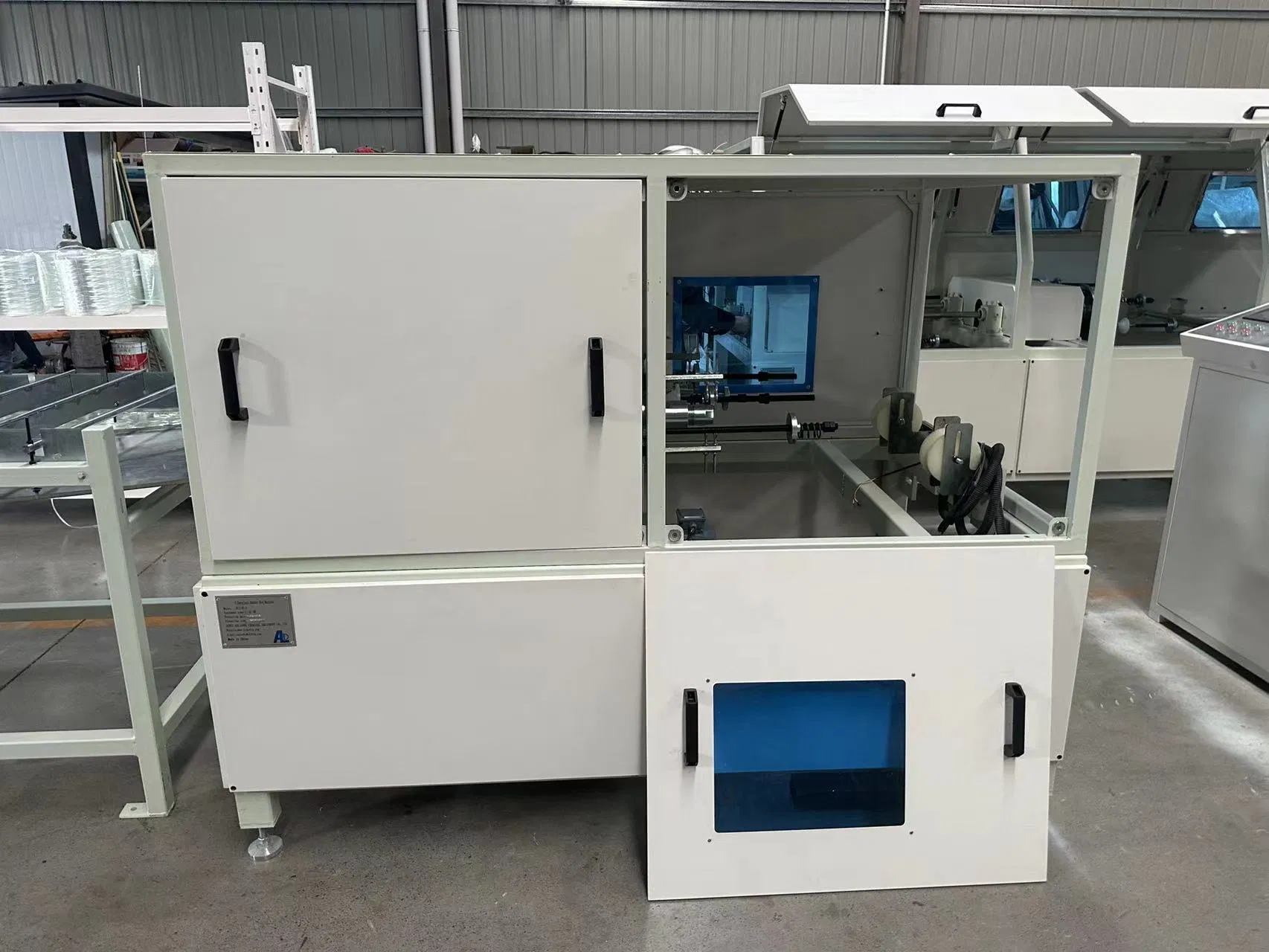

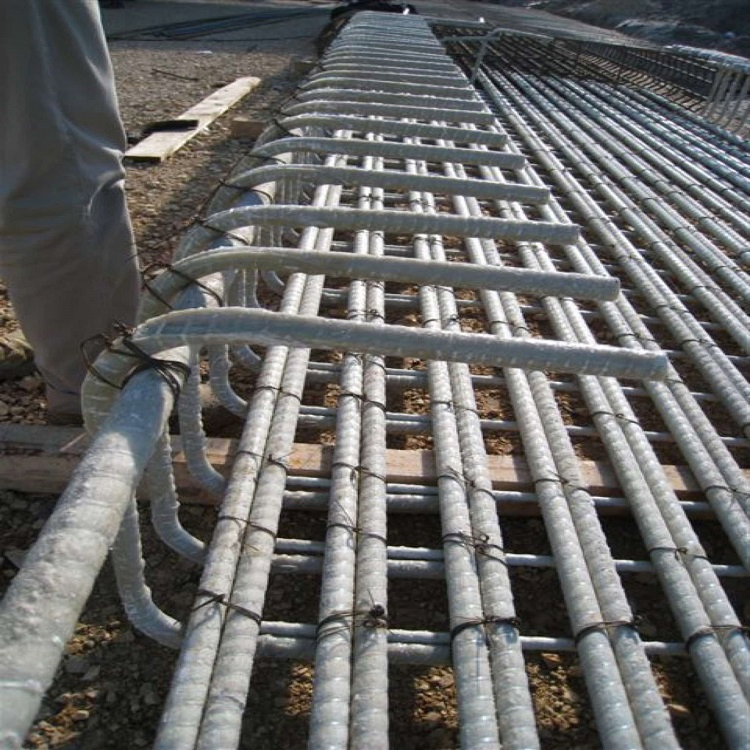

Premium Quality FRP/GRP Rebar Pultrusion Systems for Construction

1 / 5

Premium Quality FRP/GRP Rebar Pultrusion Systems for Construction

Customization:	Available
Voltage:	380V
Warranty:	1 Year

Send Inquiry

Product Description

📊

Basic Information

Model NO.

Pultrusion machine

Name

Four Axis Winding Machine for FRP Electrical Pipe

Available Models

10t, 12t, 15t, 20t, 25t, 30t, 40t, 50t

Advantages

Automation, High Productivity

Production Teaching

Supply

Origin

China

HS Code

3917290000

📦

Packaging & Delivery

Package Size

300.00cm * 200.00cm * 200.00cm

Gross Weight

1000.000kg

Transport

By Sea

⚙️

Product Description

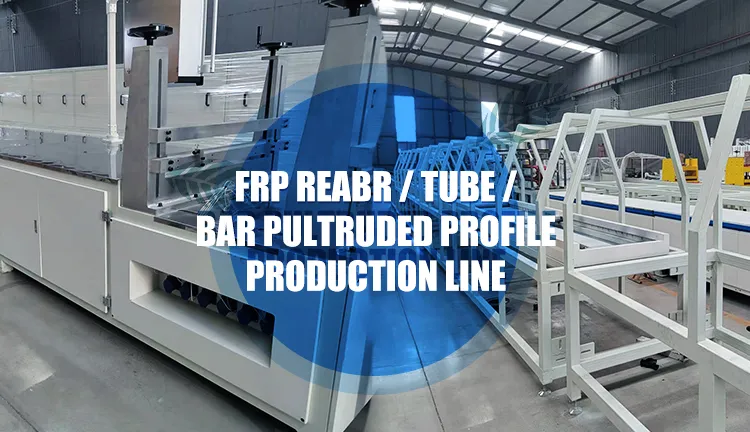

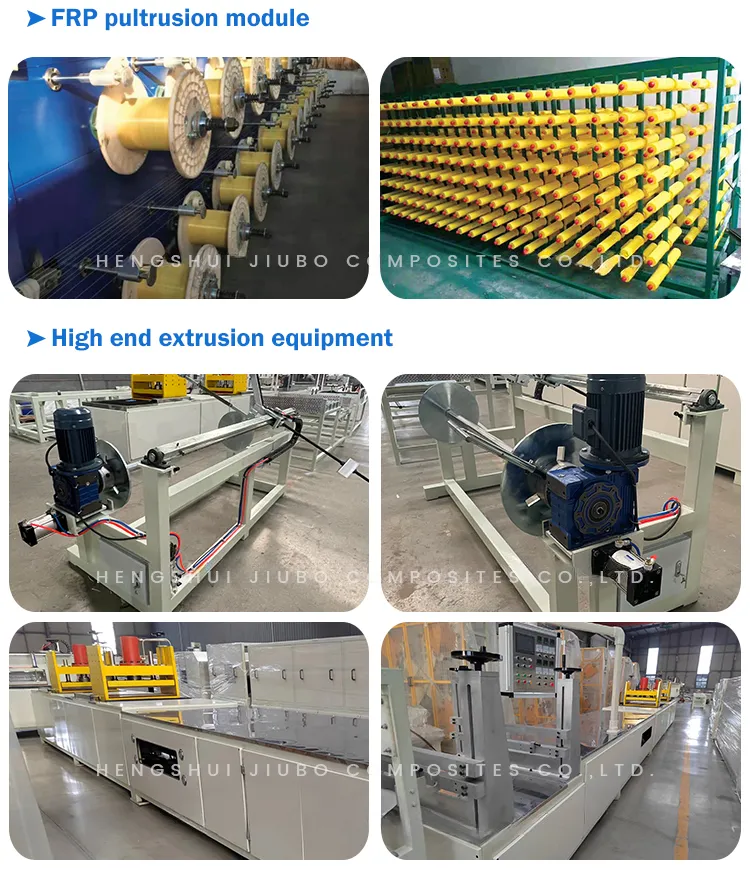

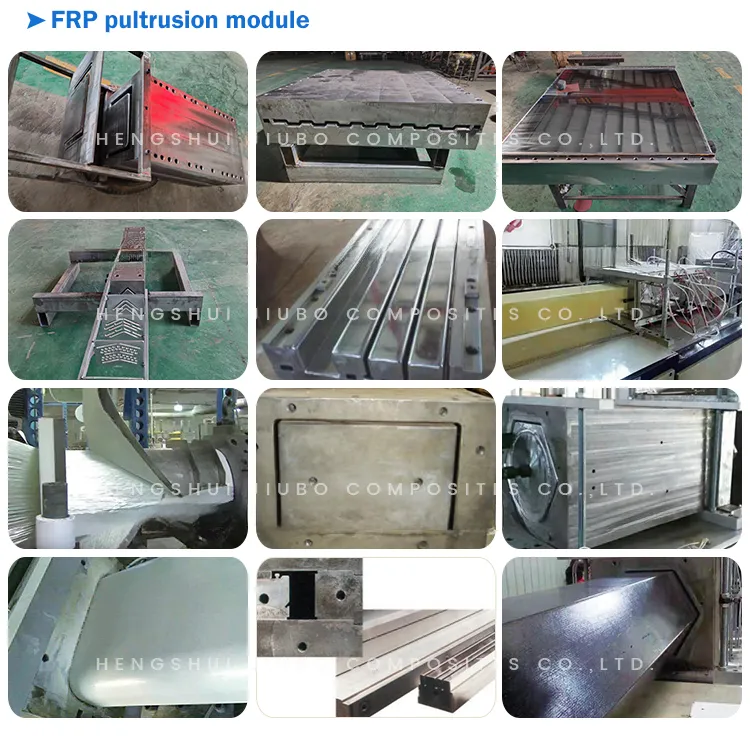

FRP Pultrusion Machine Overview

Hydraulic Reciprocating Pultrusion Equipment

Mold mounting plate size: 1170×900×20mm
Mold length: 900mm
Adjustable plate height: 0~80mm
Temperature control sections: 4
Heating plate width: 400mm
Traction force: 200-800kN
Pultrusion speed: 0.1~1.0m/min

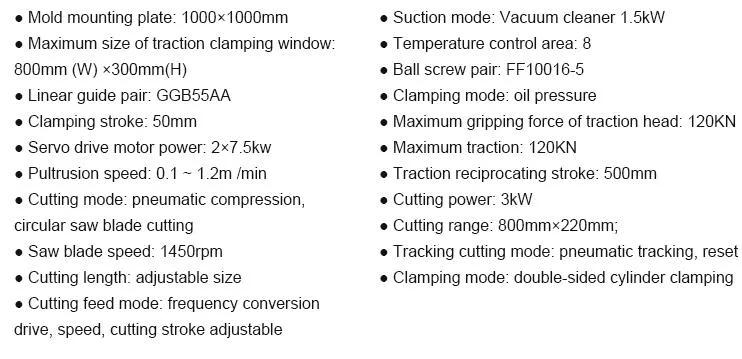

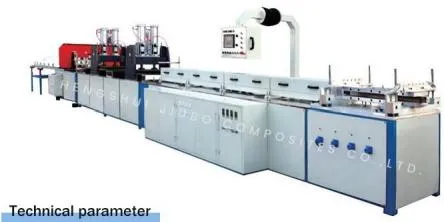

Lead Screw Type FRP Production Line

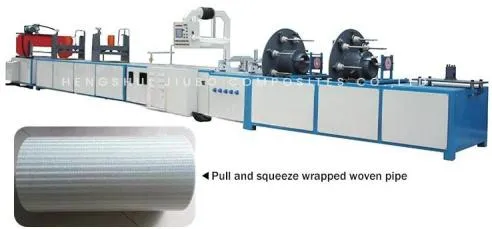

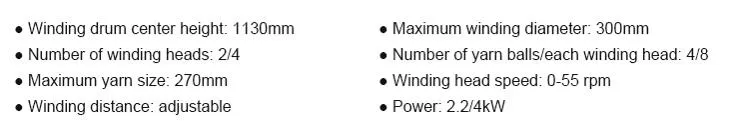

FRP Pultrusion Winding Production Line

This line integrates the pultrusion and winding processes, enhancing both longitudinal and transverse strength. It allows for continuous pipe production and significantly improves production efficiency and pressure resistance.

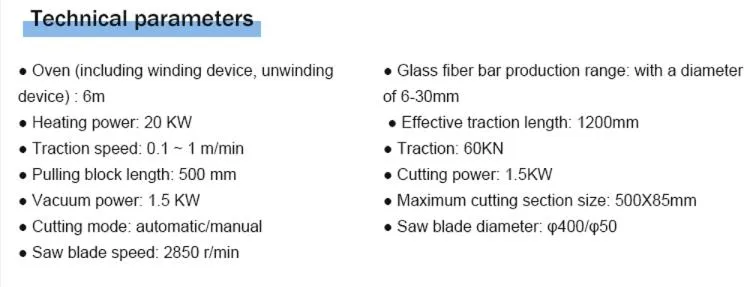

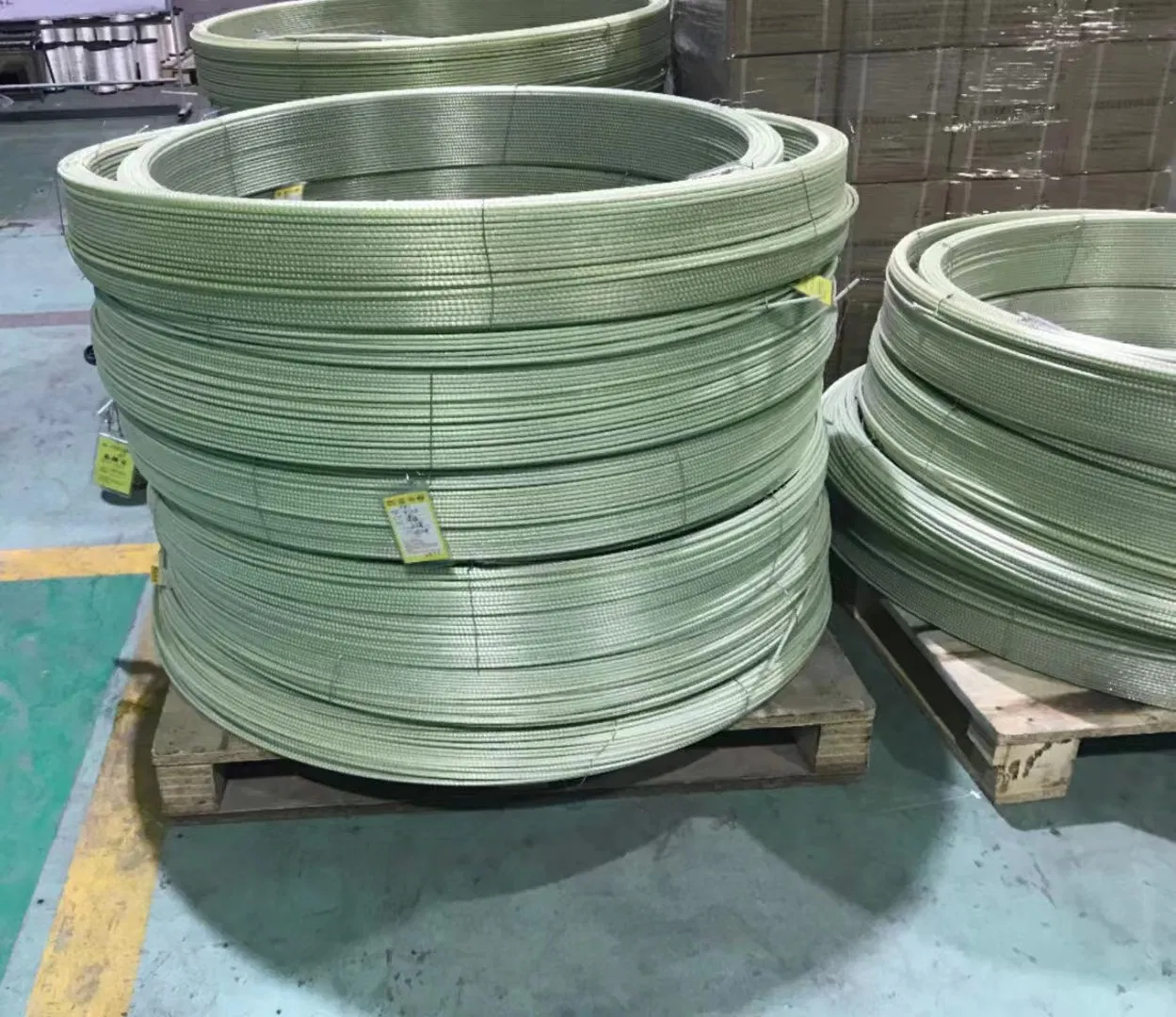

Fiberglass Composite Bar Equipment

4 Fiberglass reinforcement systems ensure high structural integrity.

Carbon Fiber Cable Composite Core Production

Yarn frame: 120 spindles in matrix form
Post-curing device length: ≥2m (adjustable)
Crawler tractor traction: 4 tons
Traction speed range: 0.1~1m/min
Take-up reel diameter: 1500~2500mm

🏢

Service & Capabilities

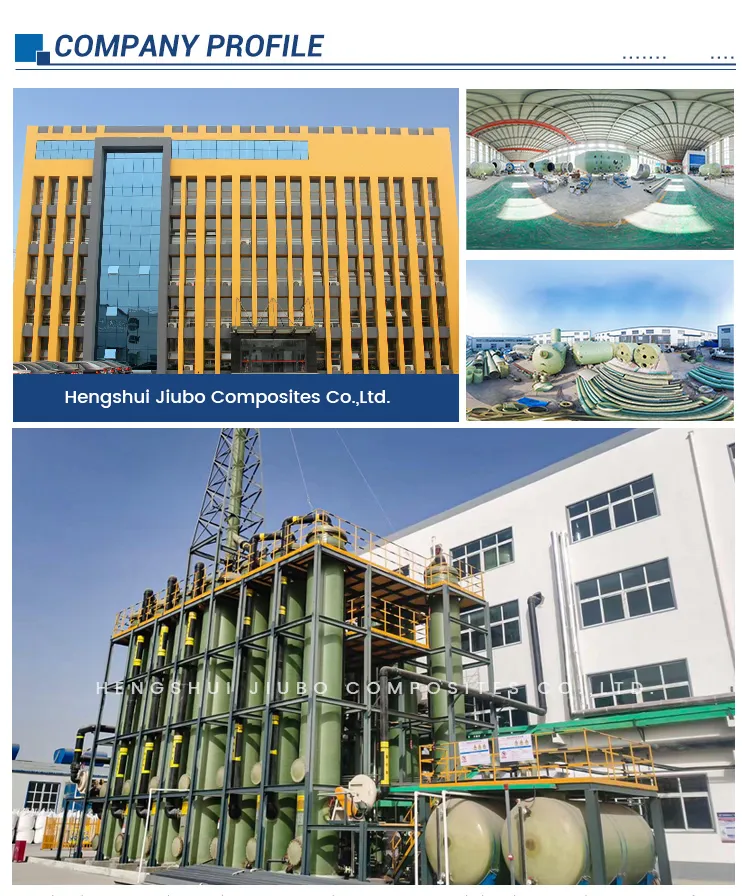

Specialized in the production and sales of complete chemical equipment and fiberglass product production lines. Certified under ISO9001, ISO14001, ISO45001, and SGS. Production lines are utilized globally in the United States, Canada, Australia, Japan, Germany, and more.

EPC chemical equipment series (Potassium sulfate, Sodium sulfate, etc.)
EPC FRP product production lines (Pipes, Tanks, Grating, Profiles)

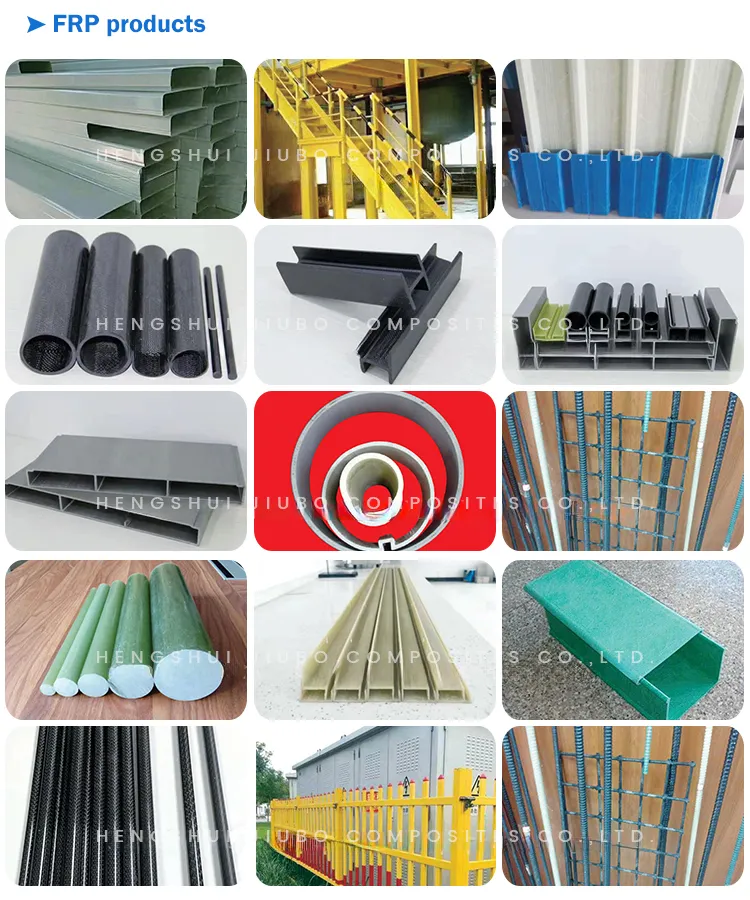

Customized fiberglass products (High pressure pipes, Cooling towers, SMC/BMC molded products)

📜

Certifications

Frequently Asked Questions

1. What materials can the pultrusion machine process? The equipment is designed to handle glass fiber, carbon fiber, fiber felt, fiber cloth, and various reinforcing resins.

2. What is the typical speed of the pultrusion production line? The pultrusion speed is continuously adjustable, typically ranging from 0.1 to 1.0 meters per minute.

3. Does the equipment support automated temperature control? Yes, the machines include multiple independent temperature control sections (standard is 4) to ensure precise curing during the molding process.

4. What is the benefit of the integrated winding process? By combining pultrusion with winding, the finished products gain significantly higher transverse strength and pressure resistance compared to standard pultrusion.

5. Can the equipment be customized for different profile sizes? Yes, the traction clamping windows and mold mounting plates are designed to accommodate various specifications, such as 1000mm(W) x 300mm(H).

6. Is technical training provided for the production lines? Production teaching and technical supply are available to ensure efficient operation of the complete sets of equipment.
