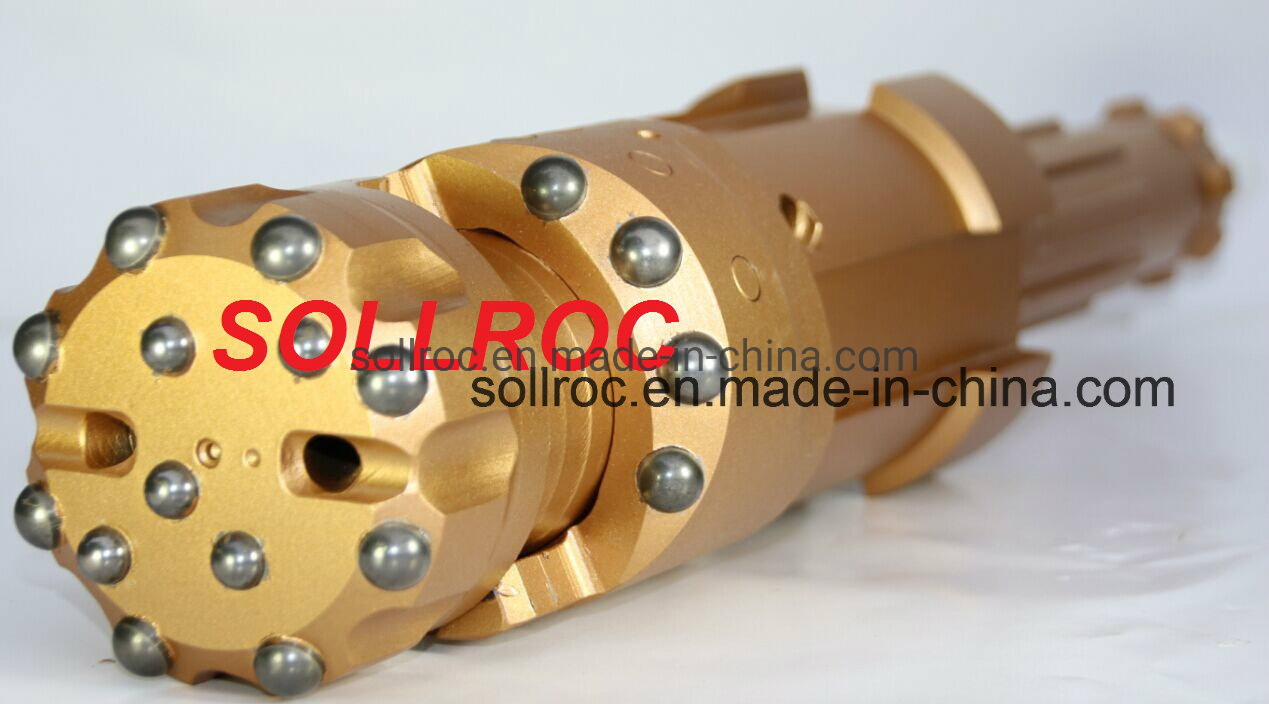

Odex165 Odex Eccentric Casing System for Rock Drilling

1 / 5

Odex165 Odex Eccentric Casing System for Rock Drilling

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

odex165

Shank

DHD/SD/Mission/Ql

Quality

Best

Rock Formation

Soft, Middle, Hard

Use

Water Well Drilling, Mining, Exploration

Transport Package

Ply-Wooden Cases

Specification

108mm-323mm

HS Code

82071990

Production Capacity

5000PCS/Month

Product Introduction

ODEX is an excellent option when unconsolidated formations are too dense or cobbly for drilling. It is a down-hole air hammer system designed to advance casing during drilling. Once a desired depth is reached, the eccentric bit can be retrieved, leaving the casing in place for sampling or installations. A set of ODEX system includes a pilot bit, a reamer, and a guide device.

Technical Parameter

Name	Outer Dia. of Casing	Inner Dia. of Casing	Max Wall Thickness	Reamed Diameter	Casing Shoe ID	Pilot Bit Pass ID	Hammer Type
ODEX165	194mm	180mm	7mm	209mm	167mm	165mm	6" Hammer

Available models: ODEX84, ODEX90, ODEX97, ODEX115, ODEX140, ODEX146, ODEX150, ODEX165, ODEX190, ODEX209, ODEX240, ODEX280.

Product Features

✔ Rapid removal of cuttings

✔ No use of drilling mud

✔ High penetration rate in resistant rock

✔ Easy soil and groundwater sampling

✔ Possible to measure yield estimates

✔ Advantageous in caving-prone formations

Application Range & Process

Suitable for water wells, geothermal wells, micropiles, and medium mini-type grouting holes for buildings, dams, and harbour projects.

Step 1: Reamer swings out to enlarge pilot-hole for casing slide.

Step 2: At depth, rotation reverses to swing reamer in for retrieval.

Step 3: Casing can be sealed with cement grout if left in hole.

Step 4: Continue to desired depth using conventional drilling.

Manufacturing Capability

We specialize in manufacturing and supplying excellent quality DTH Hammers, including DTH Hammer Bits and RC Hammers. Utilizing superior raw materials and efficient machinery, our products are meticulously crafted to suit high-pressure drilling rigs. These tools are designed for durability and high-performance in various technical specifications.

Delivery: By air, sea, or express.
Package: Ply-wooden cases + Pallet.

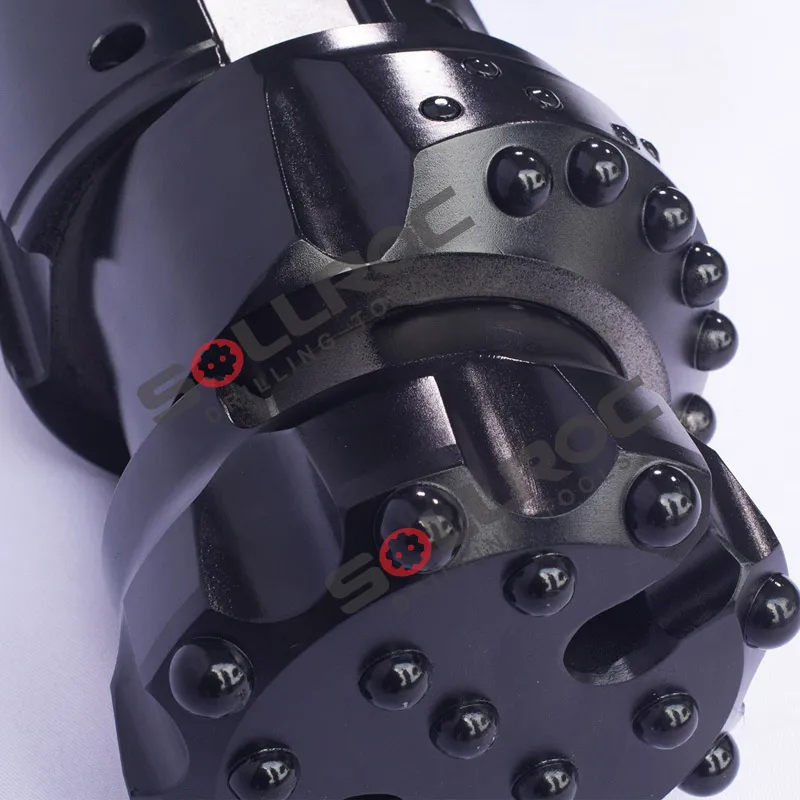

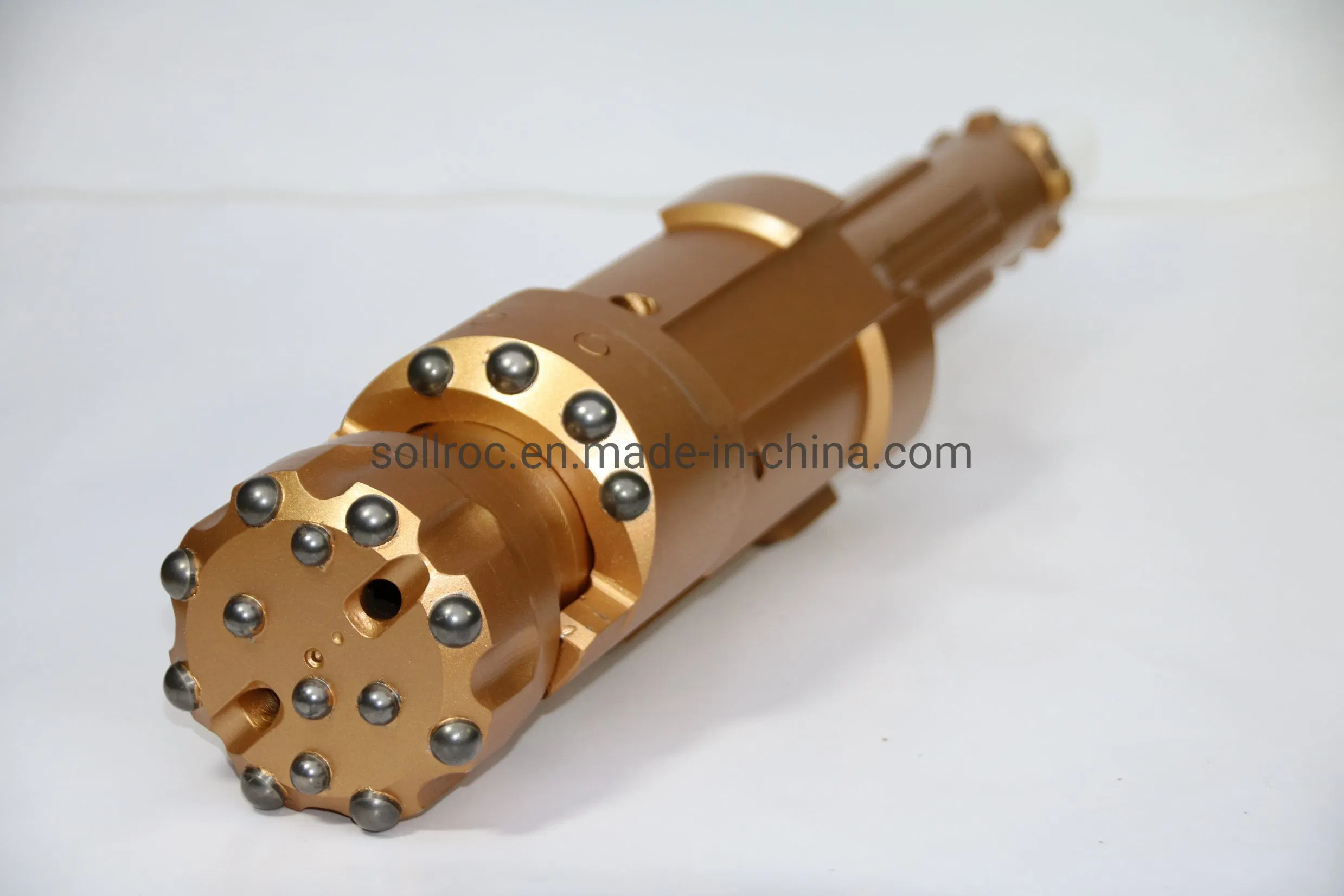

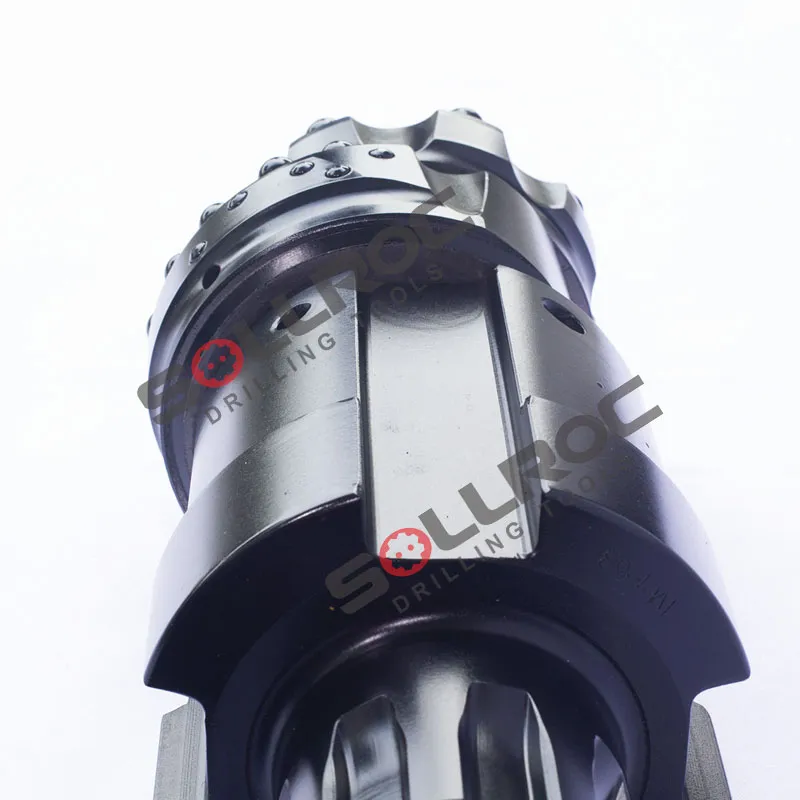

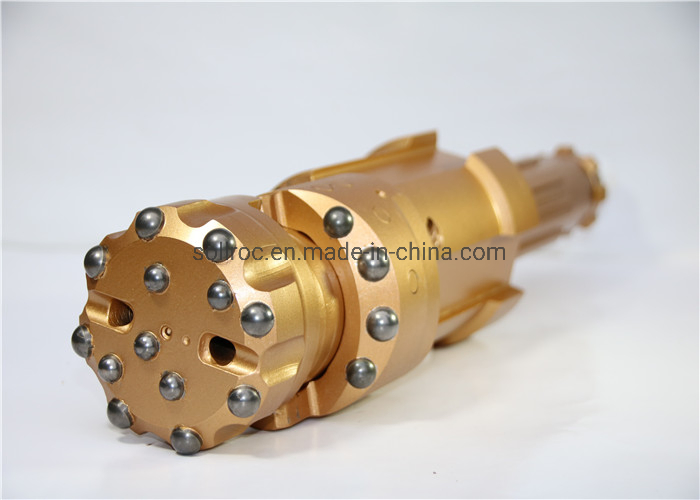

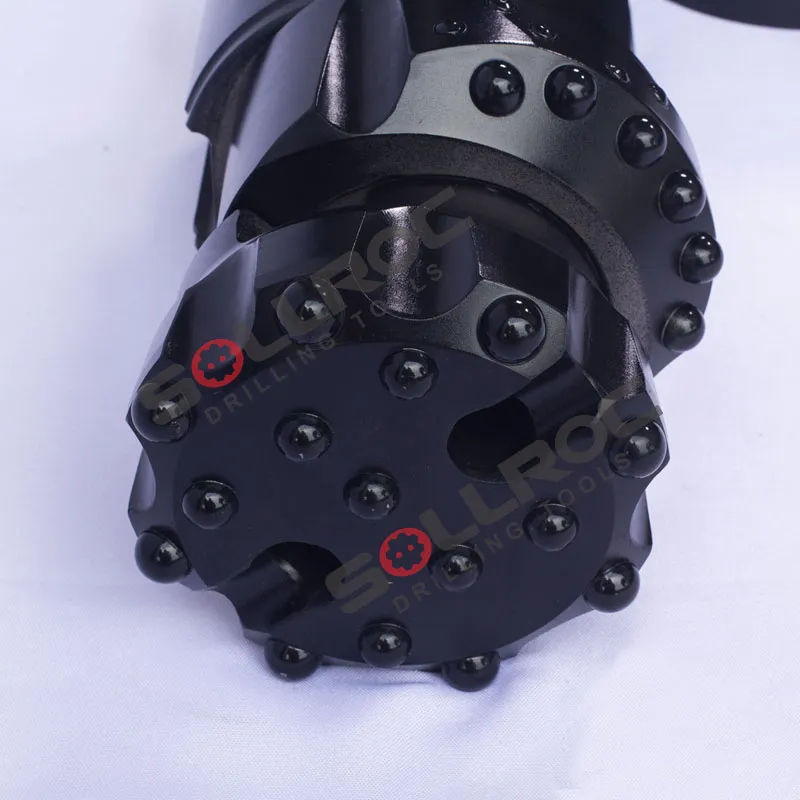

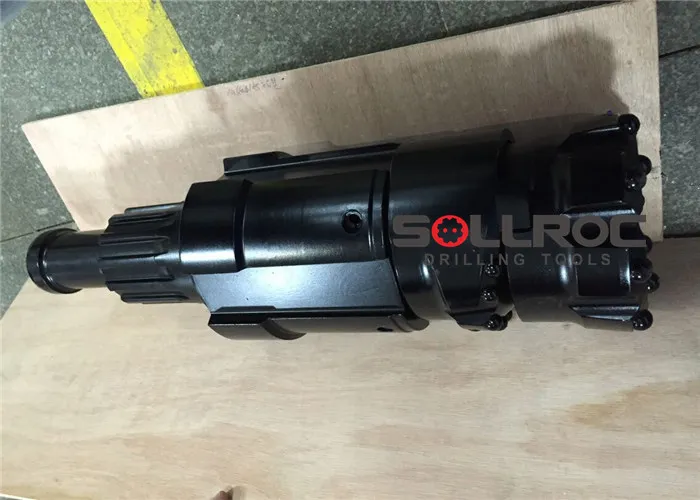

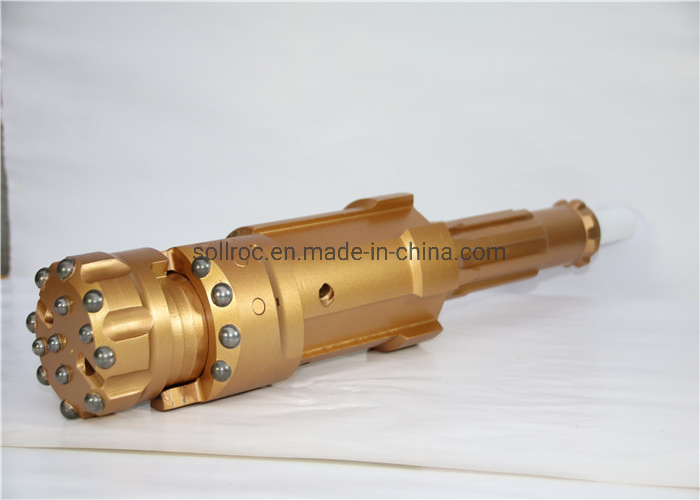

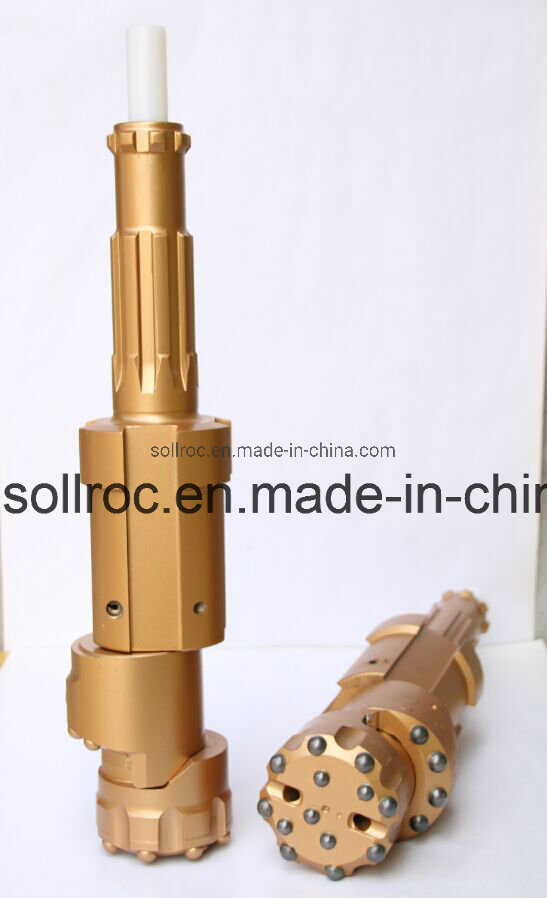

Detailed Images

Frequently Asked Questions

What is the primary function of the ODEX system?

The ODEX system is designed to advance casing during drilling through unconsolidated or unstable formations, allowing the casing to stay in place while the bit is retrieved.

In what types of rock formations is the ODEX165 most effective?

It is versatile and performs exceptionally well in soft, middle, and hard rock formations, especially where there is a high risk of hole caving.

Do I need to use drilling mud with this system?

No, one of the key features of the ODEX system is that it does not require the use of drilling mud, making the process cleaner and more efficient.

What components are included in a standard ODEX set?

A complete ODEX system set typically includes a pilot bit, a reamer, and a guide device.

Can the casing be retrieved after drilling is complete?

The system allows the drill bit assembly to be pulled up through the casing. Depending on the project, the casing can either be left in the hole (sealed with grout) or potentially removed.

What are the common applications for ODEX drilling?

It is widely used for drilling water wells, geothermal wells, micropiles, and grouting holes for infrastructure projects like dams and harbours.
