Customization: Available
Accuracy: <1mm
Horizontal Line: 1
Send Inquiry

Product Description

Basic Information
Model NO.
GD
Vertical Lines
1
Product Name
Seismic Underground Security Sensor
Application
Protect Vaults, ATMs and Other Secure Areas
Channels
8CH, 16CH...2048CH
Synchronization
GPS Timing Synchronization, Optical Fiber Synchronization
Connection
Network Cable/Optical Cable, Wireless WiFi
Package
Plywood Package
Specification
1 set
Product Description

Excavation Driving Knocking Blasting Intrusion Alarm Detector Underground Intrusion Microseismic Monitoring Ground Early Warning System

Advanced Microseismic Detection System
1
24-hour uninterrupted monitoring of underground artifacts in ancient burial sites, tombs, burial mounds, and archaeological sites to prevent theft.
2
Continuous surveillance of museums, bank vaults, and other high-security locations to prevent underground intrusion and theft of valuable items, such as warehouses, banks, factories, luxury residences.
3
Protection of underground constructions, ammunition depots, oil storage facilities, arsenals, etc., with monitoring to prevent underground intrusion.

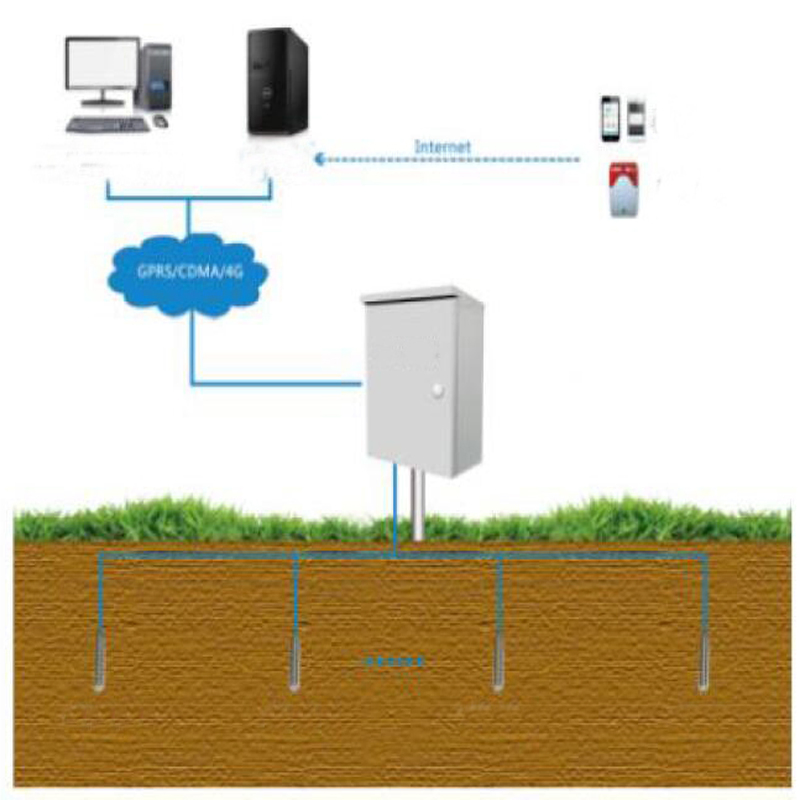

Underground Monitoring Setup
Core Features
✓
High Sensitivity: Detects artificial excavation (50-150m), mechanical excavation (150-350m), and small-scale blasting (350-500m).
✓
3D Spatial Mapping: Real-time display of intrusion locations via a three-dimensional monitoring map for accurate theft detection.
✓
Flexible Management: Supports multiple data transmission methods (wired/wireless) and online management across multiple stations.
✓
Smart Filtering: Zero missed reports and low false alarms by filtering out human activity, animals, livestock, and vehicle noise.
✓
Remote Alerts: Supports mobile text message alerts and triggers on-site alarm devices to deter intruders.
✓
Reliable Power: Equipped with UPS to prevent data loss and ensure 24/7 monitoring during power outages.

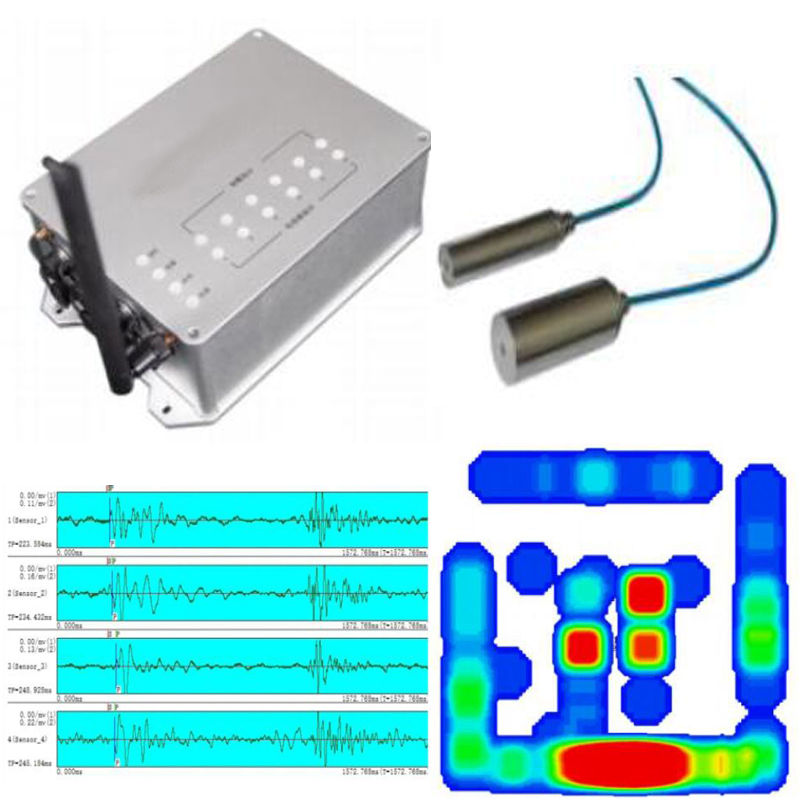

System Features Diagram
Technical Specifications
A/D conversion accuracy 24-bit
Sampling interval 20 microseconds
Number of channels 8 channels, 167 channels, 2048 channels
Gain multiplier 1/8, 1/4, 1/2, 1, 2, 4, ... 128 times
Communication method TCP/IP protocol
Sampling bandwidth 0-0.47 times the sampling rate
Dynamic range 118dB at 50kHz
System Visuals

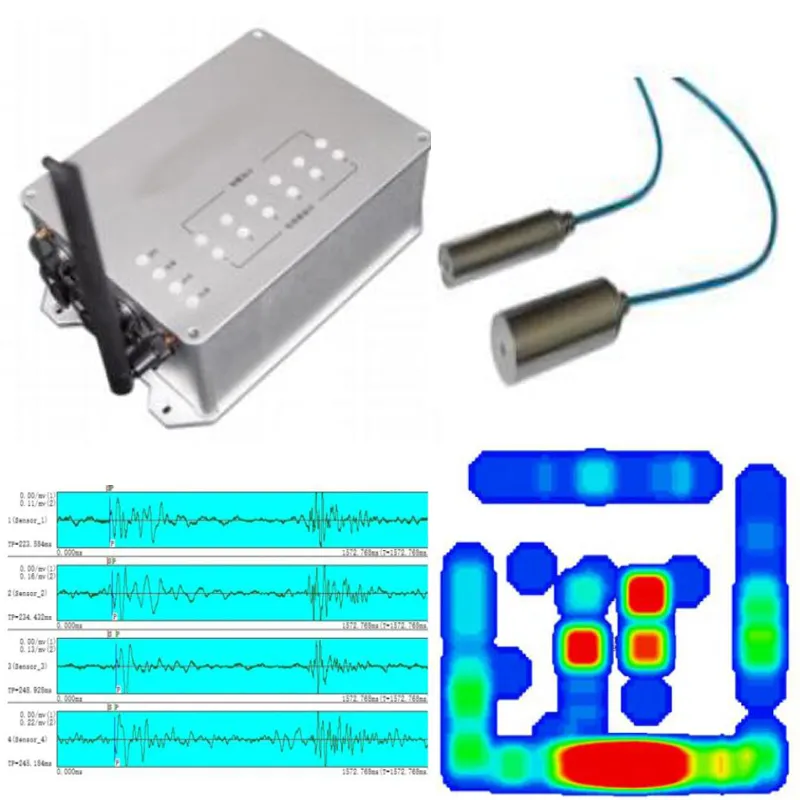

Detection System Hardware Installation Diagram
Frequently Asked Questions
Q: What is the maximum detection range of the system? A: The range varies by activity: artificial excavation is detected up to 150m, large machinery up to 350m, and small-scale blasting up to 500m.
Q: How does the system handle environmental noise? A: It features a comprehensive characteristic library to identify and filter out vibrations from animals, vehicles, and standard human activity to minimize false alarms.
Q: Can I view the exact location of a potential intrusion? A: Yes, the system generates a real-time three-dimensional spatial map that marks the precise location of any detected vibration.
Q: Does the system support wireless connectivity? A: Yes, it supports both wired (Network/Optical cable) and wireless (WiFi) data transmission methods for flexible deployment.
Q: What happens if there is a sudden power failure? A: The system includes an Uninterrupted Power Supply (UPS) to ensure continuous 24-hour monitoring and prevent any data loss.
Q: Where is this security sensor typically used? A: It is ideal for protecting ancient burial sites, bank vaults, museums, ammunition depots, and high-security luxury residences.
