Basic Information
Certification
GS, RoHS, CE, ISO9001, ISO
Operation Form
Air + Ground Operation
Capacity
500kg, Customized
Max Height
3300mm, Customized
General Introduction
Overhead Hoist is a kind of manipulator equipment with chain. It realizes the lifting function by connecting the auxiliary lifting equipment installed on the mechanical arm with the fixture by soft cable.

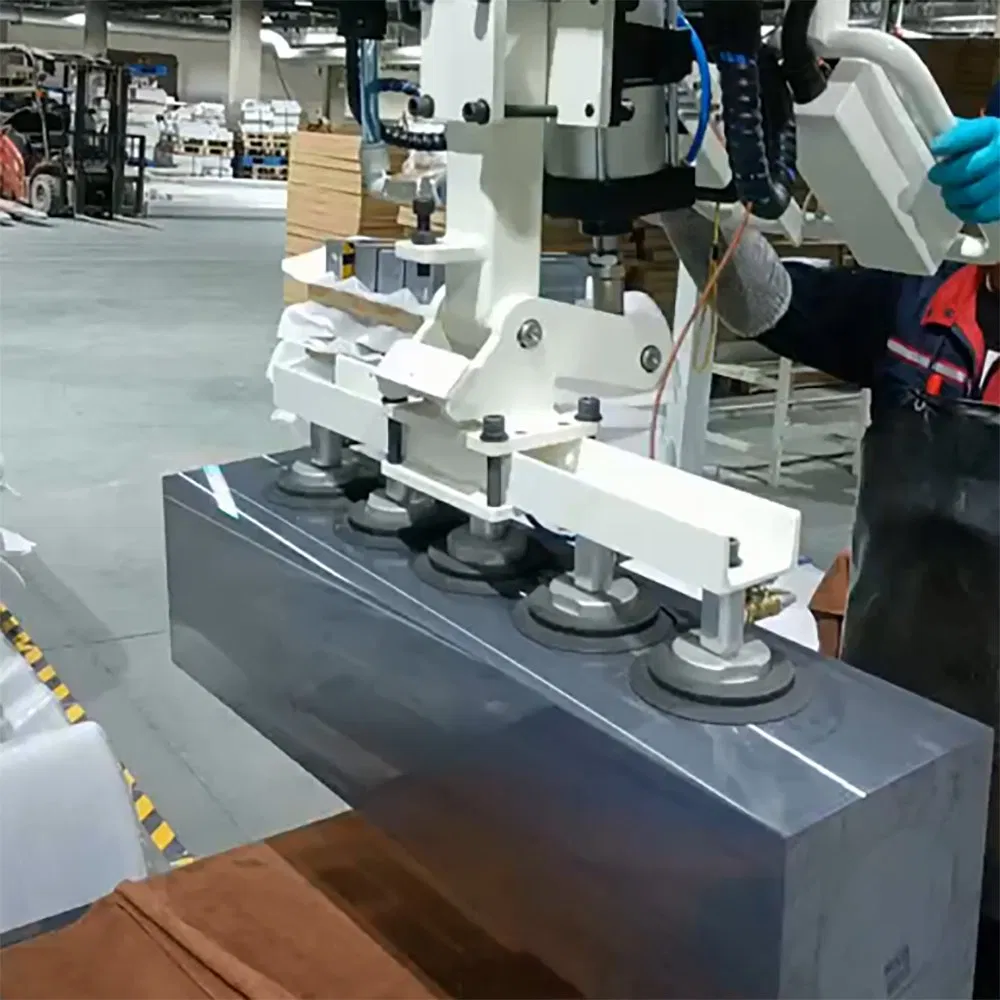

The equipment is used with various non-standard fixtures to realize workpiece handling, palletizing, loading and unloading. It reduces operator fatigue, maximizes productivity, and ensures worker safety. It has a wide range of applications, especially for modern production lines.

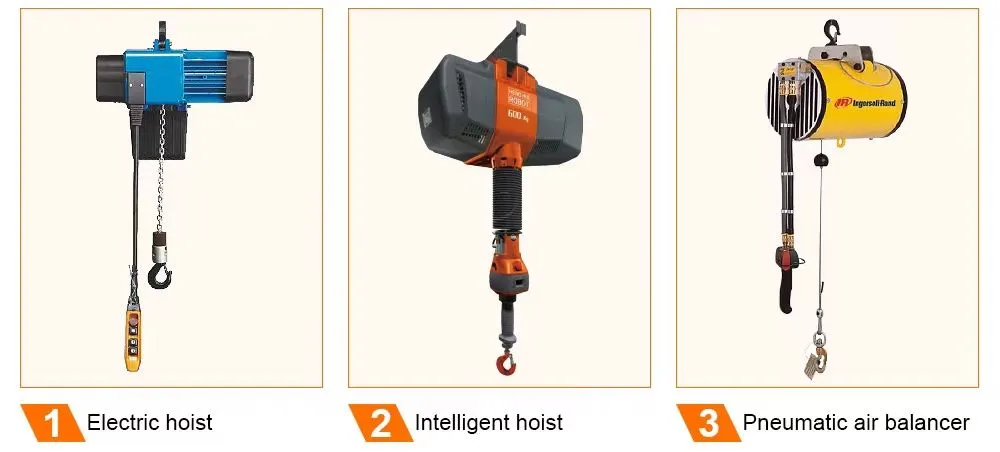

Core Technology
1. Electric Hoist: Usually installed on cantilevers, gantry cranes, or trusses. Features low cost, simple operation, and low maintenance. Available in wire rope or chain types with single or two-speed lifting.
2. Intelligent Hoist: Composed of servo drive, servo motor, and reducer. Controlled by a microprocessor, it follows the operator's direction with variable speed for high precision, safety, and reliability.
3. Pneumatic Air Balancer: Uses compressed air thrust to balance load gravity. Achieves accurate suspension and movement control, making it easy to manipulate heavier objects efficiently.

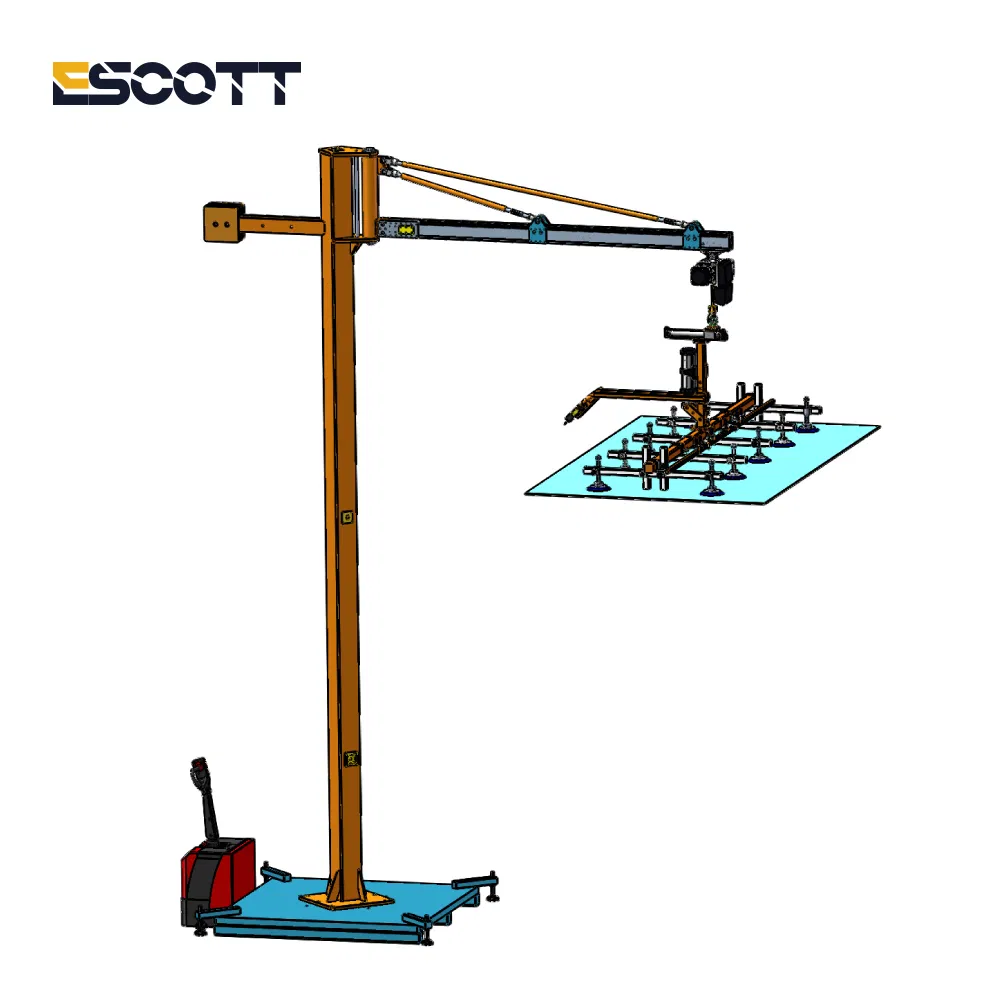

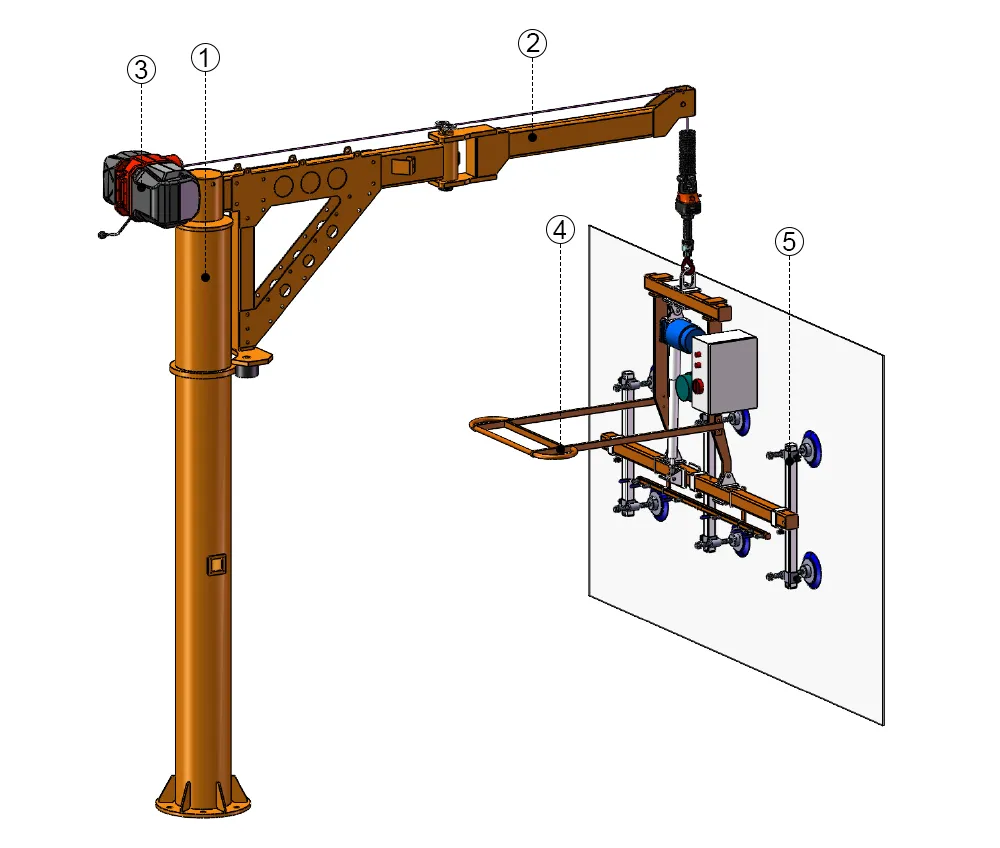

Parts and Structure
- 🔹 1. Column
- 🔹 2. Cantilever arm
- 🔹 3. Auxiliary lifting hoist
- 🔹 4. Handle
- 🔹 5. Tooling Structure
Models for Reference
| NAME |
BMS125 |
BMS250 |
BMS500 |
BMS1000 |
BMS2000 |
| Maximum load(Kg) |
125 |
250 |
500 |
1000 |
2000 |
| Lifting speed (m/min) |
8/2 |
8/2 |
8/2 |
4/1 |
4/1 |
| Power supply |
220-460V |
| NAME (Intelligent) |
IAD-H80 |
IAD-H200 |
IAD-H300 |
IAD-H600 |
| Maximum load(Kg) |
80 |
200 |
300 |
600 |
| Max Stroke (m) |
3.5 |
3.5 |
3.5 |
1.7 |
| Power supply |
220V±10% 50HZ |

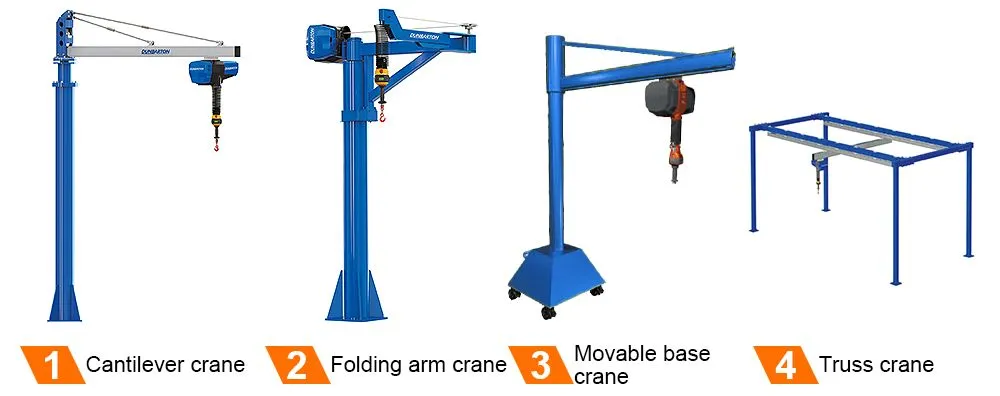

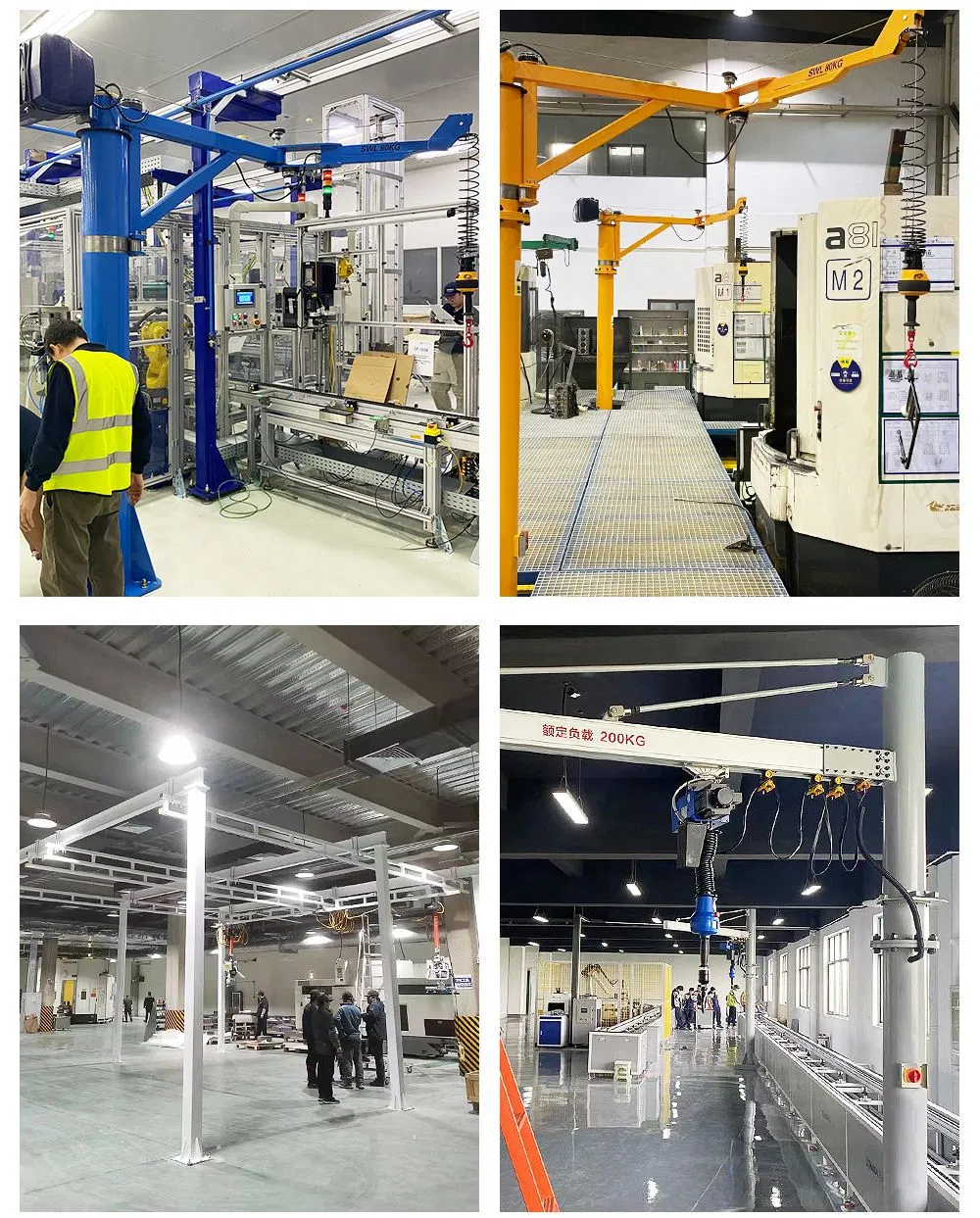

Installation Way
Cantilever Crane: Simple structure, flexible operation, large working space.
Folding Arm Crane: Accurate positioning, covers multiple units, small footprint.
Movable Base: Moves in all directions, flexible and accurate.

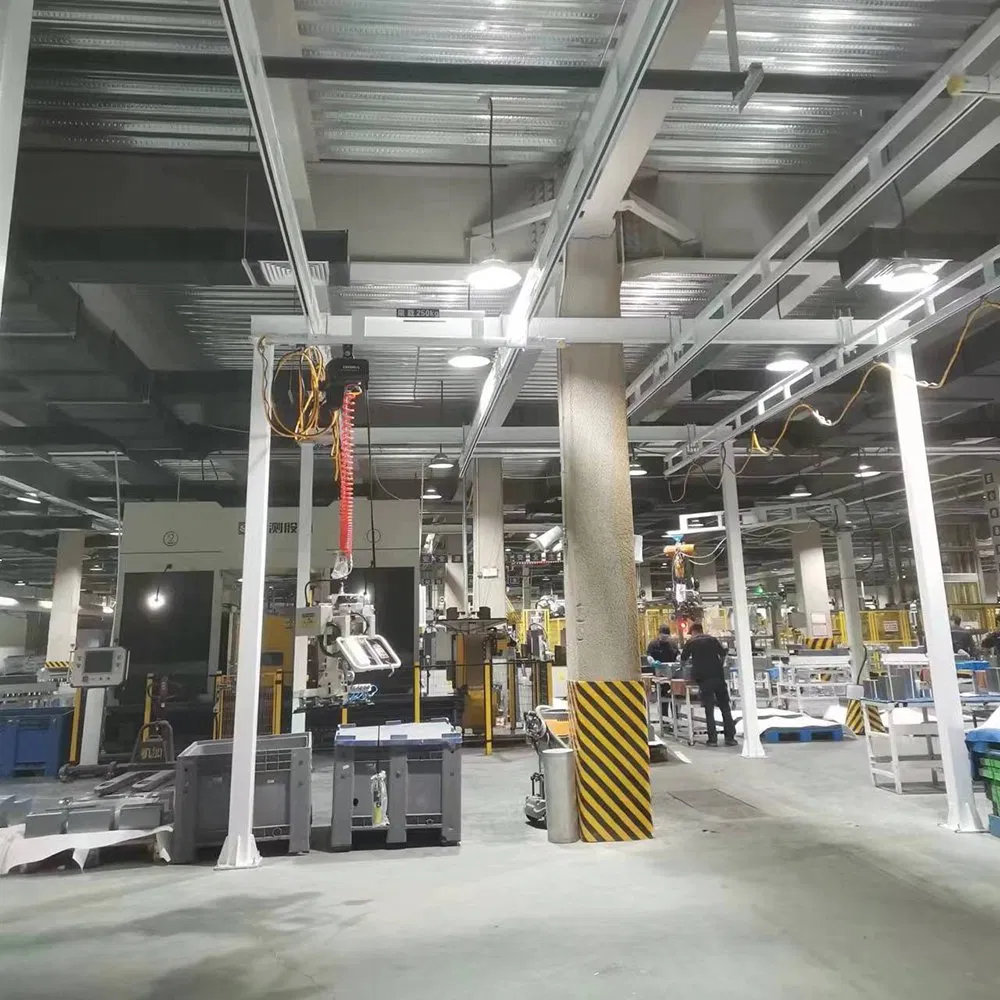

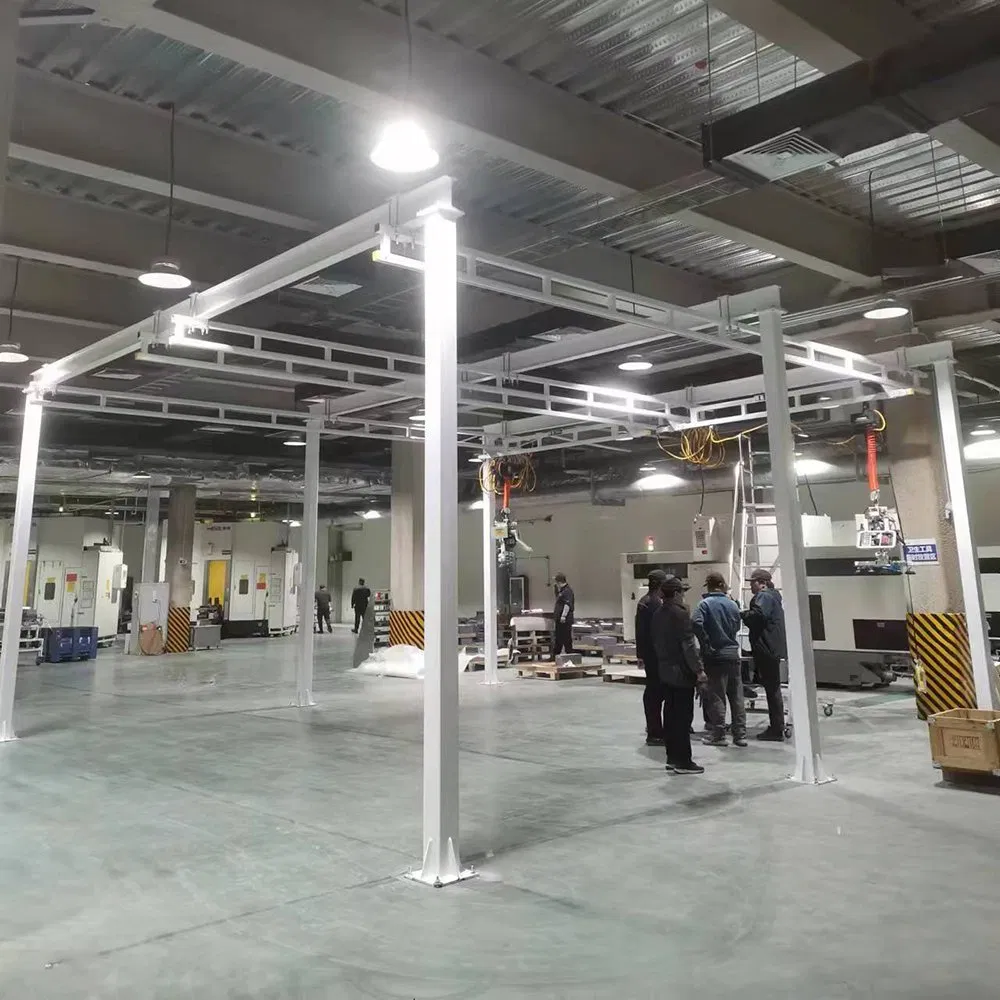

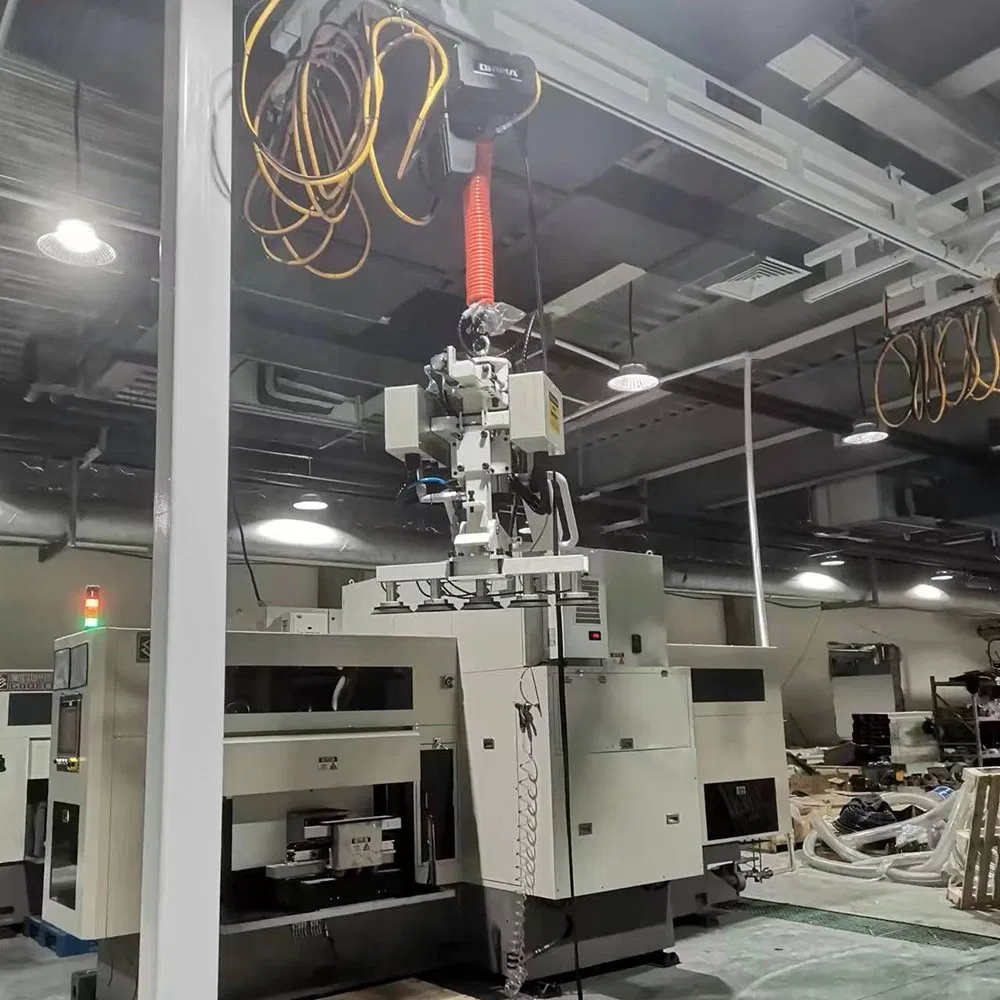

Truss Crane: Lightweight steel structure, ideal for limited height scenarios.
Frequently Asked Questions
What is the maximum lifting capacity of these cranes?
The maximum lifting weight for standard models is under 20t, with specific models like the BMS series supporting up to 2000kg. Customization is available for higher requirements.
What are the main differences between electric and intelligent hoists?
Electric hoists offer a cost-effective solution for simple lifting. Intelligent hoists use servo motors and microprocessors for variable speed control, high precision, and easier handling of delicate workpieces.
Which installation method is best for limited spaces?
For limited height or narrow spaces, the Truss Crane or Folding Arm Crane are usually recommended due to their lightweight structure and small footprint.
What power supply is required?
Most models operate on a 220V-460V range. Intelligent models typically require 220V±10% 50HZ, while pneumatic balancers run on air pressure.
Can the lifting height be customized?
Yes, while standard lifting heights are often under 10m, parameters like stroke and height can be customized to fit your specific production line needs.
Are these systems suitable for palletizing?
Absolutely. These manipulators are widely used for palletizing, loading, and unloading in modern production lines to reduce operator fatigue and ensure safety.
