Heavy-Duty Electric for Kbk Crane System with Truss Structure for Metal Boxes

1 / 5

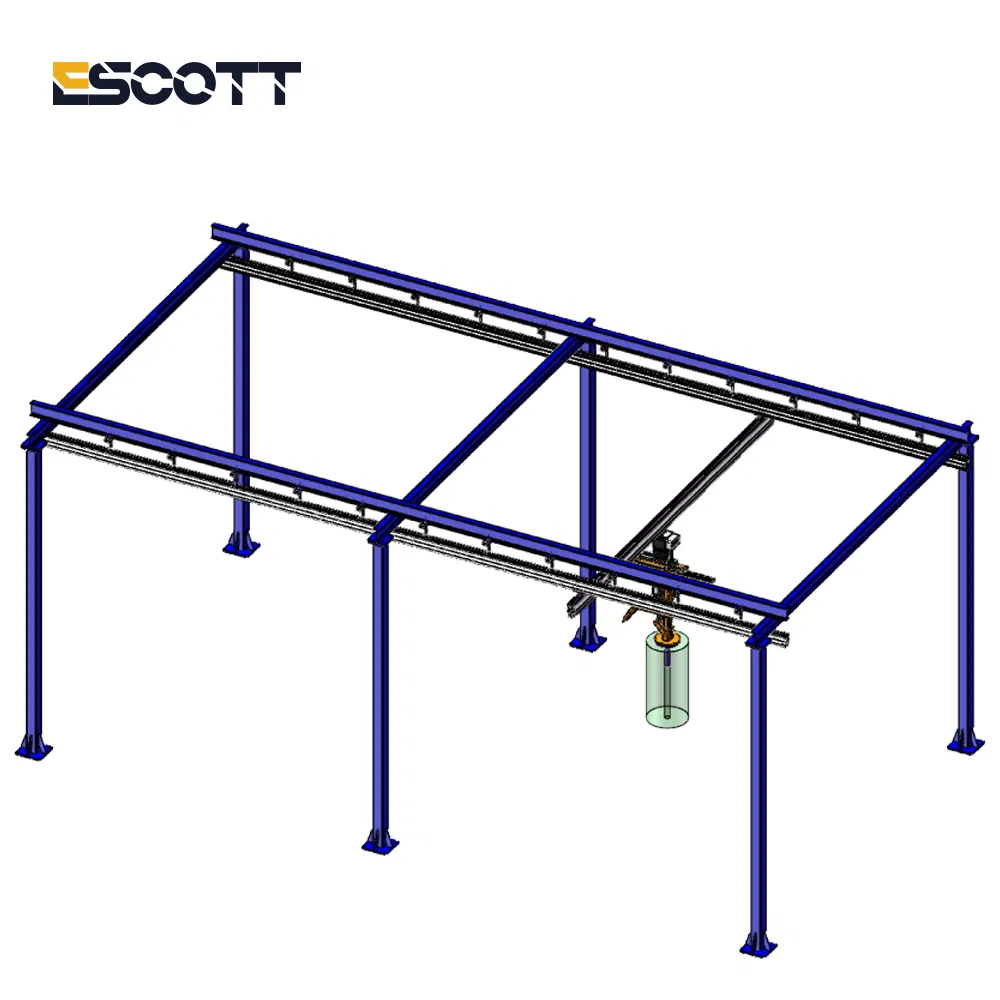

Heavy-Duty Electric for Kbk Crane System with Truss Structure for Metal Boxes

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

KBK Crane System

Reach

2-3m

Usage

Assembly Line, Machining, Material Handling, Packaging, Welding

Muscle Size

>31kg

Certification

ISO

Control Mode

Continuous Path Control

Drive Mode

Pneumatic

Condition

New

Application

Load Handling

Warranty

1 Year

Type

Jib Crane, Smart Hoist, Intelligent Lifting Device

Capacity

500kg, Customized

Up and Down Stroke

0-2000mm, Customized

Max Height

3300mm, Customized

Installation Form

Ground Fixed, Customized

Origin

China

Packaging & Delivery

Package Size

300.00cm * 400.00cm * 300.00cm

Package Gross Weight

100.000kg

General Introduction

Overhead Hoist is a professional manipulator equipment featuring a soft cable or chain connection. It achieves high-efficiency lifting functions by connecting auxiliary equipment installed on the mechanical arm with a specialized fixture.

The equipment is used with various non-standard fixtures to realize workpiece handling, palletizing, loading, and unloading. It significantly reduces operator fatigue, maximizes productivity, and ensures worker safety. It is an ideal solution for modern production lines.

Core Technology

1. Electric Hoist: Low cost, simple operation, and low maintenance. Often used in factories and warehouses. Available in wire rope and chain versions with single or two-speed lifting options.

2. Intelligent Hoist: Composed of servo drive, servo motor, and reducer. Controlled by a microprocessor for precise handling and variable speed control, ensuring safe and reliable movement.

3. Pneumatic Air Balancer: Utilizes thrust generated by compressed air to balance load gravity. Achieves accurate suspension and movement control for heavier objects.

Parts and Structure

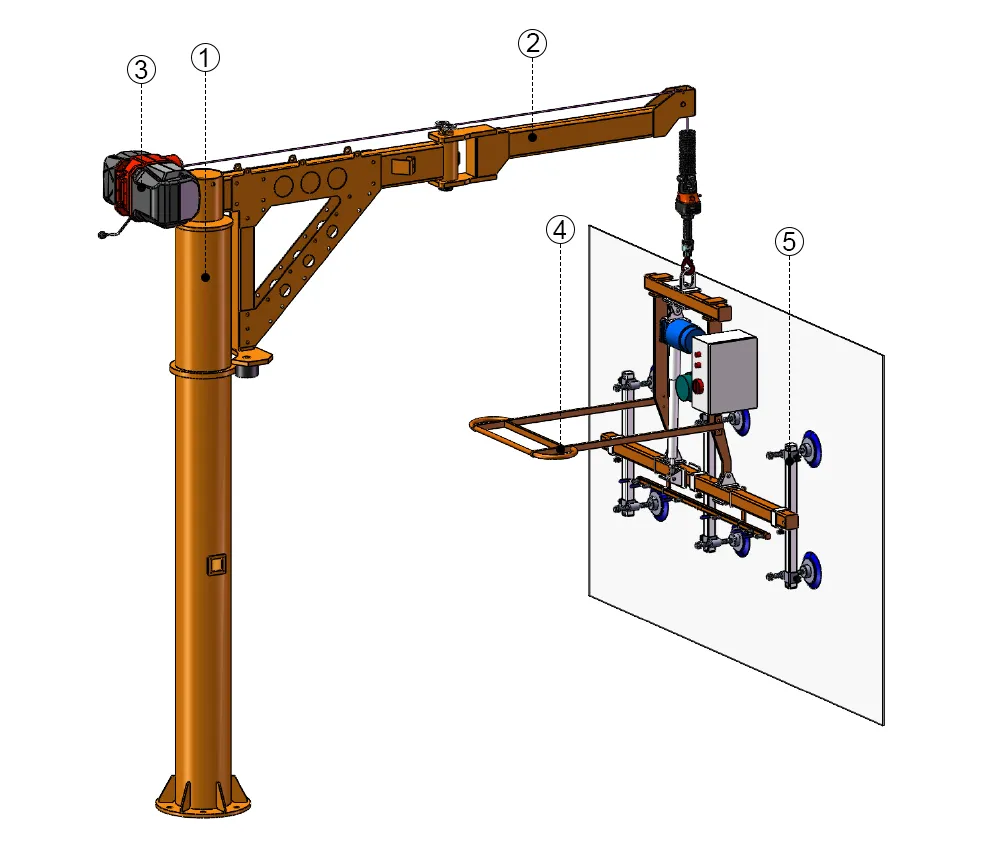

⚙️ 1. Column

⚙️ 2. Cantilever arm

⚙️ 3. Auxiliary lifting hoist

⚙️ 4. Handle

⚙️ 5. Tooling Structure

Models for Reference

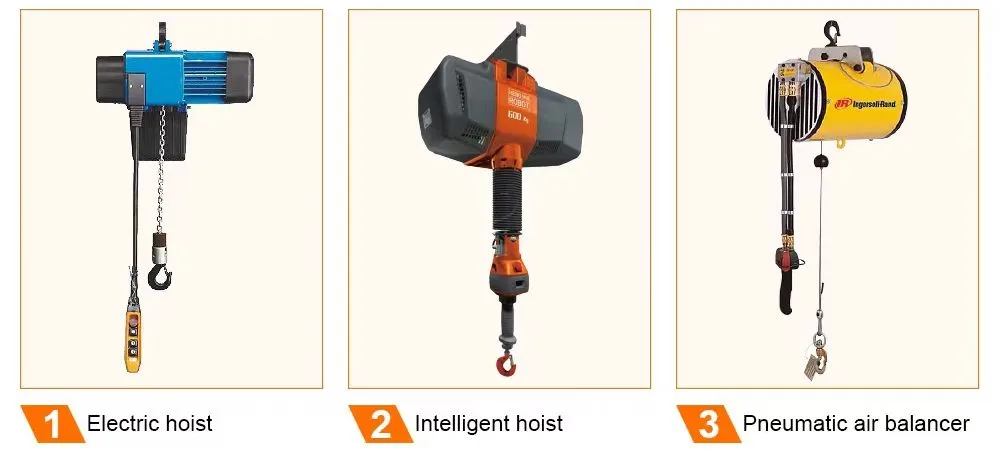

1. Electric Hoist Specifications

NAME	BMS125	BMS250	BMS500	BMS1000	BMS2000
Max Load (Kg)	125	250	500	1000	2000
Lifting Speed (m/min)	8/2	8/2	8/2	4/1	4/1
Motor Power (Kw)	0.4/0.1	0.4/0.1	0.4/0.1	0.75/0.2	1.5/0.37
Lifting Medium	Chain
Power Supply	220-460V

2. Intelligent Hoist Specifications

NAME	IAD-H80	IAD-H200	IAD-H300	IAD-H600
Max Load (Kg)	80	200	300	600
Handle-Lifting Speed-Unloaded (m/min)	40	30	15	7.5
Float-Lifting Speed-Unloaded (m/min)	36	27	13.5	6.75
Maximum Stroke (m)	3.5	3.5	3.5	1.7
Lifting Medium	Wire rope or chain
Power Supply	220V±10% 50HZ

3. Pneumatic Air Balancer Specifications

NAME	BW005060	BW015080	BW020120	BW032080	BW035080	BW050080
Max Load (Kg)	22	68	90	147	158	227
Maximum Stroke (m)	1.5	2.0	3.0	2.0	2.0	2.0
Lifting Medium	Wire rope
Power Supply	Air pressure

* Custom features are available upon request based on these reference models.

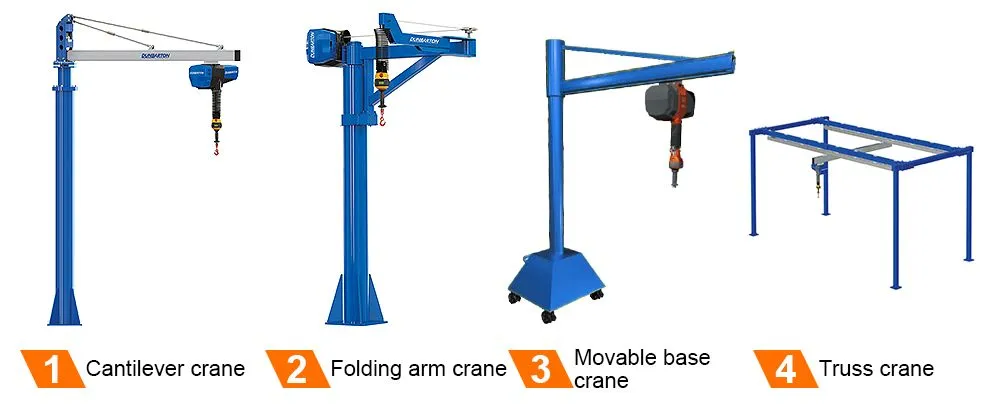

Installation Methods

1. Cantilever Crane: Simple structure with steel pipe column and I-beam main beam; offers flexible operation and large working space.

2. Folding Arm Crane: Composed of a column and rotating arm; allows for accurate positioning in multiple units with a small footprint.

3. Movable Base Cantilever Crane: Moveable in all directions, offering maximum operational flexibility and range.

4. Truss Crane: Light weight and high travel requirements; perfect for scenarios with limited space or height constraints.

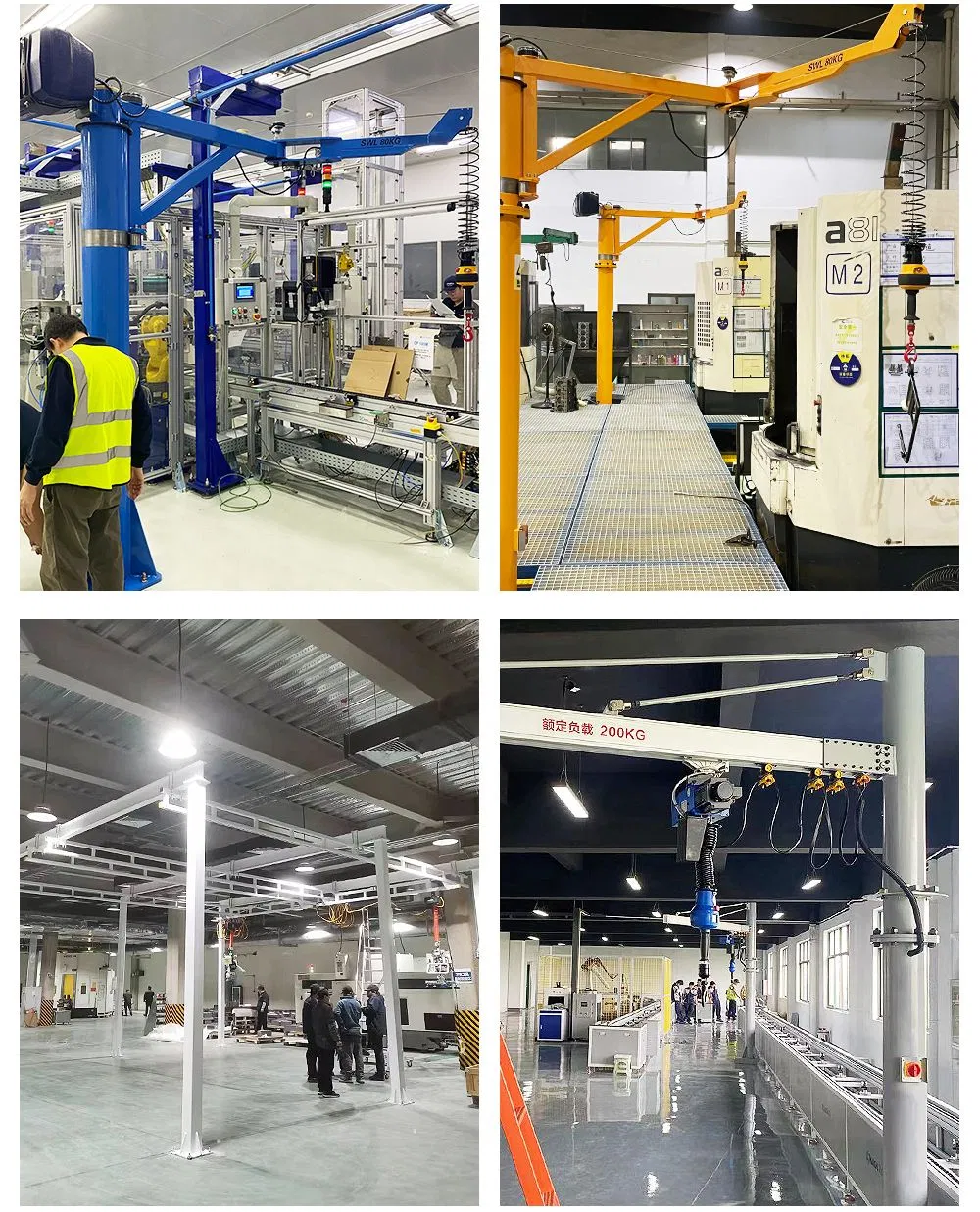

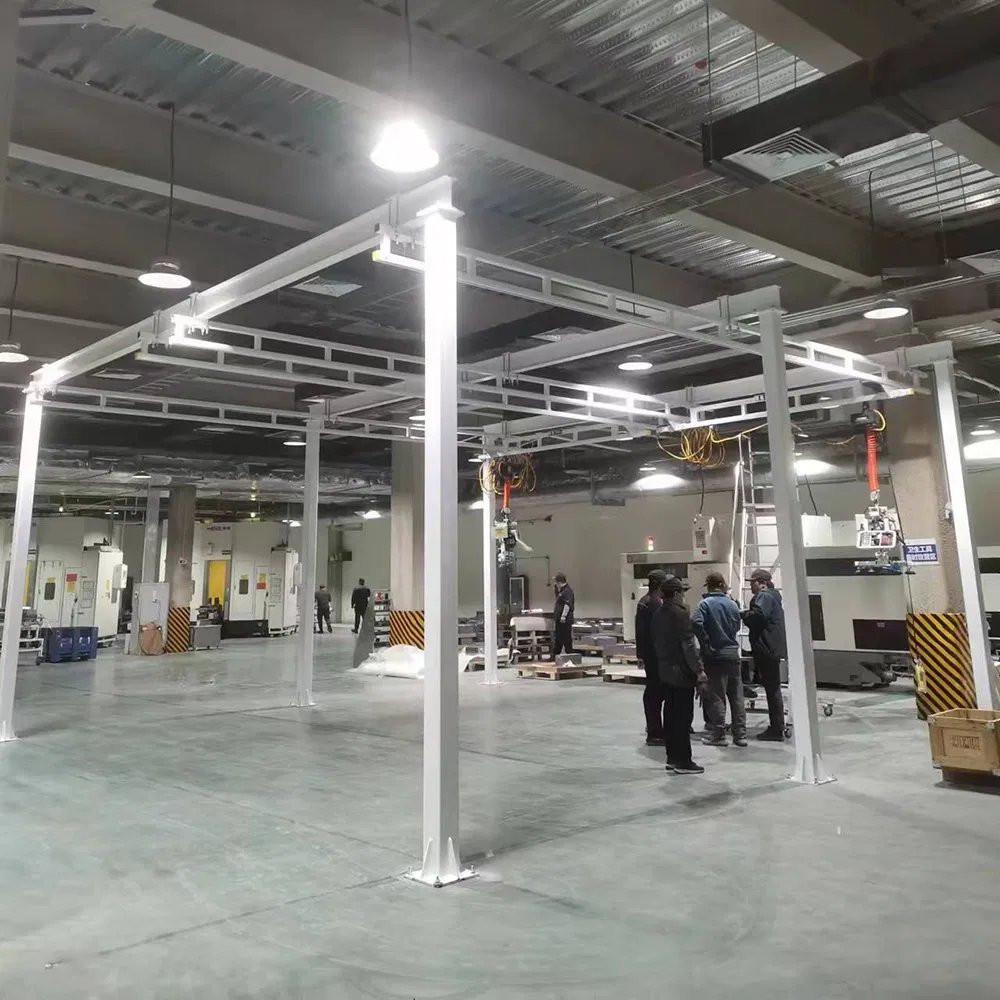

Working Scenario

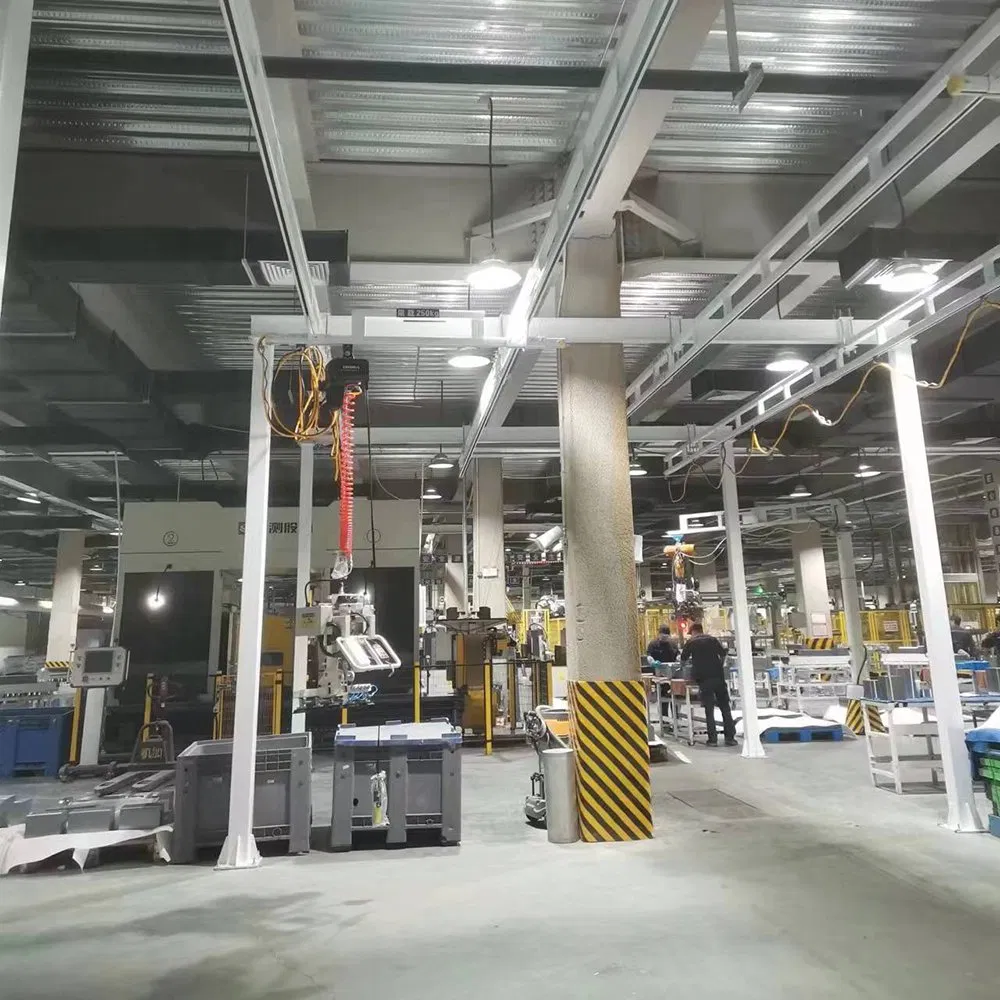

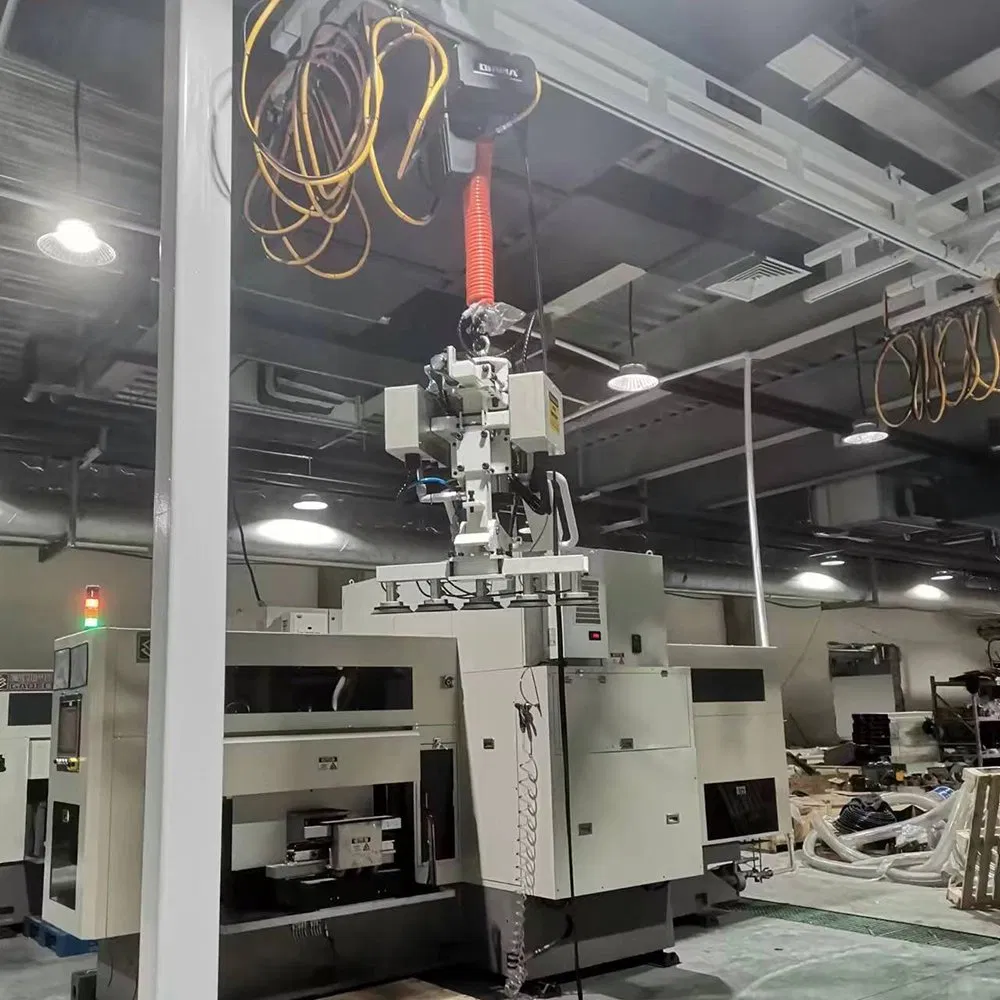

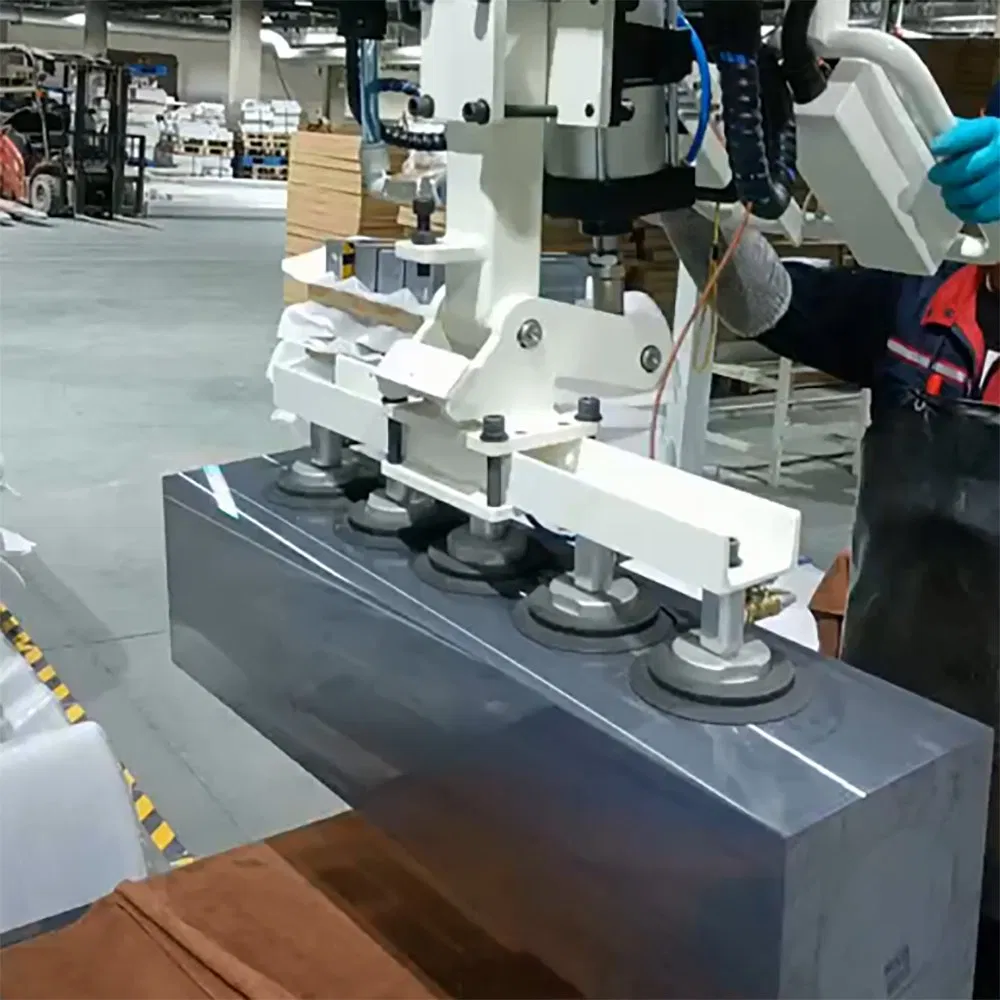

Production Environment

Frequently Asked Questions

What is a KBK Crane System used for?

The system is designed for workpiece handling, palletizing, loading, and unloading in environments like assembly lines, machining shops, and packaging stations.

What are the main differences between the hoist types?

Electric hoists are cost-effective for general use; Intelligent hoists provide high-precision variable speed via servo motors; Pneumatic air balancers use air pressure to neutralize gravity for easy suspension.

Can the lifting capacity be customized?

Yes, while standard models range up to 2000kg, specific features and capacities can be customized to meet your facility's requirements.

Is the system suitable for limited ceiling height?

Yes, specifically the Truss Crane or Folding Arm Crane options are designed for scenarios with limited space or height constraints.

What type of maintenance does the electric hoist require?

Electric hoists generally have low maintenance costs. Regular inspection of the chain or wire rope and lubrication of moving parts are usually sufficient.

What power supply is needed for the Intelligent Hoist?

The Intelligent Hoist models typically require a 220V±10% 50HZ power supply to operate the servo drive and microprocessor system.
