Factory Price Customizable Ringlock Scaffolding System with Vertical Standards

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	1 Year

Basic Product Information

Model NO.	Ringlock Scaffolding	Material	Steel
Type	Mobile	Structural Style	Ringlock
Framework	Combined Scaffolding	Supporting Mode	Projecting Scaffolding
Lapping Form	Full Scaffolding	Erection Position	External Scaffolding
Move Method	Attached Lifting Scaffolding	Scaffolding Part Type	Scaffolding Frames
Construction Properties	Building Scaffold	Surface Treatment	Galvanized
MOQ	500PCS	Application	Building/Tunnel/Bridge Construction
Certificate	SGS/ISO	HS Code	73084000

Product Description

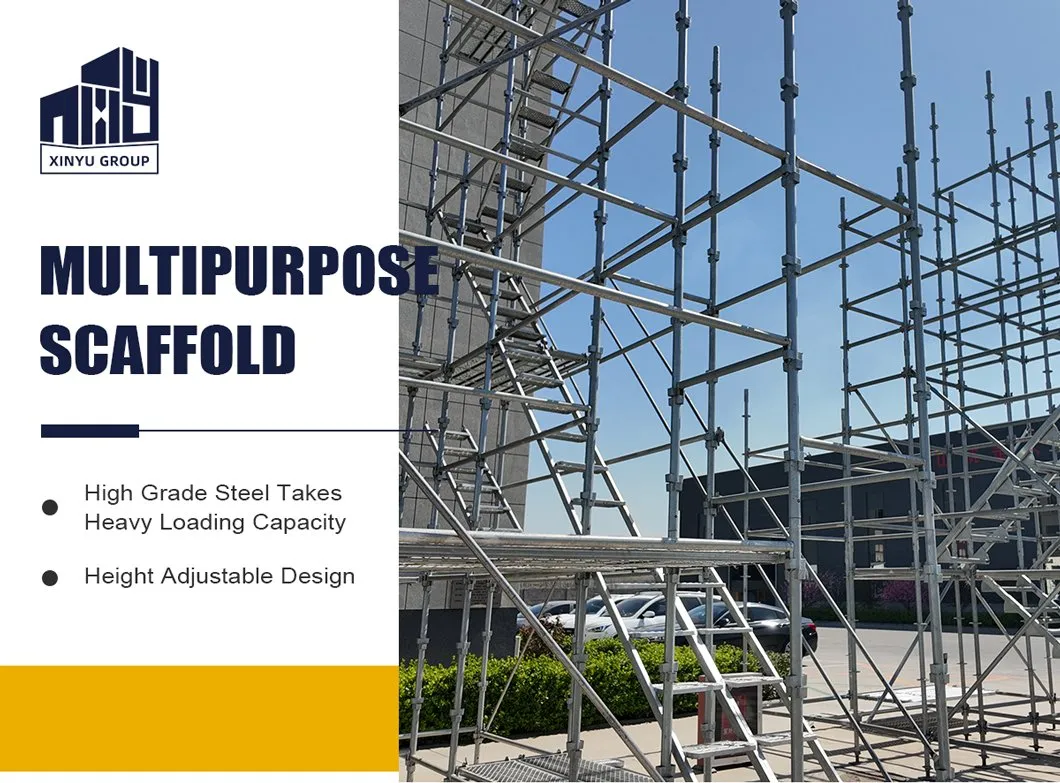

Ringlock scaffolding is a modular scaffolding system suitable for both external and internal support across various construction projects. Its superior load-bearing capacity, structural stability, flexibility, and ease of assembly make it widely adopted in domestic and international markets.

Operational Efficiency: Achieves 3x faster erection/dismantling speed compared to traditional scaffolding systems, reducing labor expenditure.
Structural Safety: Diagonal braces reinforce global stability, while self-locking pin mechanisms minimize joint loosening hazards.
Economic Viability: Low material attrition rate (≤1.5%) and 300+ reuse cycles deliver superior lifecycle cost-effectiveness.

Technical Parameters

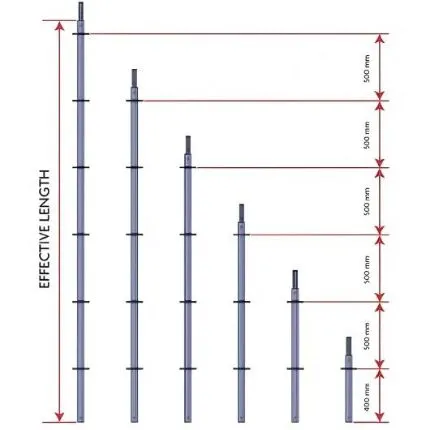

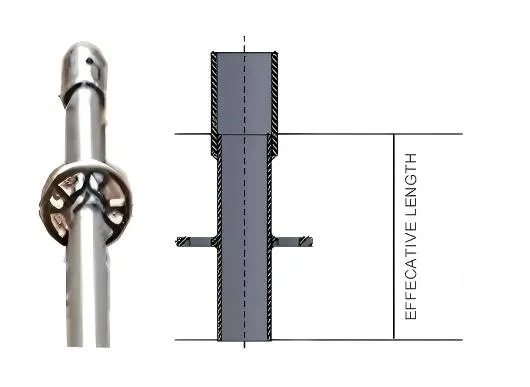

Ringlock Scaffolding Vertical Standard (Q355B Steel Tubes OD48.3 x 3.2mm)
Code	Item	Length (M)	Length (Imperial)
WF-RV001	Ringlock Standard 0.5M	0.5M	1'8"
WF-RV002	Ringlock Standard 1.0M	1.0M	3'3"
WF-RV003	Ringlock Standard 1.5M	1.5M	4'11"
WF-RV004	Ringlock Standard 2.0M	2.0M	6'7"
WF-RV005	Ringlock Standard 2.5M	2.5M	8'2"

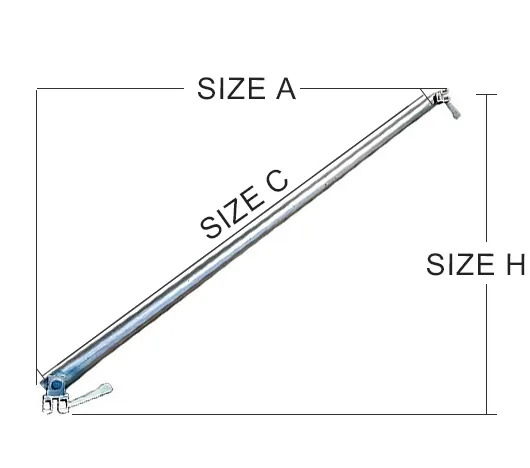

Ringlock Scaffolding Diagonal Brace (Q355B/Q235B)
Code	Item	Width (Size A)	Height (Size H)
WF-RD001	Ringlock Brace 0.65x2.0M	0.65M	2.0M
WF-RD003	Ringlock Brace 1.57x2.0M	1.57M	2.0M
WF-RD006	Ringlock Brace 3.05x2.0M	3.05M	2.0M

Components & Services

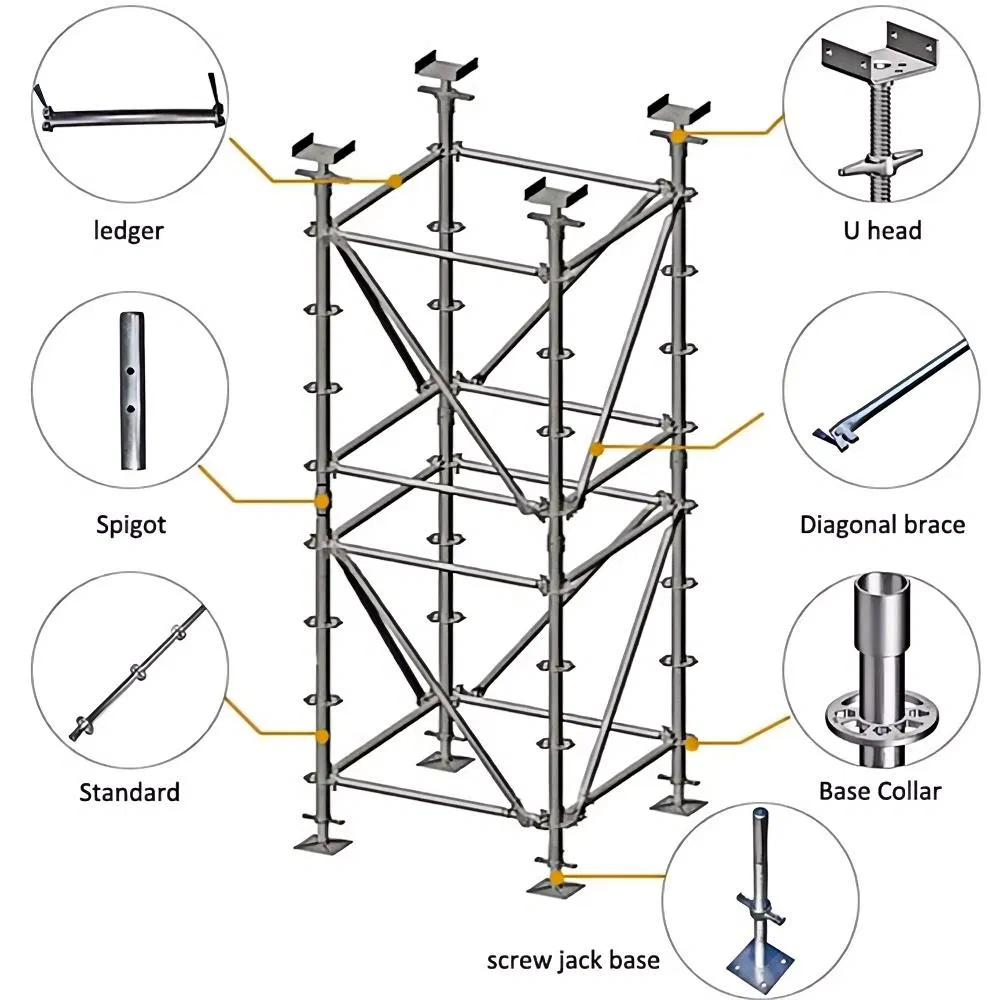

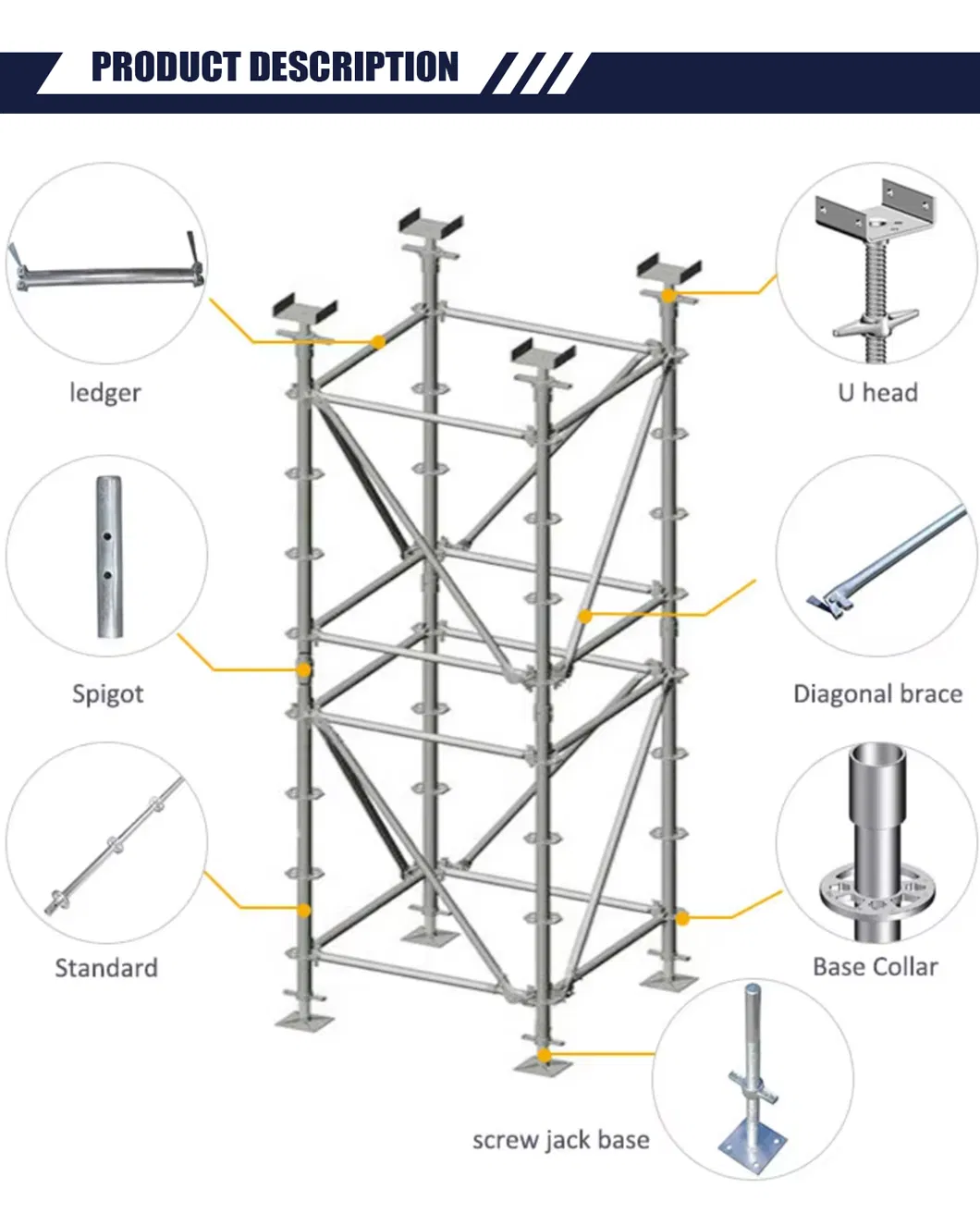

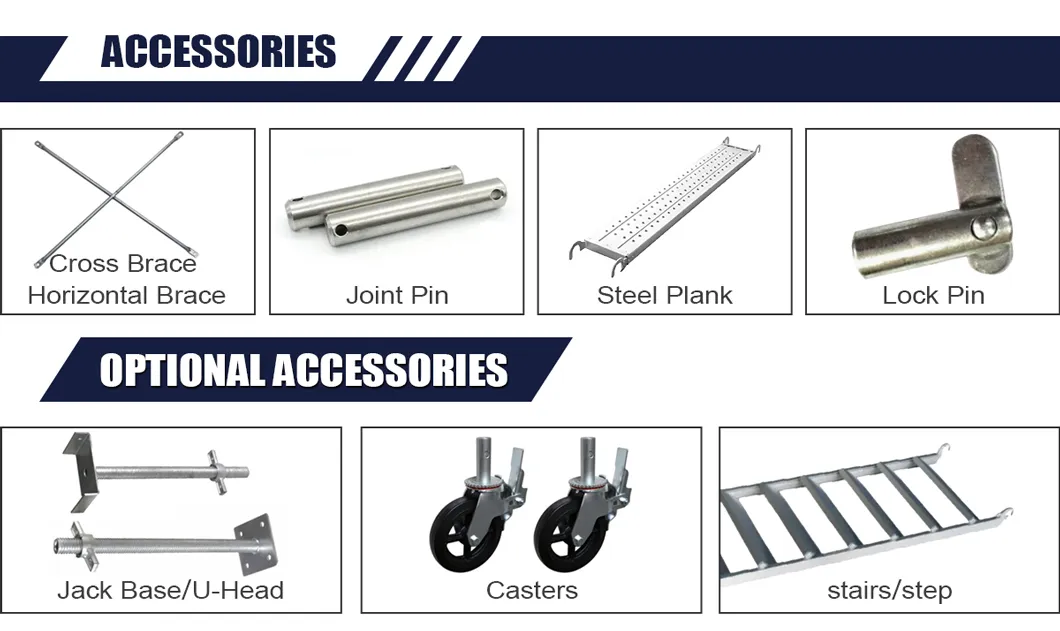

The main components include: Vertical posts, horizontal ledgers, diagonal braces, adjustable base jacks, adjustable head jacks, zigzag stairways, and hook-on treads. These collectively ensure stability and safety during construction.

Professional response within 24 hours for all inquiries.
Comprehensive technical clarification for project requirements.
Engineering expertise ensuring structural specification compliance.
OEM services including custom branding and labeling.
Multi-tiered troubleshooting protocols for operational continuity.

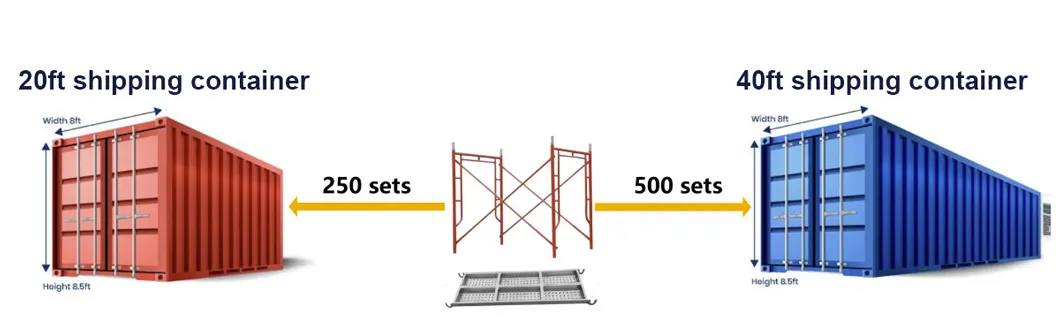

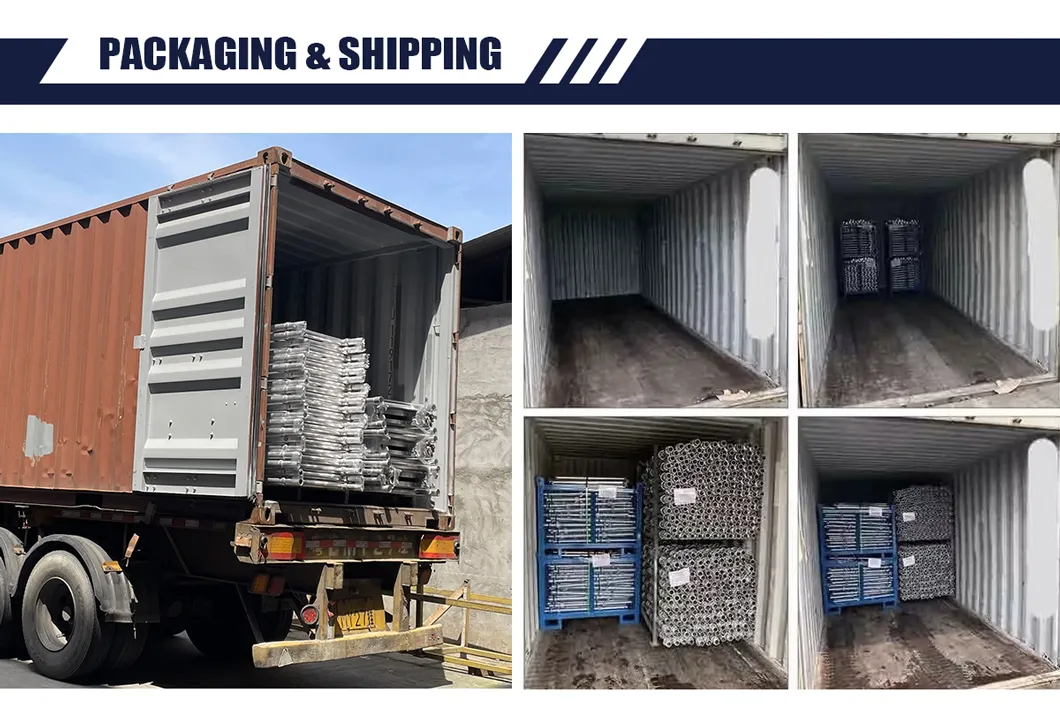

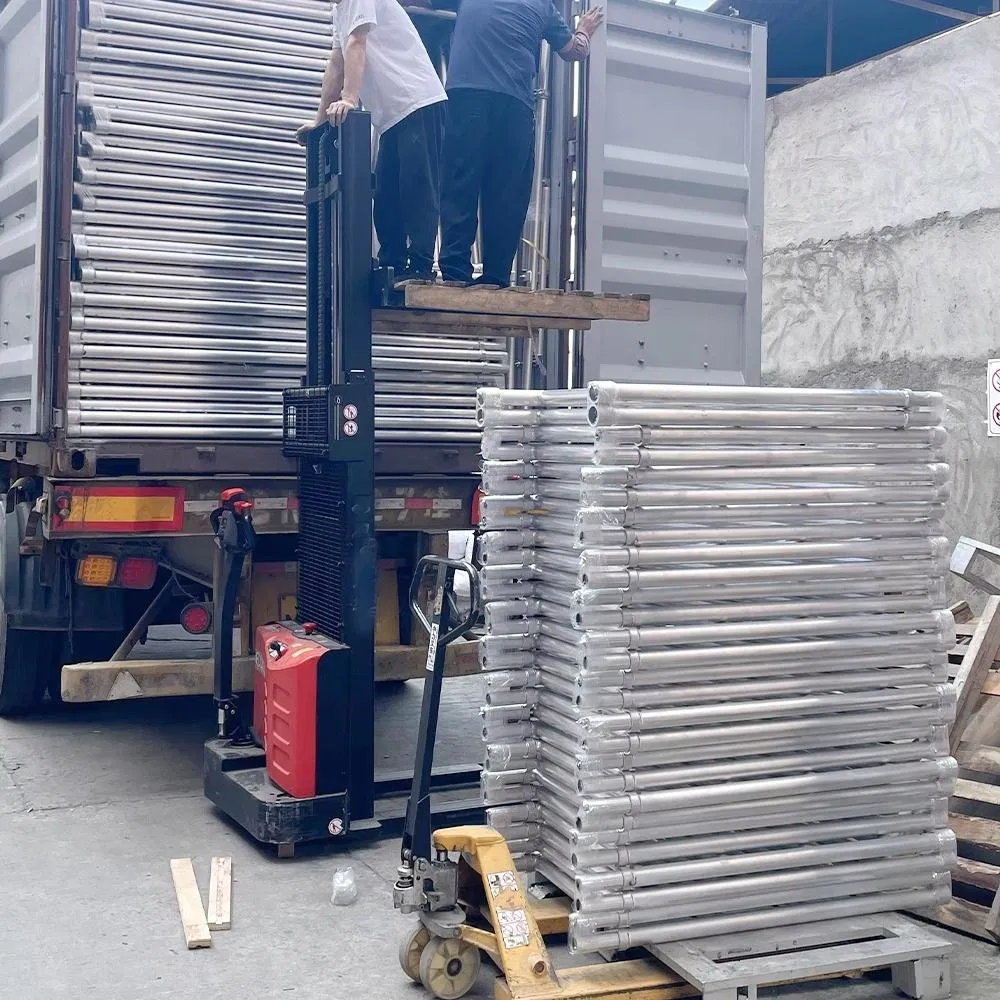

Packaging & Logistics

We deliver industry-leading protective packaging solutions with eco-conscious materials and precision engineering. Every shipment is optimized for global transit security, minimizing environmental impact while maximizing operational efficiency.

Frequently Asked Questions

How do you ensure product quality?

Pre-production samples are always provided before mass production; final inspections are strictly conducted prior to shipment to ensure all standards are met.

What scaffolding products can I purchase?

We offer a wide range including Scaffolding Frames, Ringlock Scaffolding, hook pedals, steel pipes, couplers, steel props, base jacks, and scaffolding ladders.

How is the installation of the scaffolding handled?

User manuals and installation videos are provided. Additionally, professional engineers can offer on-site technical support if required for complex projects.

Are your products certified for international use?

Yes, our systems are certified under CE and ISO 9001 standards, designed and manufactured to meet diverse global client specifications.

What are your typical delivery and payment terms?

We accept various delivery terms including FOB, CFR, CIF, and EXW. Payment methods include T/T, L/C, D/P, and major credit cards or Western Union.

Why should we choose your scaffolding solutions?

With over 100,000 m² of production space and a senior engineering team, we provide turnkey solutions encompassing design, fabrication, and installation using advanced software like AutoCAD and Tekla.
