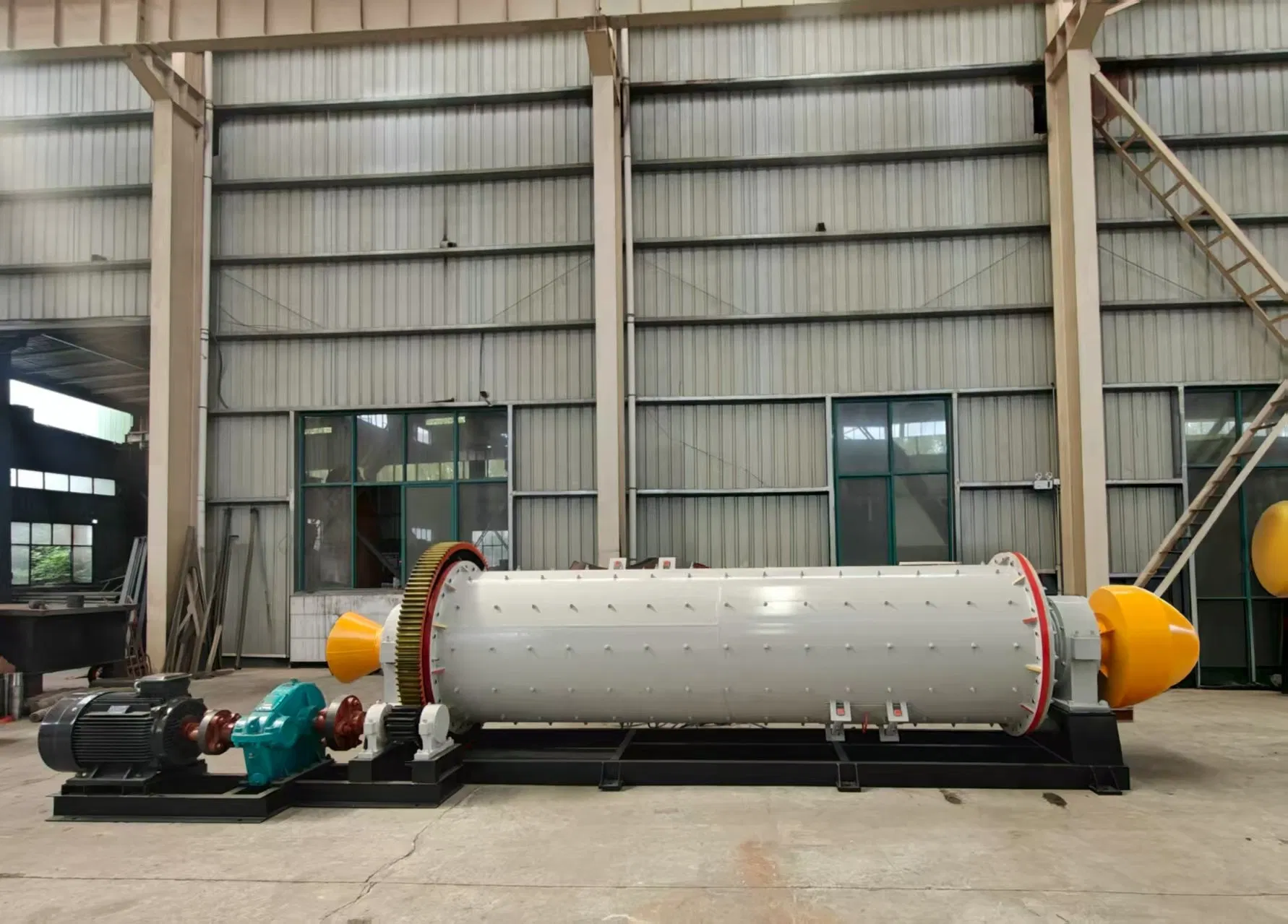

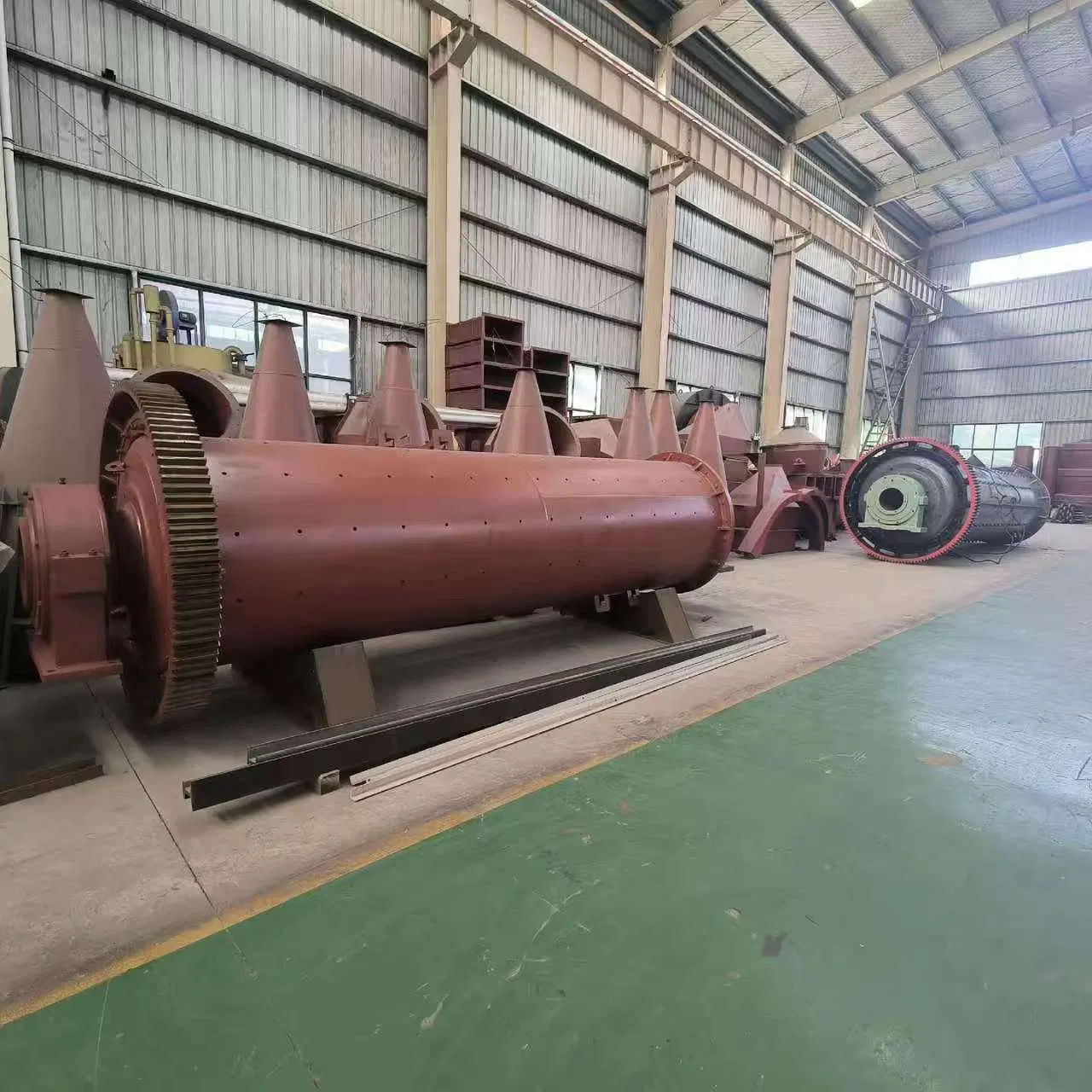

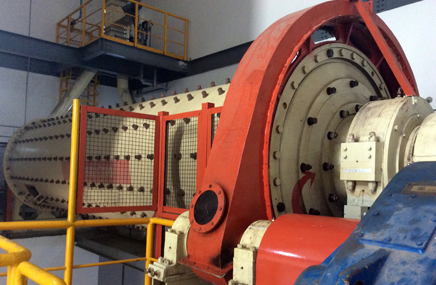

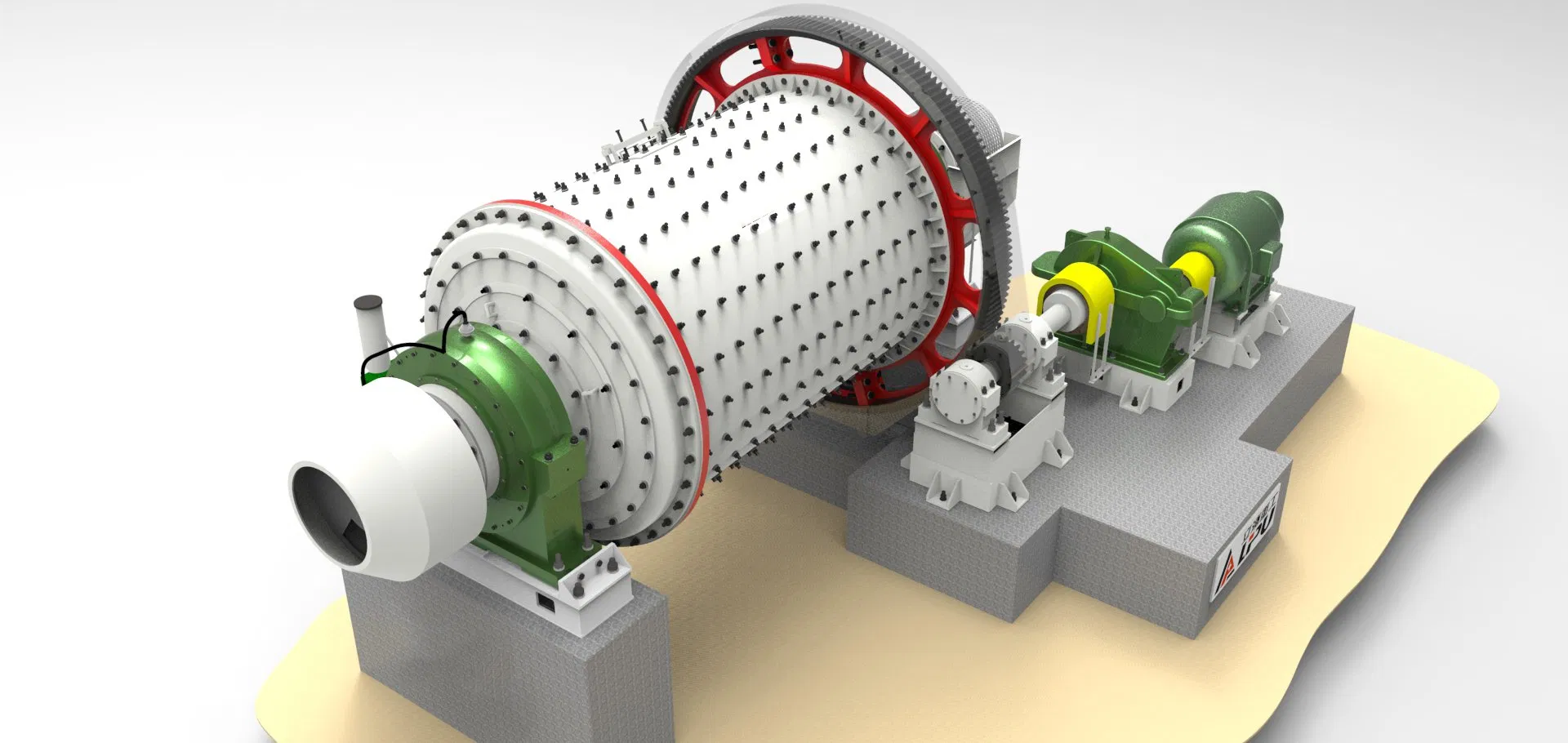

High-Performance Ball Mill System with Classifier for Cement Plant and Mineral Processing
High-Performance Ball Mill System with Classifier for Cement Plant and Mineral Processing
High-Performance Ball Mill System with Classifier for Cement Plant and Mineral Processing
High-Performance Ball Mill System with Classifier for Cement Plant and Mineral Processing
High-Performance Ball Mill System with Classifier for Cement Plant and Mineral Processing
1 / 5
High-Performance Ball Mill System with Classifier for Cement Plant and Mineral Processing
High-Performance Ball Mill System with Classifier for Cement Plant and Mineral Processing
High-Performance Ball Mill System with Classifier for Cement Plant and Mineral Processing
High-Performance Ball Mill System with Classifier for Cement Plant and Mineral Processing
High-Performance Ball Mill System with Classifier for Cement Plant and Mineral Processing

High-Performance Ball Mill System with Classifier for Cement Plant and Mineral Processing

Customization: Available
After-sales Service: Provide Technical Support
Warranty: 1 Year
Send Inquiry

Product Description

📊 Basic Information
Model NO.
2200*6500
Application
Construction, Chemical Industry, Mineral Operation, Mines Highway Metallurgy
Certification
CE, ISO, SGS, EAC
Automatic Grade
Automatic
Process Style
Wet, Dry
Feeding Size
<25mm
Output Size
0.075-0.4 mm
Capacity
14-26 T/H
Power
370 Kw
Ball Load
35 Tons
Machine Weight
52.8 Tons
Production Capacity
50-200 Sets Per Month
📝 Product Description
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
🔧 After-sales service support:
Professional handling of ship bookings, commodity inspection, commercial invoices, packing list, and insurance policy to ensure perfect goods trading services. High-level installation engineer teams are dispatched for destination installation and debugging training.
🔬 Technological support:
Adopting new technologies, techniques, and high-tech equipment with a strict and effective quality control system. Certified by ISO9001:2000, TUV, and CE quality systems.
Ball Mill System
⚙️ Technical Parameters
Model Rotation speed (r/min) Ball Load (t) Feed-in size (mm) Feed-out size (mm) Output (t/h) Power (kw) Weight (t)
900*180036-381.5<=200.075-0.890.65-218.54.6
1200*2400363<=250.075-0.61.5-4.83012
1500*45002711<=250.075-0.43-69021
1830*640024.121<=250.075-0.46.5-1521034
2100*700023.726<=250.075-0.48-4828050
2200*650021.735<=250.075-0.414-2637052.8
2700*450020.748<=250.075-0.412-90430102
3200*45001865<=250.075-0.4Process Based800137
💎 Key Advantages

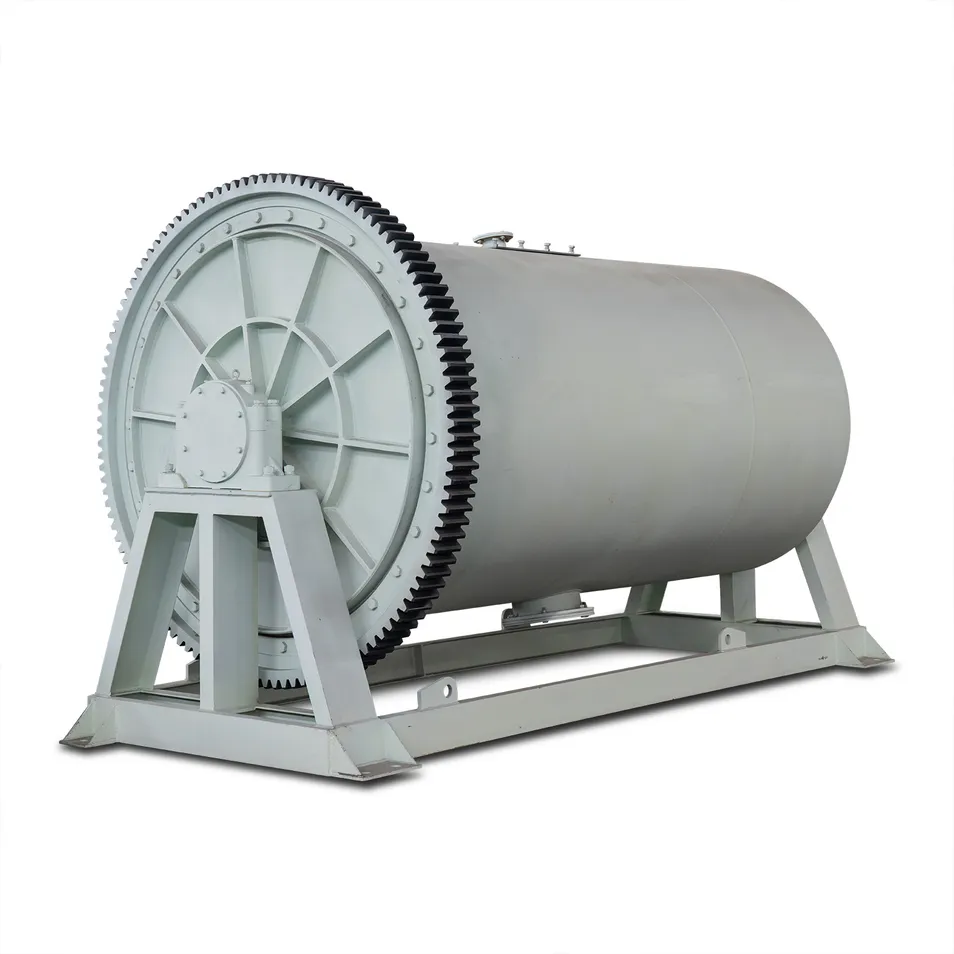

Mining Machinery Components

The ball mill is a high-efficiency grinding equipment integrating mature international technology with rich mining processing experience. It is specially designed for ores, minerals, and chemical production lines, providing stable grinding solutions. It matches perfectly with crushing equipment like jaw crushers to form a complete ore processing system.

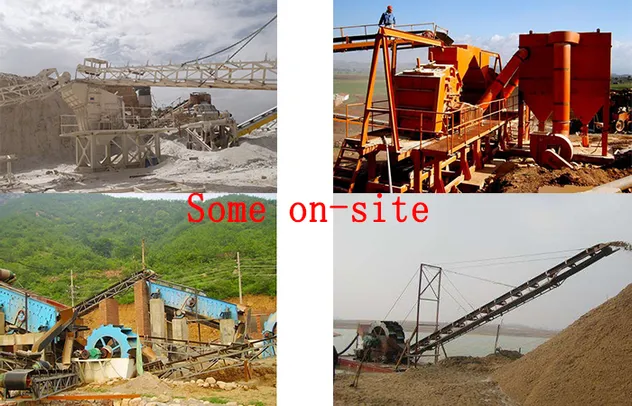

Detail 1 Detail 2 Detail 3
Prominent advantages include uniform product fineness, strong adaptability to various materials, and the ability to handle different hardnesses. The robust barrel structure and advanced transmission system ensure high reliability and long service life even in continuous 24-hour working conditions.
Processing View
Structural Design
Operational Setup
Machine Profile
Internal Structure
Production Line

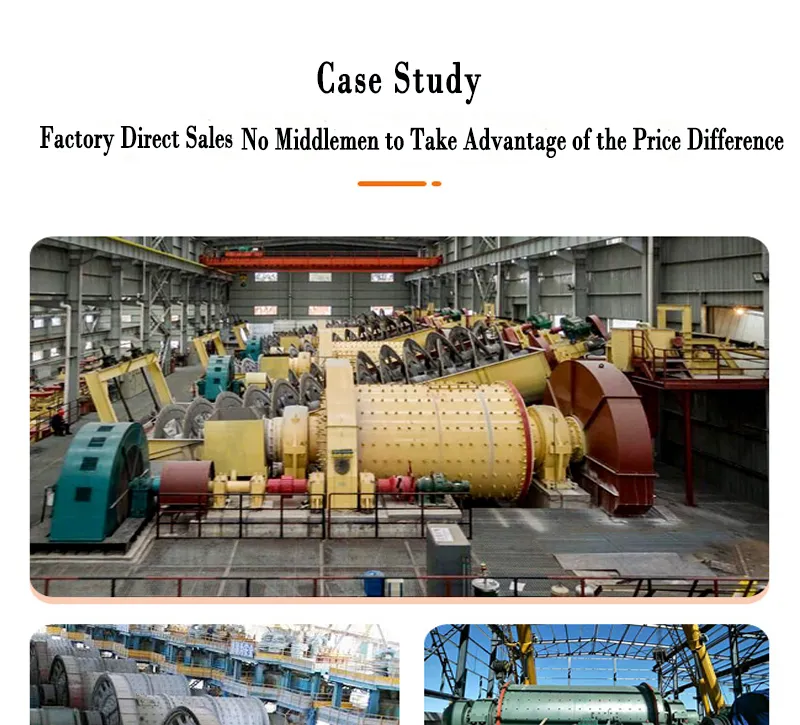

Maintenance View

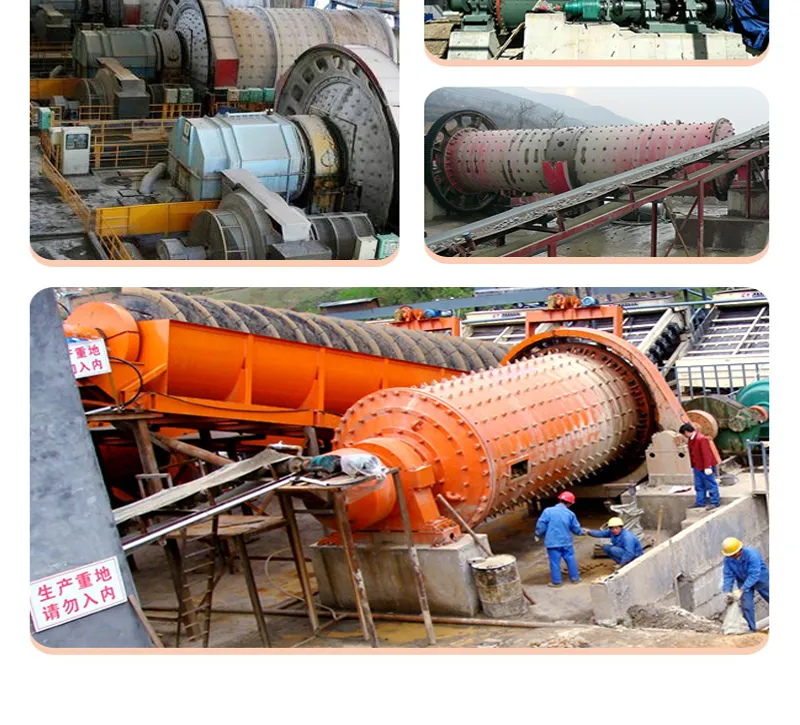

Installation Side
Factory Site
Full System
❓ Frequently Asked Questions
What materials are suitable for this ball mill?
The equipment is designed for grinding various ores and minerals used in construction, chemical industries, and mining operations.
Does the ball mill support wet grinding?
Yes, the machine supports both wet and dry process styles, providing flexibility for different industrial requirements.
What is the typical output size of the material?
The output size generally ranges from 0.075 mm to 0.4 mm, which can be adjusted according to your specific process needs.
Can the equipment operate 24 hours a day?
Yes, the robust barrel structure and advanced transmission system are built for stable and reliable continuous 24-hour operation.
Is technical support available for installation?
Yes, professional installation engineer teams are available to provide full-range installation, debugging, and operational training.
Are customized sizes available?
Absolutely. We provide both standard sizes and customized size options to fit the unique requirements of your processing site.
