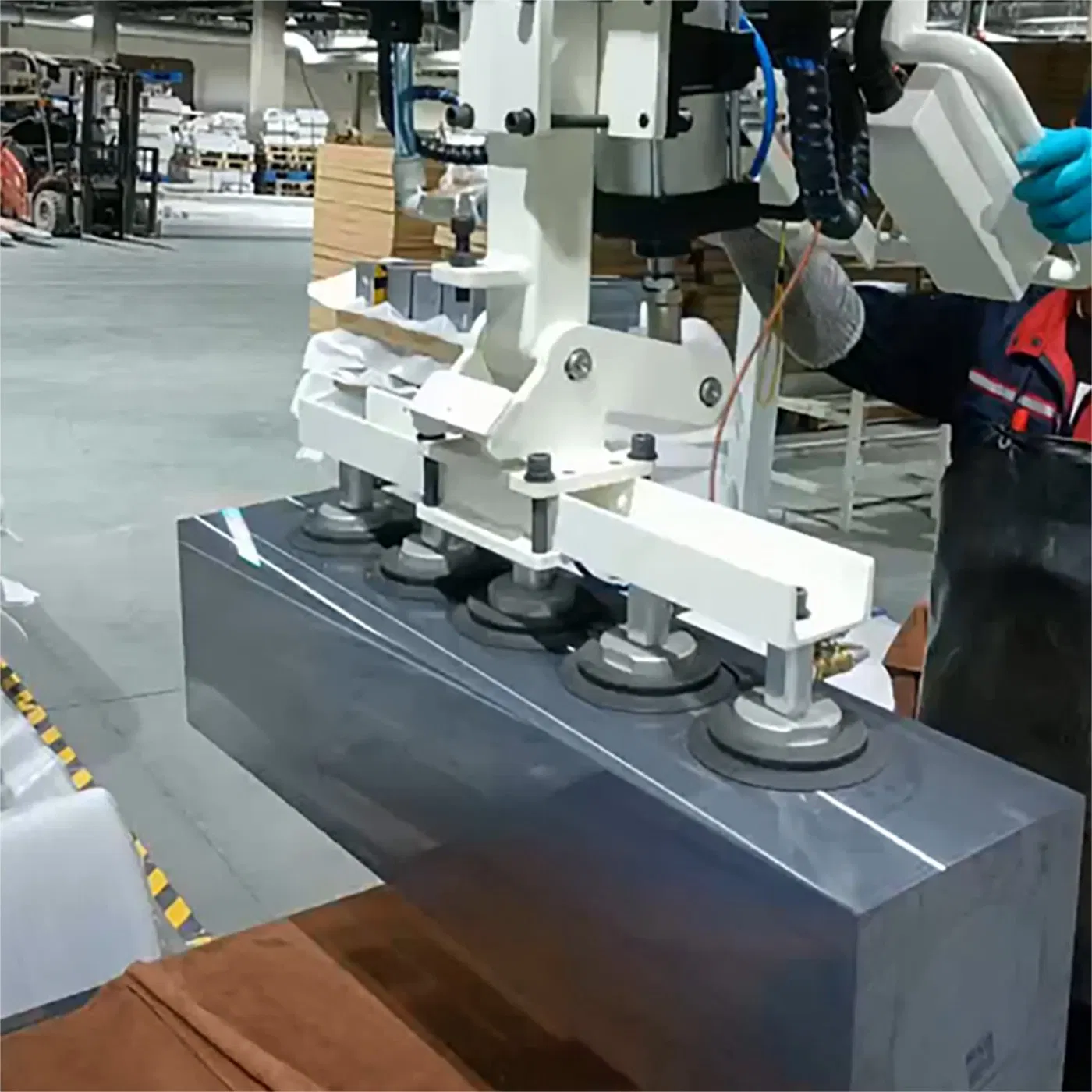

Overhead Crane is a sophisticated manipulator equipment equipped with a cable system. It achieves seamless lifting by connecting auxiliary lifting units installed on a mechanical arm to customized fixtures via soft cables.
This equipment is integrated with various non-standard fixtures to facilitate workpiece handling, palletizing, loading, and unloading. It significantly reduces operator fatigue, maximizes production efficiency, and ensures workplace safety, making it ideal for modern production lines.

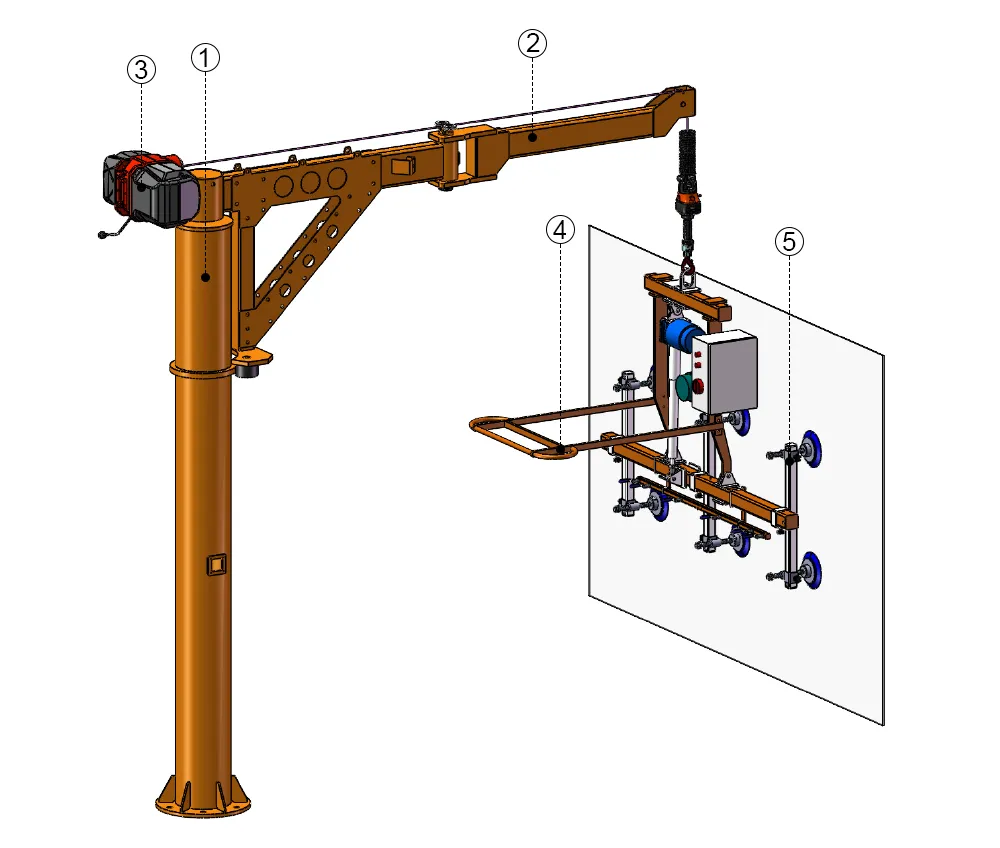

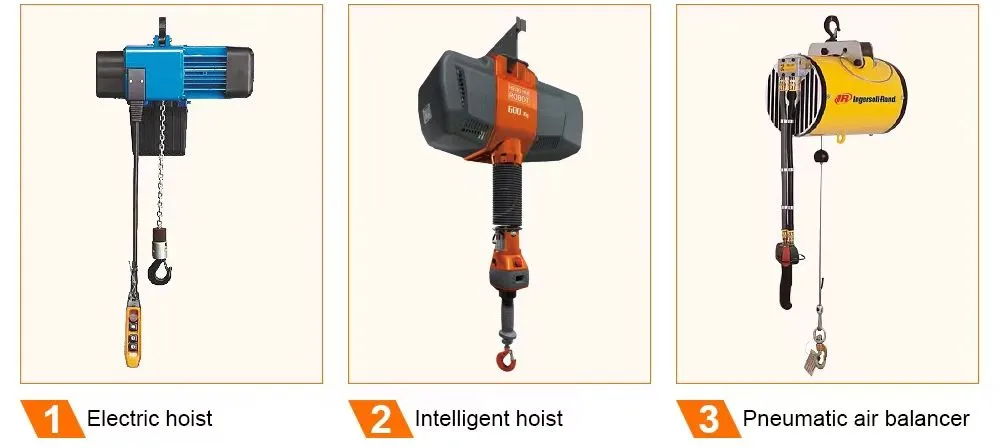

The system consists of three primary components: the column and cantilever arm, the auxiliary lifting hoist, and the non-standard fixture. Lifting options include:
Features low cost and simple operation. Available in wire rope or chain versions with single or two-speed lifting capabilities. Commonly used in warehouses and factories.
Driven by servo motors and controlled by microprocessors. Allows variable speed and high precision movement, providing an intuitive power-assist experience for operators.
Uses compressed air to balance the gravity of the load. This allows for weightless suspension and precise manipulation of heavy objects with minimal effort.
1. Electric Hoist Data
| NAME | BMS125 | BMS250 | BMS500 | BMS1000 | BMS2000 |
|---|---|---|---|---|---|
| Max Load (Kg) | 125 | 250 | 500 | 1000 | 2000 |
| Lifting Speed (m/min) | 8/2 | 8/2 | 8/2 | 4/1 | 4/1 |
| Power (Kw) | 0.4/0.1 | 0.4/0.1 | 0.4/0.1 | 0.75/0.2 | 1.5/0.37 |
| Medium | Chain | ||||
2. Intelligent Hoist Data
| NAME | IAD-H80 | IAD-H200 | IAD-H300 | IAD-H600 |
|---|---|---|---|---|
| Max Load (Kg) | 80 | 200 | 300 | 600 |
| Handle Speed (m/min) | 40 | 30 | 15 | 7.5 |
| Max Stroke (m) | 3.5 | 3.5 | 3.5 | 1.7 |
| Power Supply | 220V±10% 50HZ | |||
3. Pneumatic Air Balancer Data
| NAME | BW005060 | BW015080 | BW020120 | BW035080 | BW050080 |
|---|---|---|---|---|---|
| Max Load (Kg) | 22 | 68 | 90 | 158 | 227 |
| Max Stroke (m) | 1.5 | 2.0 | 3.0 | 2.0 | 2.0 |
| Power Supply | Air Pressure | ||||

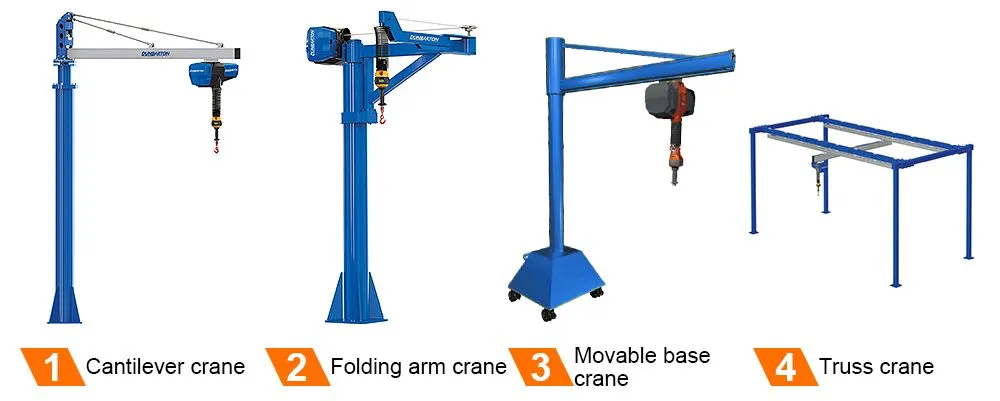

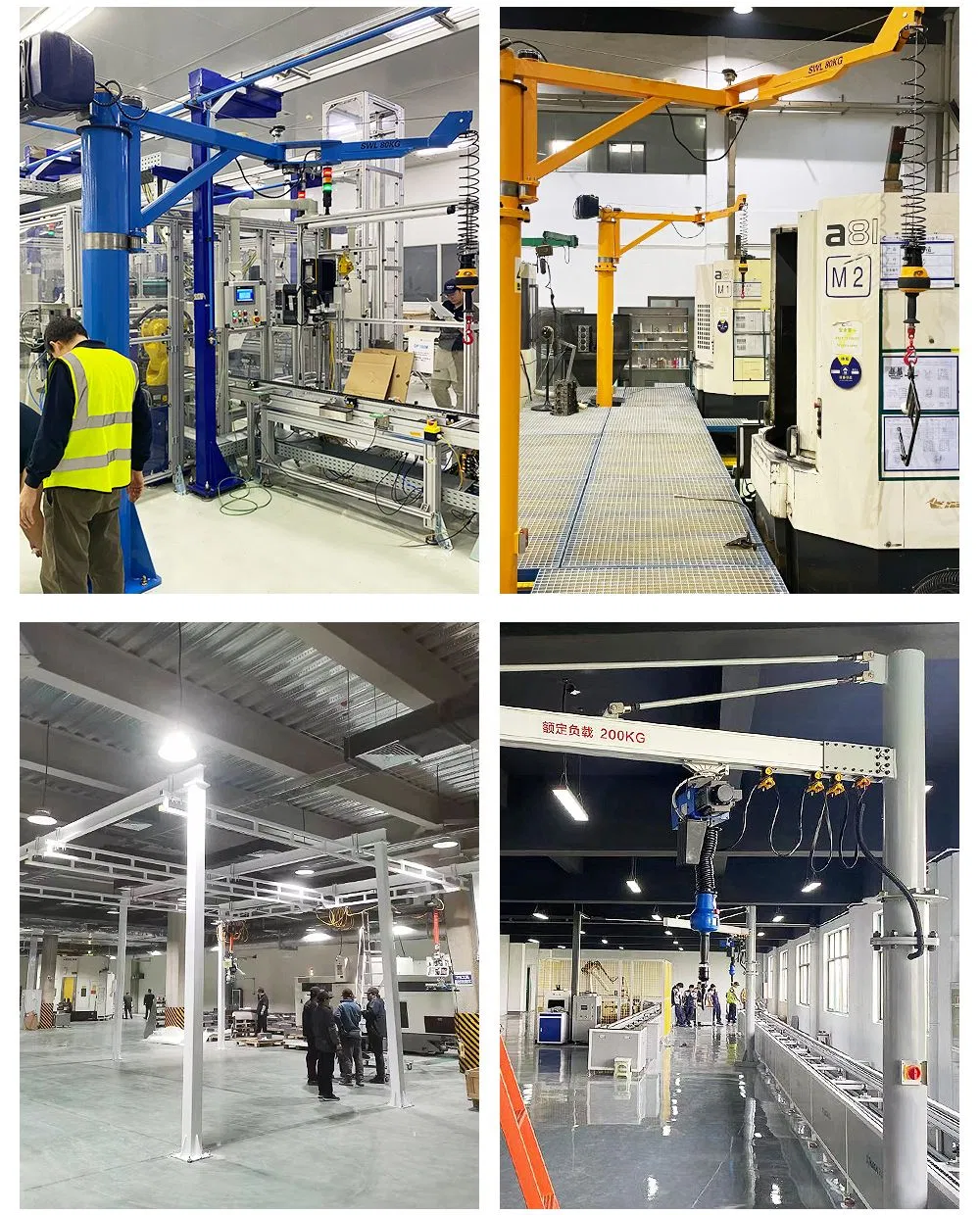

1. Cantilever Crane: Uses steel pipe columns and I-beam main beams. Offers a simple structure and large working space.
2. Folding Arm Crane: Composed of a rotating arm for accurate positioning across multiple working units with a small footprint.
3. Movable Base: Allows all-direction movement and flexible positioning for variable operation ranges.
4. Truss Crane: Lightweight steel structure ideal for scenarios with limited height or requirements for long-distance travel.
