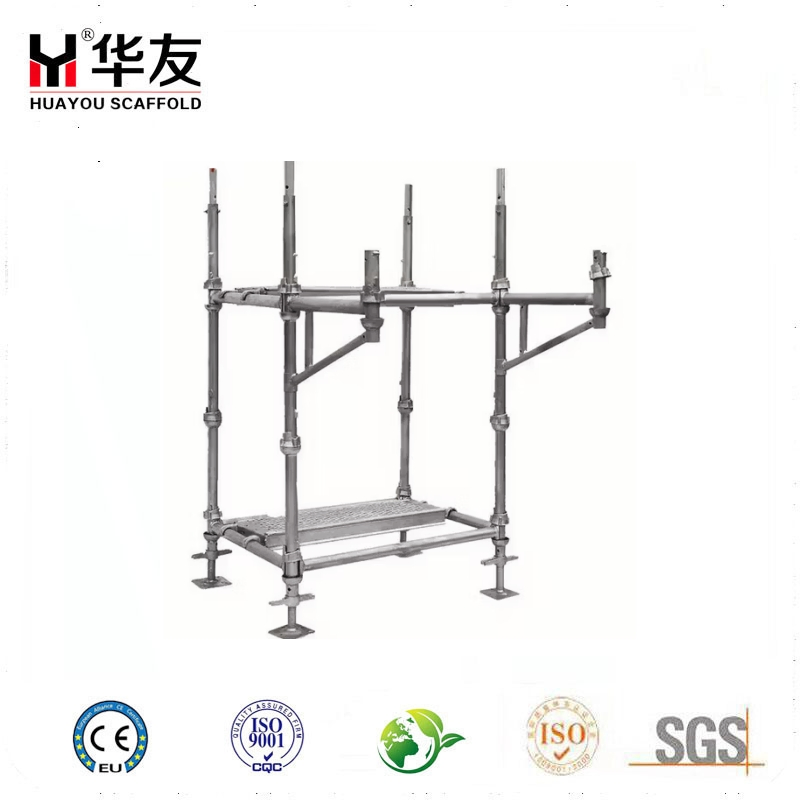

Cup Lock scaffolding is one of the important scaffolding systems in the world. As a modular scaffolding system, it can be used in different projects as external or internal support. Its advantages like Heavy Loads, Stable, Flexible, Easy Assembling make it widely used at home and abroad.

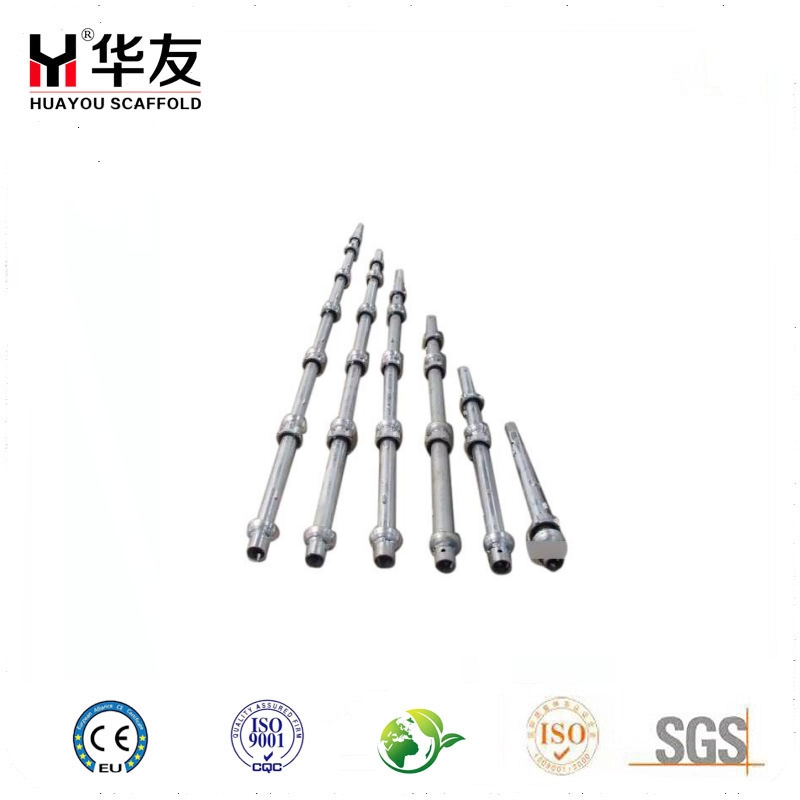

1) Cup Lock Scaffolding Vertical/Standard
| NAME | LENGTH(M) | NORMAL SIZE(MM) | SURFACE TREATMENT | STEEL GRADE |
|---|---|---|---|---|
| Vertical/Standard | L=0.5 - 3.0 | OD48.3, THK 2.5-4.0 | Hot Dip Galv./ Electro-Galv./Power coated/Painted | Q235/Q355 |
2) Cup Lock Scaffolding Horizontal Ledger
| NAME | LENGTH(M) | SIZE(MM) | SURFACE TREATMENT | CUSTOMIZED |
|---|---|---|---|---|
| Horizontal/Ledger | L=0.6 - 2.4 | OD48.3, THK 2.0-4.0 | Hot Dip Galv./ Electro-Galv./Power coated/Painted | Yes |
3) Cup Lock Diagonal Bracing
| NAME | LENGTH(M) | SIZE(MM) | SURFACE TREATMENT | CUSTOMIZED |
|---|---|---|---|---|
| Diagonal Brace | L=0.9*1.5 - 2.4*2.0 | OD33/42/48.3, THK1.8-4.0 | Hot Dip Galv./ Electro-Galv./Power coated/Painted | Yes |
4) Adjustable Base Jack
| NAME | LENGTH(MM) | SIZE(MM) | SURFACE TREATMENT | CUSTOMIZED |
|---|---|---|---|---|
| Base Jack | L=450 - 1000 | 38*5, 150*150*5 | Hot Dip Galv./ Electro-Galv./Power coated/Painted | Yes |

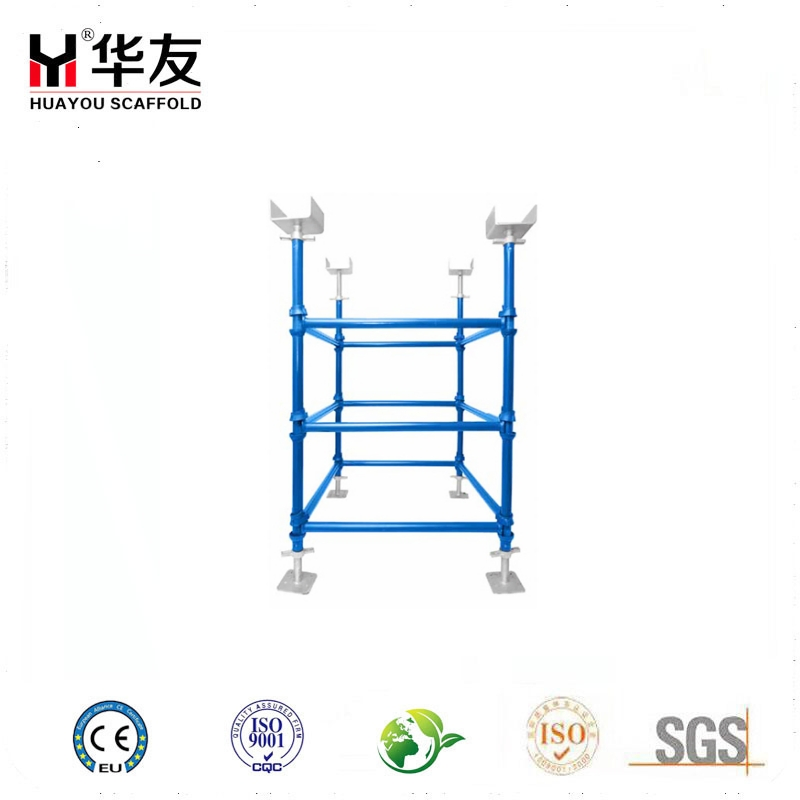

| U-Head Jack | L=450 - 1000 | 38*5, 150*150*50*50 | Hot Dip Galv./ Electro-Galv./Power coated/Painted | Yes |
We use auto-machine cutting blades to keep all lengths controlled within 1mm, ensuring pipe ends are plain without splinters.
Professional workers with more than 5 years of welding experience ensure high-quality, durable joints.
Crucial process: before surface treatment, we sand welding points to ensure a beautiful finish and prevent fake welding.
Options include Hot dip galvanized, electro-galvanized, powder coated, and painted finishes meeting international coating requirements.
