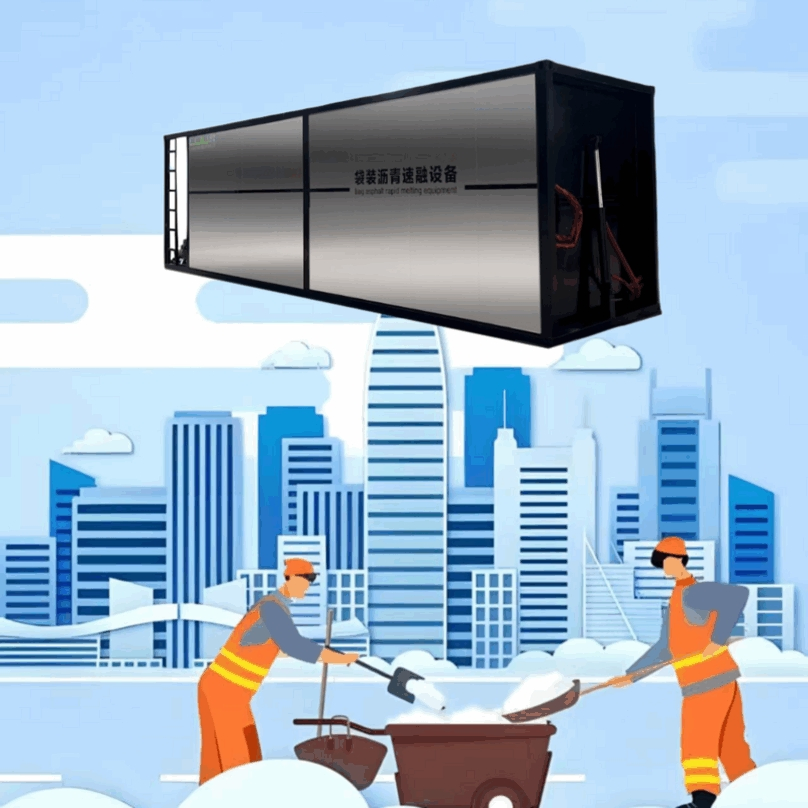

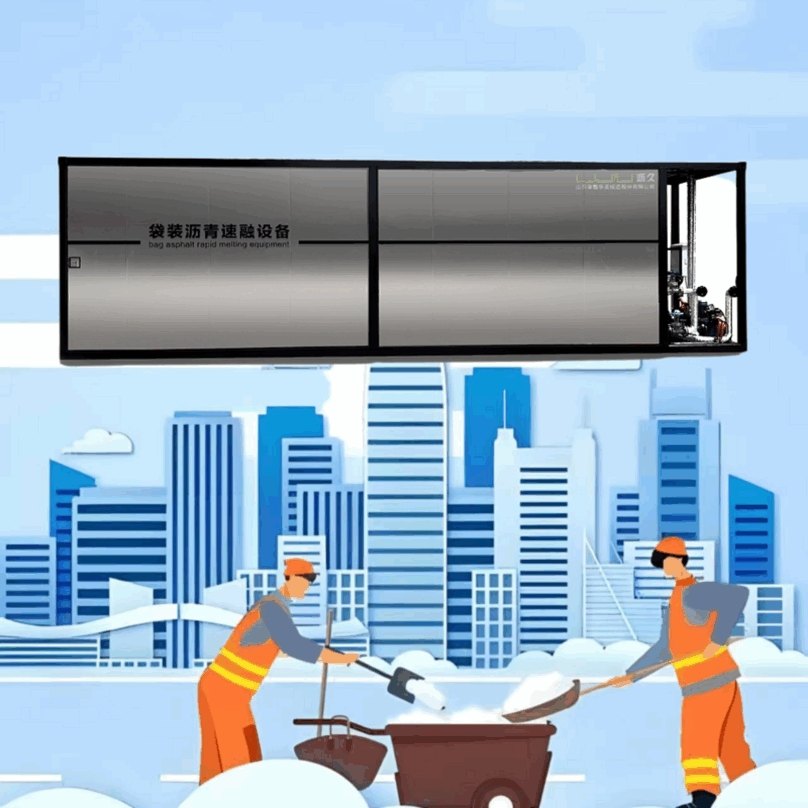

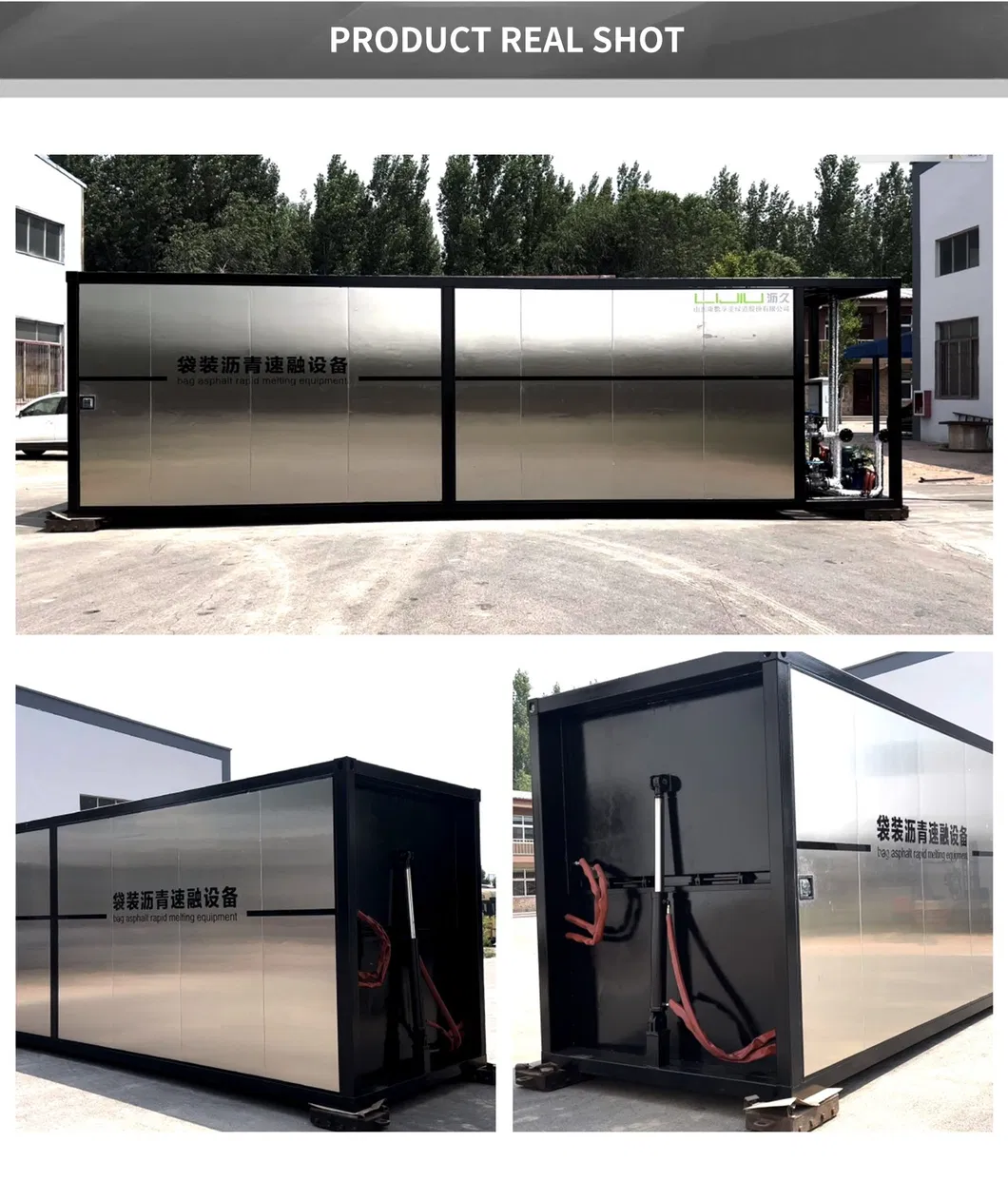

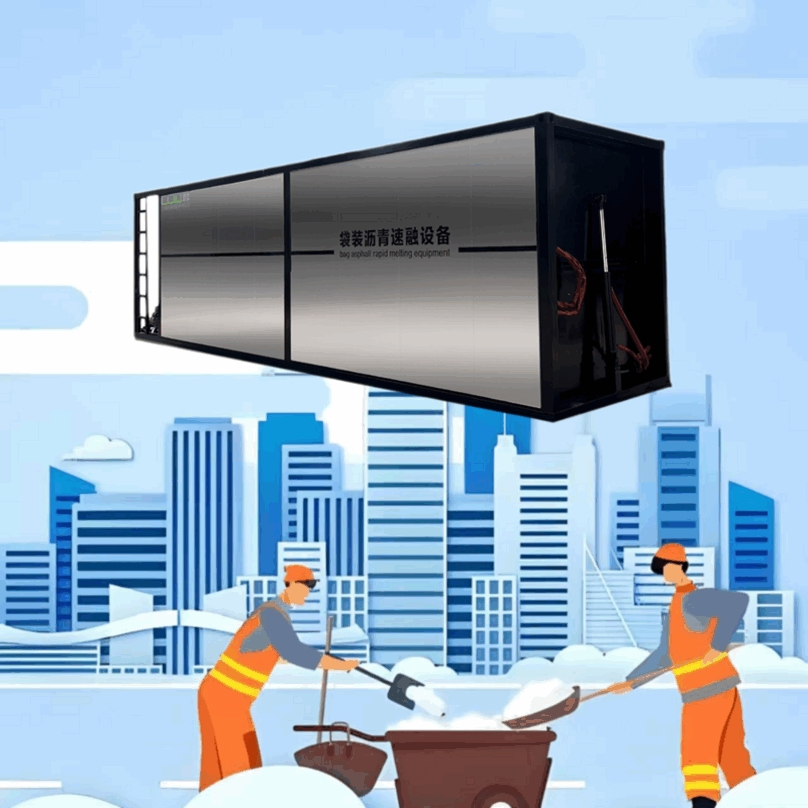

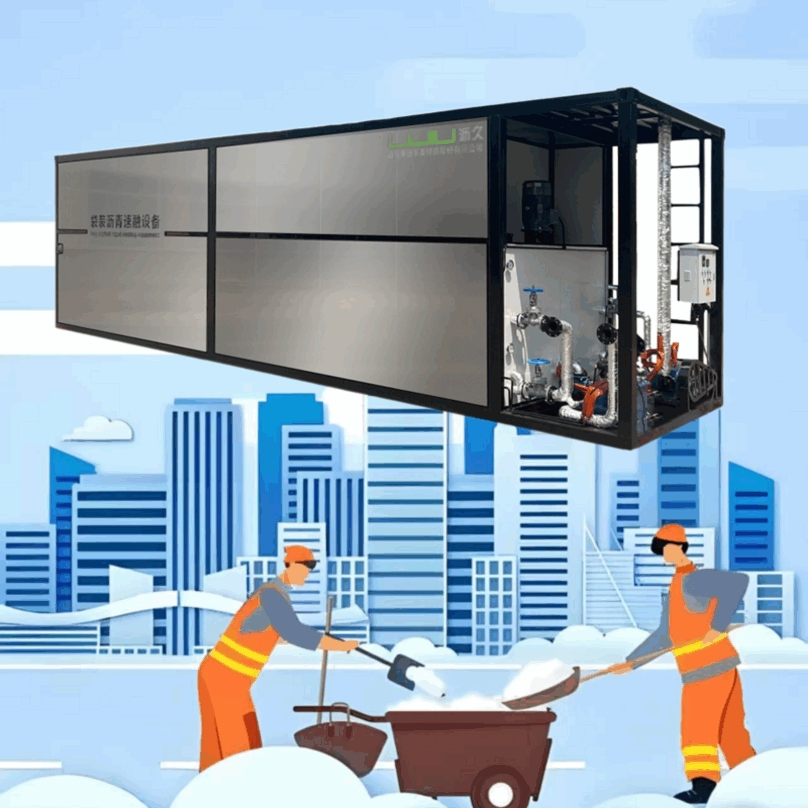

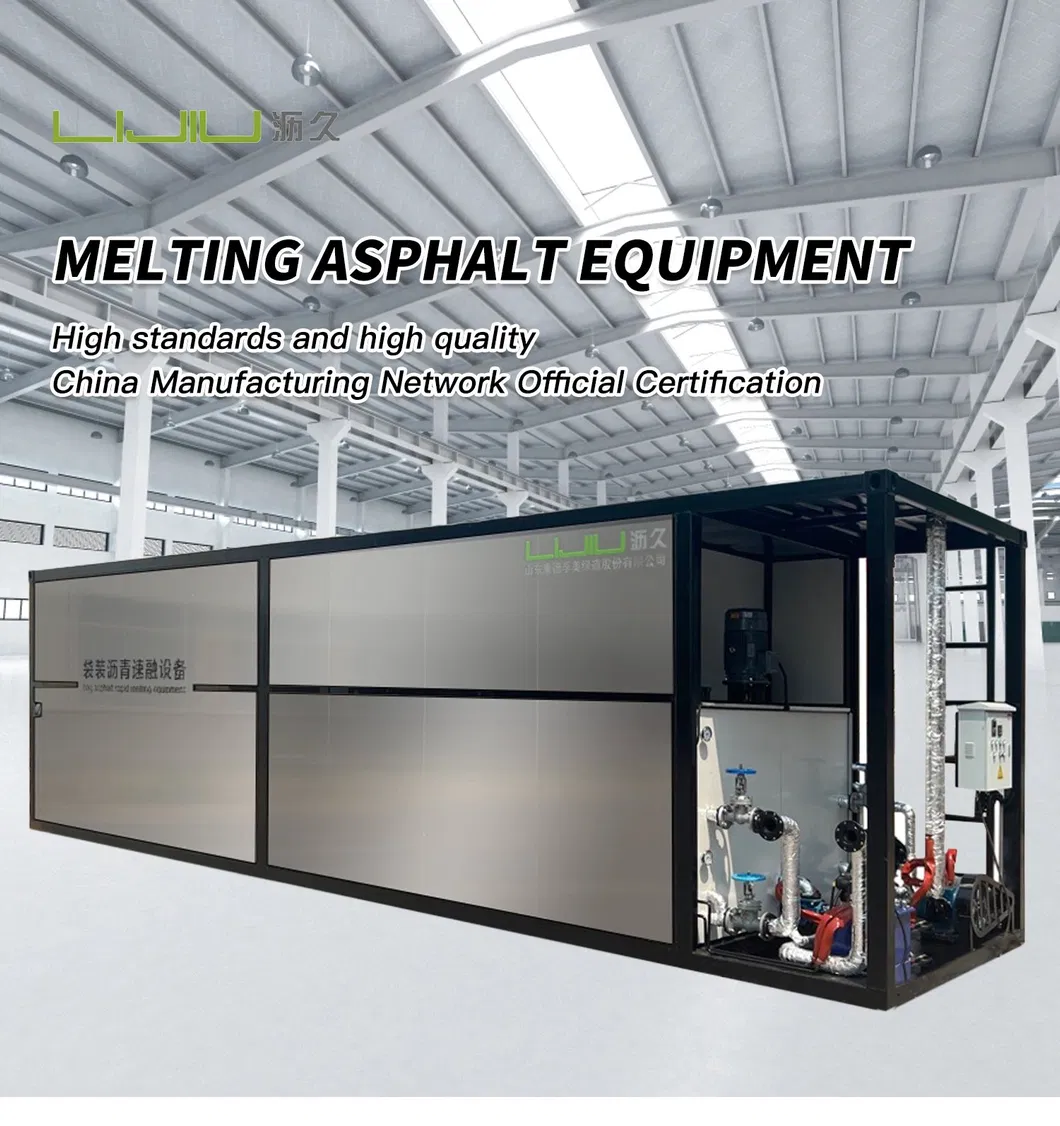

This product is designed for the rapid melting of massive and bagged asphalt. It addresses common industry issues such as uneven heating, aging, slow melting rates, and inefficient energy consumption typically found in traditional process oil tanks.

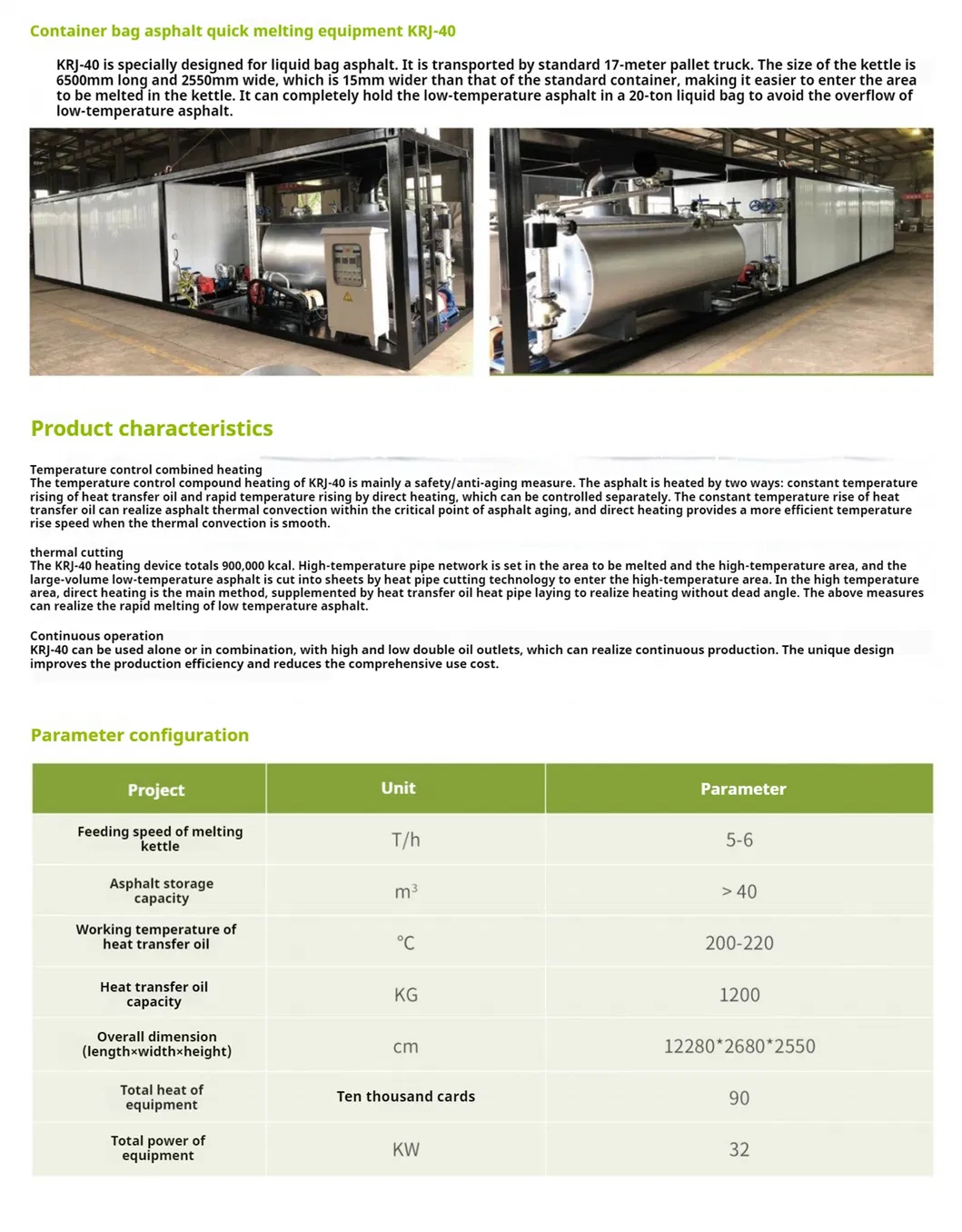

Provides 900,000 calories per hour with over 90% heat conversion. The main system uses direct heat heating (600,000 kcal/h), while the secondary auxiliary system uses thermal conduction medium (300,000 kcal/h), ensuring functionality regardless of asphalt levels.
An adjustable thermostatic carrier system that quickly divides large solid asphalt blocks into small pieces (5-10 cm). This increases the heating area and initiates preheating to a flowable state.
Utilizes 11 kw frequency conversion control. It features low-speed mixing for high viscosity/unmelted asphalt to prevent local overheating, and high-speed mixing once completely melted.

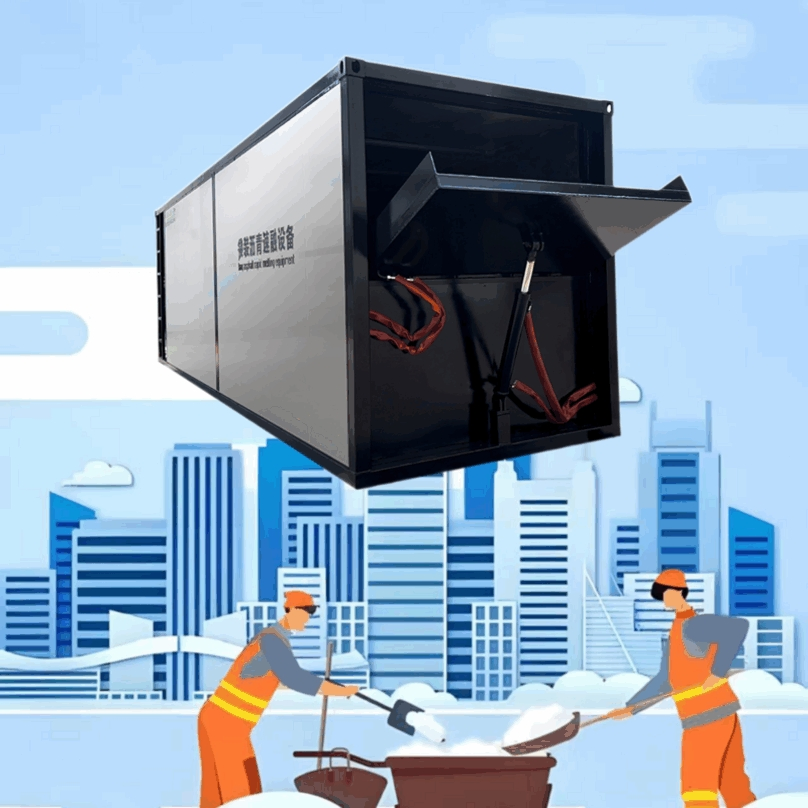

Features a heating plate working at 120ºC, ensuring ton-bag asphalt enters the system smoothly. The flap creates a confined space after feeding to reduce heat loss and maximize melting speed.
| Applicable products | Ton package Bitumen |
| Productivity | 10-15 t/h |
| Feeding method | Hydraulic pressure Flap |
| Bitumen heating temperature | 130ºC |
| Bitumen storage capacity | 12t |
| Hydraulic system pressure | Adjustable |
| Hydraulic pump | Gear pump |
| Max jacking force | 6 t |
| Heat transfer oil temp | 200-250ºC |
| Bitumen pump flow | 25 m³/h |
| Fuel consumption | 4-6 kg per ton |
| Gross power | 20 kw |
| Dimension (L*W*H) | 11500*2300*2400 |
