Product Description

Overview & Basic Info

Model NO.

PAV-1

Compution power

2kw

Working temp

(90~110)℃±0.5℃

Working pressure

2.1MPa

PAV-1-1

pressuring aging vessel

PAV-1-2

Aging vacuum vessel

Standards

T 0630-2011, ASTM D6521, AASHTO PPI

Production Capacity

1000 Sets/Month

Product Description

This system is designed and made as per industrial standards for Accelerated Aging Test for Bitumen by Pressure Aging Vessel. It covers the accelerated aging (oxidation) of asphalt binders by means of pressurized air and elevated temperature, strictly following standards such as ASTM D6521 and AASHTO PPI.

Main Technical Features

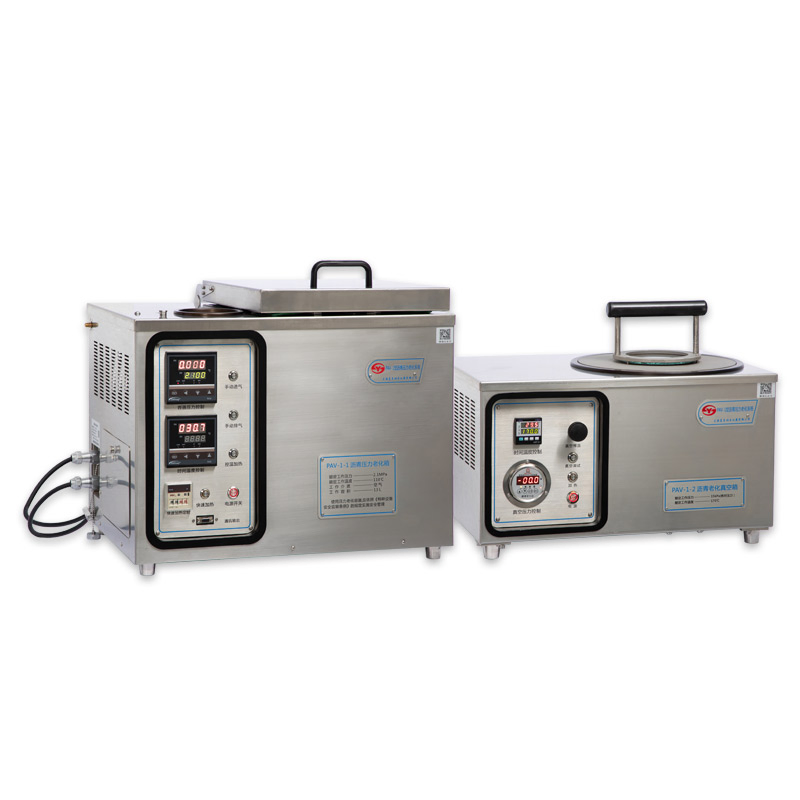

The system is composed of PAV-1-1 pressuring aging vessel and PAV-1-2 aging vacuum vessel.
Equipped with a PC control system: the high-pressure aging test is fully automated and monitored.
All test procedures can be precisely controlled via specialized software.

Product Parameters

(I) PAV-1-1 Pressuring Aging Vessel

Power supply

AC(220±10%)V, 50Hz

Consumption

2kw

Working Temp

90ºC~110ºC ±0.5ºC

Working Pressure

2.1MPa±0.01MPa

(II) PAV-1-2 Aging Vacuum Vessel

Power supply

AC(220±10%)V, 50Hz

Consumption

0.9kw

Working Temp

180ºC±0.5ºC

Working Pressure

15kPa

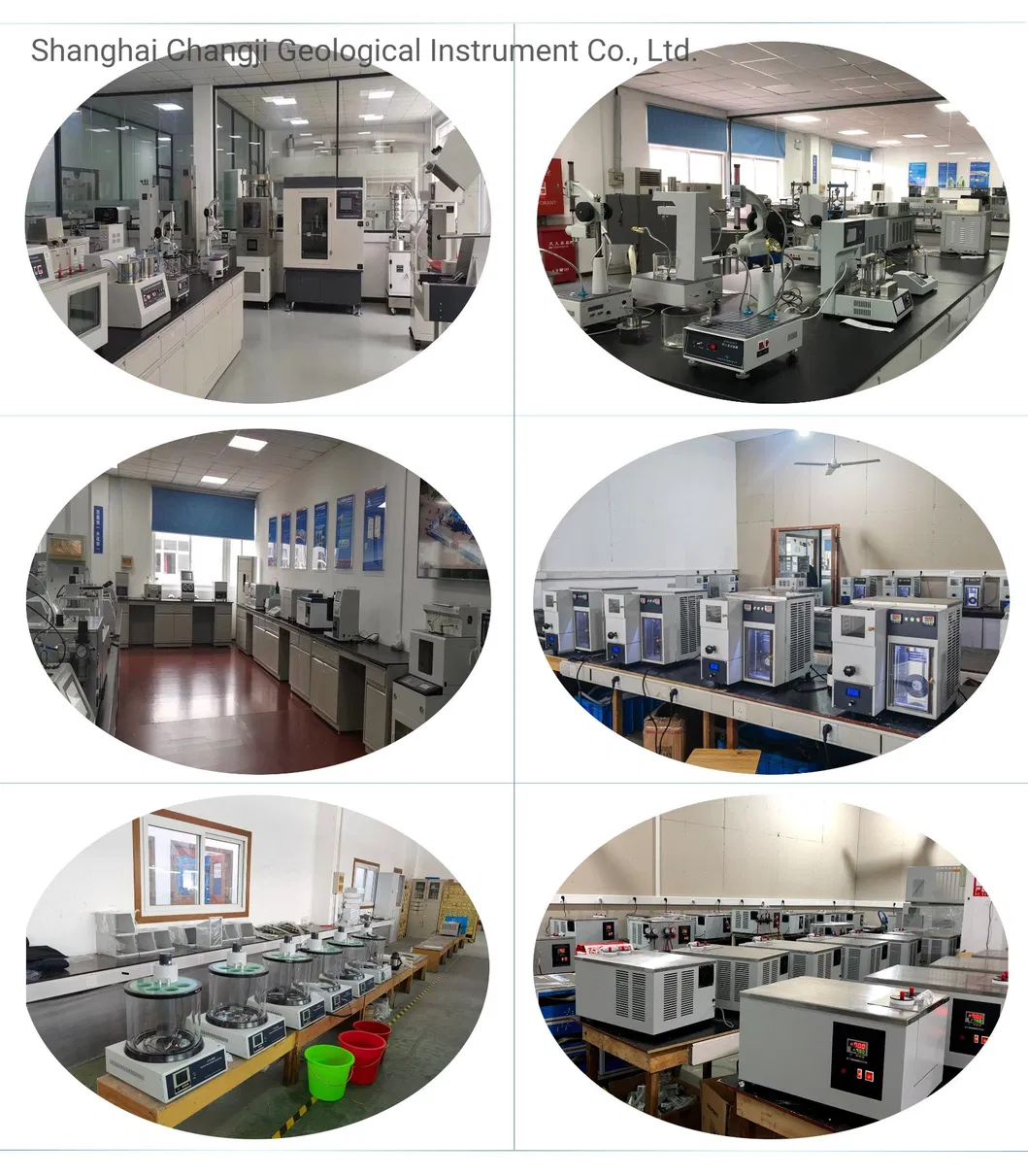

Manufacturing & Quality

The manufacturer specializes in developing and producing petroleum product analysis instruments, highway detection instruments, and laboratory equipment. With over 50 years of R&D experience, the automated series has reached international leading levels in technology.

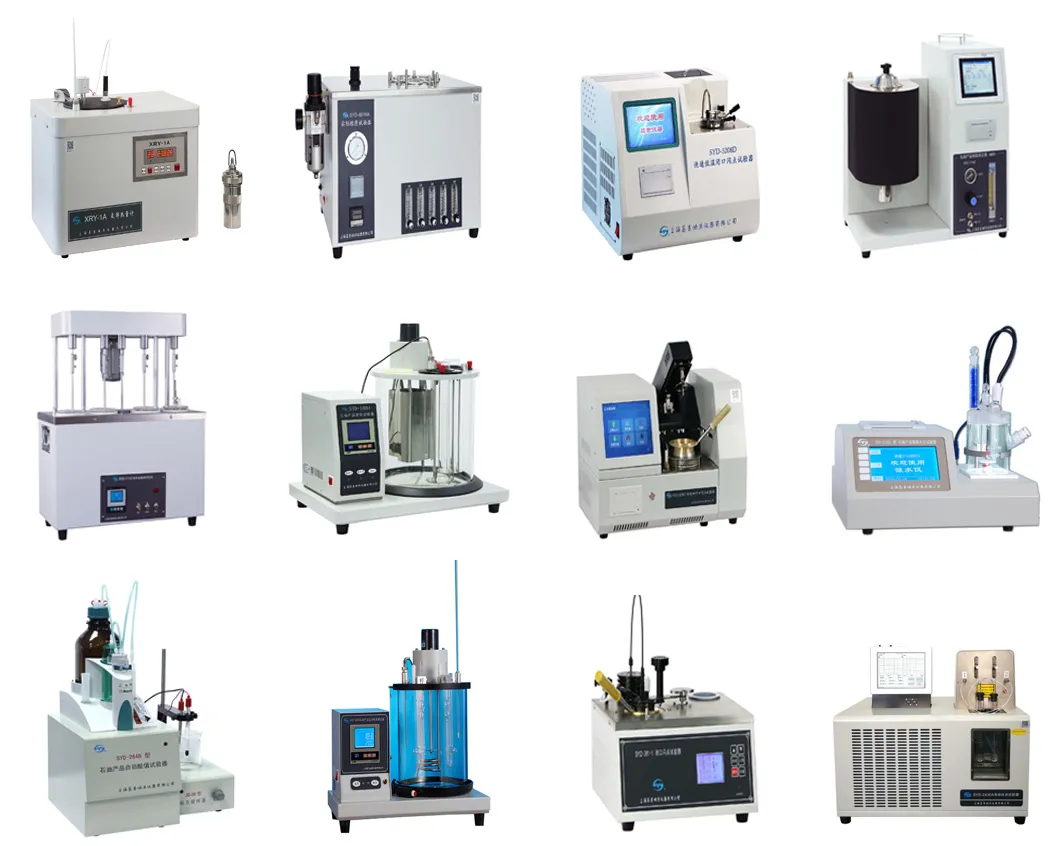

Certifications & Hot Products

Frequently Asked Questions

Are your products competitive?

Yes, we are leading manufacturers with more than 30 years of experience and a professional team, guaranteeing high quality and excellent after-sales service.

How can I choose the right instrument?

You can contact us with your detailed requirements, and we will recommend the most suitable model for your specific needs.

What if I have difficulty in using the instrument?

We provide comprehensive operation manuals and videos. Online training is also available to ensure you can operate the equipment smoothly.

When can I receive the goods?

Standard models are typically delivered within 7 working days. Actual transportation time depends on the logistics provider.

How is the packing for shipping?

We use heavy-duty wooden cases or reinforced hard boxes to prevent any potential damage during international or domestic transportation.

What is the warranty period?

The standard warranty period for our instruments is 12 months.
