| Model NO. | LQ500 |
| Certification | CE, RoHS |
| Condition | Used |
| Motor | DC Motor |
| Drill Hole Diameter | 100-150mm |
| Drill Hole Depth | >200m |
| Bit Type | Diamond Bit |
| Drilling Way | Rotary |
| Type | Crawler |
| Working Air Pressure | 1.7-3.5 |
| Production Capacity | 500 Units/Month |

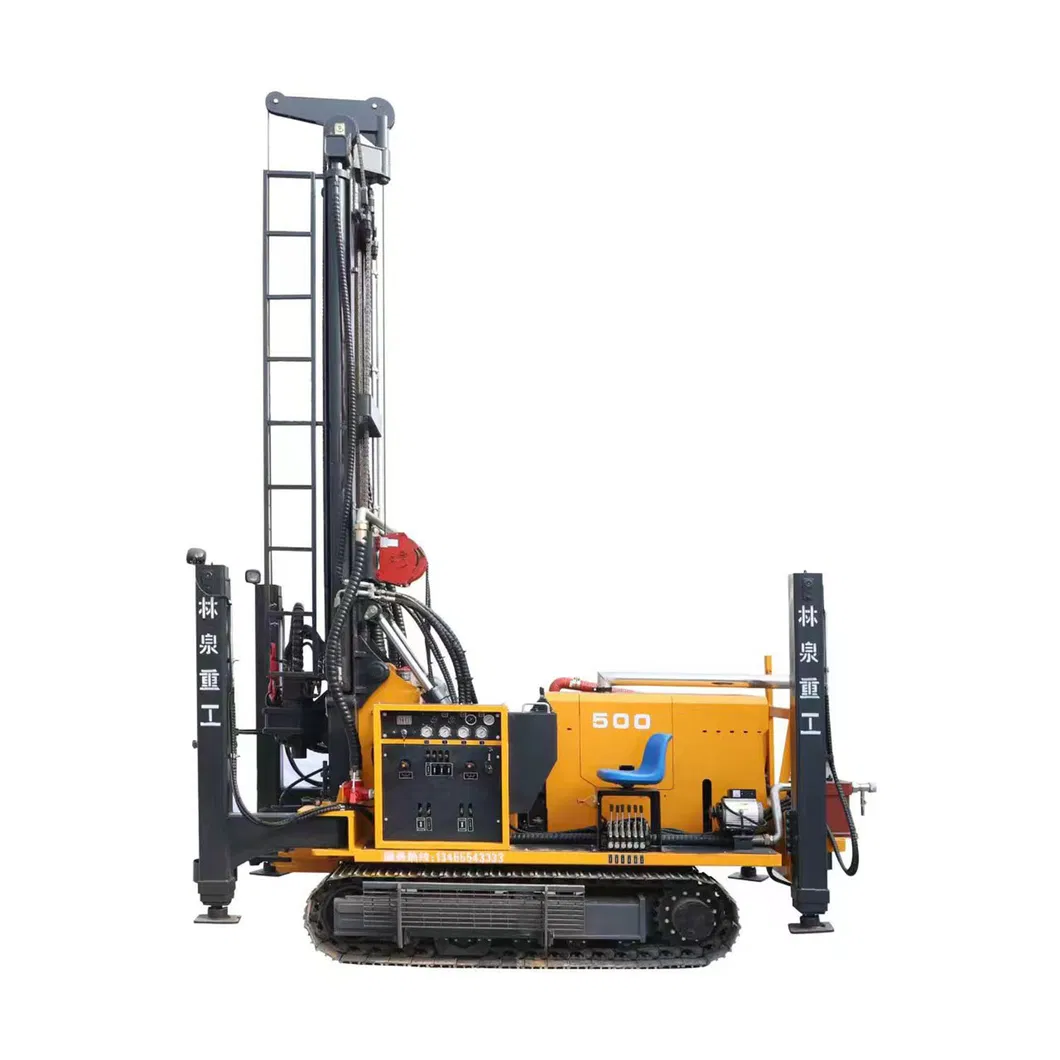

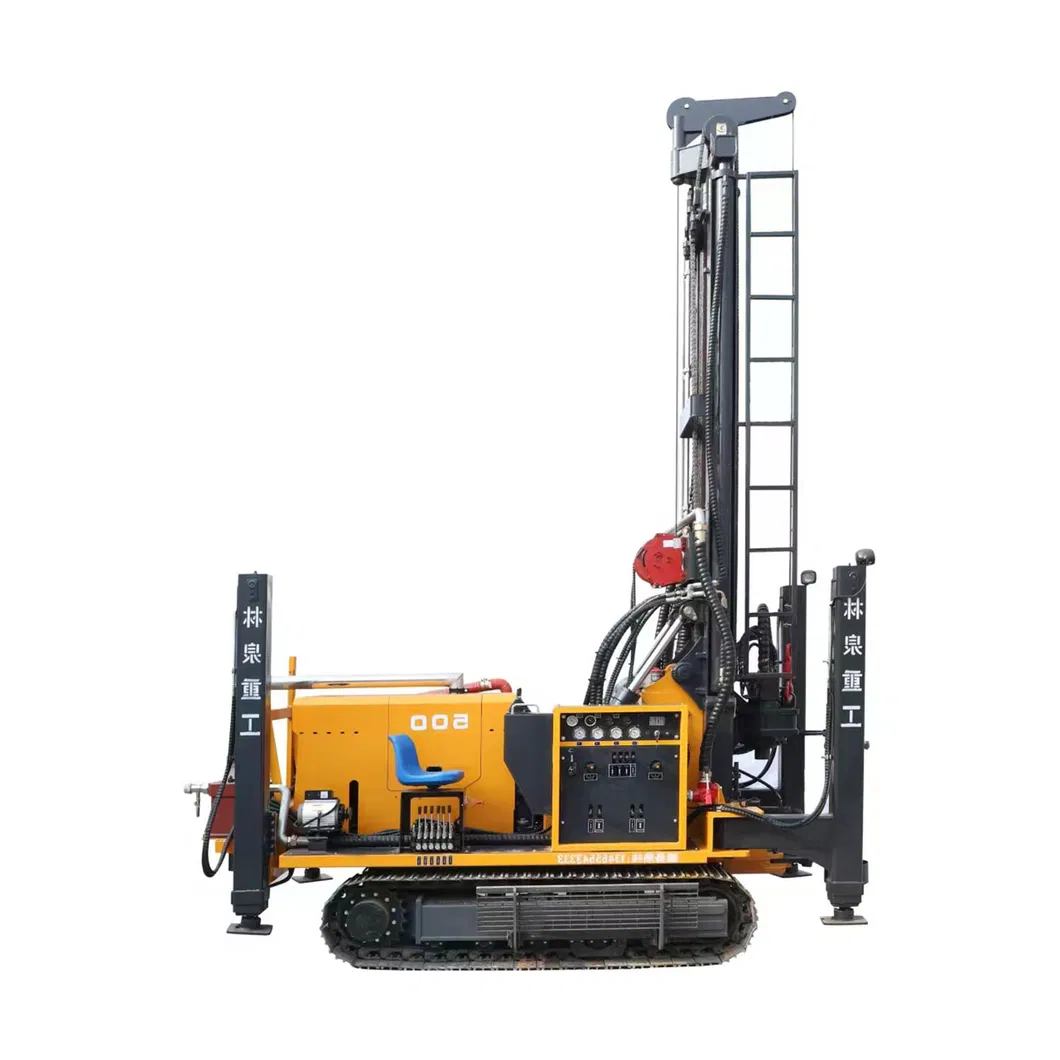

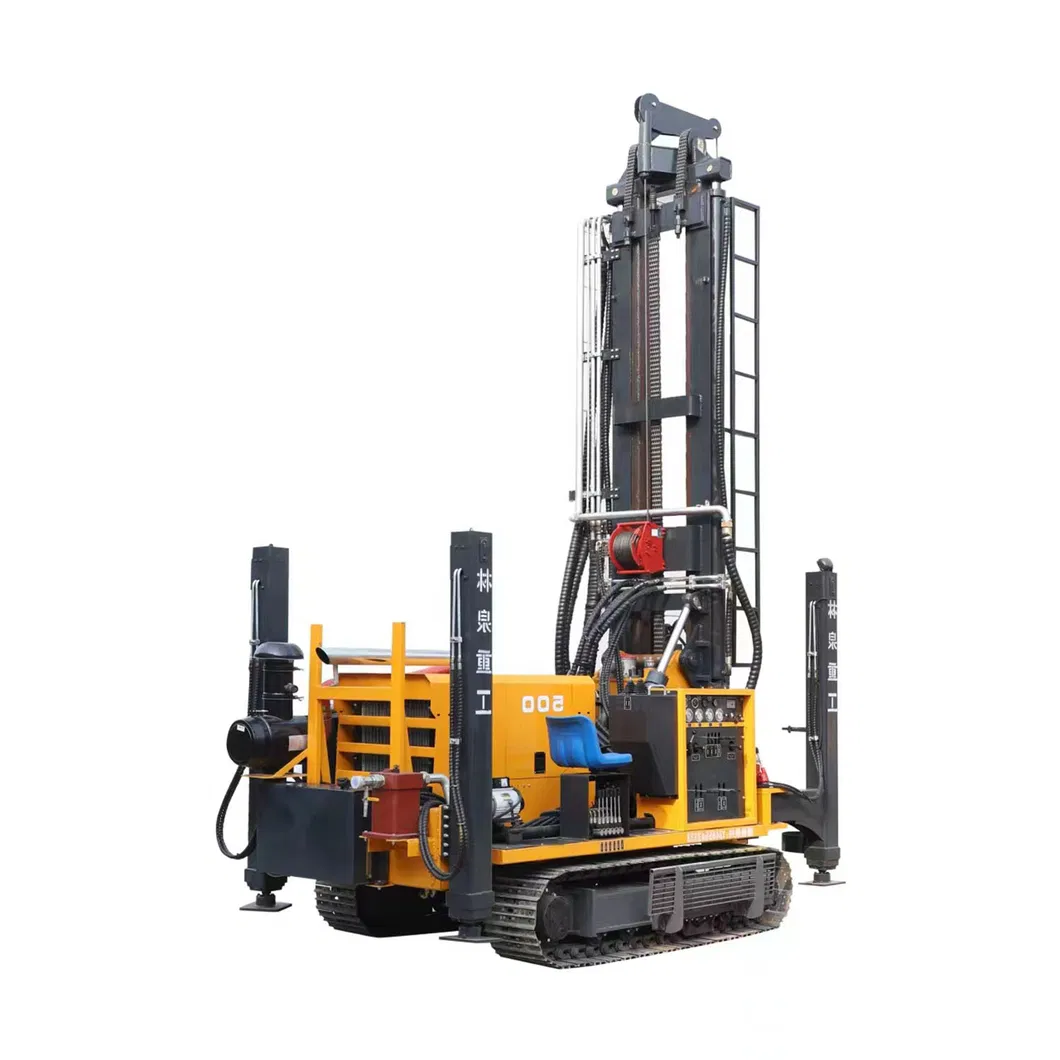

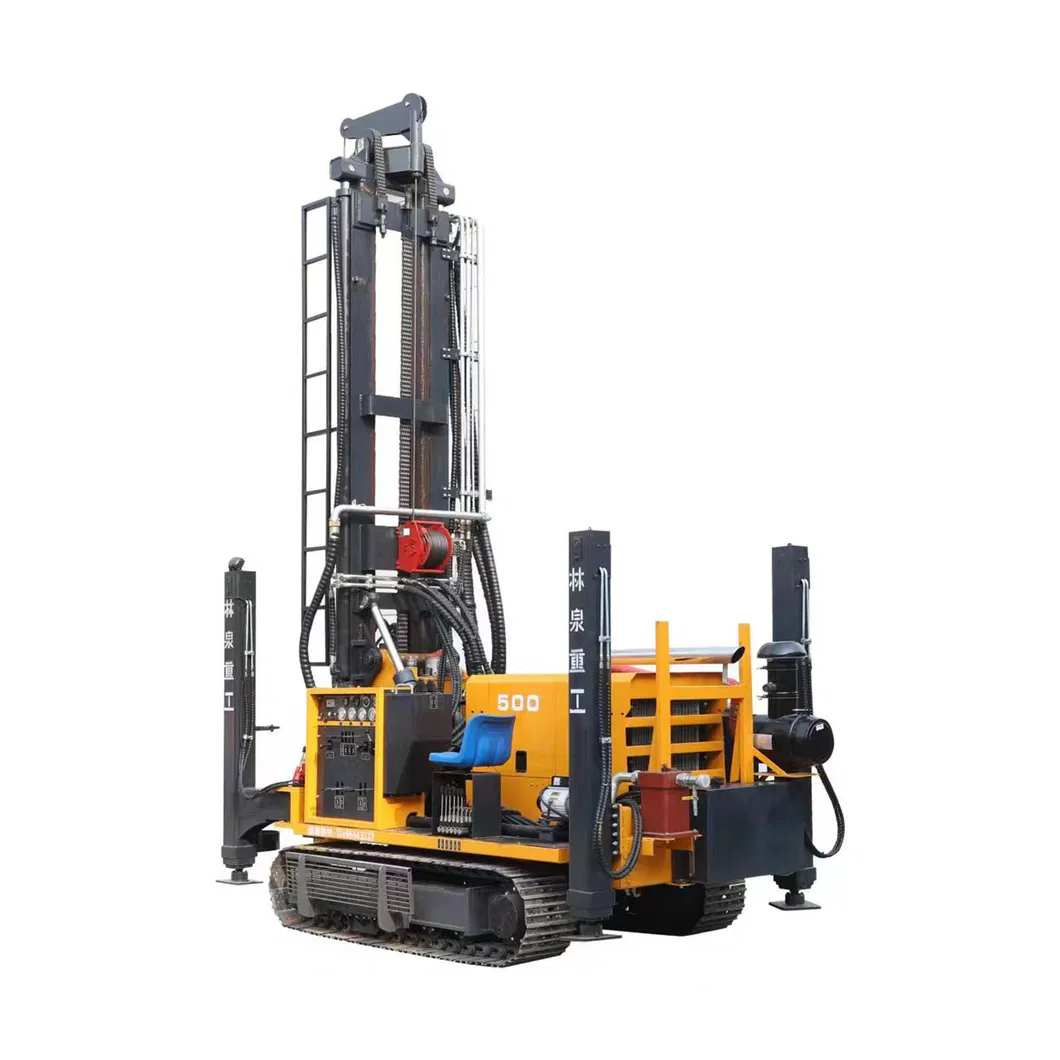

| Dual-Purpose Water and Steam Drilling Rig | |
|---|---|
| Model | 500 |
| Drilling depth (m) | 500-600 |
| Recommended drilling diameter (mm) | 138-325 |
| Power head maximum travel (m) | 6.6 |
| Engine Power (Kw) | 118 (six cylinders) |
| Air consumption (m³/min) | 18-42 |
| Working air pressure (mpa) | 1.7-3.5 |
| Power head rotation torque (N.m) | 13000-15000 |
| Maximum lifting force (T) | 40 |
| Travel speed (Km/h) | 2.5 |
| Overall dimensions (mm) | 4150*1900*2480 |
| Machine weight (T) | 10 |
| Moving mode | Hydraulic Crawler |

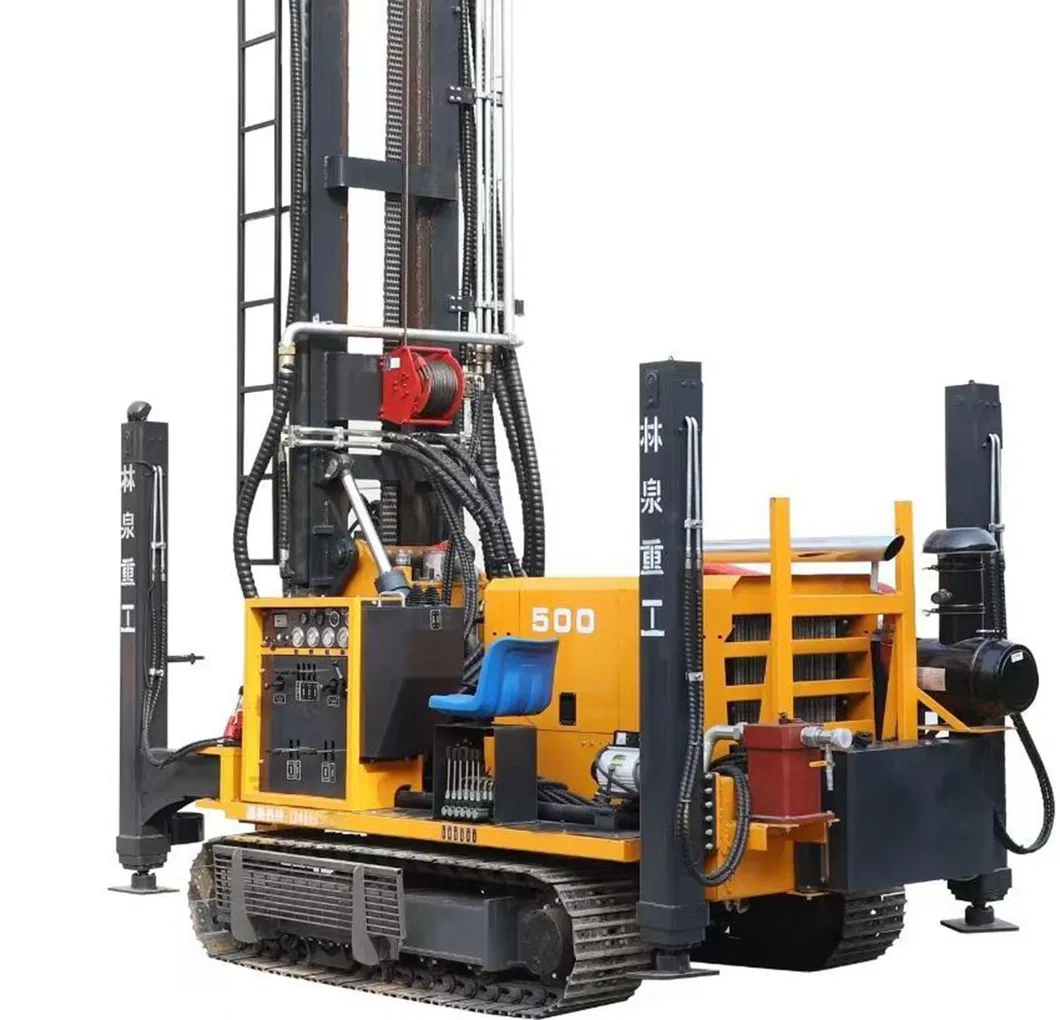

High-performance drilling rig with large diameter, deep reach, and fast footage.
We are a professional company engaged in the research, development, production, sales, application, and service of air compressors and rock drill machines. Our products are widely utilized in industrial compressed air supply, mining, and construction projects.
With technology development as the core of our philosophy, we follow strict guidelines of "detail-oriented, high efficiency, quality first, and creating the future." We are focused on the global market, providing excellent products and services to our customers worldwide.
