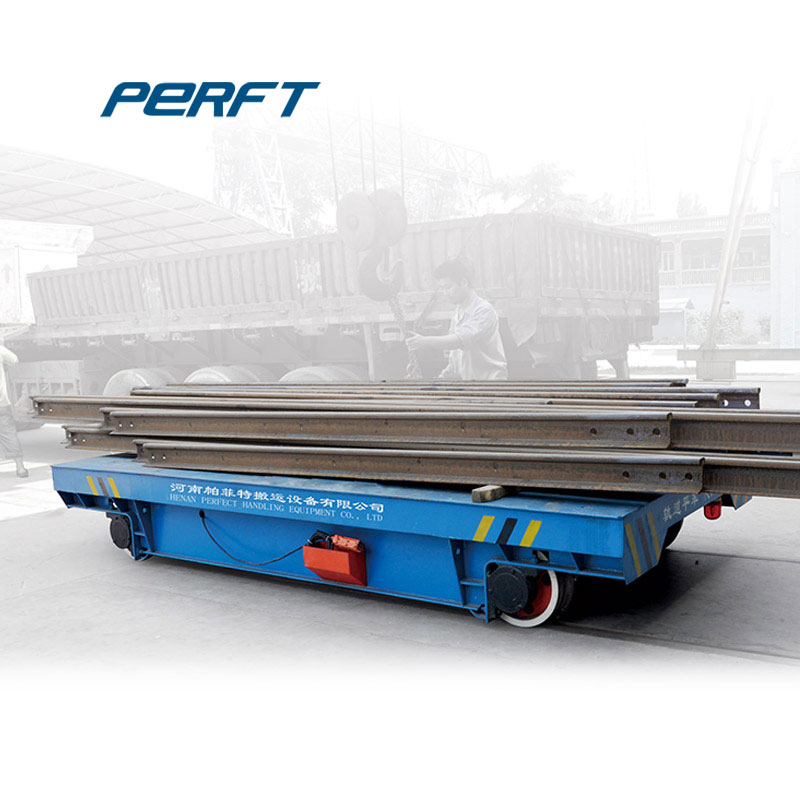

Rail Guided Motorized Electric Workshop Transfer Handling Equipment

1 / 5

Rail Guided Motorized Electric Workshop Transfer Handling Equipment

Customization:	Available
Color:	Yellow, Customzied
Warranty:	2 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

BXC

Product Name

Workshop Transfer Equipment

Usage

Heavy Duty Material Transportation

Application

Steel Industry, Factory, Warehouse, Port

Load Capacity

1-300 Ton

Control Mode

Pendant/Remote/PLC Control

Power Mode

Battery

Material

Steel

HS Code

84289090

Production Capacity

50 Sets/Month

Product Description

1. Introduction of Workshop Transfer Handling Equipment

Material handling equipment are movable platforms used for the horizontal movement of materials, assemblies and other items. Originally designed for load transfer between overhead crane bays, transfer carts are now used to carry loads along assembly lines, carry an entire shift of production on and even as a stable movable machine base. These transfer carts are widely used in machinery factory, warehouses and metallurgical plants, foundry workshops as a motorized automation transporter or with the crane to transport heavy loads over cross.

2. Customized Heavy Duty Solutions

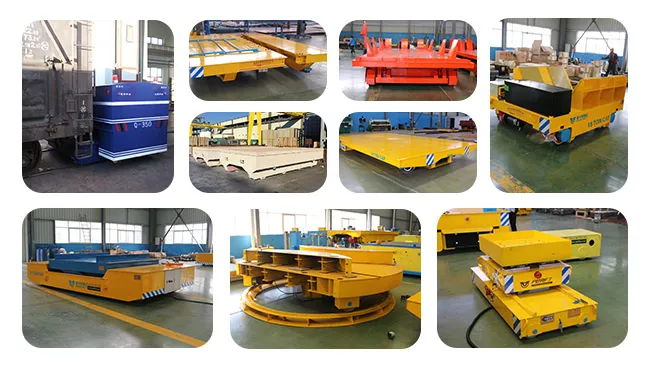

We specialize in designing and manufacturing a wide range of handling solutions:

✓ Transfer Cart: Rail transfer cart, Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
✓ Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
✓ Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie.

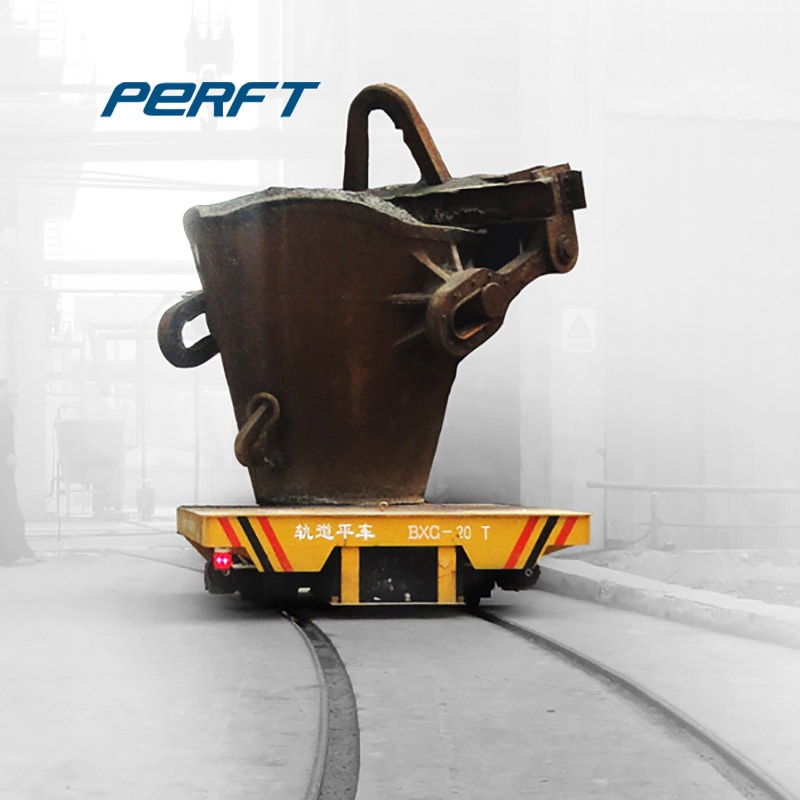

✓ Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.

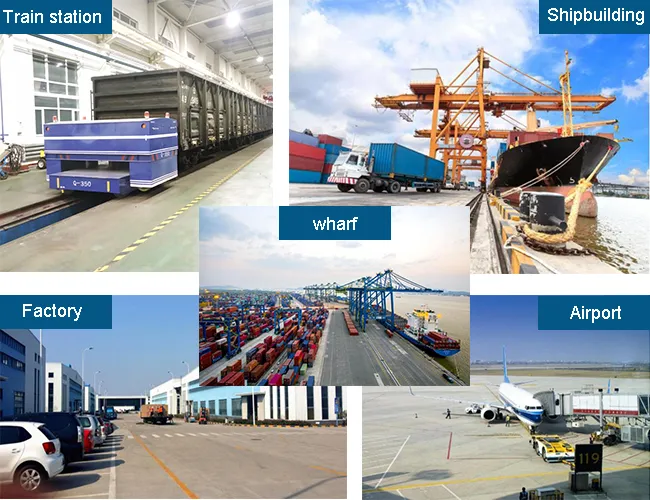

3. Industrial Applications and Sites

Our railway guided transfer carts and battery powered trolleys operate across numerous industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plants, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, and warehouse facilities.

Technical Parameters

Model	BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load (t)	2	20	50	100	150
Table Length (mm)	2000	4000	5500	6500	10000
Table Width (mm)	1500	2200	2500	2800	3000
Table Height (mm)	450	550	650	900	1200
Wheel Base (mm)	1200	2800	4200	4900	7000
Running Speed (m/min)	0-25	0-20	0-20	0-20	0-18
Motor Power (kw)	1	2.2	5	10	15
Battery Capacity	180	180	330	440	600
Running Distance (km)	6.5	4.8	4	3.8	3.2

Key Advantages

Low Noise

Operates at low noise levels, improving the workshop environment.

Maximum Safety

Guarantees safety for both operators and handled materials during transit.

Easy Operation

User-friendly controls allow for immediate use with minimal training.

High Payload

Modular design supports extreme loads up to 300 tons per trolley.

Space Efficient

Compact design with multidirectional steering for narrow spaces.

Frequently Asked Questions

What are the primary benefits of using a transfer cart?

Transfer carts are highly affordable for handling heavy loads, offer a compact design for limited floor areas, and can be customized with specific decks to suit unique materials.

What weight capacities are available?

Our transfer equipment is designed to handle a wide range of loads, typically ranging from 1 ton up to 300 tons per unit.

Can these carts handle long or oversized materials?

Yes, transfer carts are excellent for moving long loads through restrictive passages or doorways where forklifts might struggle.

What common materials are transported using these carts?

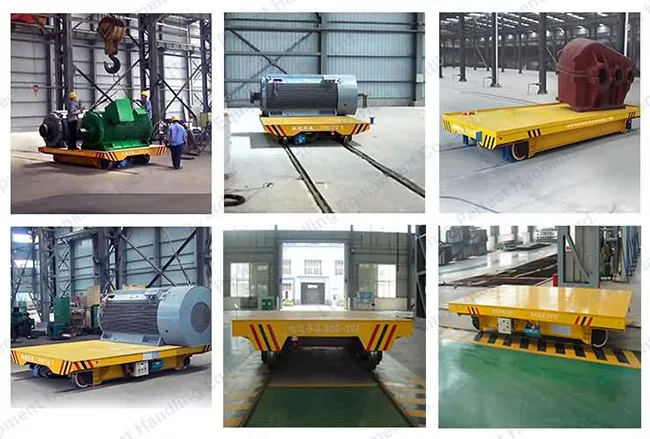

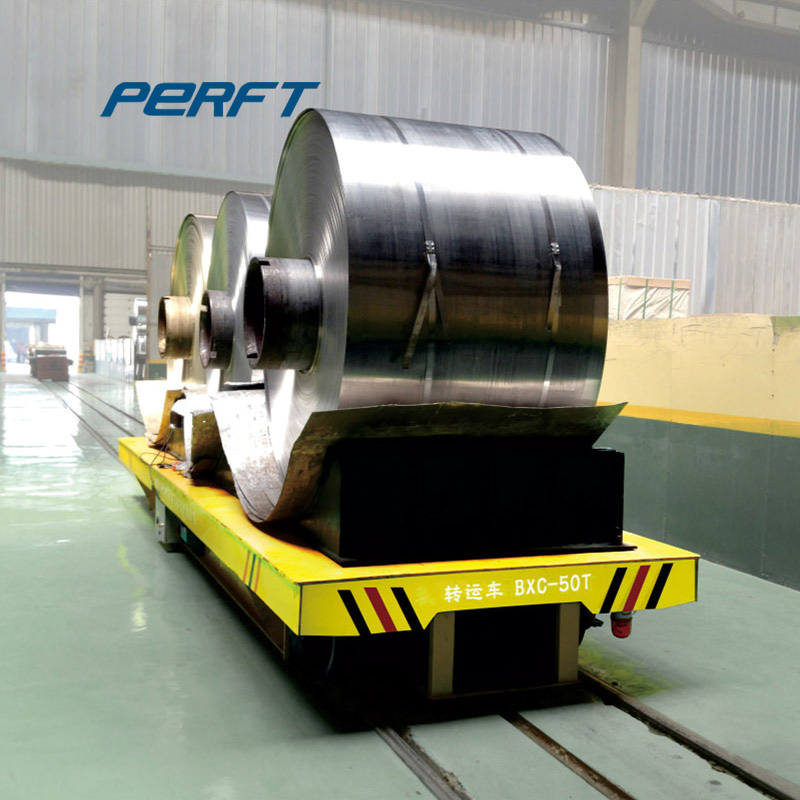

Common applications include transporting steel coils, tanks, sub-assemblies, motors, pumps, steel tubing, and sand castings.

How are the transfer carts controlled?

They can be operated via hand-held pendant, wireless remote control, or integrated into an automated PLC system for precision movement.

Are the cart decks customizable?

Absolutely. Decks can be fitted with V-grooves for coils, stand-offs for equipment support, or integrated lift tables for assembly processes.
