Automated Truss Manipulator Handling Equipment for Assembly Lines

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊

Technical Specifications

Model NO.

HC-RM4015-500

Usage

Tool Rack, Industrial, Warehouse Rack

Material

Steel

Structure

Drawer

Type

Multi-Level Racking

Mobility

Adjustable

Height

5-15m

Loading Per Layer

3t/5t

Maximum Load

300kg-3000kg

Air Source

0.6-0.7MPa

⚙️

Product Features

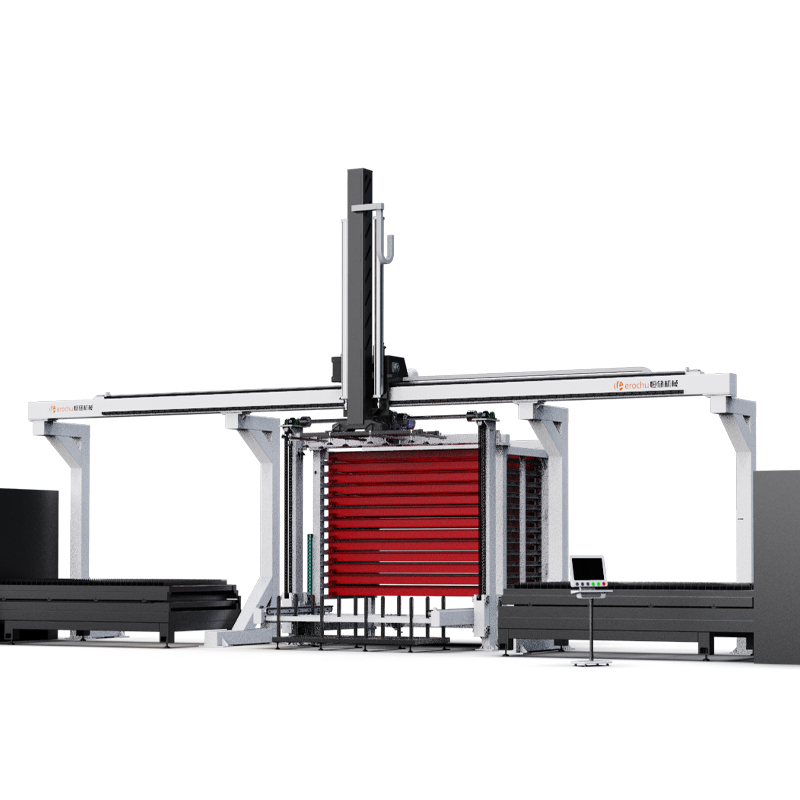

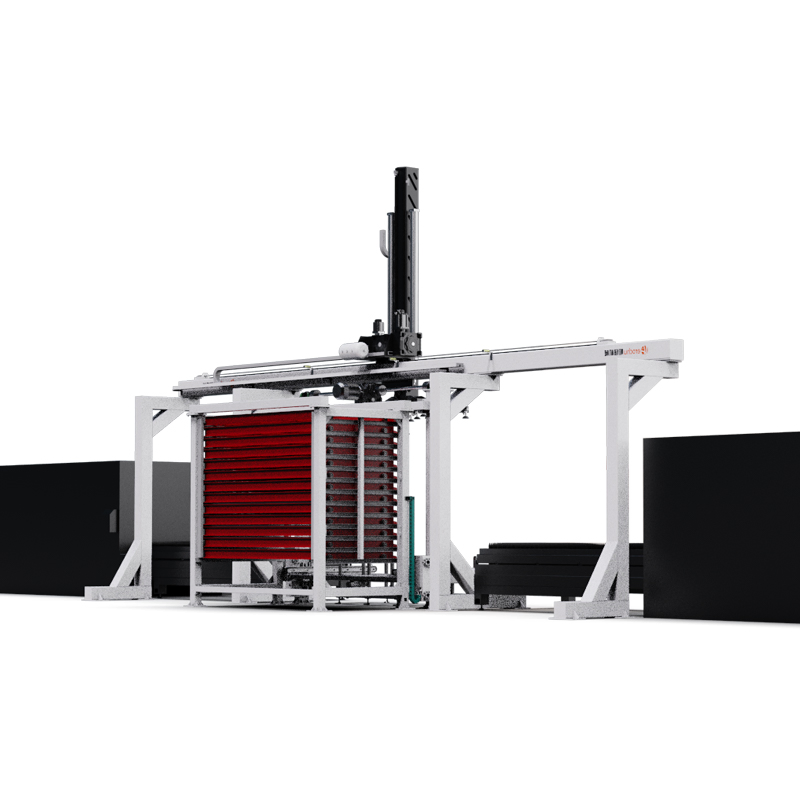

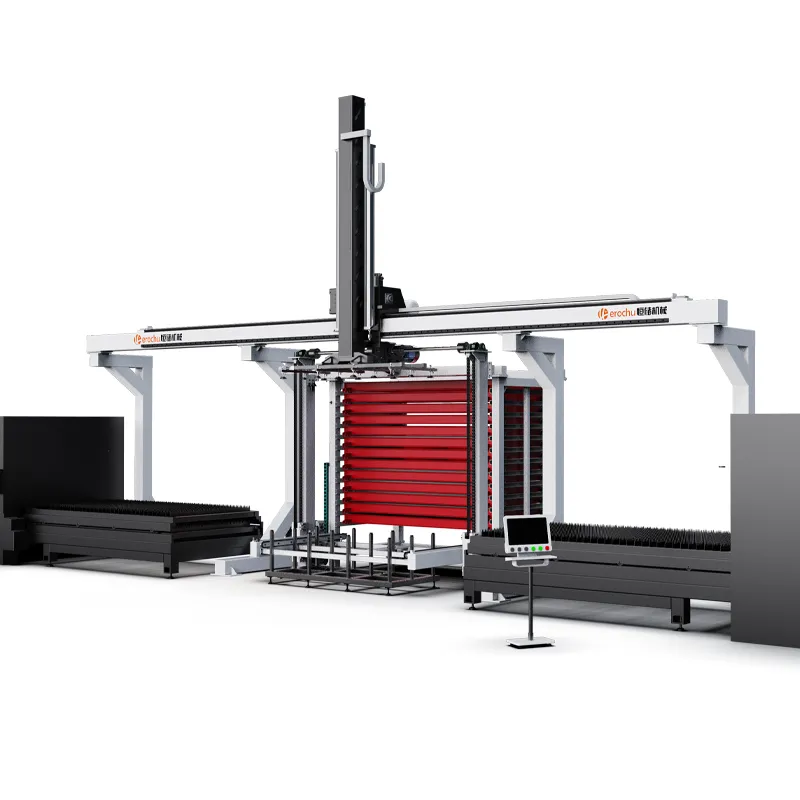

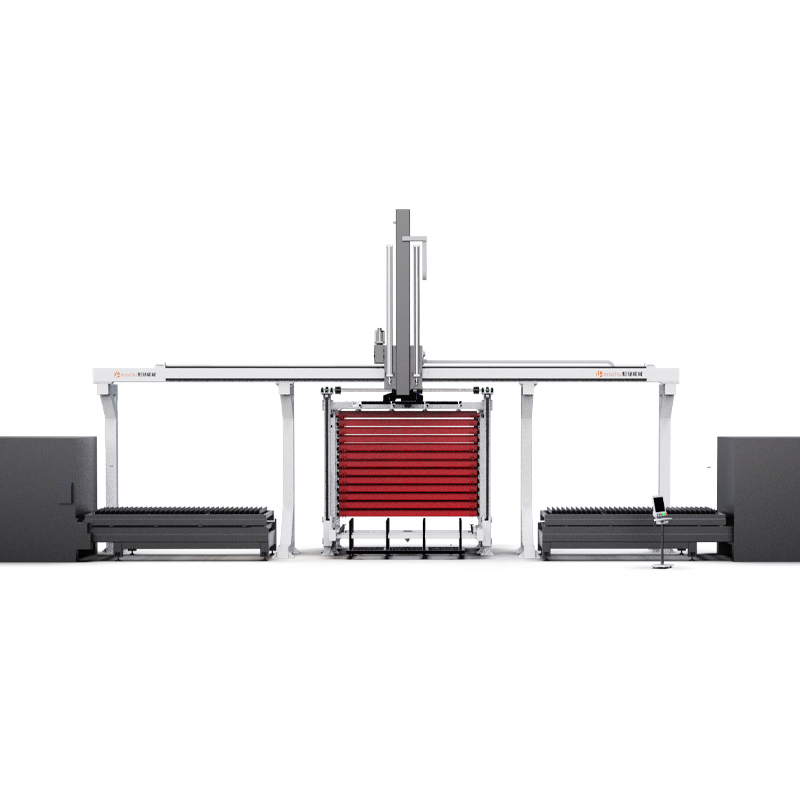

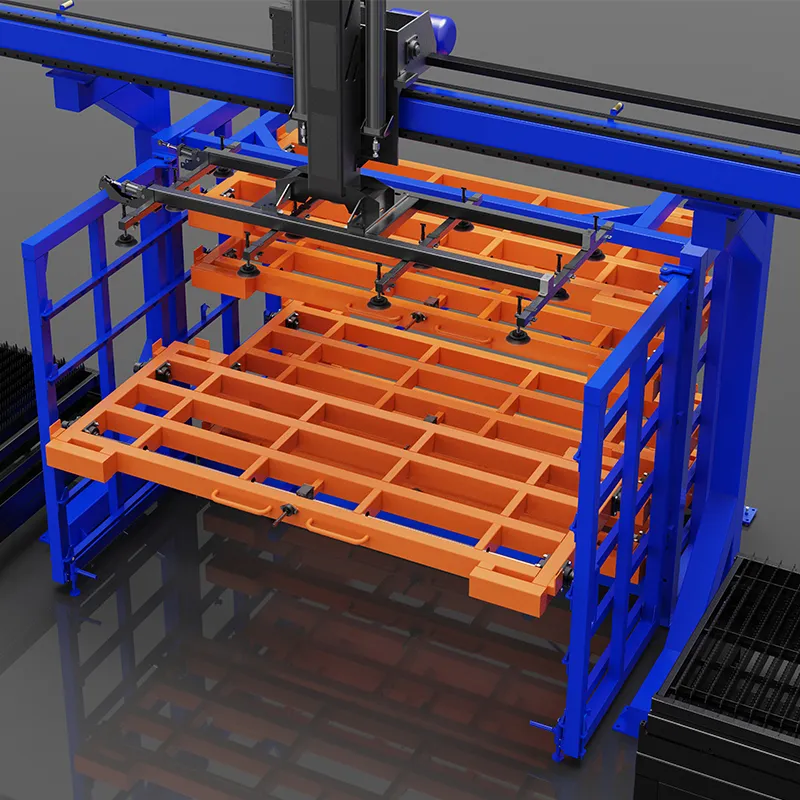

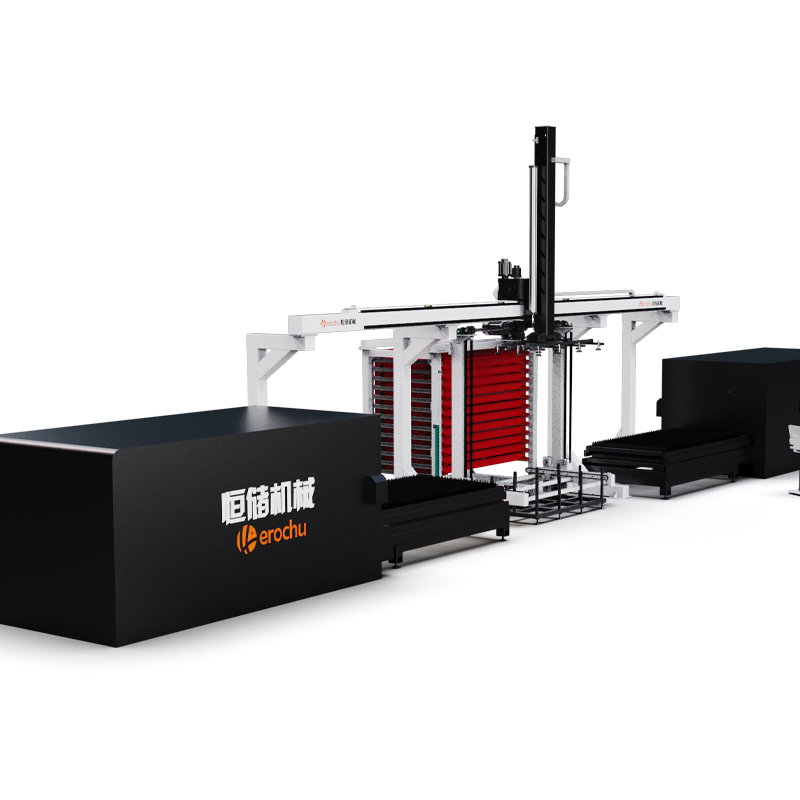

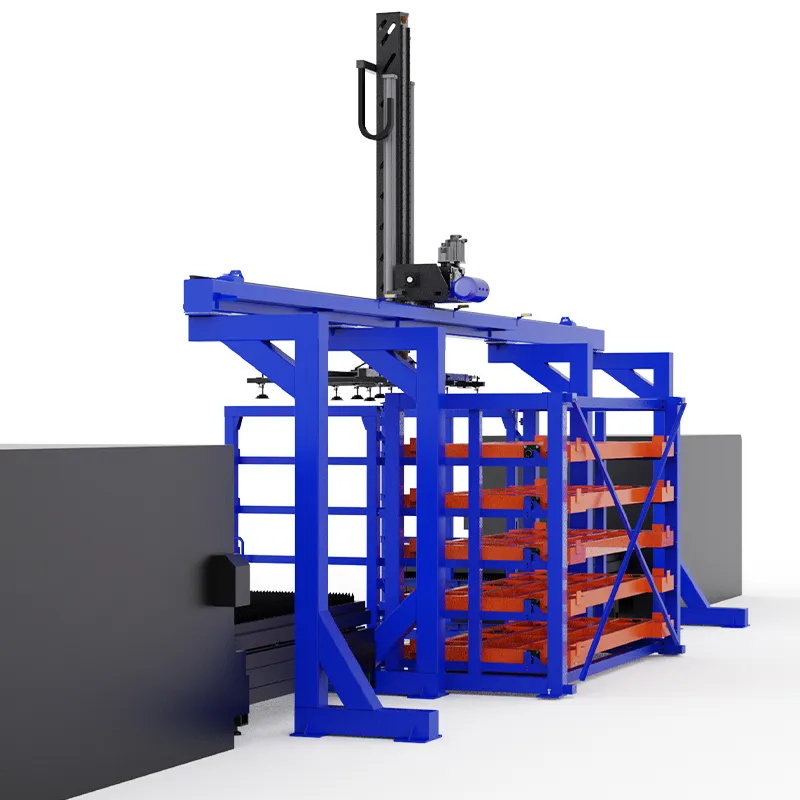

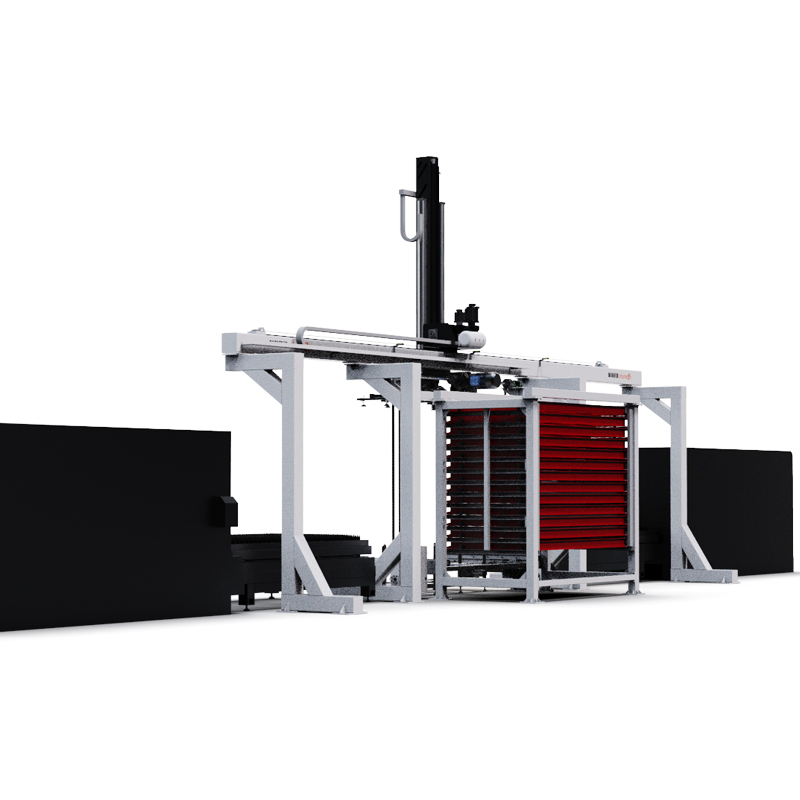

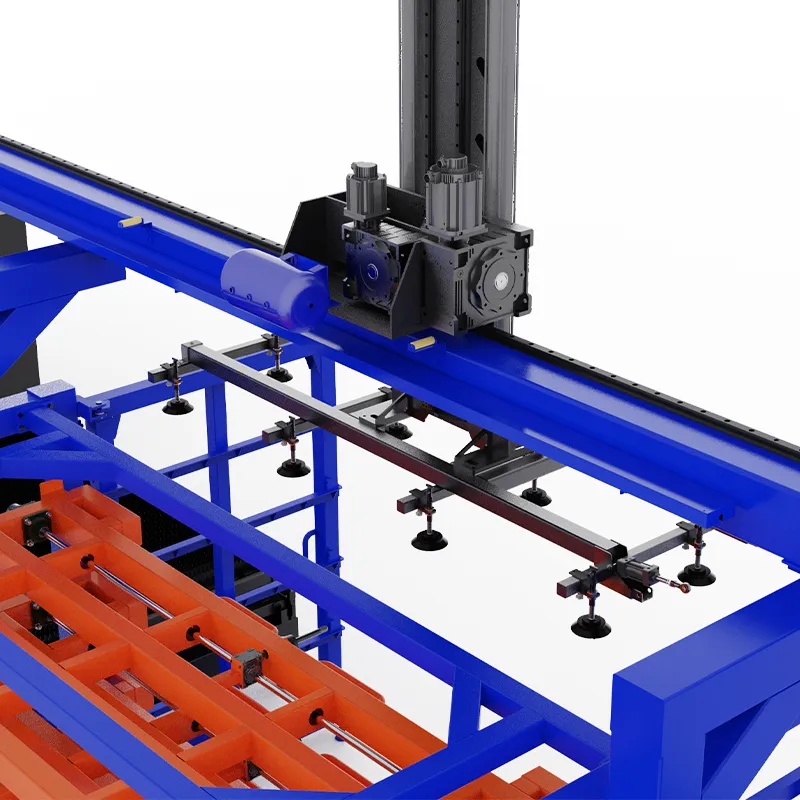

The gantry loading manipulator is composed of gantry beam body, high torque servo synchronous lifting mechanism, servo translation positioning transmission, automatic storage and discharge rack, multiple groups of vacuum heavy-duty oil-resistant suction cups, pneumatic system, safety protection system, original CNC control system and electrical system.

Designed with European concepts, the entire machine offers a stable structure, practicality, and easy maintenance for high-efficiency industrial assembly lines.

Parameter	Details
Specification	3015/4015/4020mm
Number of Floors	5
Load per Layer	3T
Maximum Load	100KG-500KG
Air Consumption	1.5m³/min
Air Source	0.6-0.7Mpa

Our intelligent storage solutions focus on: laser cutting sheet metal storage shelves, drawer type sheet metal storage shelves, telescopic cantilever storage shelves, heavy-duty sheet metal and pipe storage shelves, and automatic loading and unloading material warehouses.

❓

Frequently Asked Questions

How can I proceed with procurement?

You can contact our technical personnel with your specific requirements. We will provide a suitable technical solution and quotation based on your parameters.

How do I choose the right robotic arm for my needs?

Please provide information regarding the materials to be transported, including their size, thickness, and weight. Our professional team will analyze these details to suggest the most efficient model.

Do you offer on-site installation and debugging?

Yes, we provide professional installation services. Our technical team can be sent to your facility to install and debug the equipment until it reaches successful trial operation.

How is the product quality ensured?

We employ over 40 technical engineers and strictly implement ISO9001 quality standards. All equipment undergoes rigorous load testing before leaving the factory to ensure structural safety and stability.

Can I verify the factory's production capabilities?

We support video factory inspections and welcome on-site visits to our 10,000 square meter modern facility to see our production process first-hand.

What specific systems do you specialize in?

We specialize in intelligent sheet metal material warehouses, drawer style shelves, telescopic cantilever shelves, servo swing arm manipulators, and fully automatic loading and unloading series.
