Industrial Heavy Duty Fixed Roller Conveyor System for Efficient Material Handling

1 / 5

Industrial Heavy Duty Fixed Roller Conveyor System for Efficient Material Handling

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.DTL

StructureBelt Conveyor

MaterialCarbon Steel

Material FeatureOil, Heat, Fire Resistant

ApplicationMining, Chemical, Power Plant

ConditionNew

SpecificationB650~2400

OriginChina

Capacity1000 set/Year

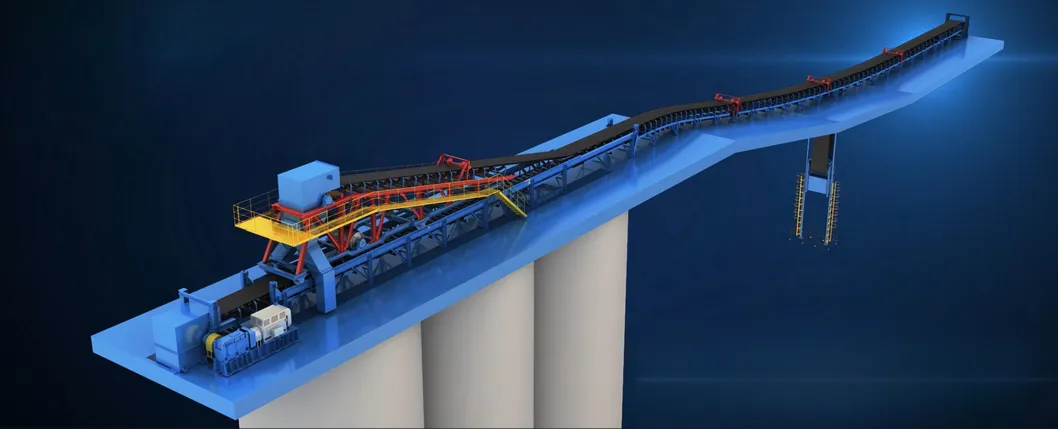

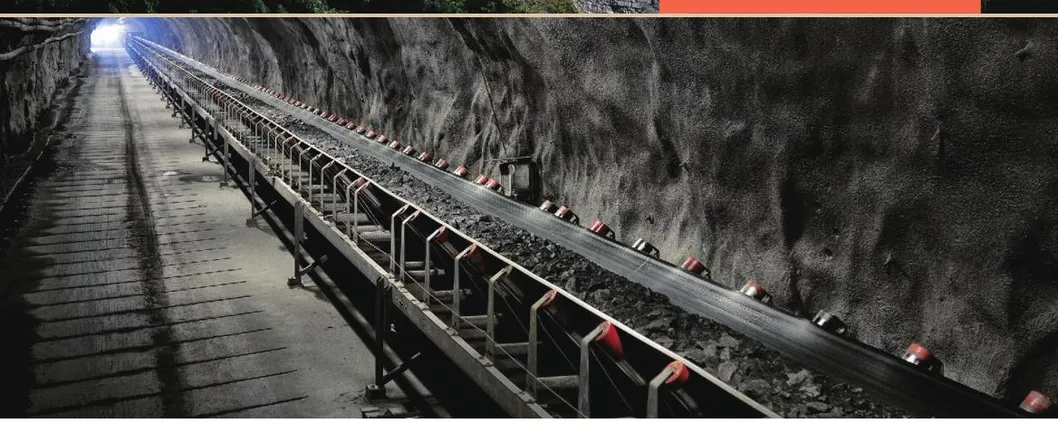

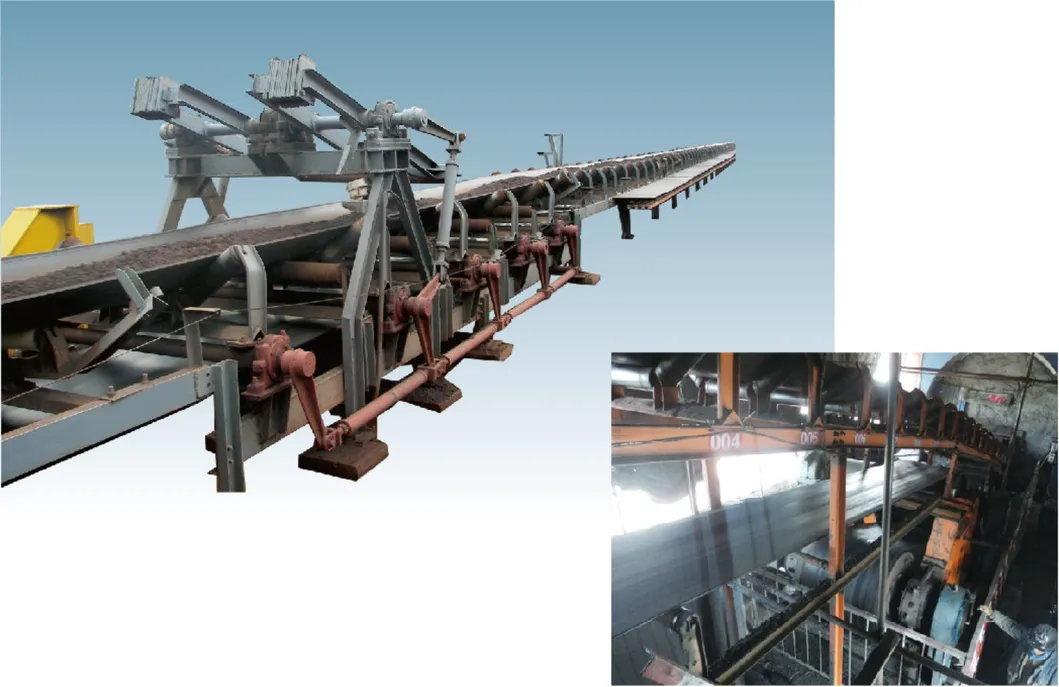

Fixed Belt Conveyor System

Main equipment for centralized transportation in coal mines.

Technical Parameters

Model No.	Max Capacity(t/h)	Distance(m)	Belt Width(m)	Belt Speed(m/s)	Motor Power(kw)	Drive Drum diam.	Idler Diam.	Overall Dim.	Weight
DTL240/1000/4X2500	10000	3000	2400	5	4X2500	2000	219	7850X3600	1135
DTL220/900/4X2500	9000	3000	2200	5	4X2500	2000	194	7650X3600	1042
DTL200/800/4X2500	8000	3000	2000	5	4X2500	2000	194	7450X3600	946.8
DTL180/600/4X2500	6000	3000	1800	5	4X2500	2000	194	7250X3600	852.2
DTL160/450/3X1600	4500	3000	1600	5	3X1600	2000	159	6720X3600	700.2
DTL140/315/3X800	3150	2000	1400	4.5	3X800	1600	159	6325X3600	356.2
DTL120/200/3X800	2000	2000	1200	4	3X800	1600	159	6125X3600	289.2
DTL100/120/3X630	1200	2500	1000	3.5	3X630	1250	159	5720X3500	280.2

Core Advantages

High productivity & large conveying capacity
Simple structure with stable and reliable performance
Continuous long-distance transportation capabilities
Low energy consumption, noise, and environmental impact
Low equipment operation and maintenance costs

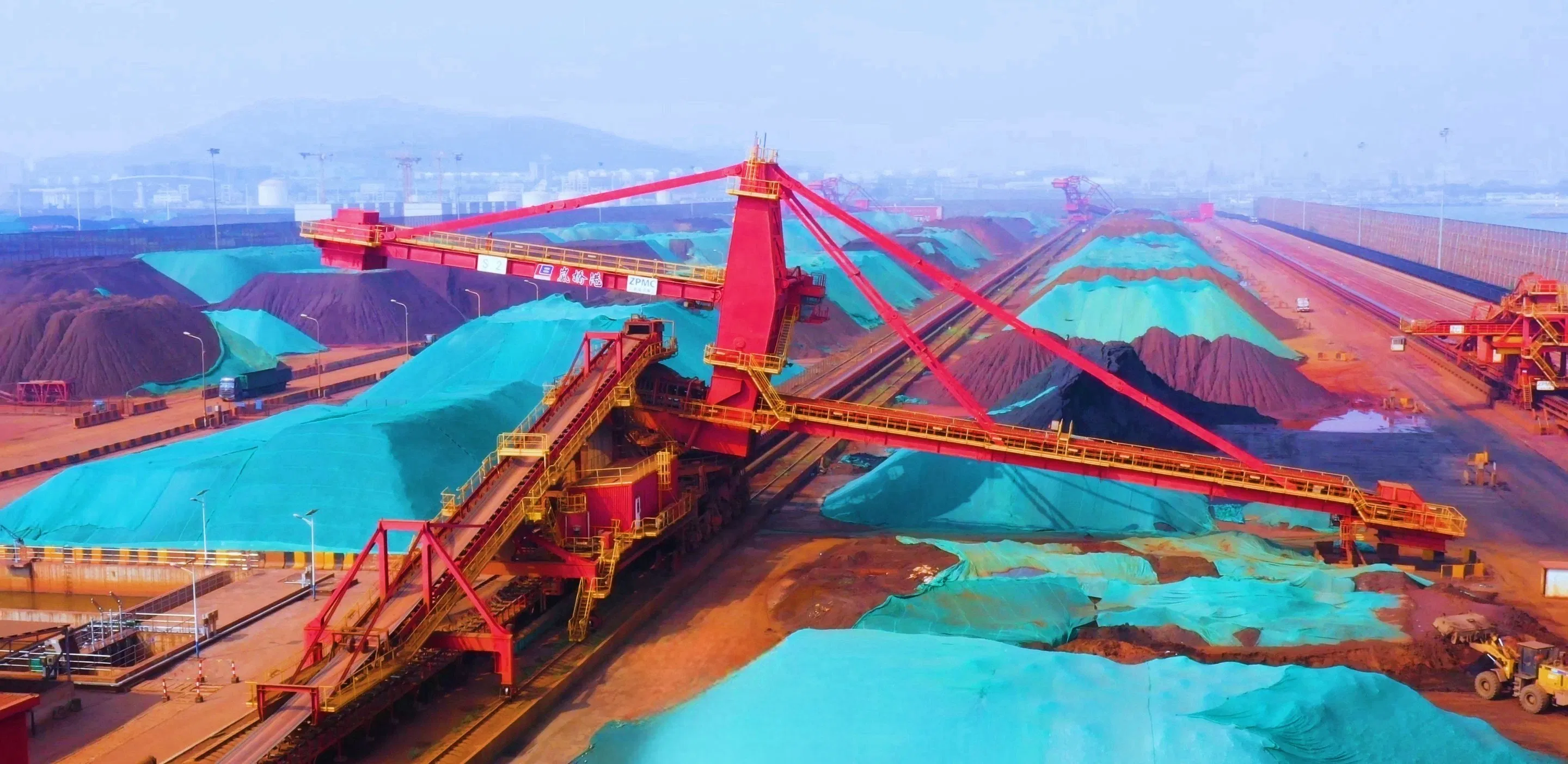

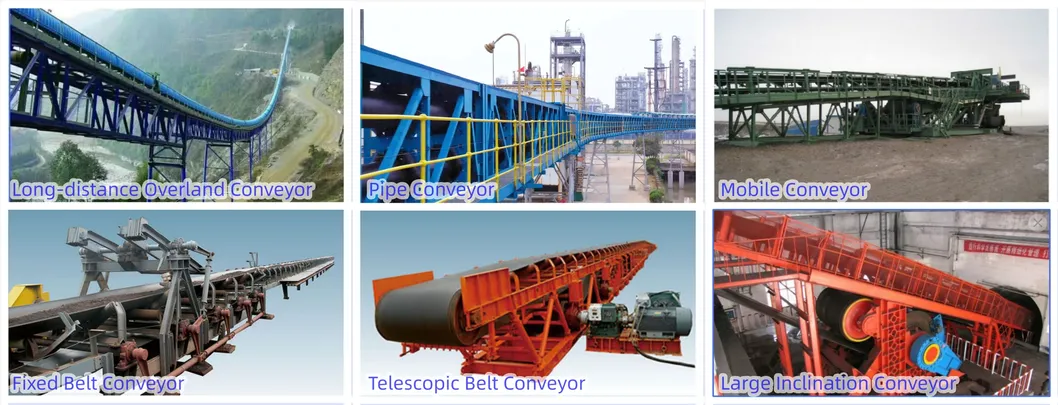

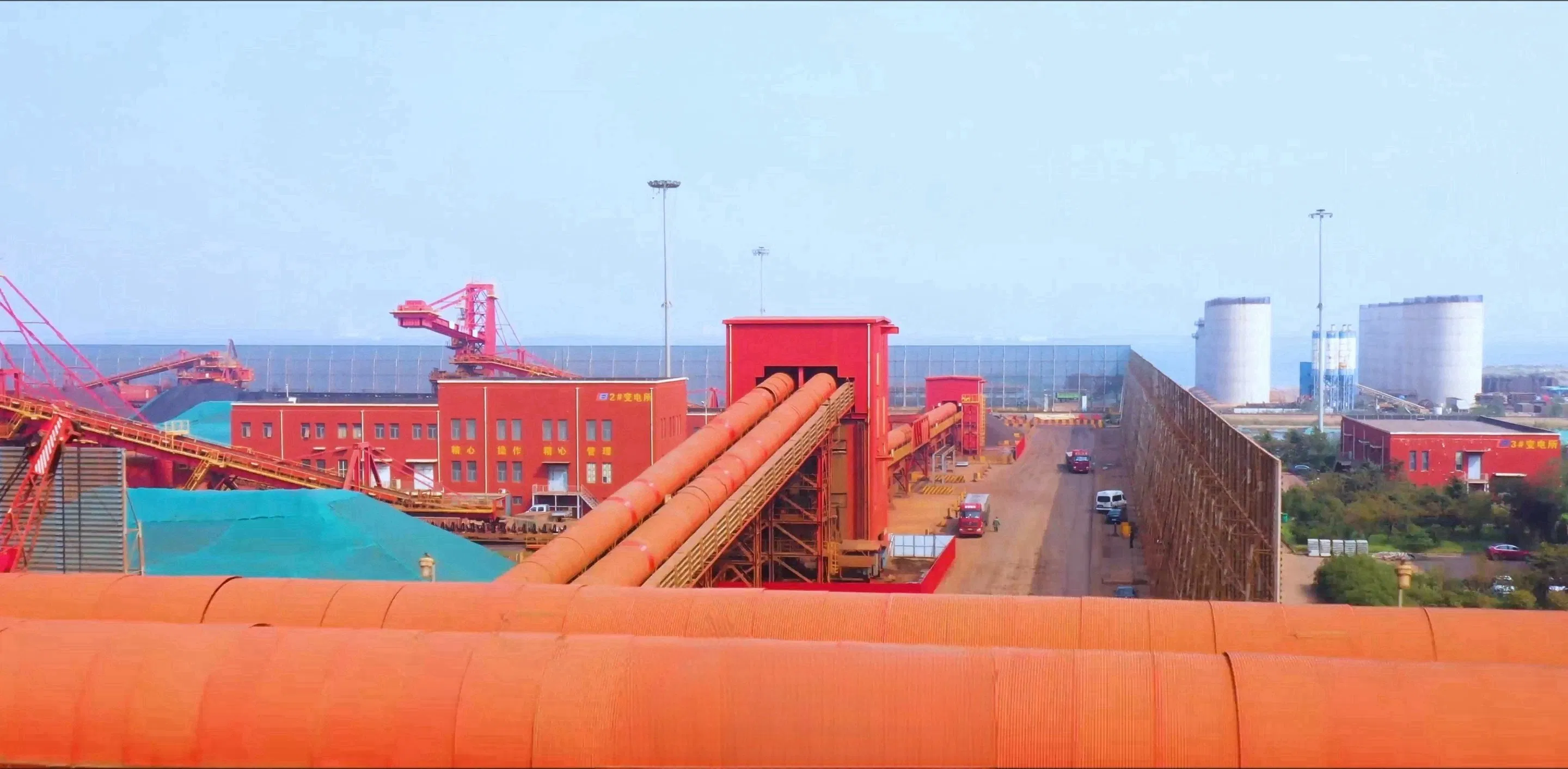

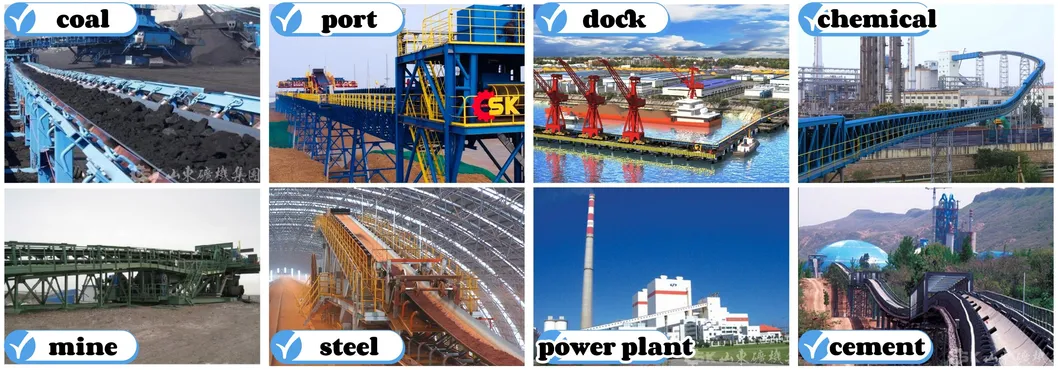

Industrial Applications

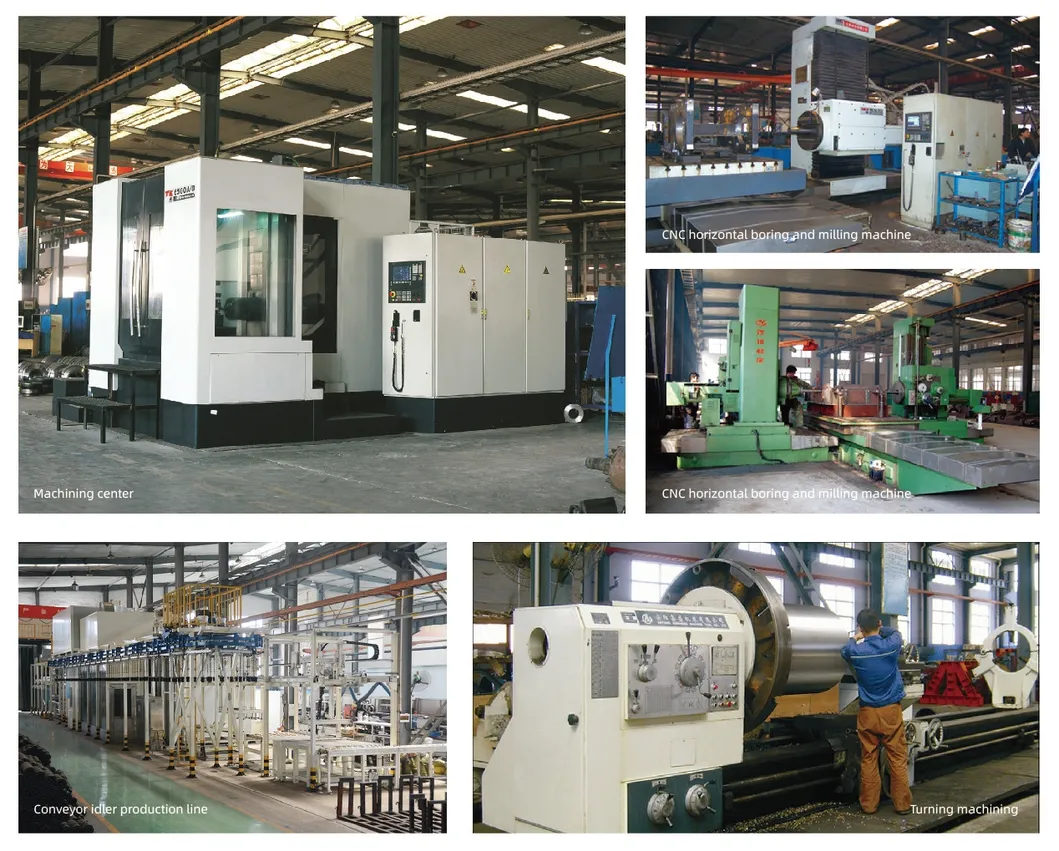

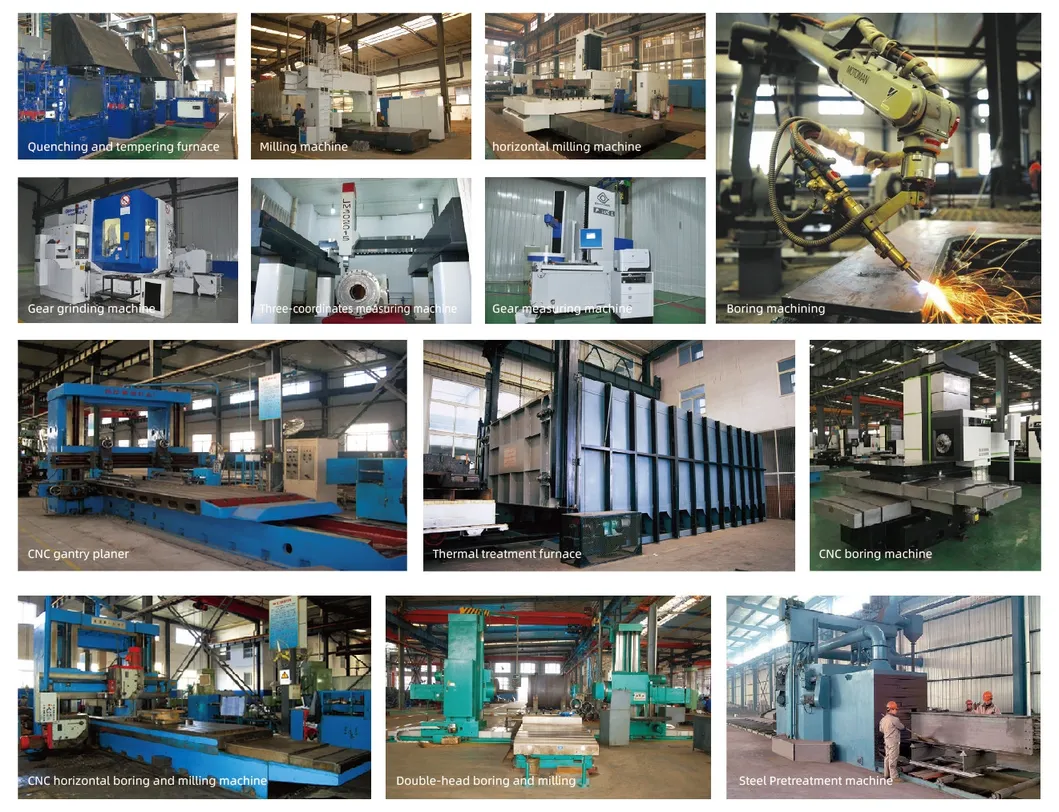

Production & Testing

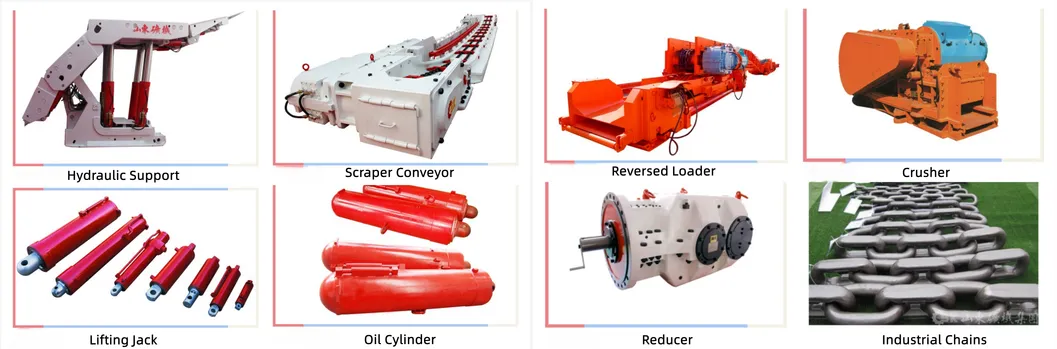

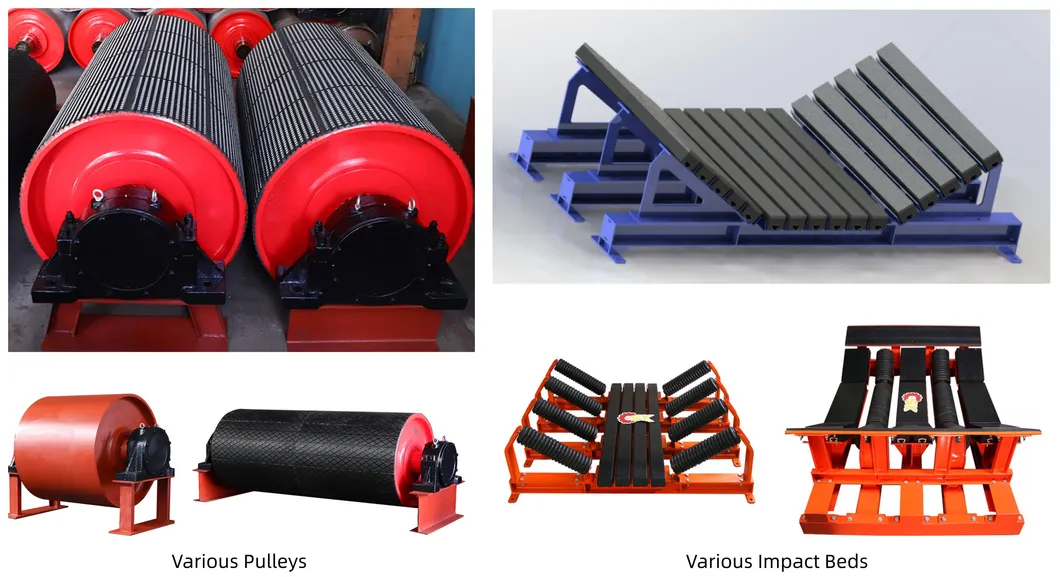

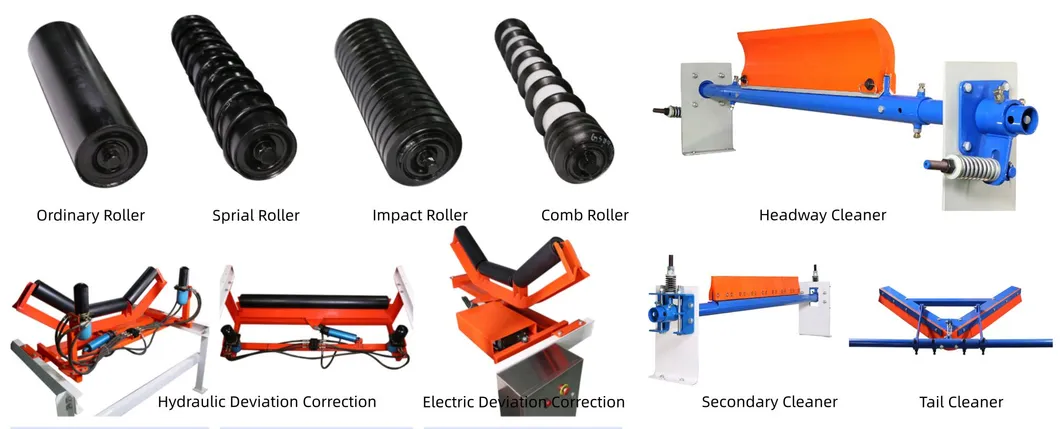

Conveyor Spare Parts & EPC Services

Exhibitions & Global Network

Frequently Asked Questions

What materials can the DTL series belt conveyor handle?

The DTL series is designed for bulk material handling, particularly effective for coal, ores, grains, and chemical materials. It features oil, heat, and fire resistance.

What is the maximum conveying capacity of this system?

Based on the technical specifications, the high-end models can reach a maximum capacity of up to 10,000 t/h with a belt width of 2,400mm.

Is this equipment suitable for long-distance transportation?

Yes, our systems support continuous long-distance transportation, with single unit capabilities extending up to 12.6 km.

Does the conveyor work in extreme environments?

Yes, the carbon steel structure combined with specialized belt features allows it to operate in heat-intensive and fire-prone environments safely.

What kind of maintenance services do you provide?

We offer comprehensive EPC, BOT, and BT operation and maintenance services, along with a full supply of spare parts like rollers, pulleys, and intelligent control systems.

What belt widths are available for the DTL model?

The standard belt width range for our serialized conveyors is between 600mm and 2,400mm, customizable to specific project requirements.
