Product Description

Basic Information

Model NO.FH

TypeRotating Wheel

Wheel MaterialSteel

Brakewith Brake

Bearing TypeRoller Bearing

Surface TreatmentChrome Plated

Maximum Load60t

Diameter380mm

Thickness50mm

ColorYellow

HS Code84289090

Capacity90,000,000 Set/Year

Product Overview

Finer brand Modular Air Caster System offers a customizable solution for versatile material handling needs. This system consists of individual air casters that can be arranged in various configurations to accommodate different load sizes and shapes. With its modular design, the system can be easily adapted to specific requirements, allowing for efficient and precise material handling.

Floor Requirements

Suitable for cement, polyurethane, and marble floors.
Surface must be smooth with no sharpened fragments or gaps.
Gaps should be filled and sealed to avoid air leakage.
The floor must be dry; water can cause air modules to slip.
Compressed air power source leaves no marks and protects the floor.

System Configurations

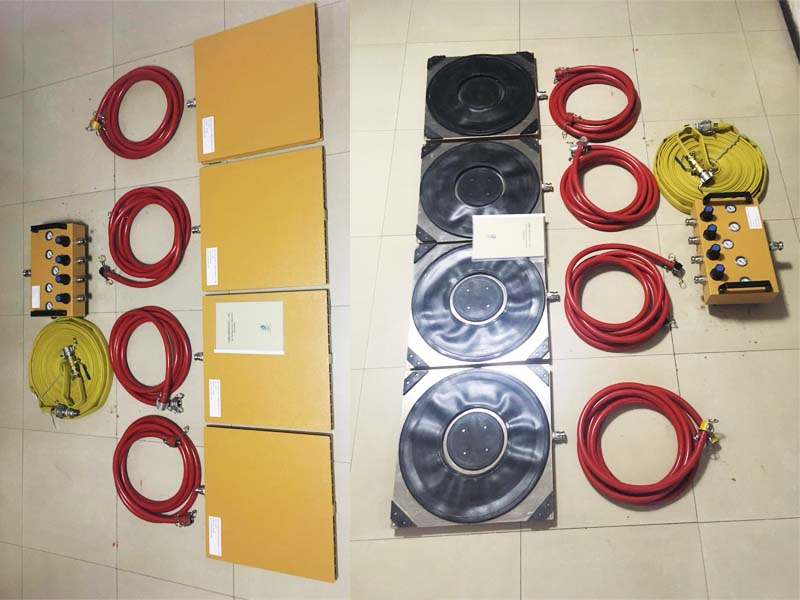

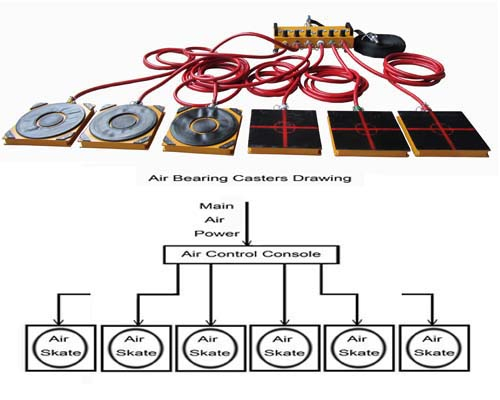

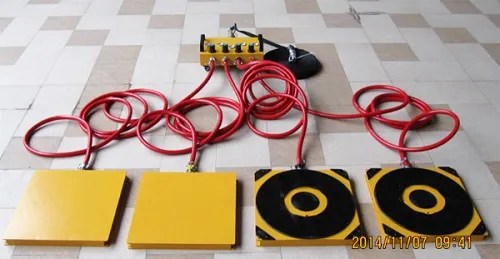

B Model with Four Modules Includes:

Main air hose (30 meters, ID: 1") with quick couplings.

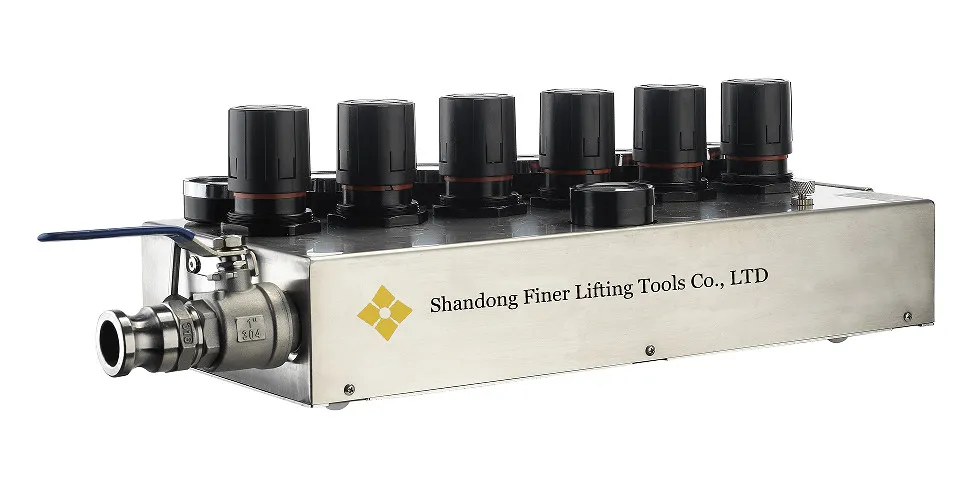

Air Control console with four control buttons and mobile wheels.
Four branch air hoses (6-10 meters length).

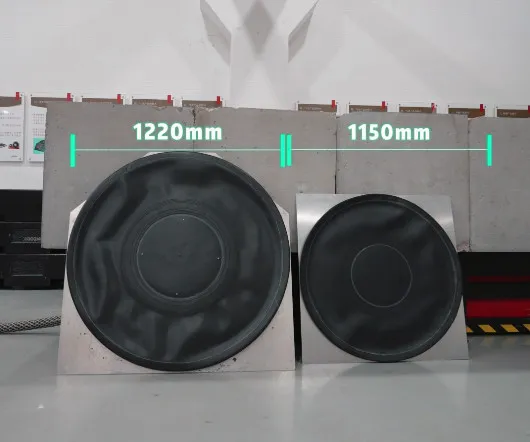

Four Air Load Modules.

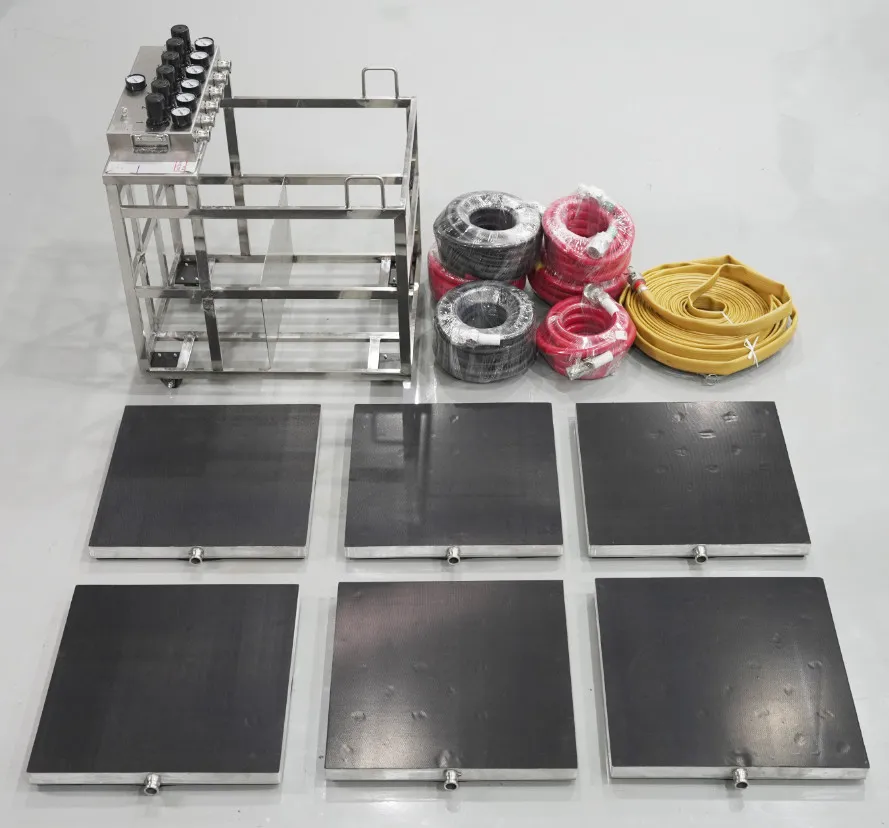

B Model with Six Modules Includes:

Main air hose (30 meters, ID: 1") with quick couplings.
Air Control console with six adjustment buttons.
Six branch air hoses (up to 10 meters).
Six Air Load Modules.

Key Advantages

Easy Operation: No special training required; manual instructions are sufficient.
Safety: Low floor loading design prevents damage to workers and loads.
Durability: Engineered for long-term use (10+ years) without quality issues.
Floor Protection: Thin air film ensures NO-Mark movement on delicate surfaces.
Flexibility: 360-degree maneuverability in any direction.
No-Spark & No-Pollution: Compressed air powered, safe for hazardous areas.

Technical Specifications

MODEL	Details	Dimensions & Pressure
10T	4x 2.5t Modules, 1 Console, 30M Main Hose, 4x 6M Vice Hoses	38038050mm \| Pressure: 0.4mpa (4kg/cm²)
16T	4x 4.0t Modules, 1 Console, 30M Main Hose, 4x 6M Vice Hoses	48548550mm \| Pressure: 0.4mpa (4kg/cm²)
20T	4x 5.0t Modules, 1 Console, 30M Main Hose, 4x 6M Vice Hoses	54054050mm \| Pressure: 0.4mpa (4kg/cm²)
32T	4x 8.0t Modules, 1 Console, 30M Main Hose, 4x 6M Vice Hoses	68668650mm \| Pressure: 0.4mpa (4kg/cm²)
48T	6x 8.0t Modules, 1 Console, 30M Main Hose, 6x 6M Vice Hoses	68668650mm \| Pressure: 0.4mpa (4kg/cm²)
60T	6x 10.0t Modules, 1 Console, 30M Main Hose, 6x 6M Vice Hoses	68668650mm \| Pressure: 0.4mpa (4kg/cm²)

Technology & Performance

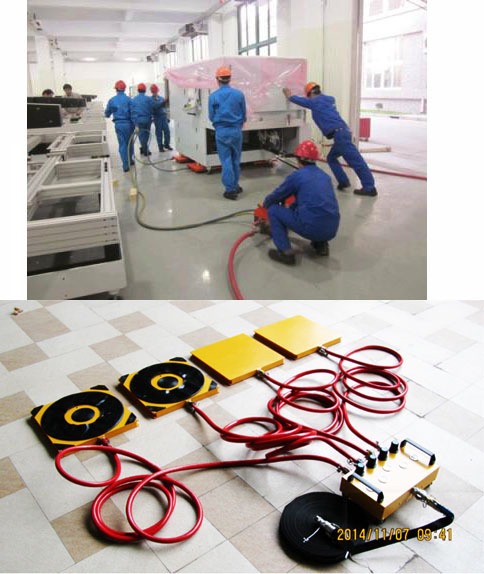

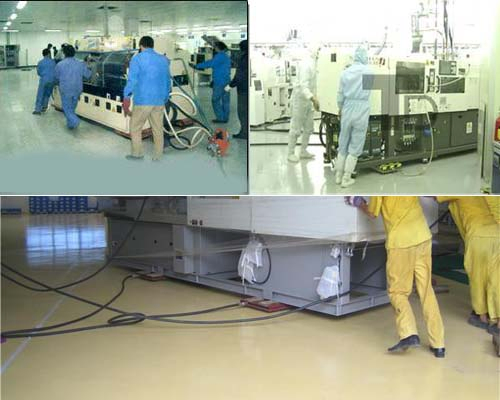

Air cushion handling technology is an efficient and low-cost heavy object handling technology. By using compressed air, the air cushion unit floats on a thin layer of air film, resulting in minimal friction. This allows for easy movement of equipment weighing hundreds of tons, as well as precise positioning in narrow spaces.

Frequently Asked Questions

Q: What kind of floor is required for air bearing casters? A: The floor must be smooth, non-porous, and level (such as polished cement, marble, or polyurethane). Any gaps should be filled and sealed to prevent air leakage.

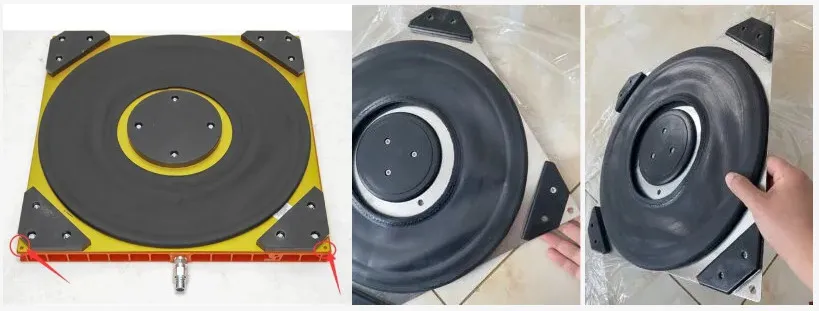

Q: How durable is the air caster system? A: Our systems are designed for high-standard industrial use and can last for more than ten years. The airbags are the only wear parts and can be easily replaced.

Q: Can air casters be used in hazardous environments? A: Yes. Since the power source is compressed air rather than electricity, they are spark-free and safe for use in areas with explosive or flammable materials.

Q: What is the minimum order quantity (MOQ)? A: We accept orders starting from one complete set.

Q: How is the equipment protected during shipping? A: All components are packed tightly in wooden cartons to ensure they arrive without damage during air, express, or sea transport.

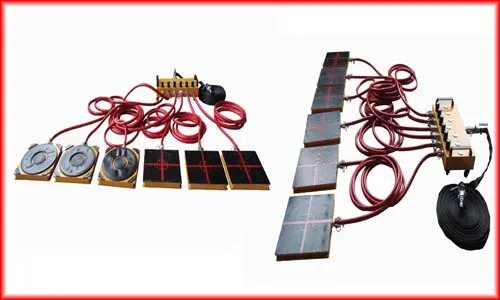

Q: Do you provide guidance on how to move specific heavy loads? A: Yes. If you provide your equipment dimensions, weight, and floor conditions, we can offer a customized moving solution for your reference.
