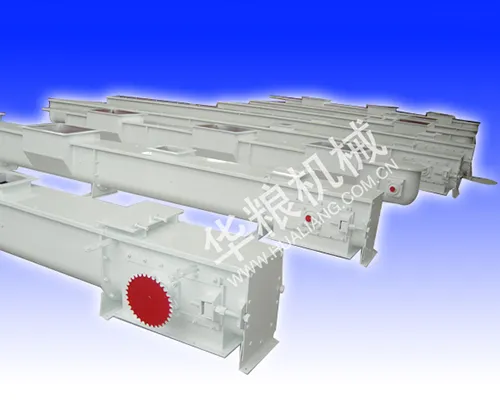

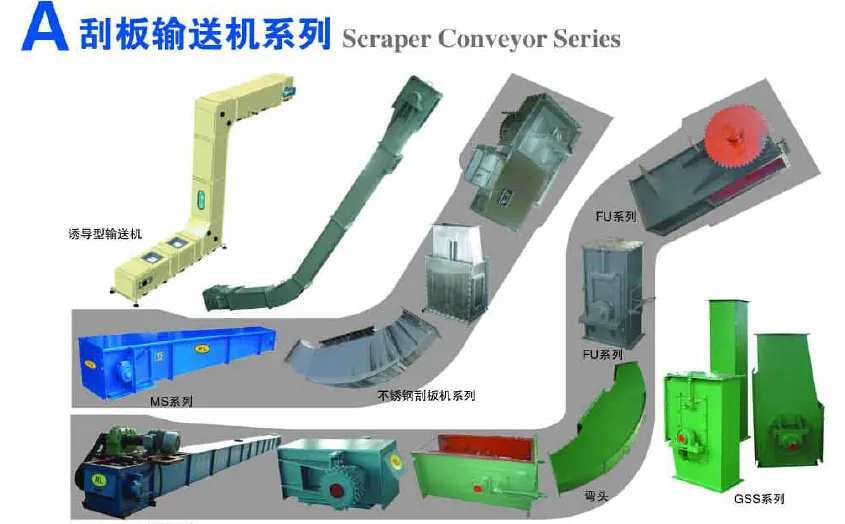

The Scraper Conveyor is a robust, continuous transport mechanism designed with a flexible traction element for seamless material handling. Its exceptional flexibility allows it to adapt effortlessly to various transportation scenarios.

The system operates within a rectangular or U-shaped sealed trough, utilizing a moving scraper chain to push materials forward. As the scraper chain maneuvers, it integrates with the material, forming a continuous stream of transported goods. During transit, the chains submerge in the material, thus earning the term 'embedded scraper conveyor.' This machinery is crucial in grain processing plants and warehouses, serving as the primary conveyor solution.

The Scraper Conveyor comprises the following essential components:

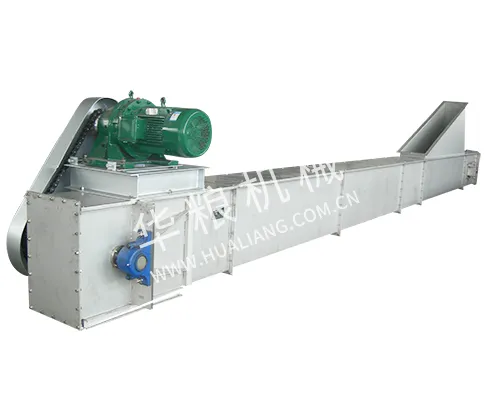

1) Horizontal Transport
In horizontal transport mode, the scraper chain directly engages the material. The combined friction between the material and the trough walls stabilizes the material while the scraper chain's thrust conveys everything forward as a cohesive unit.

2) Vertical Transport
During vertical transport, the scraper's thrust, material gravity, and the pressure from lower to upper segments create lateral pressure against the trough walls. This stabilizes the material, preventing slippage and ensuring smooth upward movement by countering gravitational and frictional forces.

• Simplicity in structure, lightweight design, and compact size.
• Easy to manufacture, install, operate, and maintain.
• Excellent sealing ensures minimal dust dispersion.
• Straightforward feeding and discharging mechanisms support multiple inlet and outlet points.

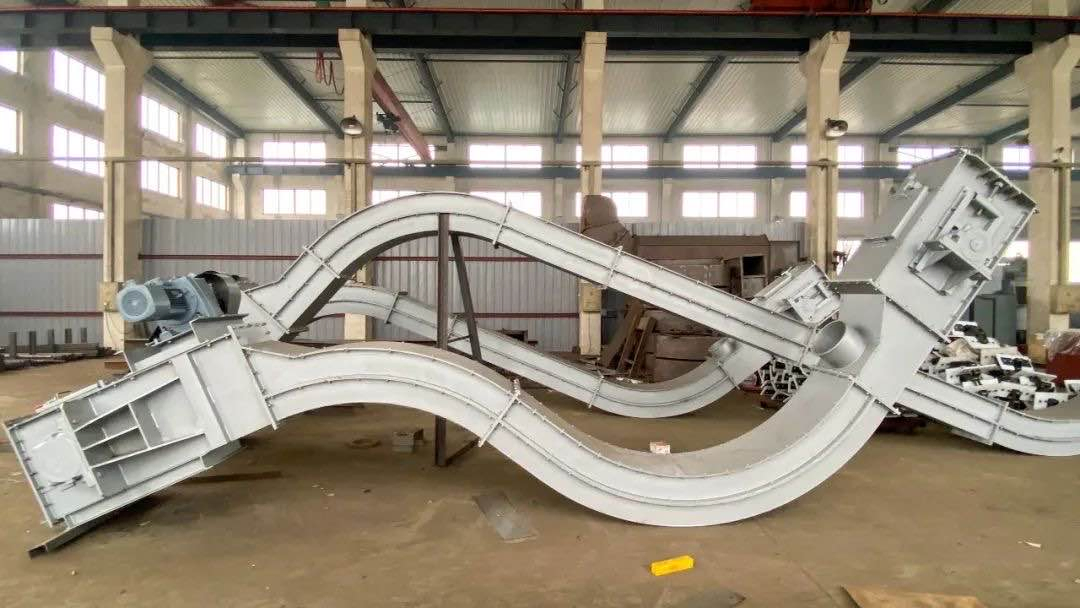

• Flexible technology layout allows transportation in multiple directions.
• Note: Scraper chain and trough can be prone to wear; high-moisture materials may cause adhesion.
