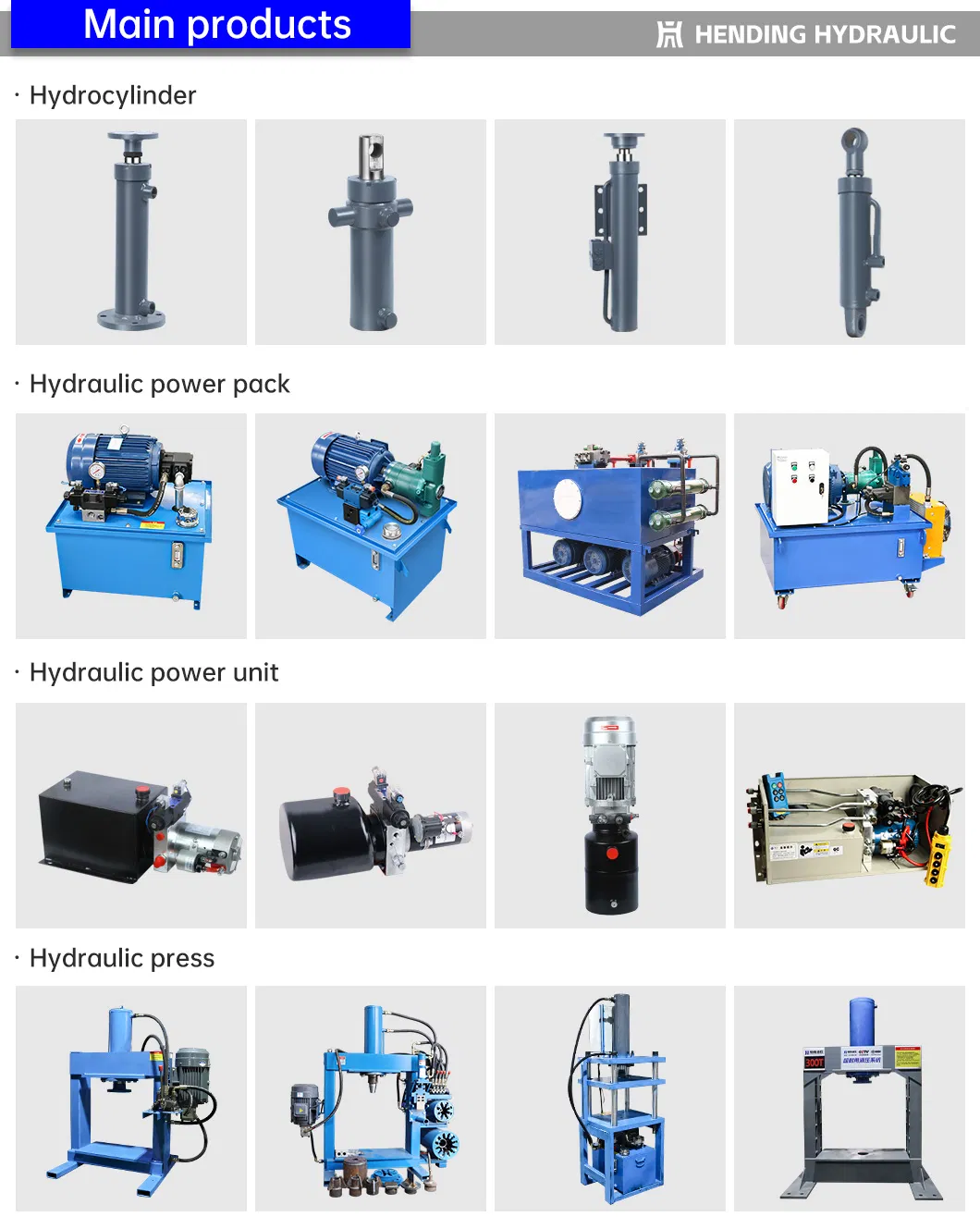

We are a manufacturer specializing in the sales and manufacturing of hydraulic and mechanical equipment. Our products include hydraulic cylinders, hydraulic valves, and hydraulic systems widely used in automation equipment, agricultural machinery, lifting machinery, intelligent storage, and marine industries.
Our capabilities include standard series and non-standard customization to meet special industrial needs.

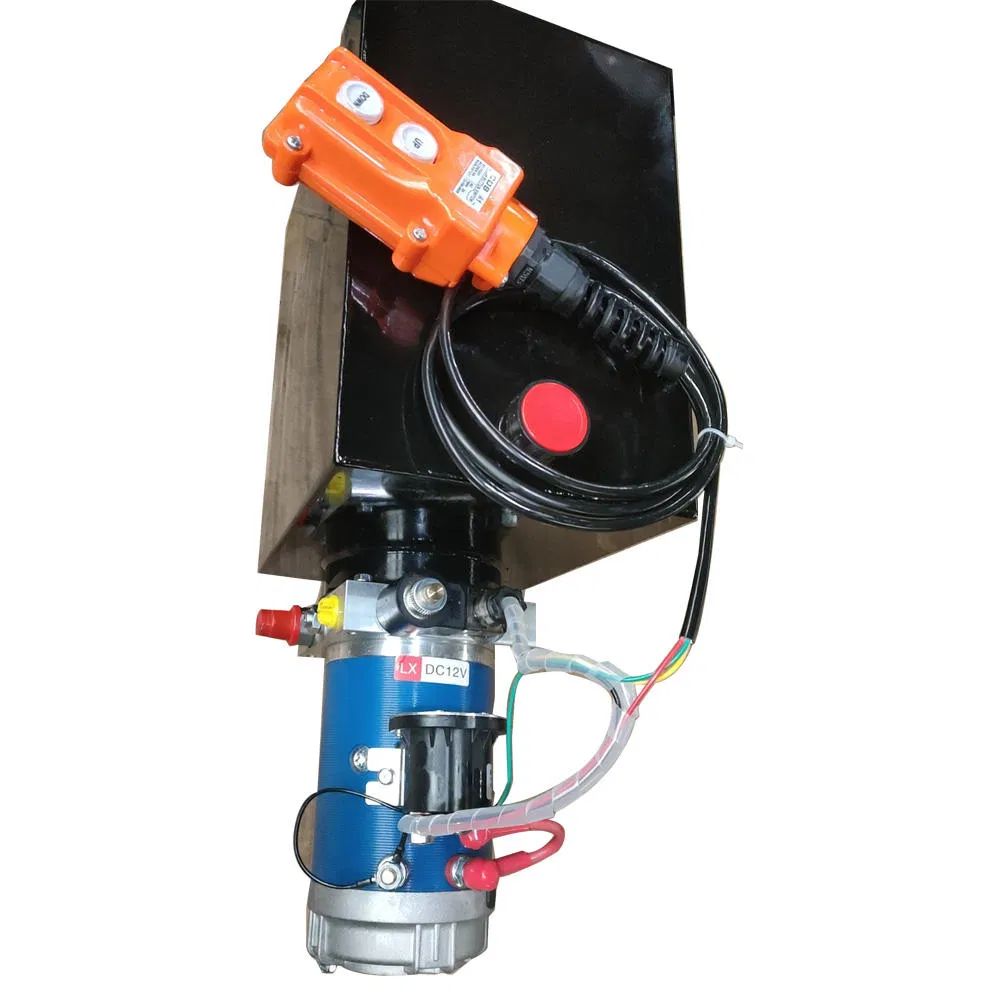

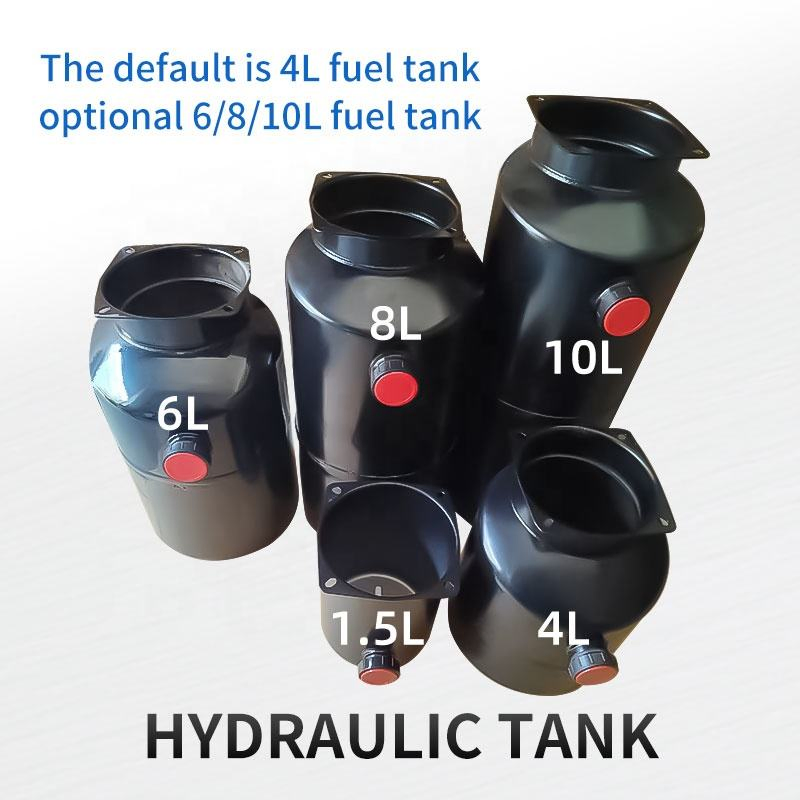

| Motor Voltage | Speed | Motor Power | Pump Displacement | Pressure | Tank Capacity |
|---|---|---|---|---|---|
| 12V/24V/48V DC | 2800 RPM | 1.5 - 3 KW | 1.1 - 2.6 ML/R | 6 - 14 MPa | 4 - 10 L |

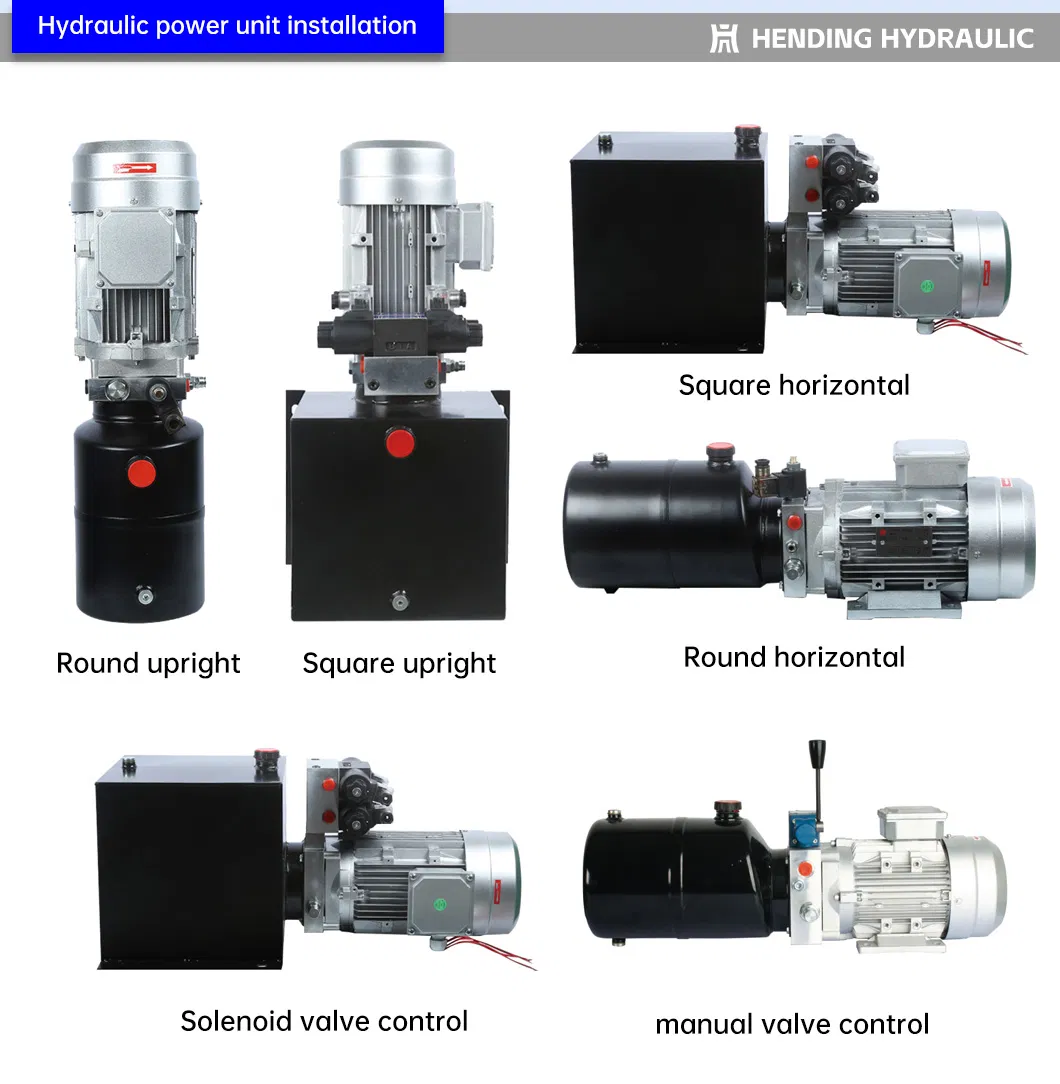

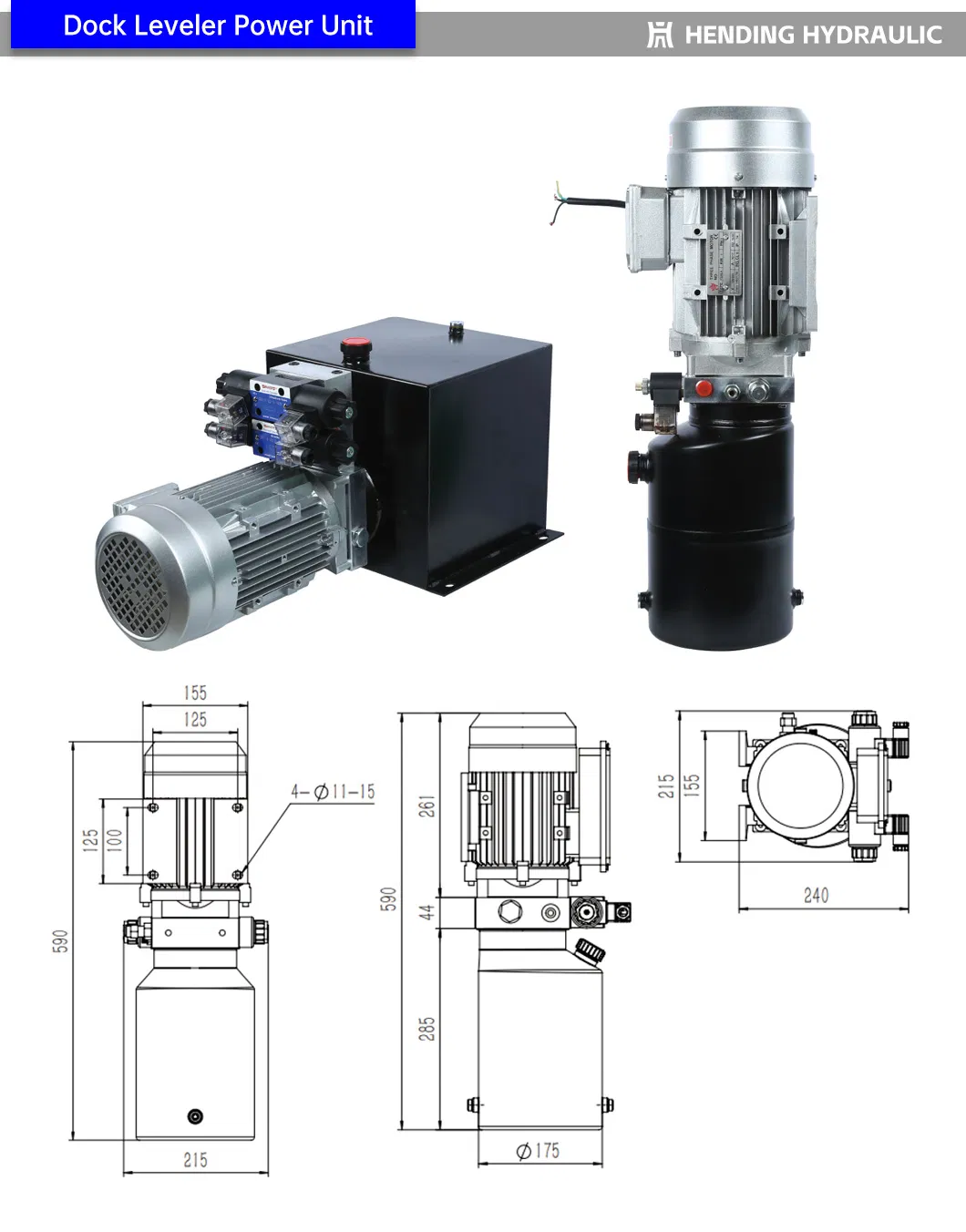

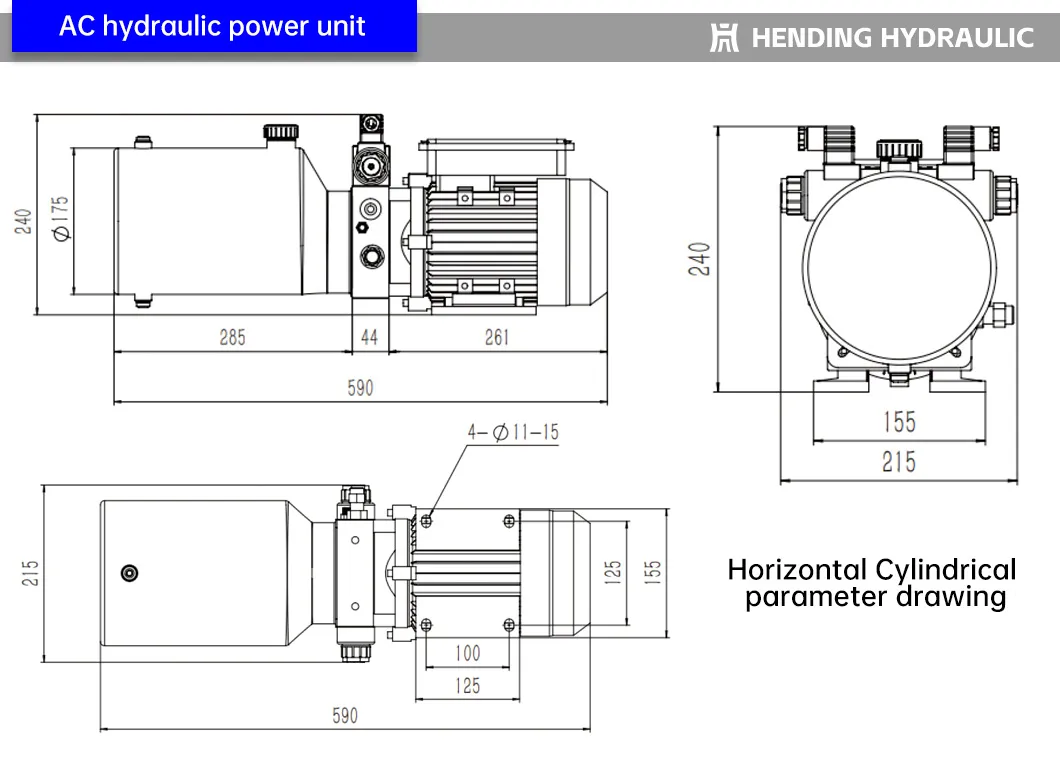

| Motor Voltage | Motor Power | Pump Displacement | Pressure | Oil Tank |
|---|---|---|---|---|
| 220V / 380V AC | 0.75 - 2.2 KW | 1.1 - 3.2 ML/R | 10 - 20 MPa | 4 - 10 L |
| Cylinder Dia (mm) | Rod Dia (mm) | Thrust @ 10MPA (t) | Pull @ 10MPA (t) | Thrust @ 16MPA (t) | Pull @ 16MPA (t) |
|---|---|---|---|---|---|
| 40 | 25 | 1.2 | 0.7 | 2.0 | 1.2 |
| 50 | 28 | 1.9 | 1.3 | 3.1 | 2.1 |
| 63 | 35 | 3.1 | 2.1 | 4.9 | 3.4 |
| 80 | 50 | 5.0 | 3.0 | 8.0 | 4.9 |
| 100 | 63 | 7.8 | 4.7 | 12.5 | 7.5 |
