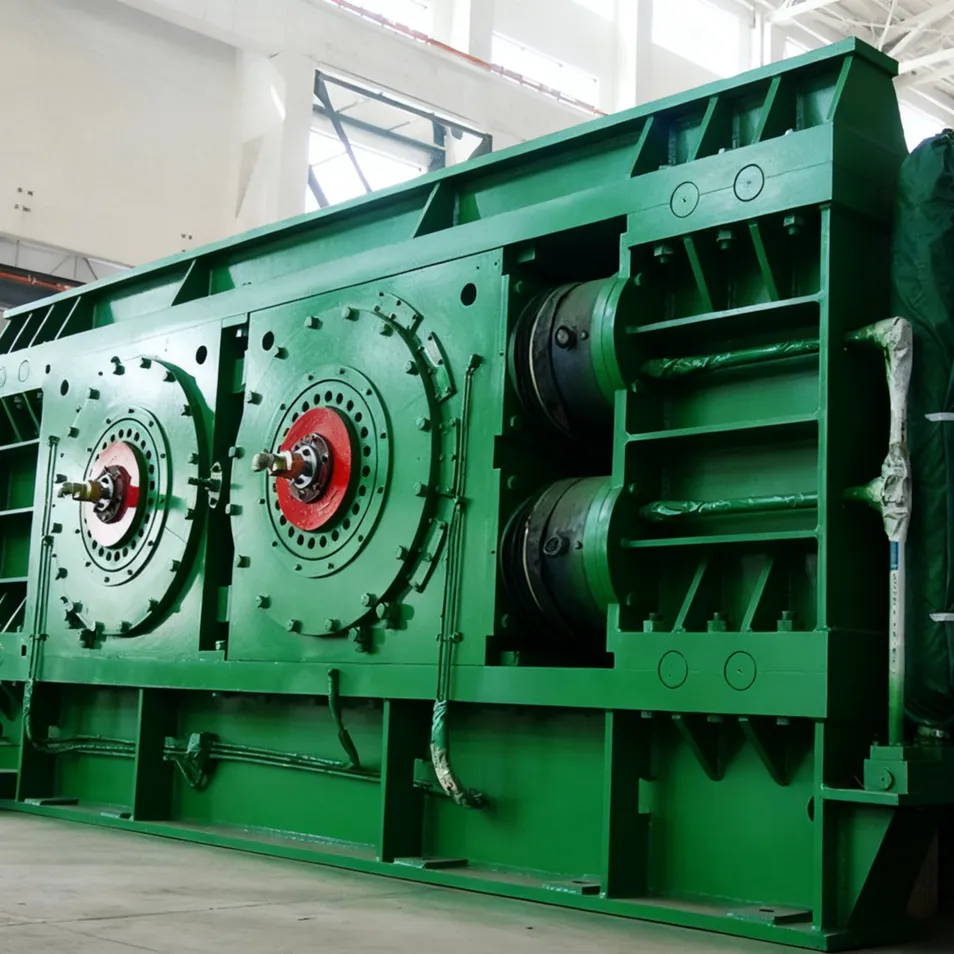

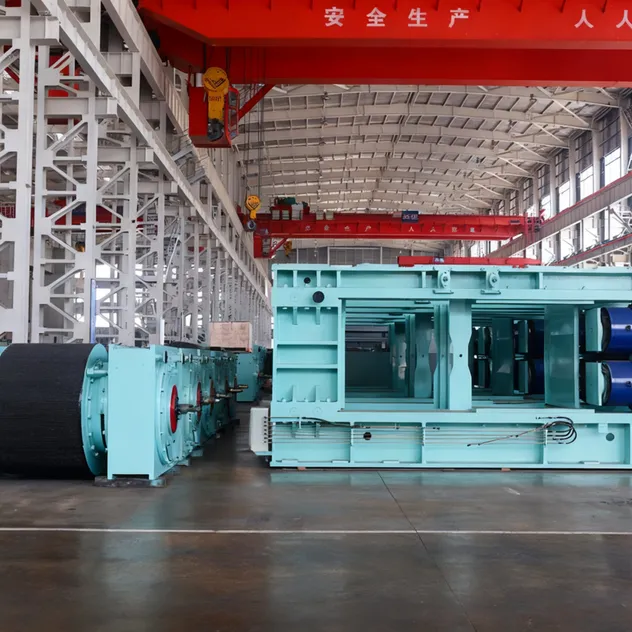

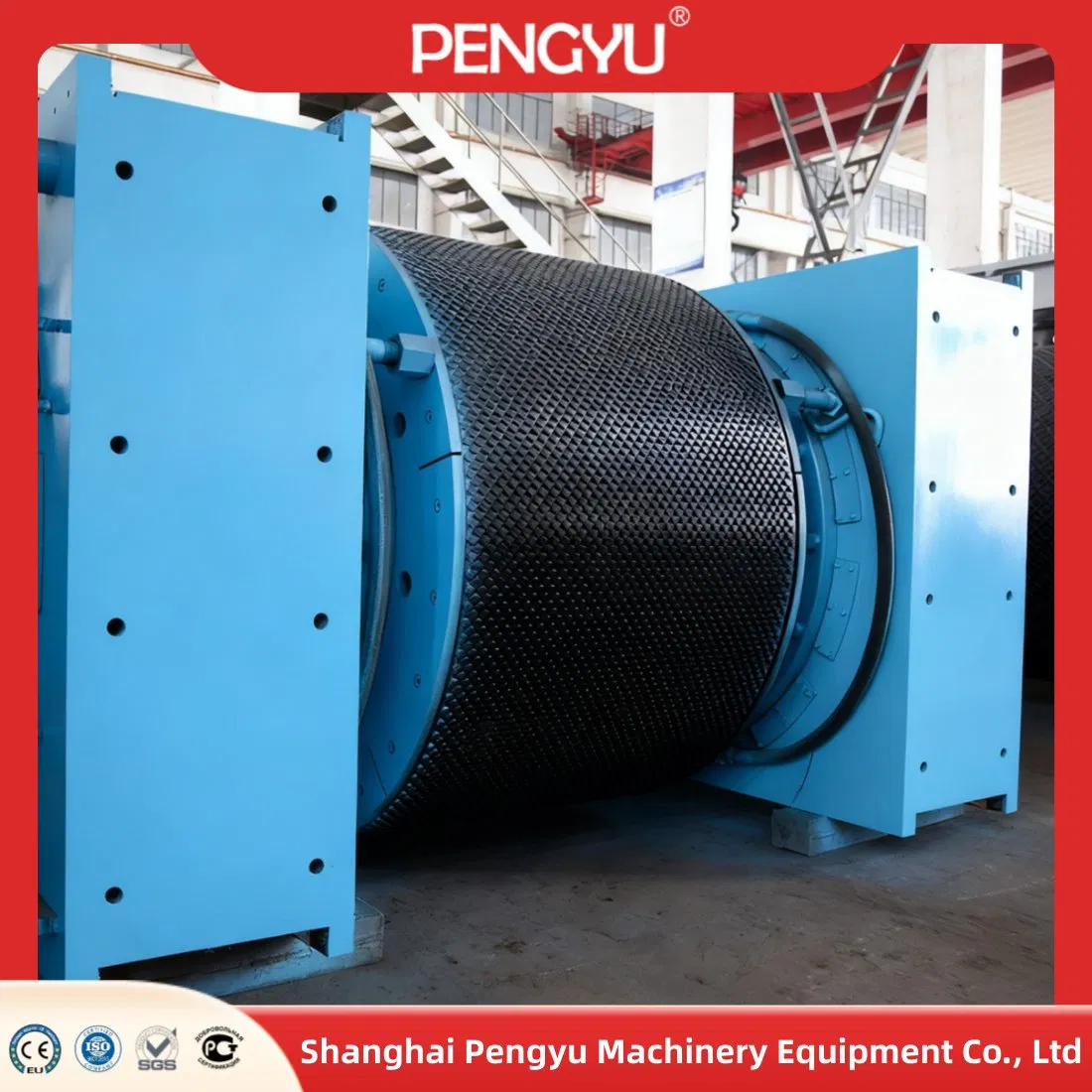

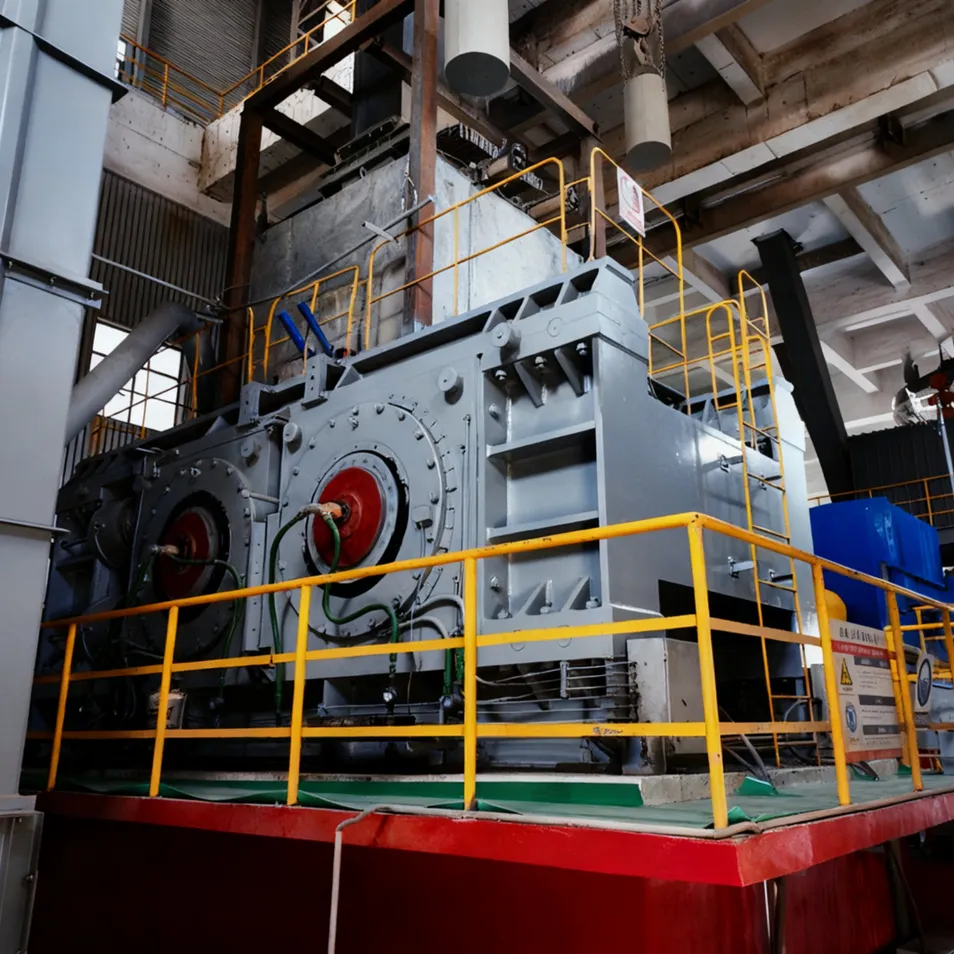

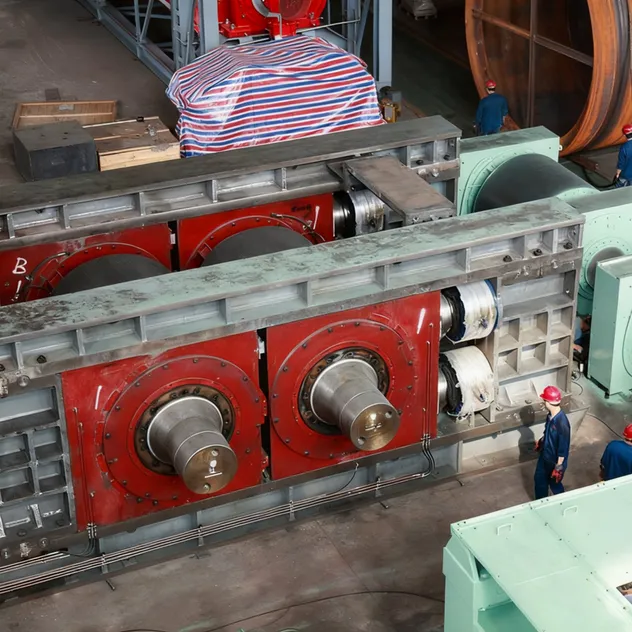

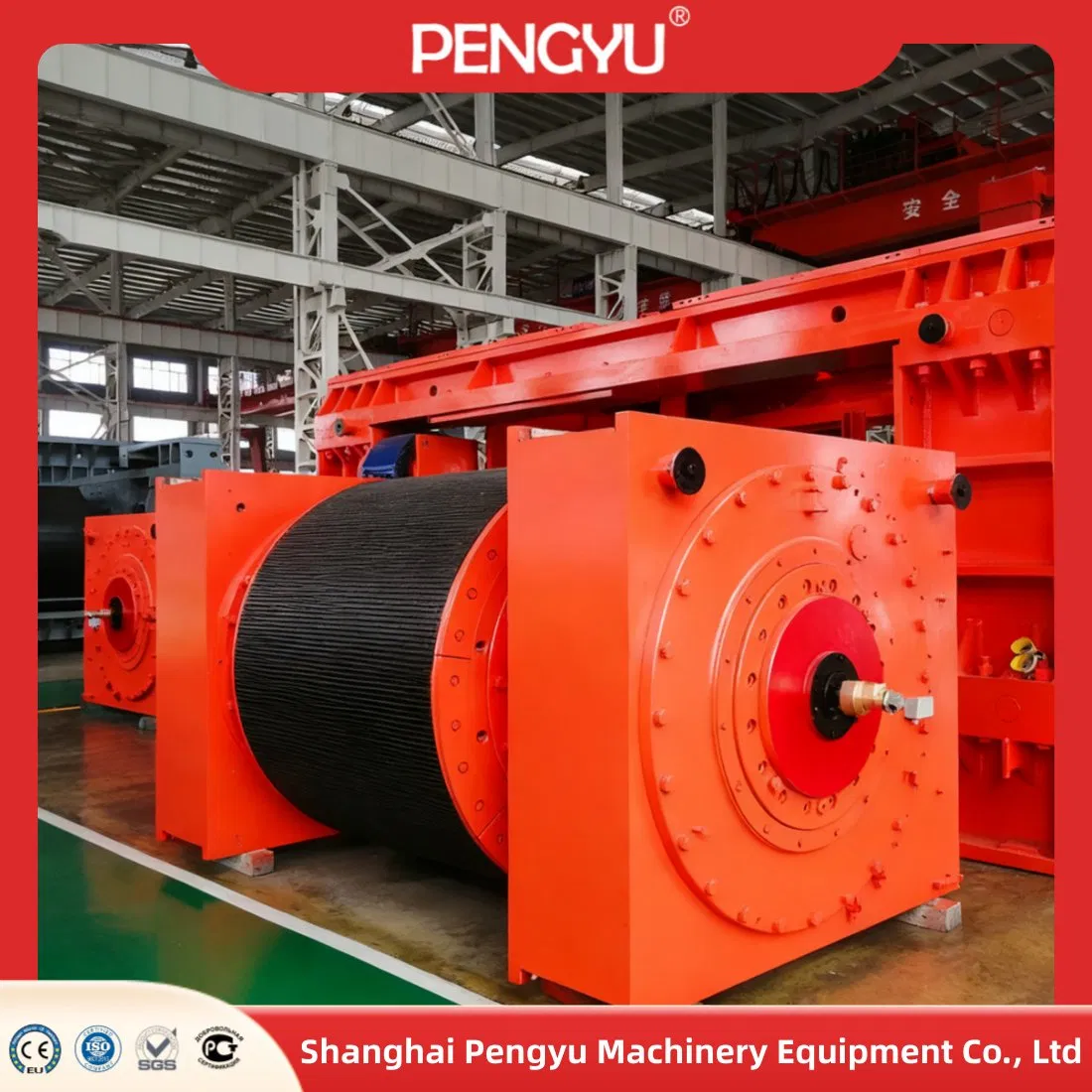

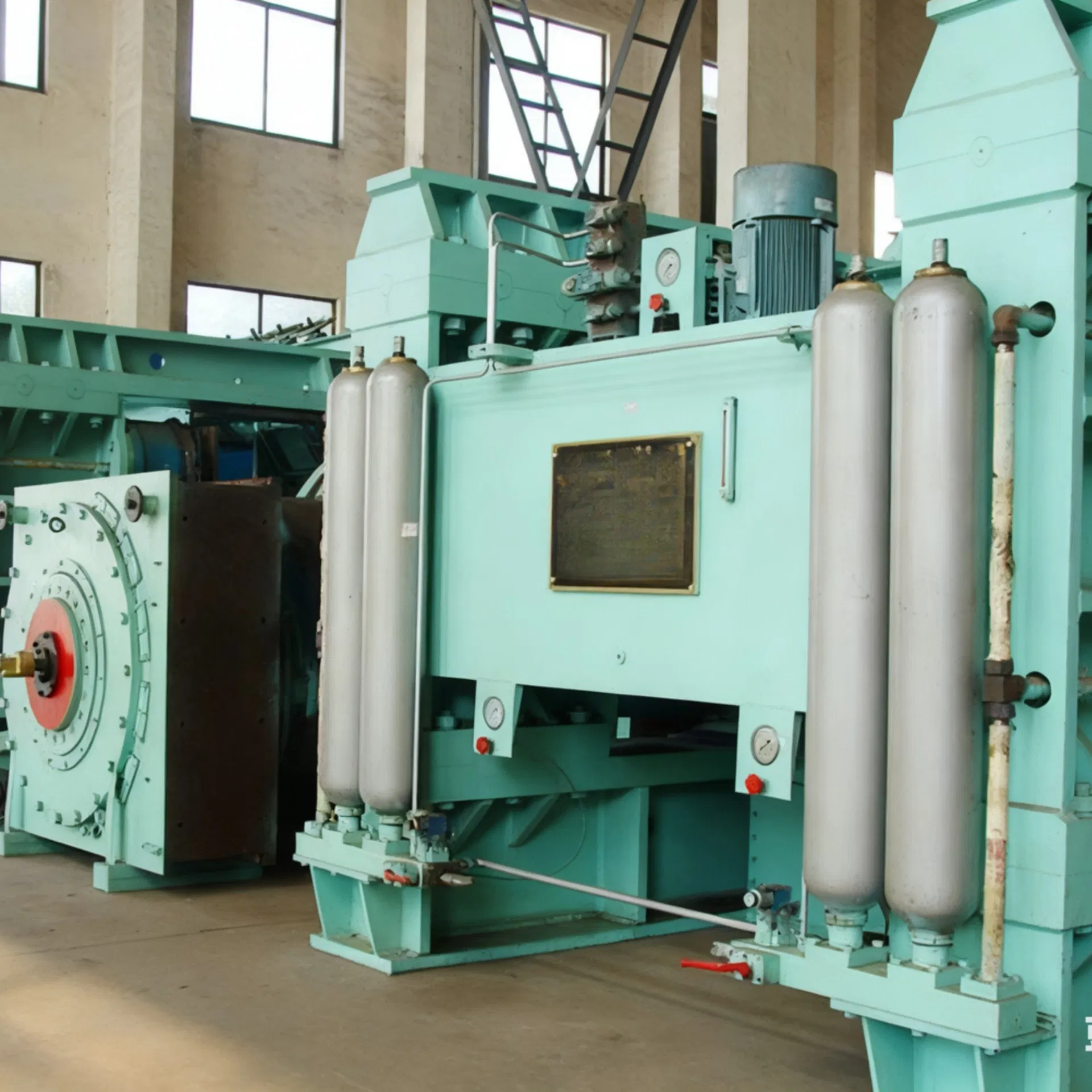

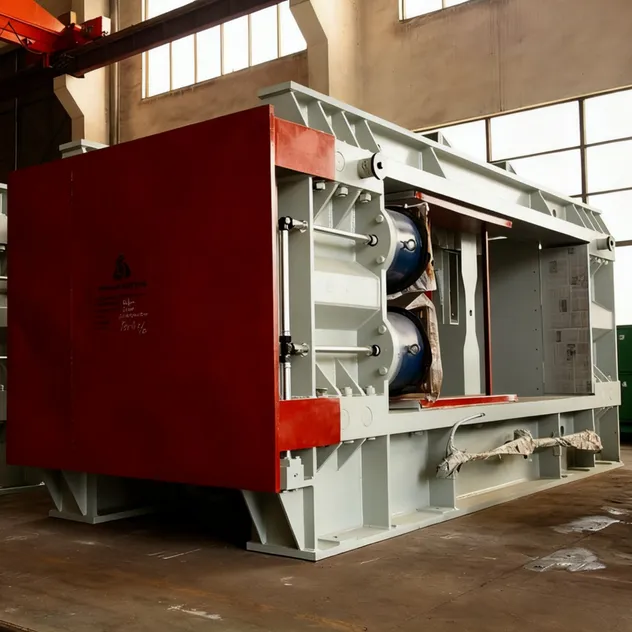

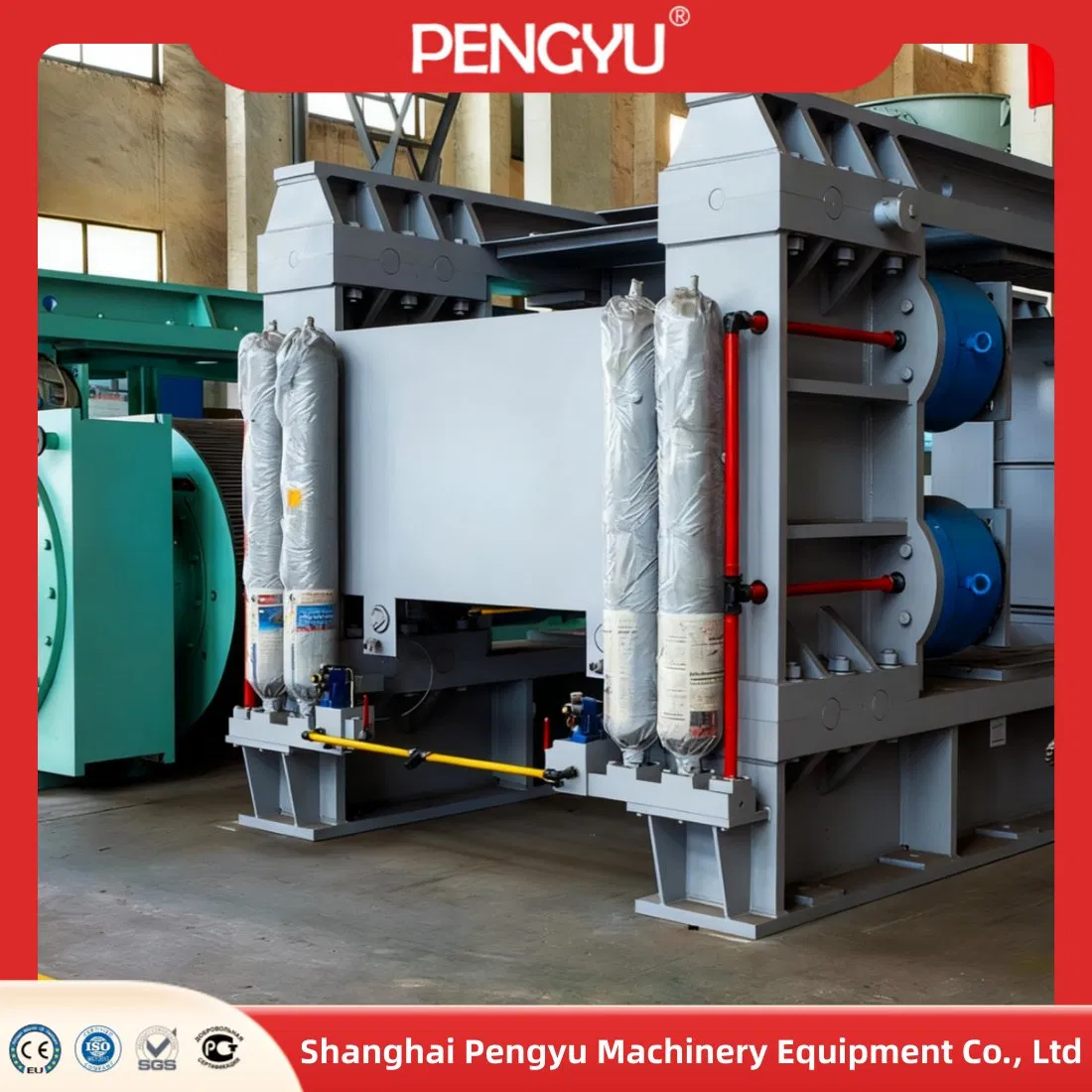

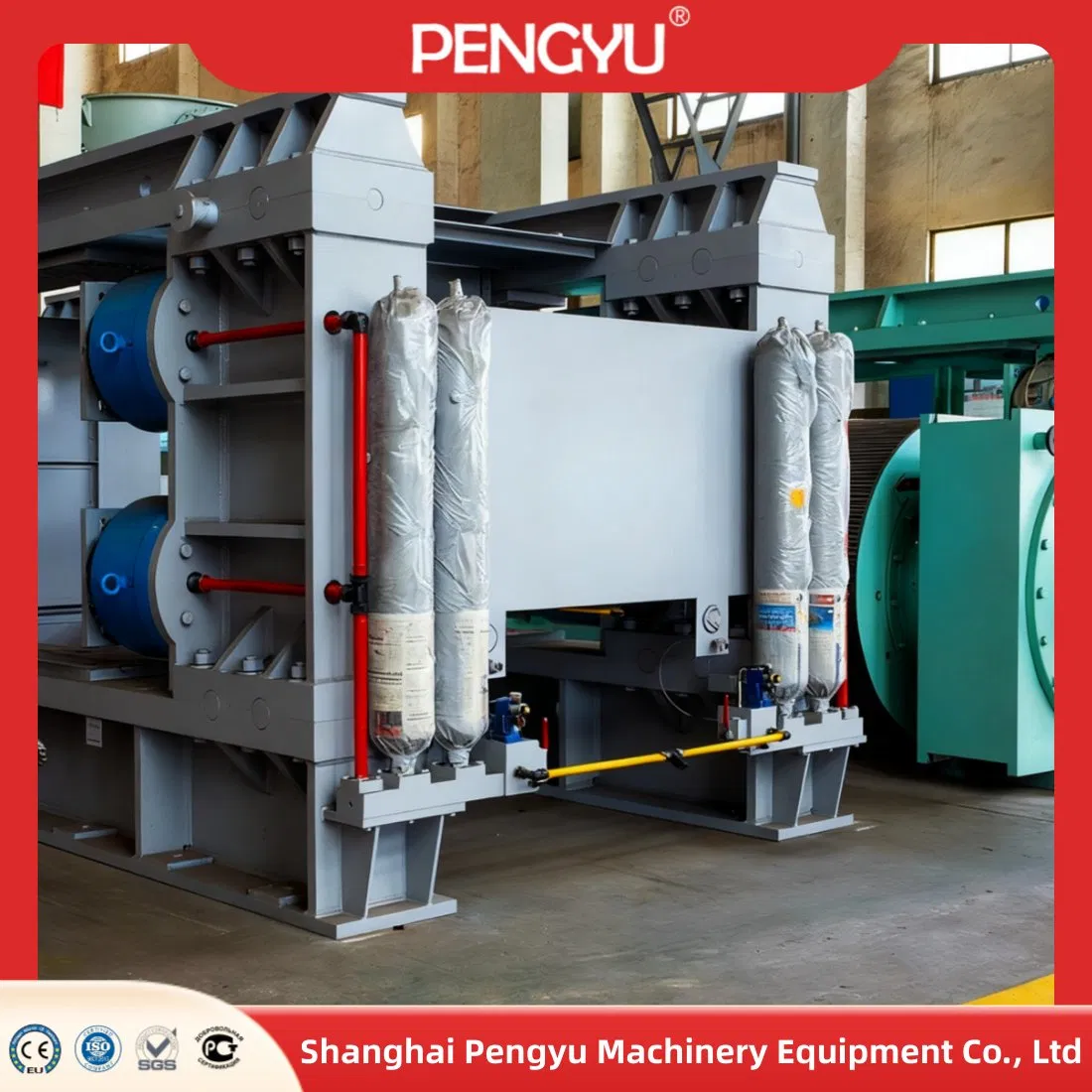

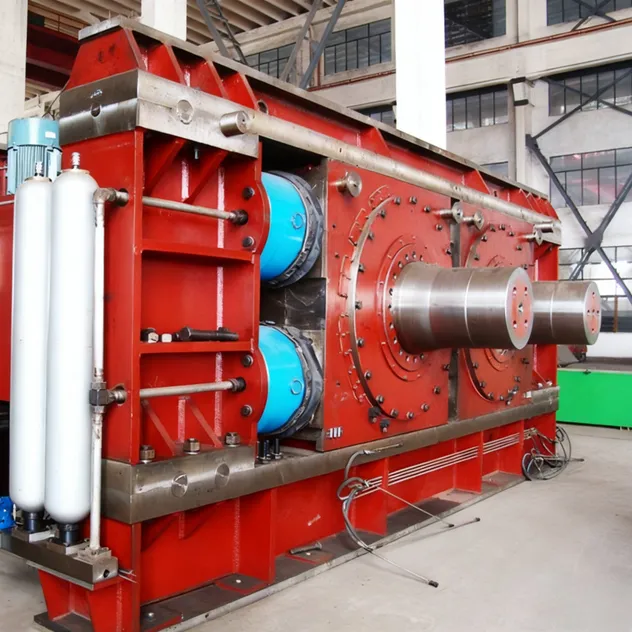

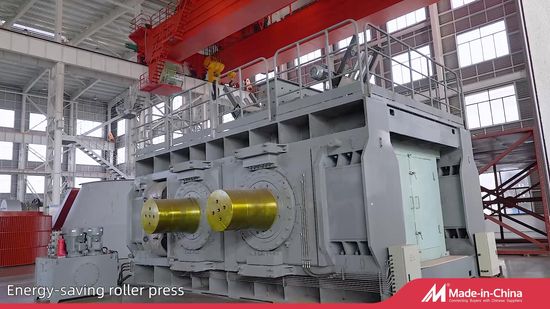

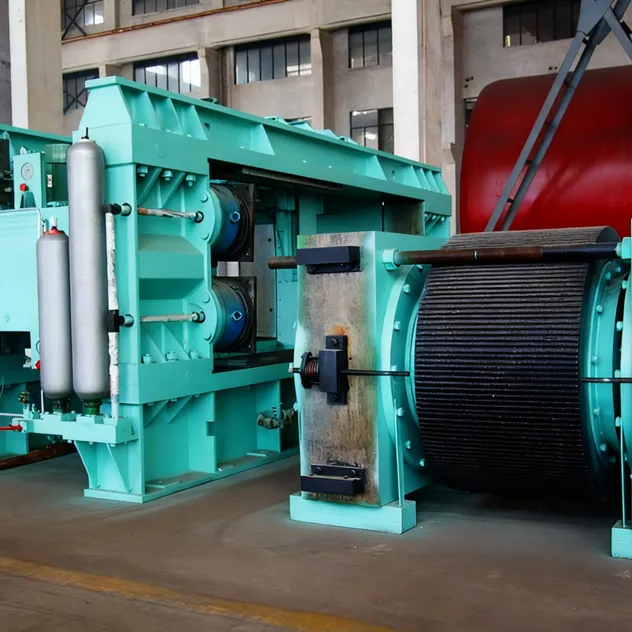

Roller presses are a new type of energy-saving cement grinding equipment. Employing bed-based grinding technology, they integrate roller presses, dispersing, grading, drying, and powder selection into a single grinding system.
Due to the change in grinding principle, the roller press and its grinding system technology reduce power consumption by 50-100% and increase output by 100-300%.
The resulting material cake contains 20-35% fine particles (0.08mm) and 65-85% particles smaller than 20mm, significantly improving grindability through micro-cracks created during compression.
(Custom configurations available upon request)
| Model | Roller Dia (mm) | Roller Width (mm) | Roller Speed (m/s) | Max Feed (mm) | Grinding Capacity (t/h) | Motor Power (kw) | |
|---|---|---|---|---|---|---|---|
| Clinker | Raw Material | ||||||
| PFG120-60 | Φ1200 | 600 | 1.47 | 55 | 110~165 | 175~220 | 280*2 |
| PFG140-80 | Φ1400 | 800 | 1.6 | 60 | 300~350 | 320~390 | 560*2 |
| PFG160-120 | Φ1600 | 1200 | 1.56 | 60 | 500~650 | 550~700 | 1000*2 |
| PFG180-140 | Φ1800 | 1400 | 1.96 | 65 | 800~1000 | 900~1100 | 1400*2 |
| PFG200-180 | Φ2000 | 1800 | 1.93 | 75 | 1000~1250 | 1200~1500 | 2240*2 |
| PFG220-200 | Φ2200 | 2000 | 1.93 | 75 | 1200~1500 | 1400~1800 | 2800*2 |

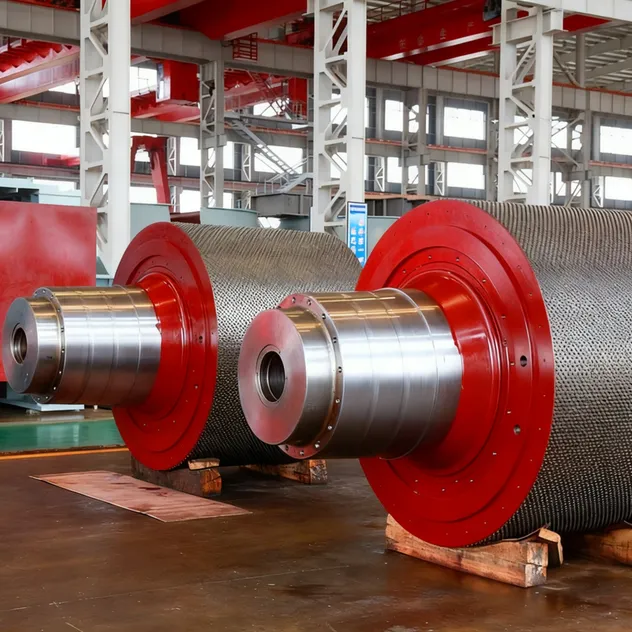

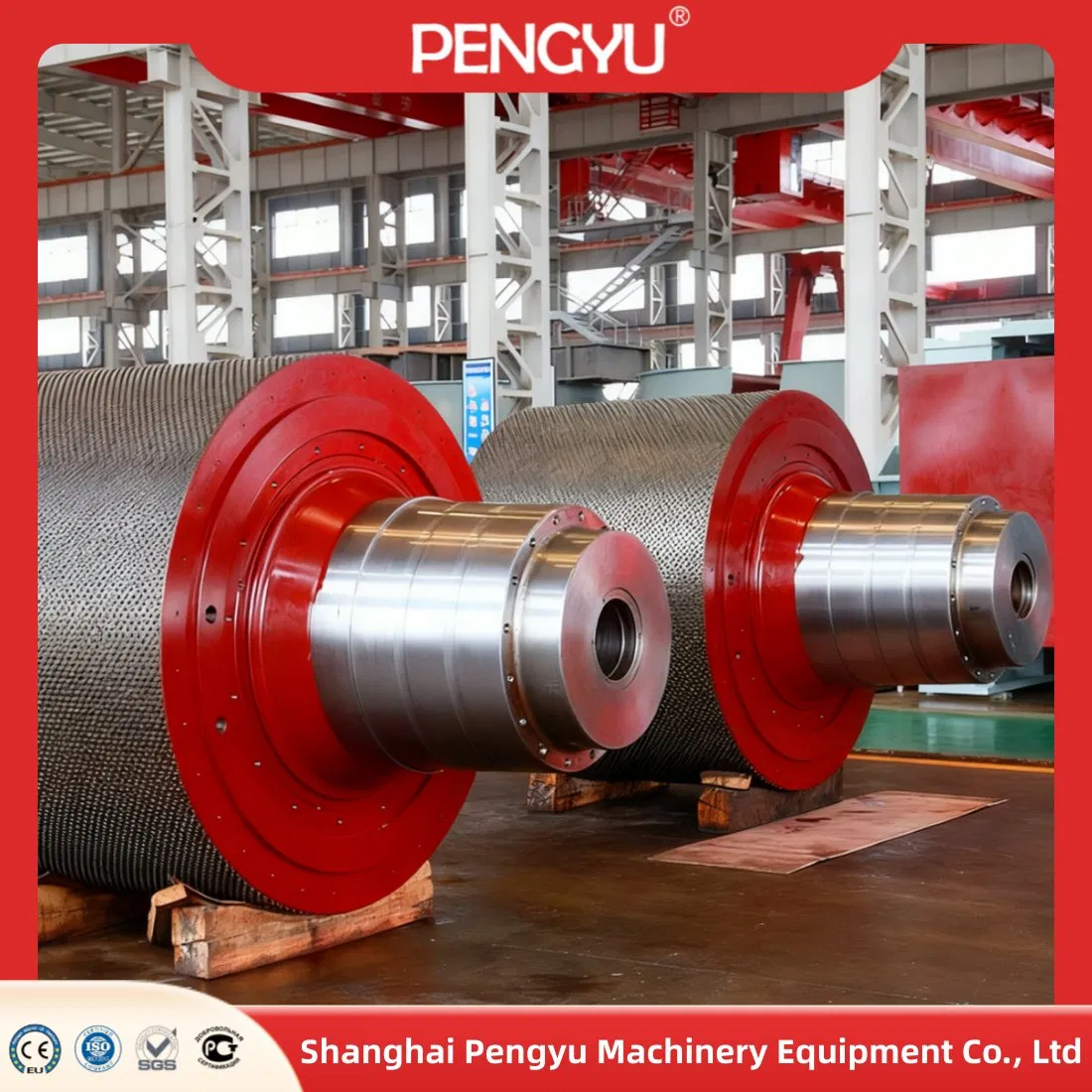

Providing original model spare parts and customization according to customer drawings.
Products are exported to more than 70 countries and regions including Germany, Denmark, Russia, Japan, South Korea, Brazil, Egypt, and throughout South America. We provide complete sets of equipment for cement grinding lines with capacities up to 10,000 tons per day.
