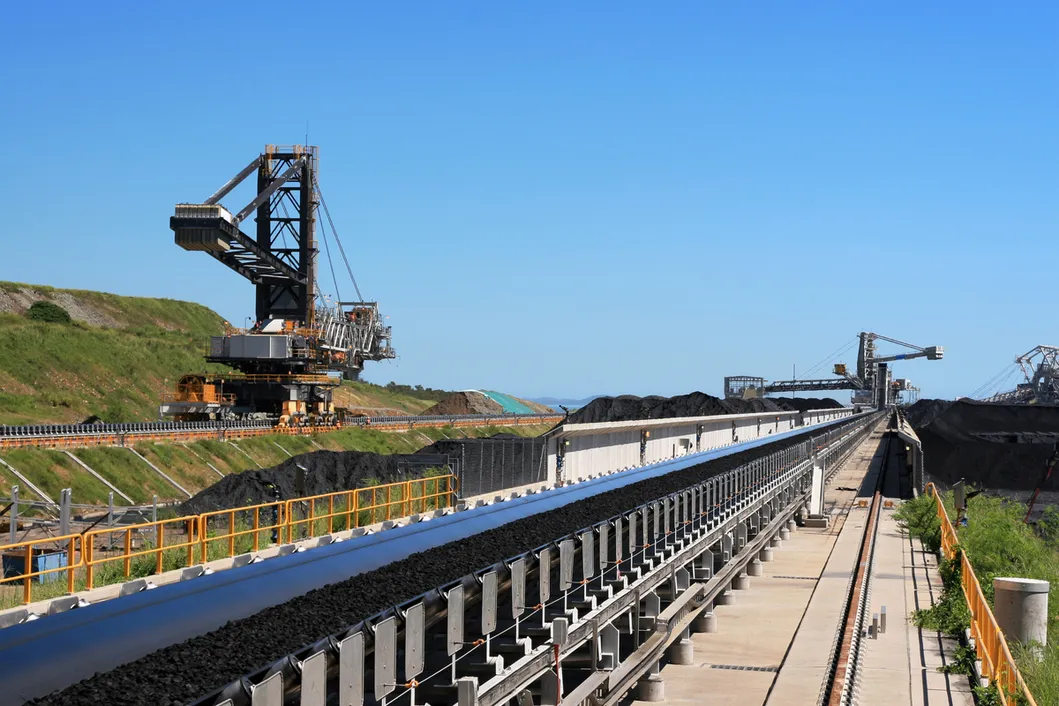

Belt Conveyors are essential for the transport of bulk materials and solid objects at high speed, covering distances up to 30,000 meters. These systems enable high throughput and mass flows of heavy materials across rough terrain and mountainous landscapes.
Technical Specifications
| Belt width(mm) |
Belt speed (m/s) / Capacity (m³/h) |
| 0.8 | 1.0 | 1.3 | 1.6 | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 | 6.5 |
| 500 | 69 | 87 | 108 | 139 | 174 | 217 | - | - | - | - |
| 800 | 198 | 248 | 310 | 397 | 496 | 620 | 781 | - | - | - |
| 1000 | 324 | 405 | 507 | 649 | 811 | 1014 | 1278 | 1622 | - | - |
| 1400 | - | 825 | 1032 | 1321 | 1652 | 2065 | 2602 | 3304 | 4130 | - |
| 2000 | - | - | - | - | 3470 | 4338 | 5466 | 6941 | 8676 | 11277 |
Key Features
- Reliable and efficient - designed for decades of operation.
- Curved single-flight conveying systems of 20 km and longer.
- Conveying capacity up to 10,000 t/h for heavy ores.
- Low-wear construction even with highly abrasive materials.

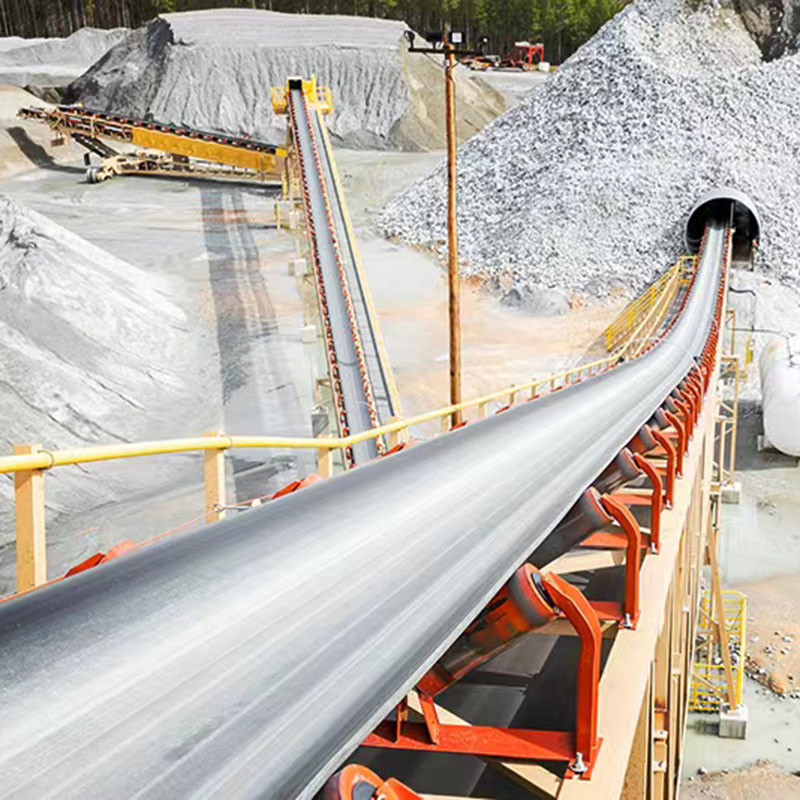

- Supports angles of inclination up to 30°.

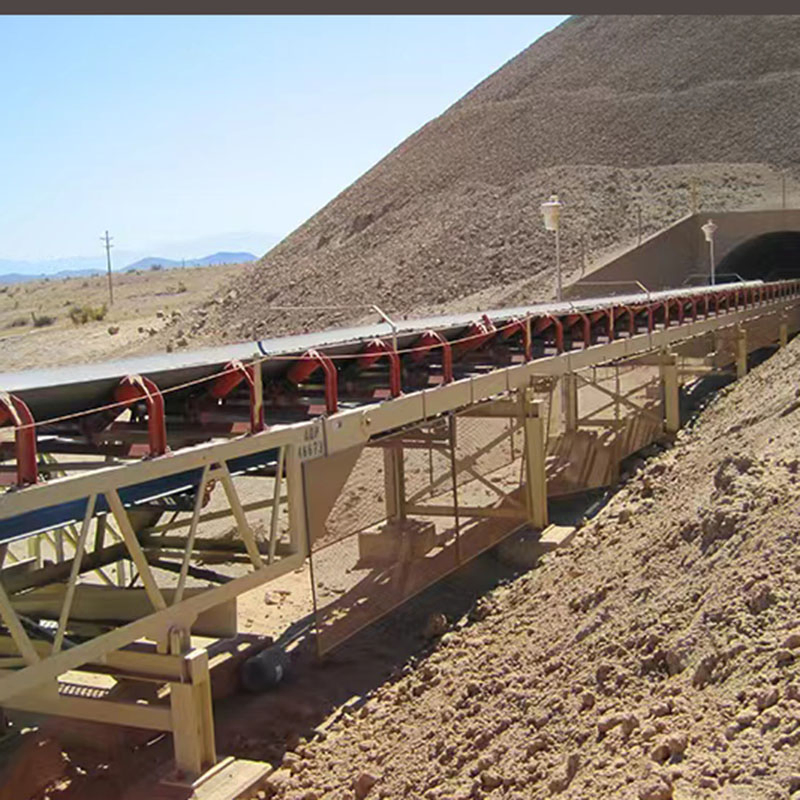

- Adapted to geographic conditions with horizontal and vertical curves.
Frequently Asked Questions
What materials can these belt conveyors handle?
They are suitable for bulk materials including ores (iron, copper, gold), coal, limestone, cement, fertilizer, grain, and even waste materials.
What are the available belt width and speed options?
We provide CEMA standard belt widths ranging from 18 to 84 inches, with conveying speeds between 0.8 and 6.5 m/s.
Which international standards are followed during production?
Our belt conveyors and components are manufactured according to CEMA, JIS, DIN, and ISO standards to ensure global compatibility and quality.
Can the system handle curved or rough terrain?
Yes, our systems are designed with horizontal and vertical curves to adapt to geographical challenges like mountainous or fragmented terrain.
What is the maximum capacity and distance of the conveyor?
The system can cover distances up to 30km with a single-flight design and reach a handling capacity of over 10,000 t/h.

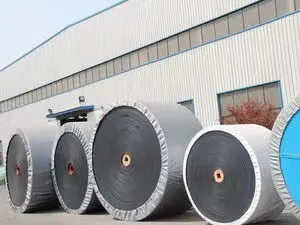

What types of specialized belts are available?
We offer a variety of specialized belts including heat-resistant, fire-resistant, oil-resistant, cut-resistant, and steel cord belts for high-tension applications.
