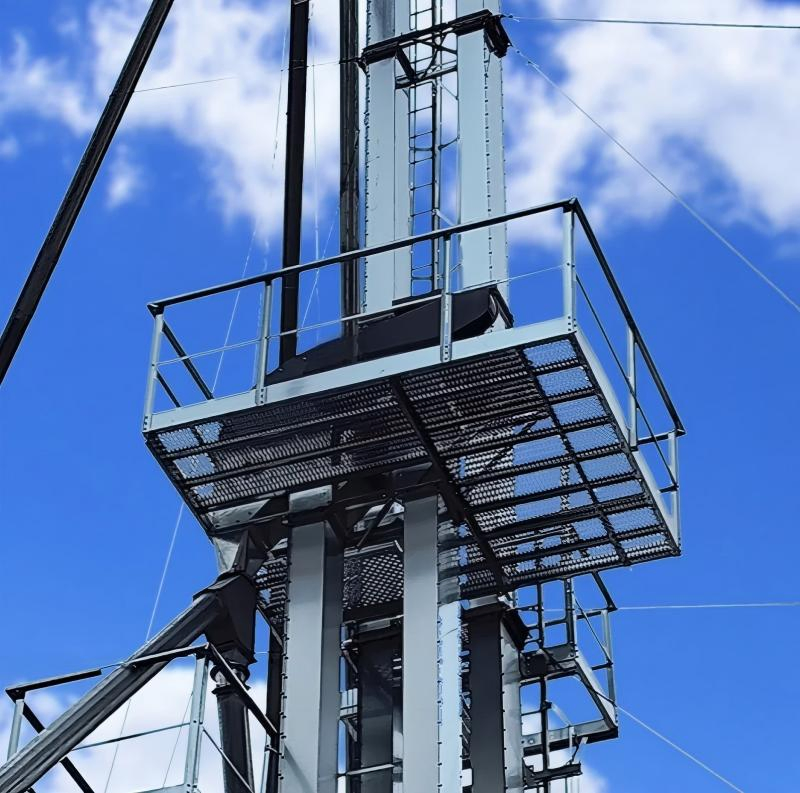

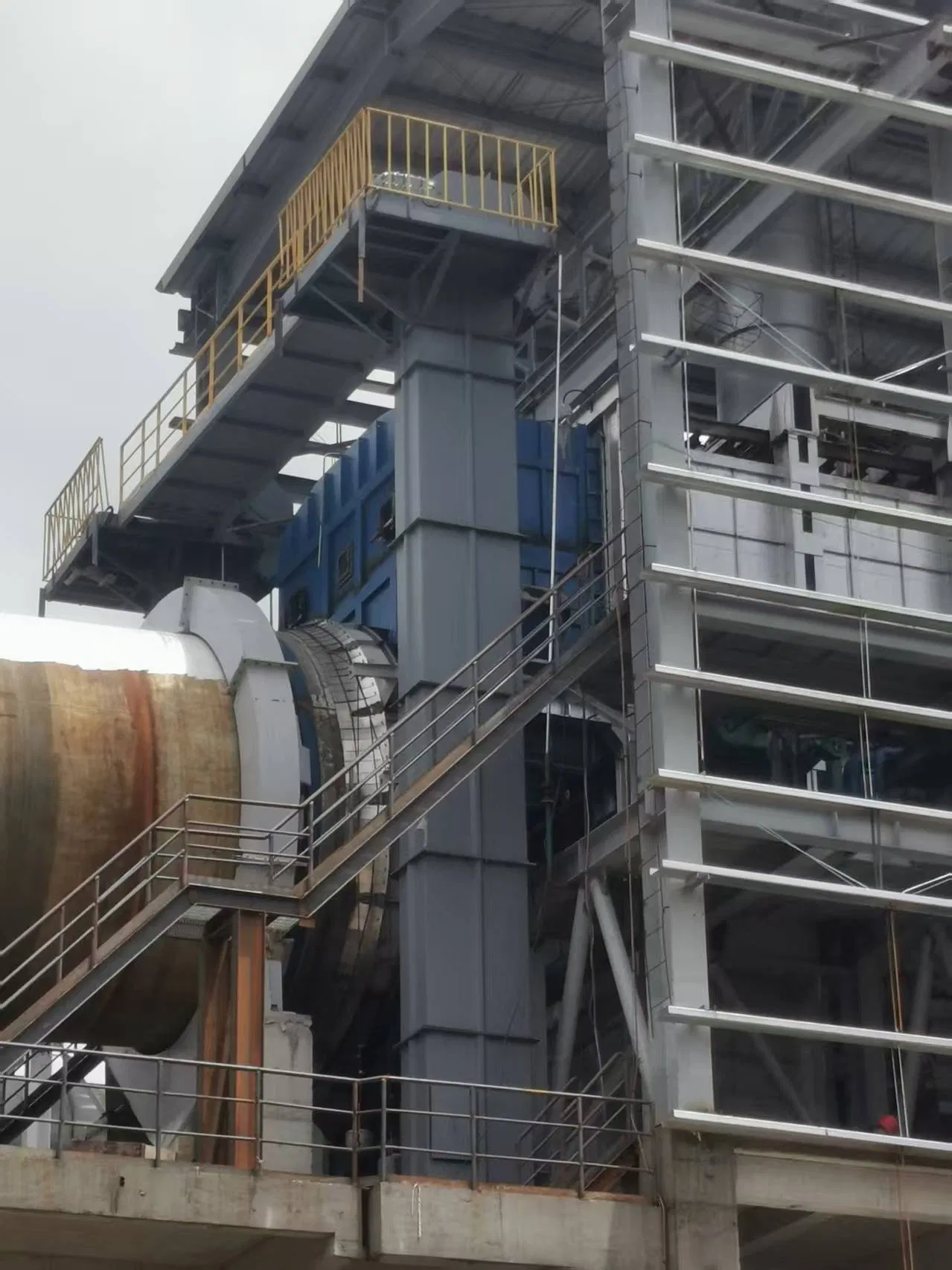

A Bucket Elevator is a mechanical conveying system used for vertical lifting of bulk materials such as grains, powders, pellets, and small-sized lumps. It consists of a series of buckets attached to a belt or chain that rotates over head and boot pulleys, allowing materials to be transported efficiently from a lower level to a higher elevation.
Our bucket elevators are available in multiple configurations, including centrifugal belt, centrifugal chain, continuous belt, continuous single chain, and continuous double chain designs. Each elevator is custom-built to match the unique properties of the handled material (such as bulk density, particle size distribution, and temperature), as well as the specific horsepower and lift height requirements.
| Model Number | Pulley Diameter | Bucket Size | Bucket Spacing | Trunk Size | Discharge Capacity | Spout Size |
|---|---|---|---|---|---|---|
| 18-75-075 / 18-75-065 | 18″ | 7″ x 5″ | 7.5″ / 6.5″ | 11″ x 9″ | 1,300 - 1,600 bu/hr | 6″ |
| 24-106-105 / 24-106-085 | 24″ | 10″ x 6″ | 10.5″ / 8.5″ | 14″ x 10″ | 2,500 - 3,600 bu/hr | 8″ |
| 30-117-100 / 30-117-085 | 30″ | 11″ x 7″ | 10″ / 8.5″ | 15″ x 12″ | 4,900 - 5,700 bu/hr | 10″ |
| 36-147-095 / 36-147-085 | 36″ | 14″ x 7″ | 9.5″ / 8.5″ | 18″ x 12″ | 7,300 - 8,200 bu/hr | 12″ |
| 42-148-095 / 42-188-095 | 42″ | 14″x8″ / 18″x8″ | 9.5″ | 18″x14″ / 22″x14″ | 10,400 - 13,500 bu/hr | 14″ / 16″ |
