📊 Basic Specifications
Model:FY350
Certification:CE, RoHS
Condition:New
Motor Type:AC Motor
Drill Hole Diameter:150-200mm
Drill Hole Depth:>200m
Bit Type:Diamond Bit
Drilling Way:Compound
Type:Crawler
Specification:6000*2000*2550
Origin:Shandong
HS Code:0101101010
Production Capacity:50 set/Year
📦 Packaging & Delivery
Package Size:6000.00cm * 2000.00cm * 2550.00cm
Gross Weight:8600.000kg

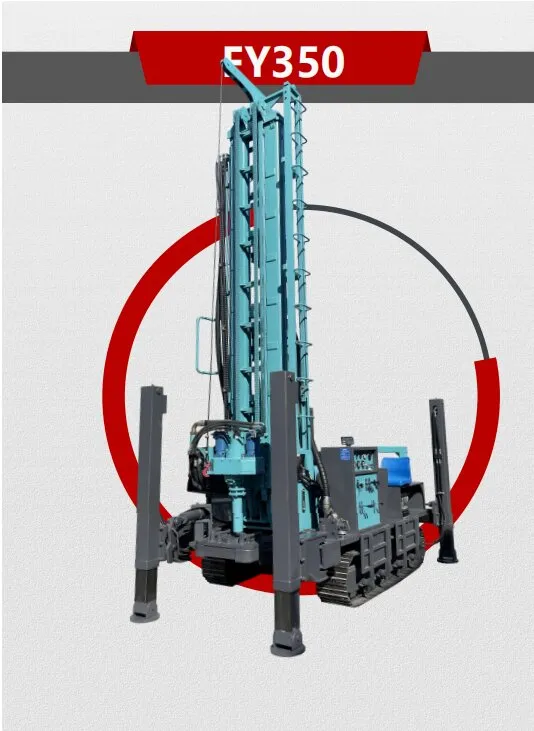

⚙️ Product Overview

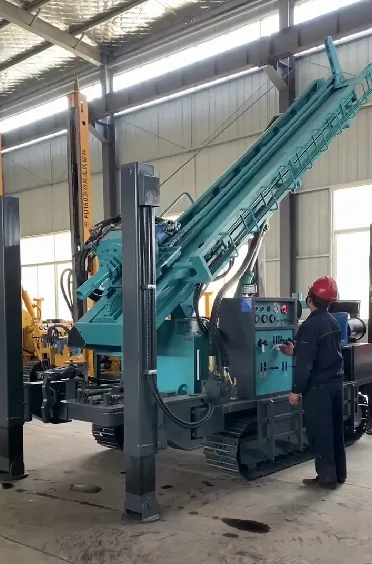

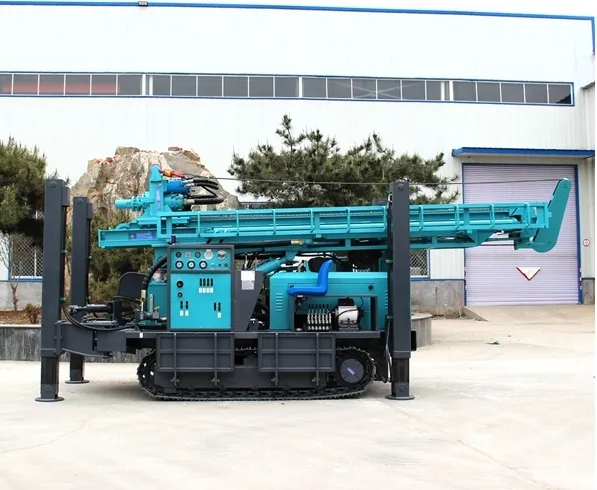

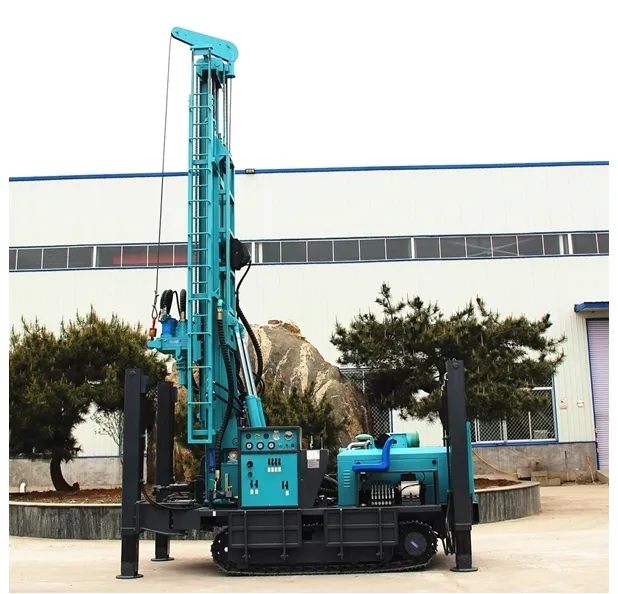

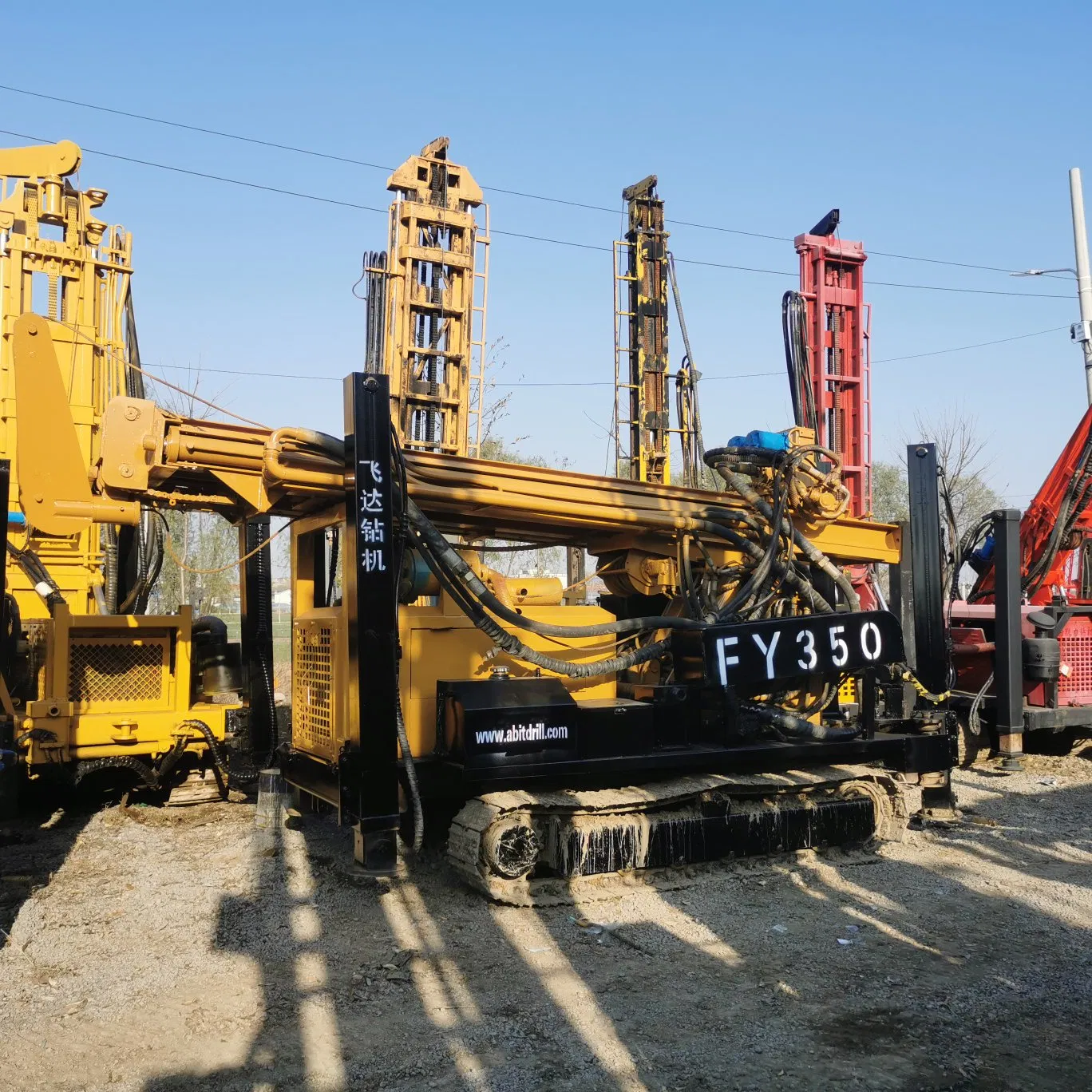

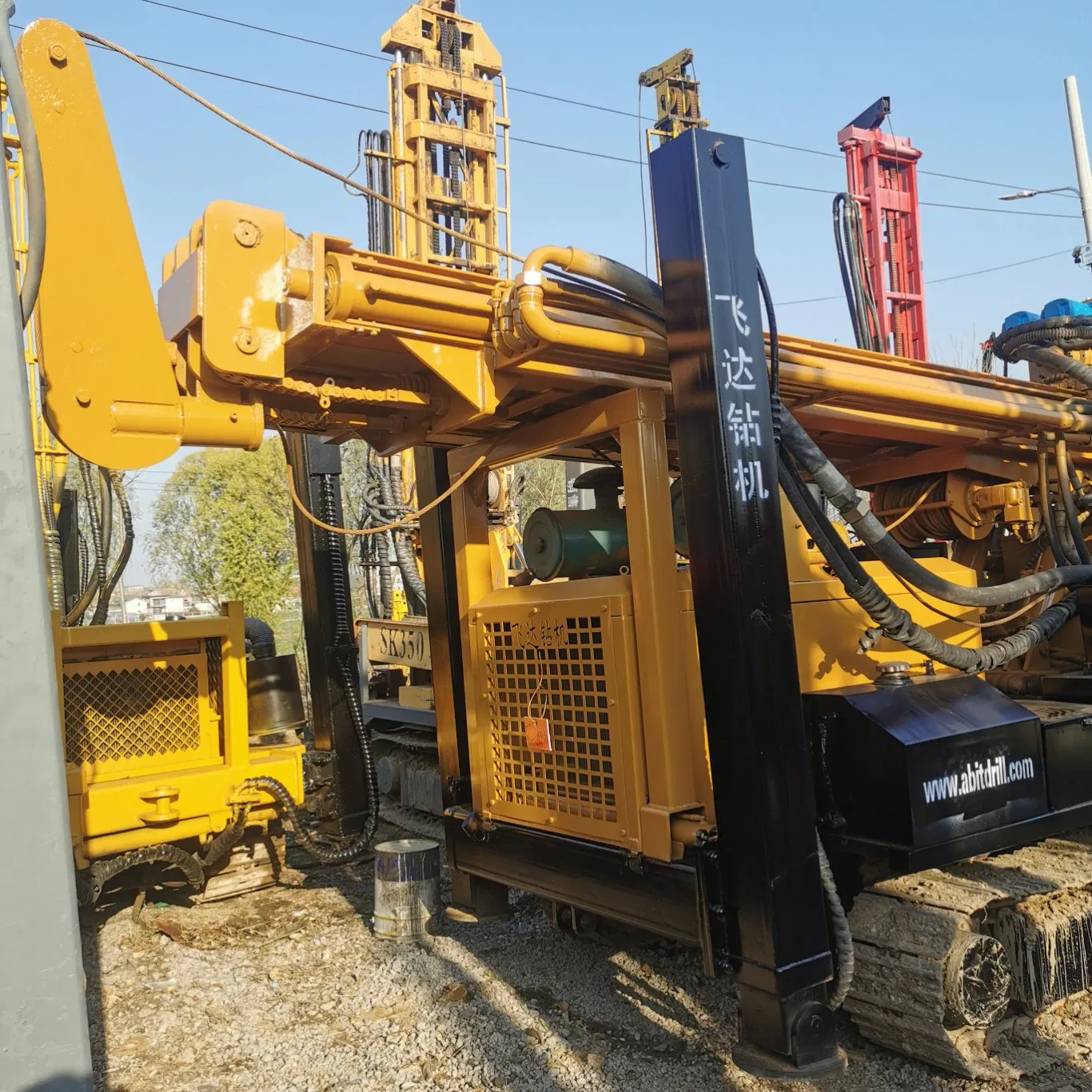

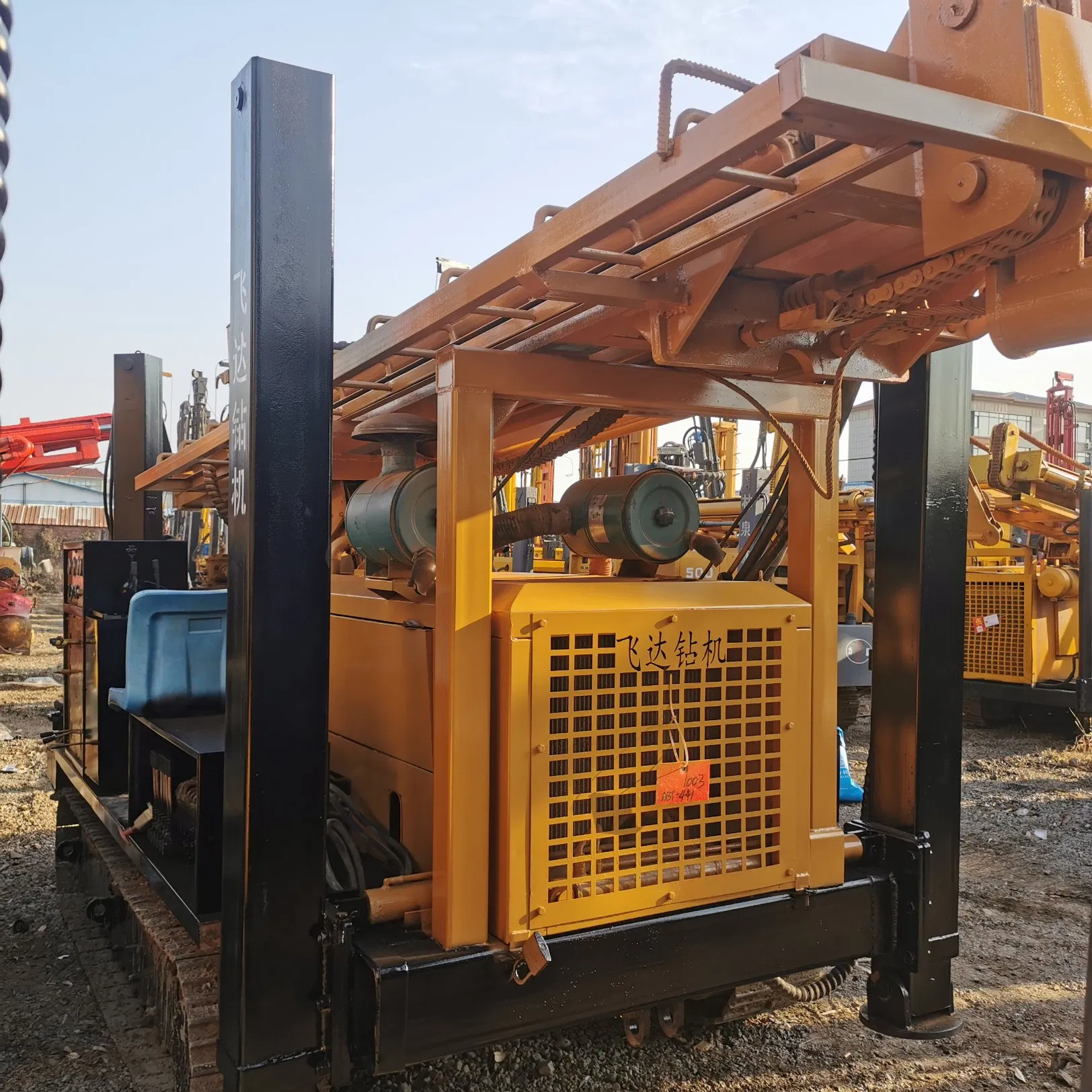

The FY350 water well drilling rig is a high-performance, 350-meter depth excavation machine. It is designed to be highly adaptable, accommodating drill rods of various diameters and equipped with heavy-duty steel tracks for superior mobility.
Dual Motor Rotation: Driven by dual motors providing large torque with adjustable speed in a compact size.
Triple Gear Pump: Ensures the oil pump is durable and highly reliable under heavy workloads.
Optimized Design: Features a combined platform with pedals for easy operation and aesthetic appeal.
Climatic Adaptability: Equipped with a clutch and auxiliary radiator, making it suitable for high altitudes and cold climates.
Advanced Travel Motor: Utilizes German technology for high torque, impressive climbing ability, and low failure rates.
Dual System Capability: Support for air power systems (air compressor) and mud pump systems.
📋 Technical Parameters
| Parameter |
Details (FY350) |
| Weight (T) | 8.6 |
| Hole Diameter (mm) | 140-325 |
| Drill Depth (m) | 350 |
| One-time Advance Length (m) | 6.6 |
| Walking Speed (km/h) | 2.5 |
| Gradeability (Max.) | 30° |
| Equipped Capacitor (kw) | 91 |
| Working Air Pressure (MPA) | 1.7-3.4 |
| Air Consumption (m³/min) | 17-36 |
| Swing Speed (rpm) | 66-135 |
| High Leg Stroke (m) | 1.4 |
| Drill Pipe Diameter (mm) | 89/102 |
| Rig Lifting Force (T) | 22 |
| Swing Torque (N.m) | 6200-8500 |
| Penetration Efficiency (m/h) | 15-35 |
| Engine Brand | Yuchai |
❓ Frequently Asked Questions
What is the maximum drilling depth of the FY350?
The FY350 is designed for high-efficiency excavation up to 350 meters in depth.
What type of terrain is this rig suitable for?
Thanks to its crawler-type design and German-technology travel motor, it has a gradeability of 30 degrees and performs well in rugged terrains, high altitudes, and cold climates.
Which engine brand powers the FY350?
The rig is powered by a reliable Yuchai engine, providing 91kw of power.
Can this rig use different drilling methods?
Yes, it features a dual system capability that supports both air power systems with compressors and mud pump systems.
What are the hole diameter specifications?
The FY350 supports hole diameters ranging from 140mm up to 325mm, depending on the requirements.
What is the lifting capacity of the rig?
The rig has a substantial lifting force of 22 Tons, ensuring stable operation during deep drilling.
